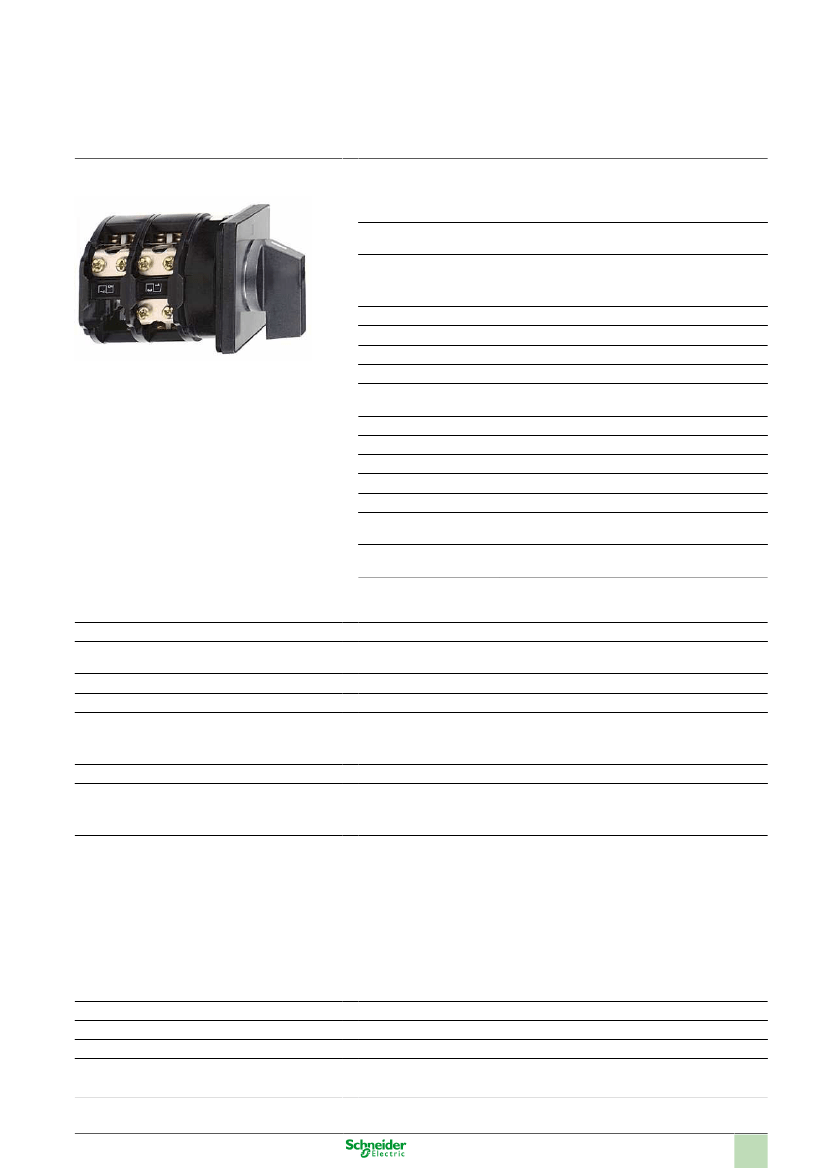

Product data sheet
Characteristics
K150F013UP
cam changeover switch - 3-pole - 60° - 150 A -
screw mounting
Main
Range of product
Product or component
type
Component name
[Ith] conventional free
air thermal current
Product mounting
Fixing mode
Cam switch head type
Type of operator
Rotary handle padlock-
ing
Presentation of legend
Cam switch function
Return
Off position
Poles description
Switching positions
IP degree of protection
Harmony K
Complete cam switch
K150
150 A
Front mounting
4 holes
With front plate 88 x 88 mm
Black handle
Without
With metallic legend, 1 - 2 black marking
Changeover switch
Without
Without Off position
3P
Left: 330°
Right: 30°
IP40 conforming to NF C 20-010
IP40 conforming to IEC 529
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Complementary
Switching angle
[Ui] rated insulation voltage
Short-circuit current
Short circuit protection
[Uimp] rated impulse withstand voltage
Contacts operation
Positive opening
Electrical connection
Tightening torque
Switching capacity in mA
30 °
690 V degree of pollution 3 conforming to IEC 60947-1
690 V degree of pollution 3 conforming to EN 60947-1
25000 A
200 A by cartridge fuse, type gG
6 kV conforming to IEC 947-1
6 kV conforming to EN 947-1
Slow-break
With
Captive screw clamp terminals solid, 2 x 70 mm²
Captive screw clamp terminals flexible, 2 x 50 mm²
2.5 N.m
50000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms)
50000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms)
50000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms)
150000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms)
150000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms)
150000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms)
150000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms)
150000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms)
150000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms)
150000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms)
150000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms)
150000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms)
300000 cycles
88 mm
88 mm
172 mm
0.76 kg
Mechanical durability
CAD overall width
CAD overall height
CAD overall depth
Product weight
Jan 18, 2017
1
Environment
Standards
Product certifications
EN/IEC 60947-3
CULus 120 V 7.5 hp 1 phase
CULus 480 V 40 hp 3 phases
CULus 240 V 25 hp 3 phases
CULus 240 V 15 hp 1 phase
TC
-25...55 °C
-40...70 °C
Class II conforming to NF C 20-030
Class II conforming to IEC 60536
Protective treatment
Ambient air temperature for operation
Ambient air temperature for storage
Class of protection against electric shock
2
Product data sheet
Technical Description
K150F013UP
Link Positions (Factory Mounted)
I1
I2
Input 1
Input 2
Marking
Angular Position of Switch
Switching Program
Convention Used for Switching Program Representation
Contact closed
Contact closed in 2 positions and maintained between the 2 positions
Sealed assembly for auto-maintain control
Overlapping contacts
Spring return position: for a switching angle of 90°, spring return is over 30° after the last position (for a maximum of 3 simultaneous
contacts).
5
