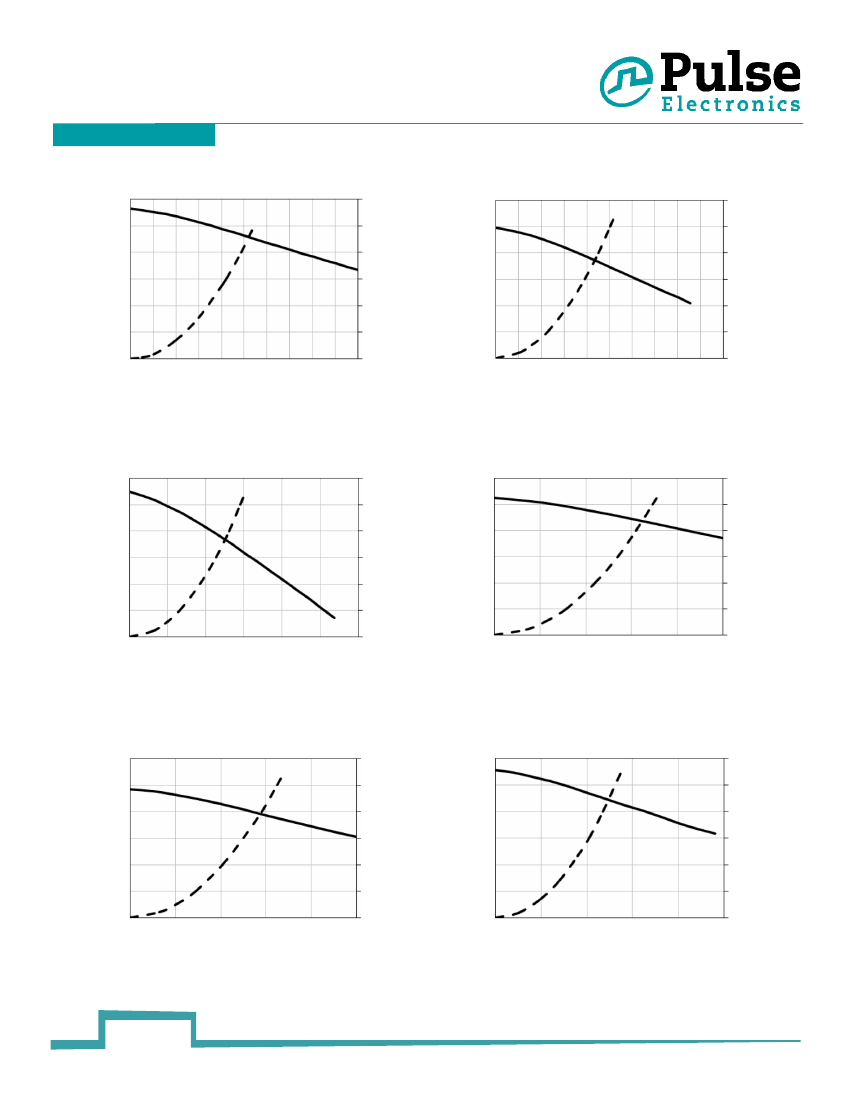

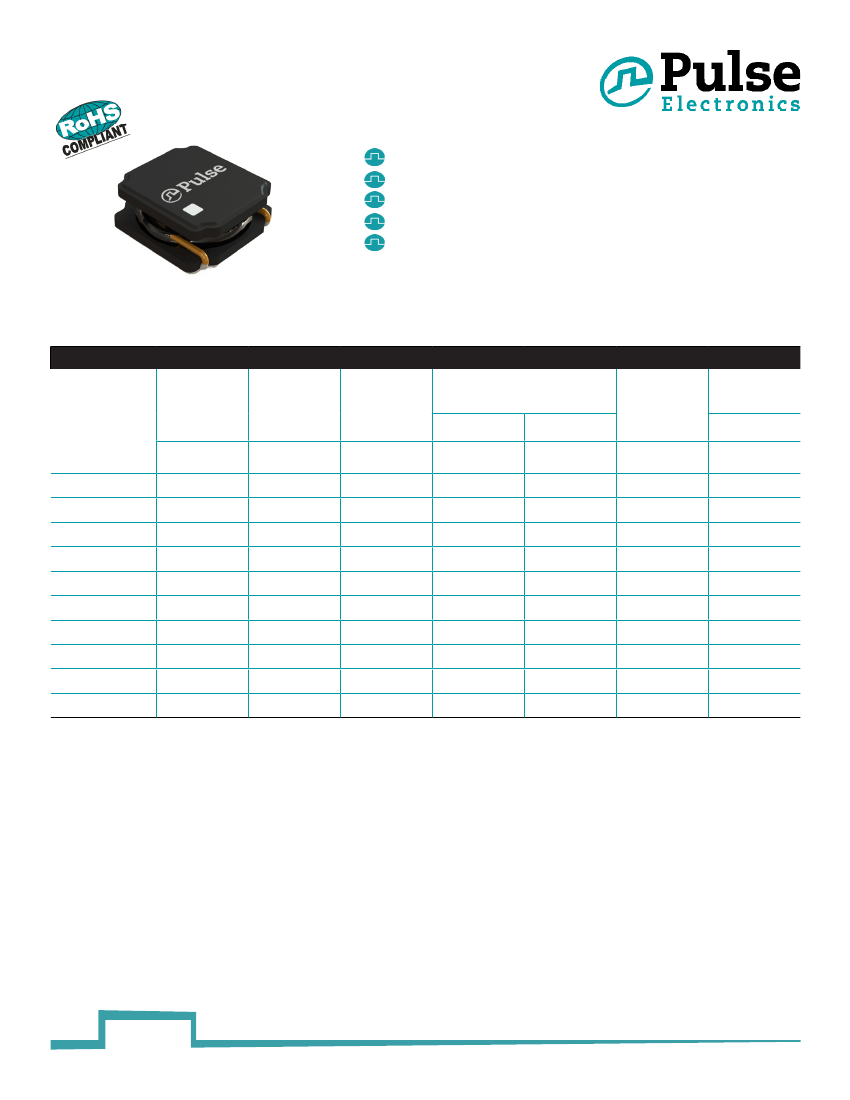

SMT Power Inductor
Shielded Drum Core - PA4331.XXXNLT Series
Height:
1.2mm Max
Footprint:
3.2mm x 3.2mm Max
Current Rating:
up to 4.2A
Inductance Range:
0.33uH to 10uH
Shielded magnetic circuit reduces leakage flux, Fe
base metal core enables high saturation and
metalized core termination results in excellent shock
resistance.
Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Part
Number
PA4331.331NLT
PA4331.471NLT
PA4331.681NLT
PA4331.102NLT
PA4331.152NLT
PA4331.222NLT
PA4331.332NLT
PA4331.472NLT
PA4331.682NLT
PA4331.103NLT
Inductance
1MHz, 1V
uH
±20%
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
Rated
Current
A
4.20
3.90
3.40
2.70
2.50
2.05
1.70
1.30
1.10
1.00
Min.
Self-Resonant
Frequency
MHz
107
86
63
51
37
28
25
20
16
12
DC
Resistance
MAX.
mΩ
27
33
42
54
74
108
155
235
340
474
TYP.
mΩ
23
28
35
45
64
90
129
196
290
395
Saturation
Current
(20½C)
A
7.20
6.80
5.80
4.20
3.40
2.80
2.20
2.00
1.60
1.20
Heating
Current
∆
T
≈
40½C
A
4.20
3.90
3.40
2.70
2.50
2.05
1.70
1.30
1.10
1.00
Notes:
1. Actual temperature of the component during system operation (ambient plus temperature
rise) must be within the standard operating range.
2. The rated current as listed is either the saturation current (@ 20°C) or the heating current
(∆ T
~
40°C) depending on which value is lower.
3. The saturation current is the current at which the initial inductance drops approximately
30% at the stated ambient temperature. This current is determined by placing the compo-
nent in the specified ambient environment and applying a short duration pulse current (to
eliminate self-heating effect) to the component.
4. The heating current is the DC current required to raise the component temperature by
approximately 40°C. Take note that the components’ performance varies depending on
the system condition. It is suggested that the component be tested at the system level, to
verify the temperature rise of the component during system operation.
5. Maximum voltage across terminals to be limited to <40Vdc
USA 858 674 8100
1
Germany 49 2354 777 100
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
P760.D (10/16)
pulseelectronics.com

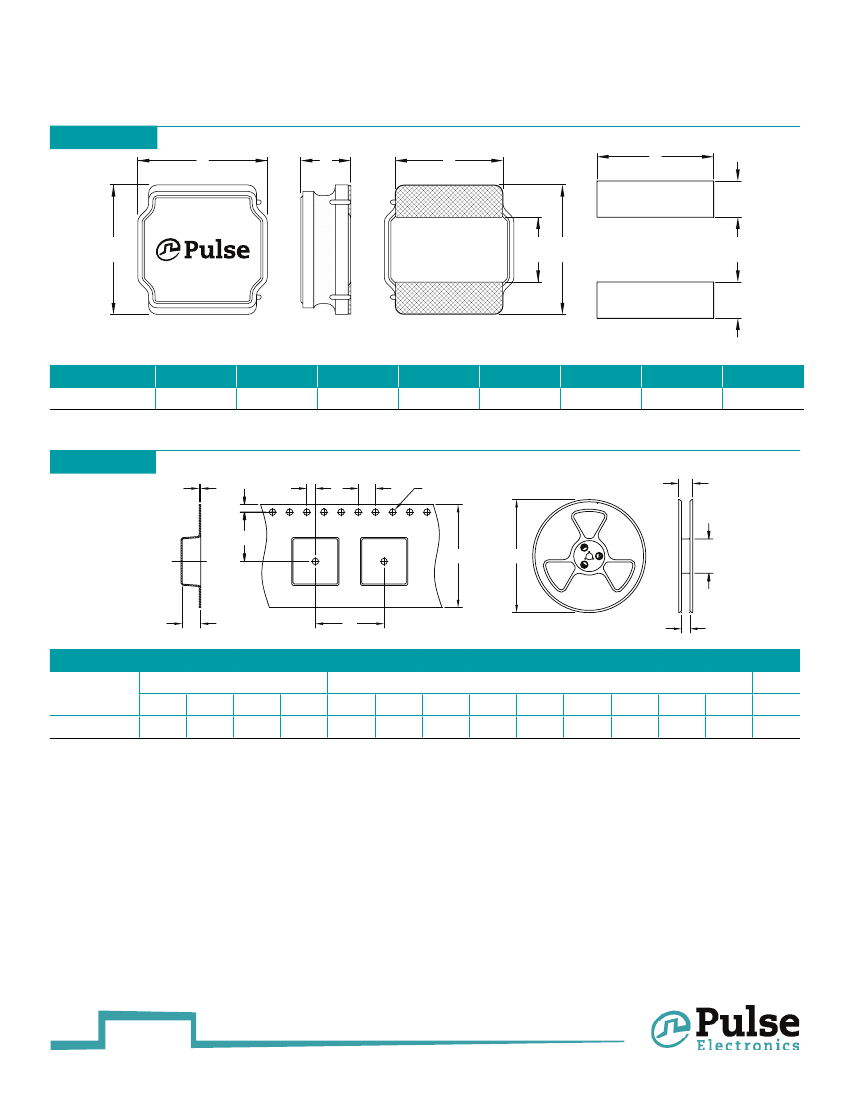

SMT Power Inductor
Shielded Drum Core - PA4331.XXXNLT Series

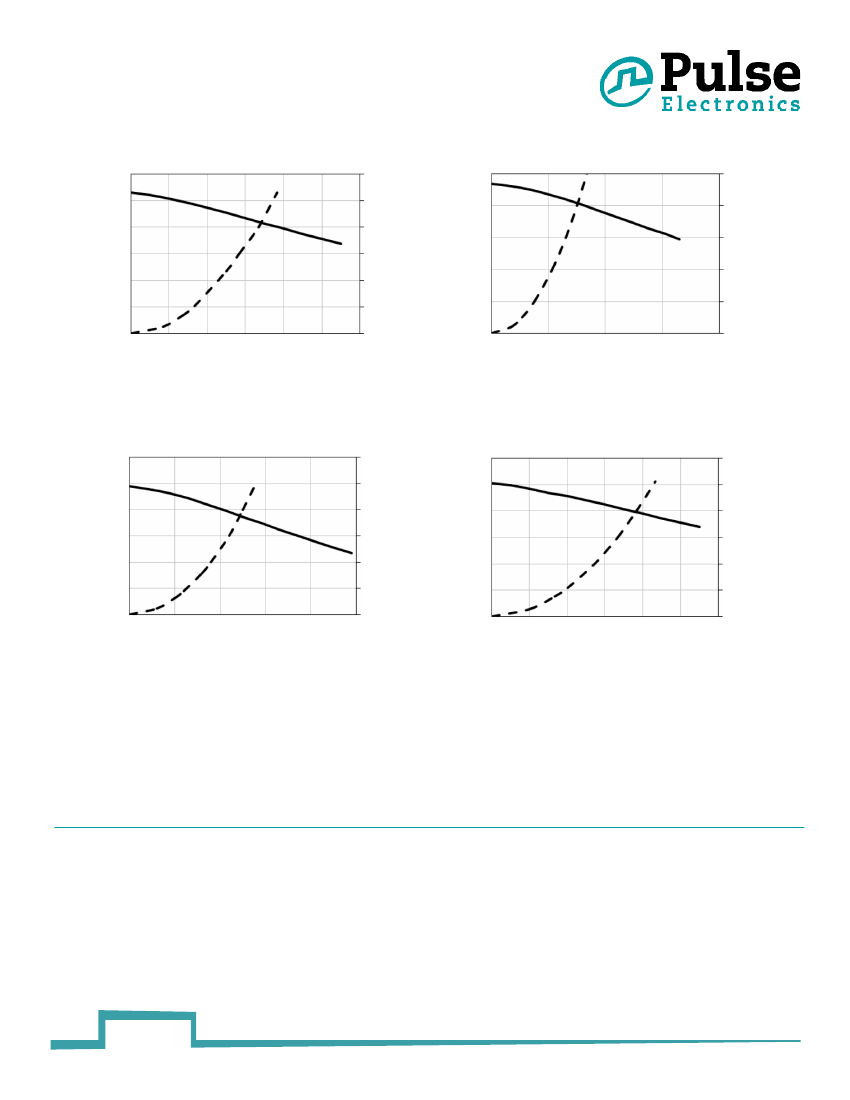

PA4331.332NLT
3.6
3.0
60
50
5.0
4.0
PA4331.472NLT
50
40
INDUCTANCE (uH)
INDUCTANCE (uH)
2.4
1.8
1.2
0.6
0.0
0.0
0.6
1.2
1.8
2.4
3.0
3.6
40
30
20
10
0
TEMP.RISE (°C)
3.0
30
2.0
20
1.0
0.0
0.0
1.0
2.0
3.0
4.0
10
0
DC CURRENT(A)
DC CURRENT(A)
PA4331.682NLT
8.0
7.0
60
50
PA4331.103NLT
12.0
10.0
60
50
40
30
20
10
0
0.0
0.3
0.6
0.9
1.2
1.5
1.8
INDUCTANCE (uH)
INDUCTANCE (uH)
6.0
5.0
4.0
3.0
2.0
0.0
0.5
1.0
1.5
2.0
2.5
40
30
20
10
0
8.0
6.0
4.0
2.0
0.0
DC CURRENT(A)
DC CURRENT(A)
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Tel: 858 674 8100
Fax: 858 674 8262
Pulse Europe
Pulse Electronics GmbH
Am Rottland 12
58540 Meinerzhagen
Germany
Tel: 49 2354 777 100
Fax: 49 2354 777 168
Pulse China Headquarters
B402, Shenzhen Academy of
Aerospace Technology Bldg.
10th Kejinan Road
High-Tech Zone
Nanshan District
Shenzhen, PR China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Road West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
135 Joo Seng Road
#03-02
PM Industrial Bldg.
Singapore 368363
Tel: 65 6287 8998
Fax: 65 6287 8998
Pulse North Asia
3F, No. 198
Zhongyuan Road
Zhongli City
Taoyuan County 320
Taiwan R. O. C.
Tel: 886 3 4356768
Fax: 886 3 4356823 (Pulse)
Fax: 886 3 4356820 (FRE)
