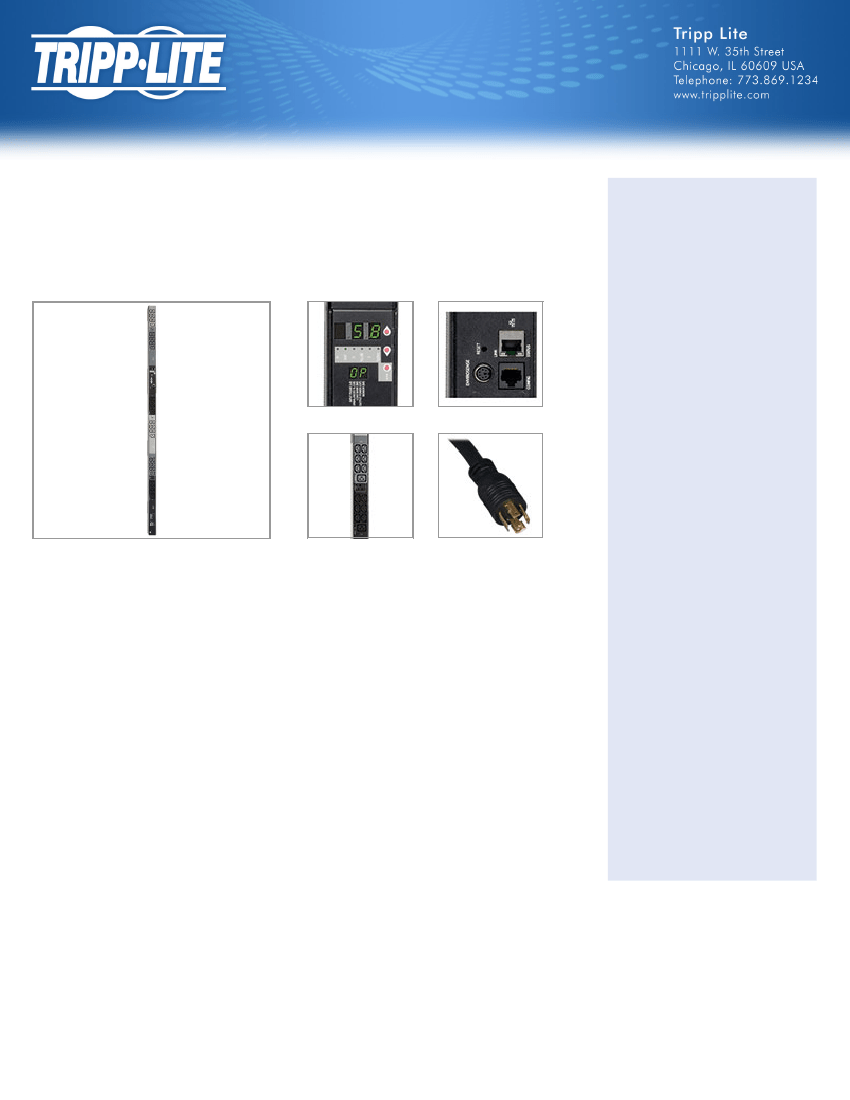

5.8kW 3-Phase Monitored PDU, 208/120V Outlets
(36 C13, 6 C19, 3 5-15/20R), L21-20P, 6ft Cord, 0U
Vertical, TAA
MODEL NUMBER:
PDU3VN6L2120
Highlights
q
Monitored 5.8kW 3 Phase 208V
input PDU with 208 & 120V
output; 70 in. / 178cm 0U
vertical rackmount
q
Reports voltage & load per-
phase via ethernet interface
q
1% billing-grade accuracy, Multi-
function digital display,
Environmental monitoring
options
q
NEMA L21-20P 3 phase input; 6
ft. / 1.8m line cord
q
36 C13 & 6 C19 208v outlets,
plus 3 NEMA 5-15/20R 120V
outlets
q
Temperature, humidity and
contact closure monitoring
options, Plug-lock cable
retention sleeves
Description
Tripp Lite 3 phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage
and load levels via built-in network connection. PowerAlert interface supports custom notification of user-
specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU output current
consumption in amps is displayed per-phase via front panel lighted digital display and can be monitored
remotely to warn of potential overloads before critical IT mains breakers trip.
q
TAA Compliant
Package Includes
q
Monitored rackmount PDU with
pre-installed mounting buttons
Features
q
5.8kW 3 phase 208V input PDU with 208 & 120V output Monitored Power Distribution Unit / PDU with
q
C14 and C20 Plug-lock cable
retention sleeves
built-in web/network interface
q
Attached NEMA L21-20P 3 phase input; 6 ft. / 1.8m cord
q
Spare installation buttons (2
9mm / 4 6mm)
q
0U, 70 inch / 178cm vertical form factor
36 C13 (208V), 6 C19 (208V) and 3 NEMA 5-15/20R (120V) outlets in 3 single phase output load banks
q
q
Rack mounting brackets
Owner's manual
q
Network interface provides PDU data regarding input voltage and per-phase load levels with +/-1%
q
billing-grade accuracy
q
Built-in local digital display and remote web/network interface reports detailed voltage, amperage and
kilowatt output values per phase with additional reporting options for power unbalance percentage, IP
address and sensor* based temperature and humidity data (*requires ENVIROSENSE sensor)
q
In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack
access notification with up to 4 optional SRSWITCH door sensors
q
Local display supports electronic 180 degree display rotation for overhead or under-floor input cable
orientation
q
Supports user-specified alarm notification thresholds
1/4
q
DHCP/Manual configuration support
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2,
SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
q
q
q
q
q
q
q
Fully compatible with FREE PowerAlert Network Management System / NMS Software
Included set of Plug-lock inserts keep C14 power cords solidly connected to PDU outlets
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for
other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons
included)
q
q
q
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Specifications
OVERVIEW
UPC Carton UPC#
PDU Type
037332180988
Monitored
OUTPUT
Output Capacity Details
Frequency Compatibility
Output Receptacles
Output Receptacle Details
Output Nominal Voltage
Overload Protection
5.7kW (208/120V) total capacity; 9.2A (208V) max per output phase (L1-L2, L2-L3, L3-L1) / 16A (120V) max per
output phase (L1, L2, L3)
50 / 60 Hz
(3) 5-15/20R; (36) C13; (6) C19
5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output
120; 208
n/a
INPUT
PDU Input Voltage
Recommended Electrical Service
Maximum Input Amps
PDU Plug Type
Input Cord Length (ft.)
Input Cord Length (m)
208
20A 208V with NEMA L21-20R outlet
16
NEMA L21-20P
6
1.83
2/4
Input Phase
3-Phase
USER INTERFACE, ALERTS & CONTROLS
Reported Load Segments
Supports monitoring of input current per phase (L1, L2, L3) and output current for each output load bank (B1-B6);
Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets (B1);
L2-L3 feeds dark-gray C13/C19 outlets (B2); L3-L1 feeds light-gray C13/C19 outlets (B3); L1-N feeds black 5-20R
outlet (B4); L2-N feeds dark-gray 5-20R outlet (B5); L3-N feeds light-gray 5-20R outlet (B6)
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity*
information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large
display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V),
Unbalance percentage (%UB), Temperature (T), Humidity (%RH); 3 additional multi-color LEDs offer power
availability information for each pair of output load banks (Bank 1&4 / Bank 2&5 / Bank 3&6): GREEN (<80% load),
YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)
Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options;
Additional MODE button advances the LEDs to view the next measurement
Front Panel LCD Display
Front Panel LEDs
Switches
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Material of Construction
Form Factors Supported
PDU Form Factor
75.870 x 9.650 x 7.090
192.71 x 24.51 x 18.01
17.7500
8.05
70 x 2.17 x 2.49
177.8 x 5.5 x 6.3
13.50
6.12
Metal
Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-
mount compatible racks
Vertical (0U)
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
Operating Elevation (ft.)
Operating Elevation (m)
32 to 122F (0 to 50C)
5 to 140F (-15 to 60C)
5 to 95% non-condensing
0-10,000
0-3000
COMMUNICATIONS
SNMP Compatibility
Yes, pre-installed <a class="productLink" href="//www.tripplite.com/SNMP-Web-Management-Accessory-
Card-SmartPro-SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> provides remote
monitoring via web, telnet, SSH and SNMP management systems
CERTIFICATIONS
3/4
Certifications
Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
WARRANTY
Product Warranty Period
(Worldwide)
2-year limited warranty
