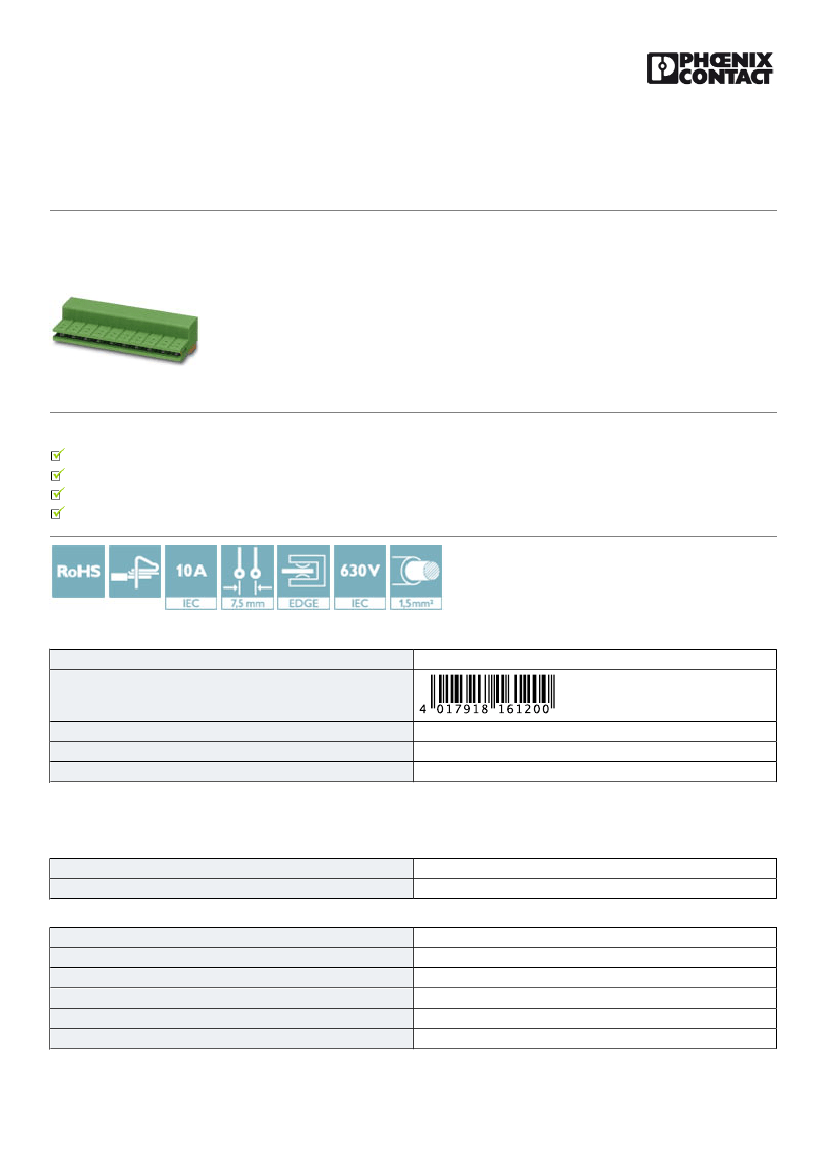

Printed-circuit board connector - ZEC 1,5/11-ST-7,5 C2 R1,11 - 1883239
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Direct connector, Nominal current: 10 A, Rated voltage (III/2): 630 V, Number of positions: 11, Pitch: 7.5 mm,
Connection method: Spring-cage connection, Color: green, Contact surface: Tin, Mounting: Direct plug-in
method
The illustration shows an 10-
position version
Why buy this product
Defined contact force ensures that contact remains stable over the long term
Inexpensive direct plug-in connection with just one component
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Plug-in direction parallel to the PCB
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918161200
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Pitch
Dimension a
7.50 mm
82.5 mm
General
Range of articles
Type of contact
Number of positions
Connection method
Insulating material group
Rated surge voltage (III/3)
ZEC 1,5/..-ST
Female connector
11
Spring-cage connection
I
6 kV
11/14/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1883239
Printed-circuit board connector - ZEC 1,5/11-ST-7,5 C2 R1,11 - 1883239
Technical data
General
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
6 kV
6 kV
400 V
630 V
1000 V
EN-VDE
10 A
1.5 mm²
10 A (with 1.5 mm² conductor cross section)
PA
V0
A1
7 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.25 mm²
1.5 mm²
24
16
0.5 mm²
0.5 mm²
26
14
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

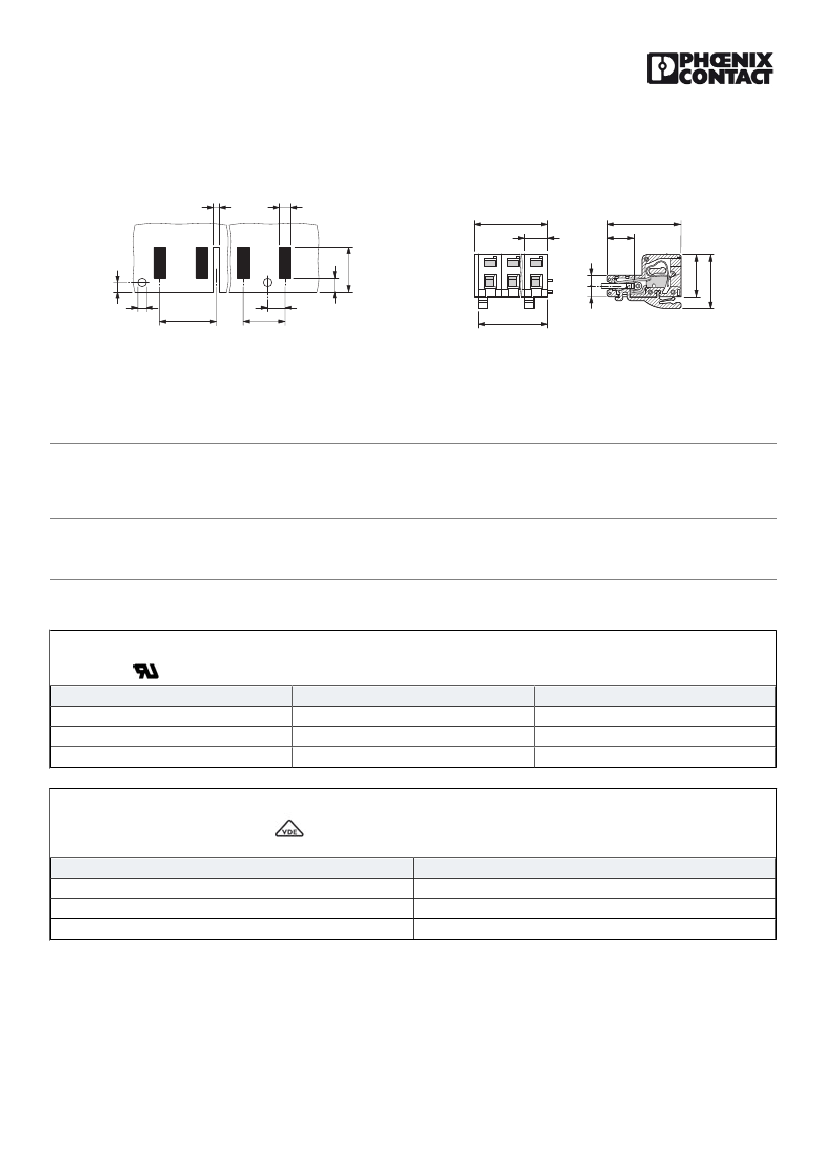

Drawings
11/14/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1883239
Printed-circuit board connector - ZEC 1,5/11-ST-7,5 C2 R1,11 - 1883239
Drilling diagram
1
2
Dimensional drawing
a+1,4
7,5
3,5
24,05
8,7
1,7
13,7
8
10,2
7,5
a
Size of the PCB: 1.6 ± 0.2 mm
Approvals
Approvals
Approvals
UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / CCA / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-14
10 A
300 V
D
26-14
10 A
300 V
VDE Gutachten mit Fertigungsüberwachung
Search.aspx 40020343
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-
0.2-1.5
10 A
400 V
3,5
1,7
3,15
2,5
11/14/2016 Page 3 / 4
17,5
https://www.phoenixcontact.com/hq/products/1883239
Printed-circuit board connector - ZEC 1,5/11-ST-7,5 C2 R1,11 - 1883239
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-14
10 A
300 V
D
26-14
10 A
300 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ DE1-51128
10 A
1000 V
CCA DE1 34215
Nominal current IN
Nominal voltage UN
10 A
1000 V
EAC B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
