PIC32MZ2025DAH169T-I-6J Overview

32-bit Microcontrollers - MCU 32-bit cache-based MCU, Graphics Integrated, stacked DDR2

PIC32MZ2025DAH169T-I-6J Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Microchip
Product Category	32-bit Microcontrollers - MCU
Shipping Restrictions	This product may require additional documentation to export from the United States.
RoHS	Details
Packaging	Reel
Factory Pack Quantity	1500

Preview

Download Datasheet

View All

PIC32MZ Graphics (DA) Family

32-bit Graphics Applications MCUs (up to 2 MB Live Update Flash,

640 KB SRAM, and 32 MB DDR2 SDRAM) with XLP Technology

Operating Conditions

• 2.2V to 3.6V, -40ºC to +85ºC, DC to 200 MHz

• 2.2V to 3.6V, -40ºC to +105ºC (Planned)

Core: 200 MHz / 330 DMIPS MIPS32

microAptiv™

•

32 KB I-Cache, 32 KB D-Cache

MMU for optimum embedded OS execution

microMIPS™ mode for up to 35% smaller code size

DSP-enhanced core:

- Four 64-bit accumulators

- Single-cycle MAC, saturating and fractional math

• Code-efficient (C and Assembly) architecture

Advanced Analog Features

• 12-bit ADC modules:

- 18 Msps with up to six ADC circuits (five dedicated and one

shared)

- Up to 45 analog input

- Can operate during Sleep and Idle modes

- Multiple trigger sources

- Six Digital Comparators and six Digital Filters

• Two Comparators with 32 programmable voltage references

• Temperature sensor with ±2ºC accuracy

• Charge Time Measurement Unit (CTMU)

Clock Management

•

Programmable PLLs and oscillator clock sources

Dedicated PLL for DDR2

Fail-Safe Clock Monitor

Independent Watchdog and Deadman Timers

Fast wake-up and start-up

Communication Interfaces

• Two CAN modules (with dedicated DMA channels):

- 2.0B Active with DeviceNet™ addressing support

• Six UART modules (25 Mbps):

- Supports up to LIN 2.1 and IrDA

protocols

• Six 4-wire SPI modules (up to 50 MHz)

• SQI configurable as additional SPI module (up to 80 MHz)

• Five I

C modules (up to 1 Mbaud) with SMBus support

• Parallel Master Port (PMP)

• Peripheral Pin Select (PPS) to enable function remap

Power Management

• Various power management options for extreme power

reduction (V

BAT

, Deep Sleep, Sleep and Idle)

• Deep Sleep current: < 1 µA (typical)

• Integrated POR and BOR

• Programmable High/Low-Voltage Detect (HLVD) on V

DDIO

and High-Voltage Detect (HVD) on V

DDR1V8

Timers/Output Compare/Input Capture

•

Nine 16-bit and up to four 32-bit timers/counters

Nine Output Compare (OC) modules

Nine Input Capture (IC) modules

Real-Time Clock and Calendar (RTCC) module

5V-tolerant pins with up to 32 mA source/sink

Selectable open drain, pull-ups, and pull-downs

Selectable slew rate control

External interrupts on all I/O pins

PPS to enable function remap

Memory Interfaces

•

DDR2 SDRAM interface (up to DDR2-400)

SD/SDIO/eMMC bus interface (up to 50 MHz)

Serial Quad Interface (up to 80 MHz)

External Bus Interface (up to 50 MHz)

Input/Output

Graphics Features

• 3-layer Graphics Controller with up to 24-bit color support

• High-performance 2D Graphics Processing Unit (GPU)

Audio Interfaces

• Audio data communication: I

S, LJ, and RJ

• Audio control interfaces: SPI and I

• Audio master clock: Fractional clock frequencies with USB

synchronization

Qualification and Class B Support

• AEC-Q100 REVG (Grade 2 -40ºC to +105ºC) (Planned)

• Class B Safety Library, IEC 60730

• Back-up internal oscillator

High-Speed Communication Interfaces (with

Dedicated DMA)

• USB 2.0-compliant High-Speed On-The-Go (OTG) controller

• 10/100 Mbps Ethernet MAC with MII and RMII interface

Debugger Development Support

•

In-circuit and in-application programming

4-wire MIPS

Enhanced JTAG interface

Unlimited software and 12 complex breakpoints

IEEE 1149.2-compatible (JTAG) boundary scan

Non-intrusive hardware-based instruction trace

C/C++ compiler with native DSP/fractional support

MPLAB

Harmony Integrated Software Framework

TCP/IP, USB, Graphics, and mTouch™ middleware

MFi, Android™, and Bluetooth

audio frameworks

Security Features

• Crypto Engine with a RNG for data encryption/decryption and

authentication (AES, 3DES, SHA, MD5, and HMAC)

• Advanced memory protection:

- Peripheral and memory region access control

Integrated Software Libraries and Tools

Direct Memory Access (DMA)

• Eight channels with automatic data size detection

• Programmable Cyclic Redundancy Check (CRC)

• RTOS Kernels: Express Logic ThreadX, FreeRTOS™,

OPENRTOS

, Micriµm

µC/OS™, and SEGGER embOS

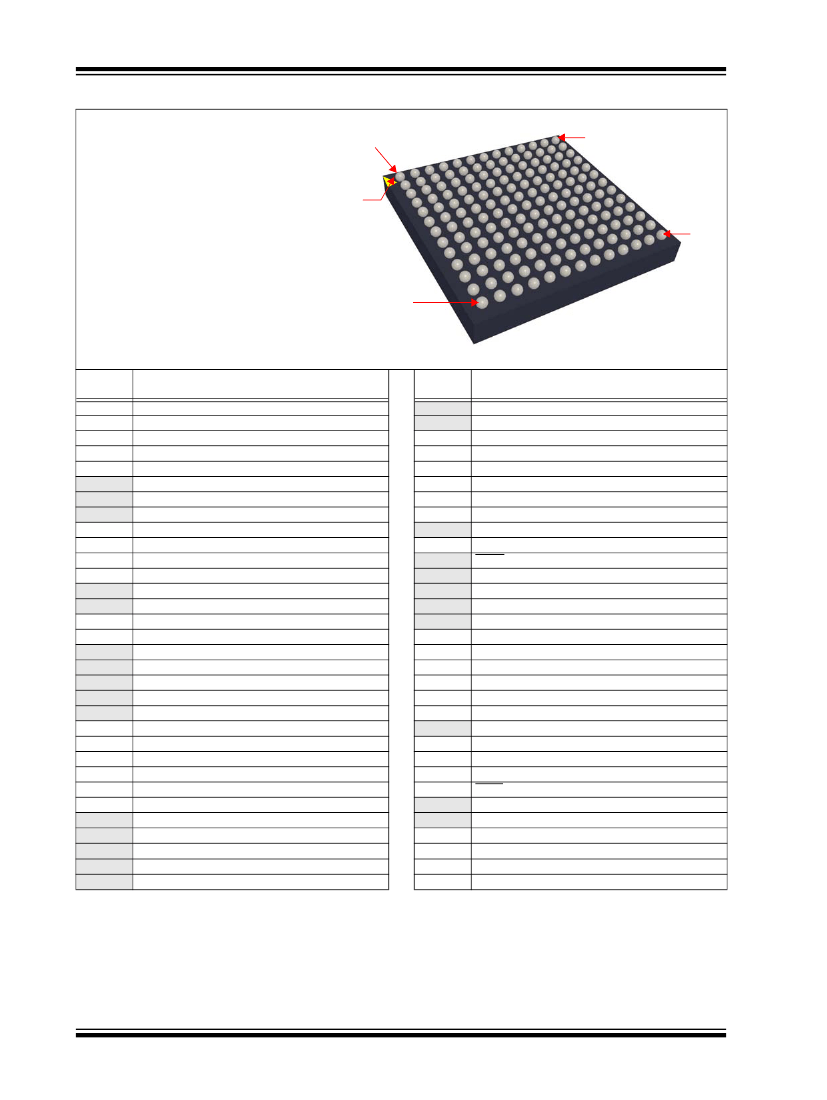

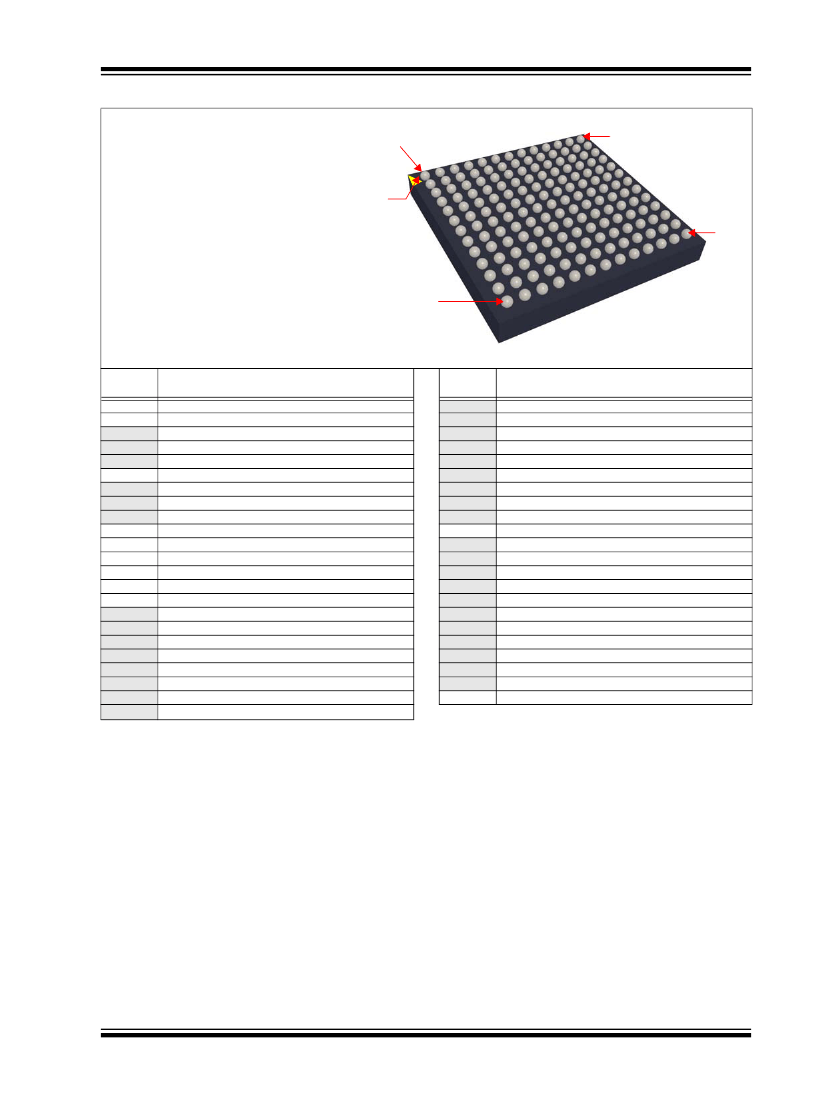

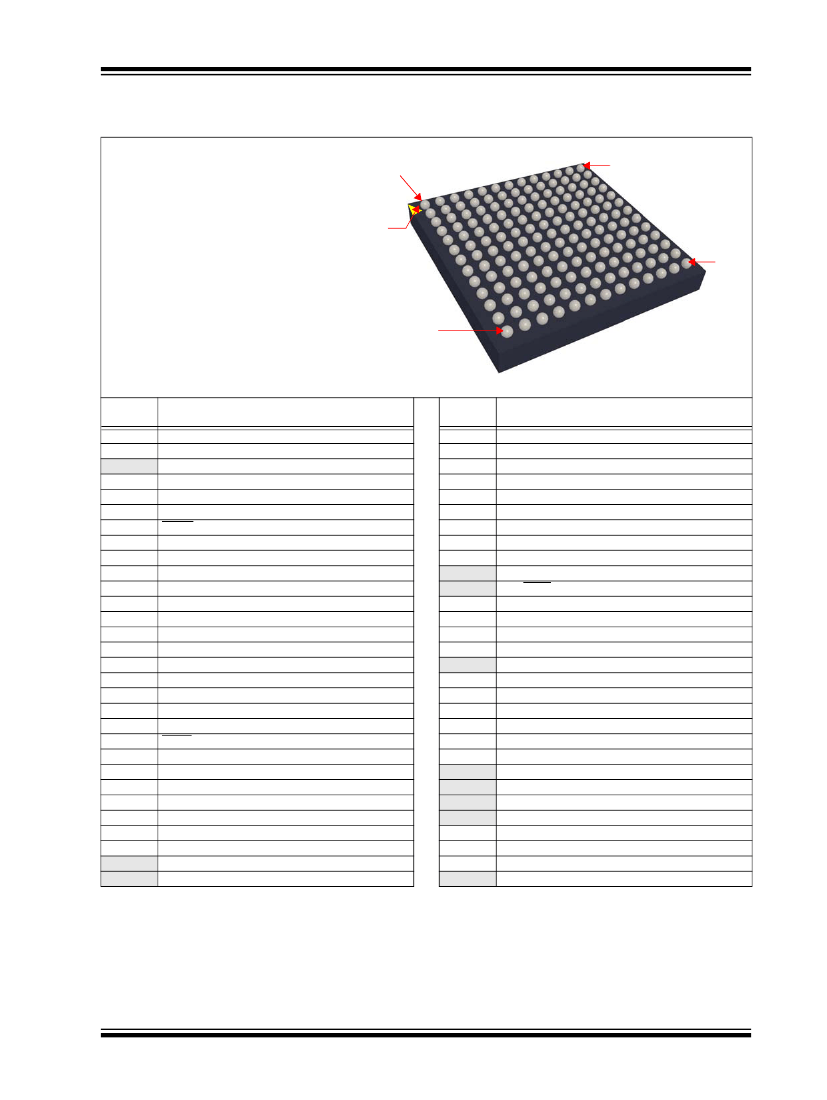

Packages

Type

Pin Count

I/O Pins (up to)

Contact/Lead Pitch

Dimensions

169

120

0.8 mm

11x11 mm

LFBGA

288

120

0.8 mm

15x15 mm

LQFP

176

120

0.4 mm

20x20 mm



2015-2018 Microchip Technology Inc.

DS60001361G-page 1
