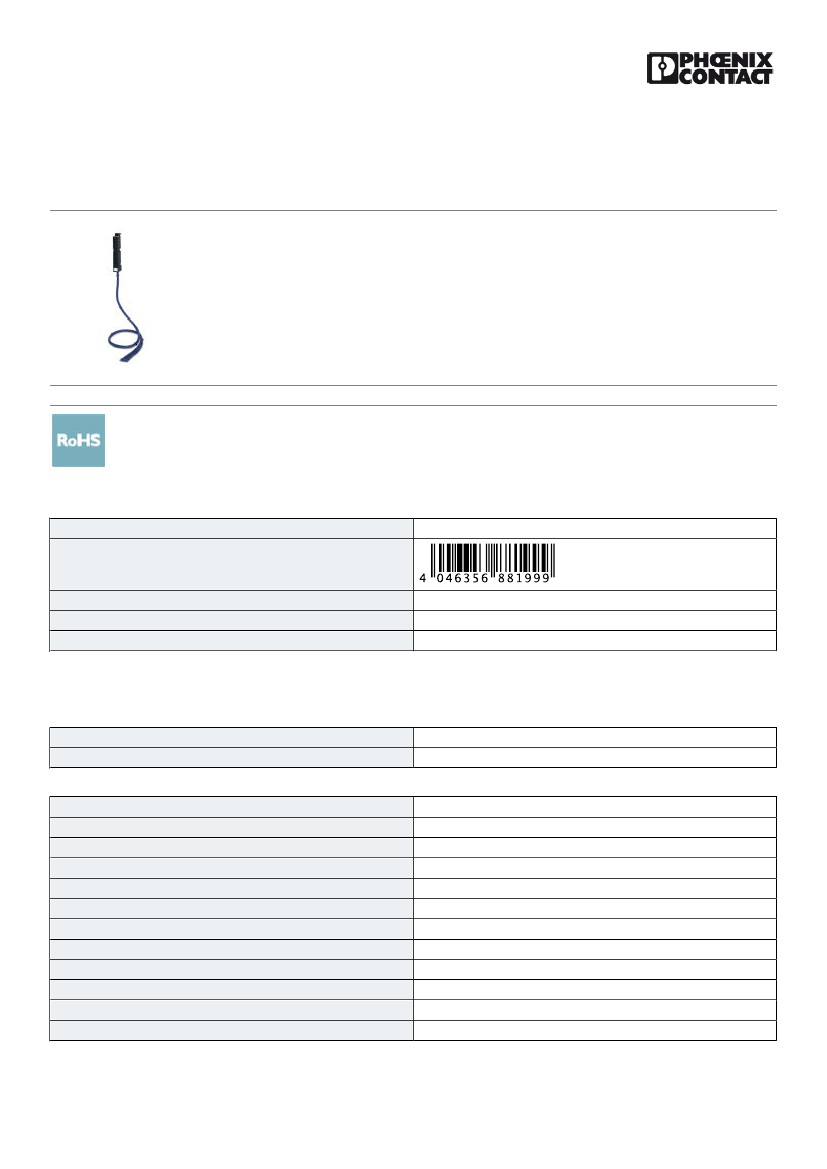

Front adapters - VIP-PA-PWR/20XOE/ 6,0M/S7 - 2904728
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
VIP power cabling, universal front adapter for connection to all popular 20-pos. SIMATIC S7-300 I/O modules,
via 20 individual wires in rope structure, not assembled (field connection, e.g., via 20 modular terminal
blocks), Cable length: 6 m
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356881999
85444290
Made to Order (non-returnable)
1 STK
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 60 °C
-20 °C ... 80 °C
General
Nominal voltage U
N
Max. permissible current
≤ 250 V AC/DC
6 A (per single wire at 40°C)
4 A (per single wire at 60°C)
750 mA (per single wire at 75 °C)
Max. permissible total current
Mounting position
Nominal operating mode
Degree of protection
Standards/regulations
20 A (per cable at 40 °C)
16 A (per cable at 60°C)
any
100% operating factor
IP20
DIN EN 50178
IEC 60664
IEC 62103
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/2904728
Front adapters - VIP-PA-PWR/20XOE/ 6,0M/S7 - 2904728
Technical data
General
Rated insulation voltage
Rated surge voltage
Overvoltage category
260 V
2.3 kV (basic insulation)
II
Connection data 1
Connection name
Connection method
Note
Controller level
Plug connection
Can be plugged onto 20-pos. I/O modules
Connection data 2
Connection name
Connection method
Number of connections
Number of positions
Field level
open cable end
20
1
Cable
Individual wires per module
Single wire, material
Single wire, cross section
External diameter
Length of cable
Max. conductor resistance
16
Cu uninsulated
0.5 mm²
9 mm
6m
≤ 39 Ω/km
Supported controller
Controller
- suitable I/O card
SIEMENS S7-300 / ET 200 M
6ES7 321-1BH02-0AA0
6ES7 321-1BH10-0AA0
6ES7 321-7BH01-0AB0
6ES7 321-1BH50-0AA0
6ES7 321-1CH20-0AA0
6ES7 321-1FH00-0AA0
6ES7 321-1FF01-0AA0
6ES7 322-1FL00-0AA0
6ES7 322-1BH01-0AA0
6ES7 322-1BH10-0AA0
6ES7 322-1FH00-0AA0
6ES7 322-1BF01-0AA0
6ES7 322-8BF00-0AB0
6ES7 322-1CF00-0AA0
6ES7 322-1FF01-0AA0
6ES7 322-1HH01-0AA0
6ES7 322-1HF01-0AA0
6ES7 323-1BH01-0AA0
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/2904728
Front adapters - VIP-PA-PWR/20XOE/ 6,0M/S7 - 2904728
Technical data
Supported controller
6ES7 327-1BH00-0AB0
6ES7 331-7HF01-0AB0
6ES7 331-7KF02-0AB0
6ES7 331-7KB02-0AB0
6ES7 332-7ND02-0AB0
6ES7 332-5HD01-0AB0
6ES7 332-5HB01-0AB0
6ES7 334-0CE01-0AA0
6ES7 334-0KE00-0AB0
6ES7 331-7TF01-0AB0
6ES7 332-8TF01-0AB0
6ES7 336-4GE00-0AB0
Standards and Regulations
Standards/regulations
DIN EN 50178
IEC 60664
IEC 62103
Rated insulation voltage
Rated surge voltage
Overvoltage category
260 V
2.3 kV (basic insulation)
II
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
1
2
3
8
9
10
11
18
19
20
1
2 3
8
8
9 10 11
9 10 11
18 19 20
18 19 20
1 2 3
S7-300
Approvals
Approvals
Approvals
EAC
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/2904728
Front adapters - VIP-PA-PWR/20XOE/ 6,0M/S7 - 2904728
Approvals
Ex Approvals
Approval details
EAC RU C-DE.A*30.B00767
