PHYSICAL INFRASTRUCTURE SYSTEMS

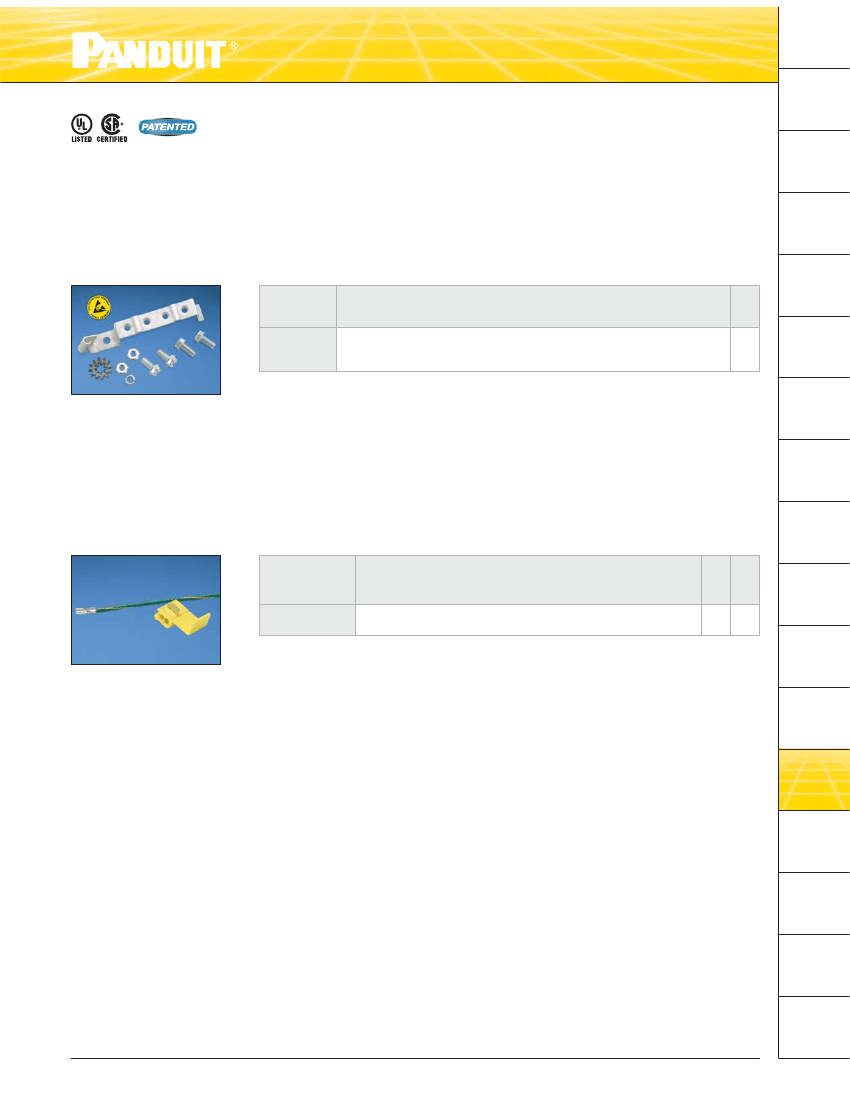

Enclosure Grounding Kit
• Patented bracket provides equipotential bonding and
protection from static electricity for equipment housed
in enclosures
• A discrete grounding point for each piece of equipment
within the enclosure allows equipment to be easily added
or moved without disturbing other grounding connections
• Anti-rotation design prevents one-hole lugs from loosening
• Grounding washer provides a high performance electrical
bond, eliminating the need to manually remove paint
• Built-in ESD port provides a convenient docking station
for ESD wrist strap
• Provides proper bonding of PanZone
®
Active Wall Mount
Enclosure PZAEWM3, see page E.5
A.
System
Overview
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Std.
Pkg.
Part Number
Part Description
Qty.
PZAEGK
One tin-plated copper bracket; 3.92" L x .56" W x .79" H (99.6mm x 14.2mm x 1
20.1mm); provided with four #12-24 screws, one each #10-32 and #10-24 hex
nut, #10 split lock washer, grounding washer and ESD protection sticker.
F.
Wireless
G.
Outlets
H.
Media
Distribution
Shielded Jack Module Grounding Kit
• Alternate method for grounding modules to another grounding wire in shielded applications
Std.
Pkg.
Qty.
10
Std.
Ctn.
Qty.
100
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
Part Number
CJSGK-XY
Part Description
Kit used to ground enhanced Giga-TX
™
Style Shielded Jack
Modules to another ground wire in shielded applications.
N.
Industrial
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Q.
Index
www.panduit.com
For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see
catalog
back cover).
M.23
