PA4345221NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> PA4345221NLT

PA4345221NLT: DescriptionFixed Inductors 0.22uH 15A 2mm 20% Low Prof; CategoryPassive components; File Size361KB，5 Pages; ManufacturerPulse; Environmental Compliance

Download Datasheet Parametric Compare View All

PA4345221NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PA4345221NLT	-	-	View	Buy Now

PA4345221NLT Overview

Fixed Inductors 0.22uH 15A 2mm 20% Low Prof

PA4345221NLT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Shielded
Inductance	220 nH
Tolerance	20 %
Maximum DC Resistance	5.5 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Test Frequency	100 kHz
Termination	-
Mounting Style	PCB Mount
Package / Case	5.4 mm x 6 mm x 2 mm
Length	5.4 mm
Width	6 mm
Height	2 mm
Application	High Current
Qualification	AEC-Q200
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	Fixed Inductors
Factory Pack Quantity	3000

Preview

Download Datasheet

View All

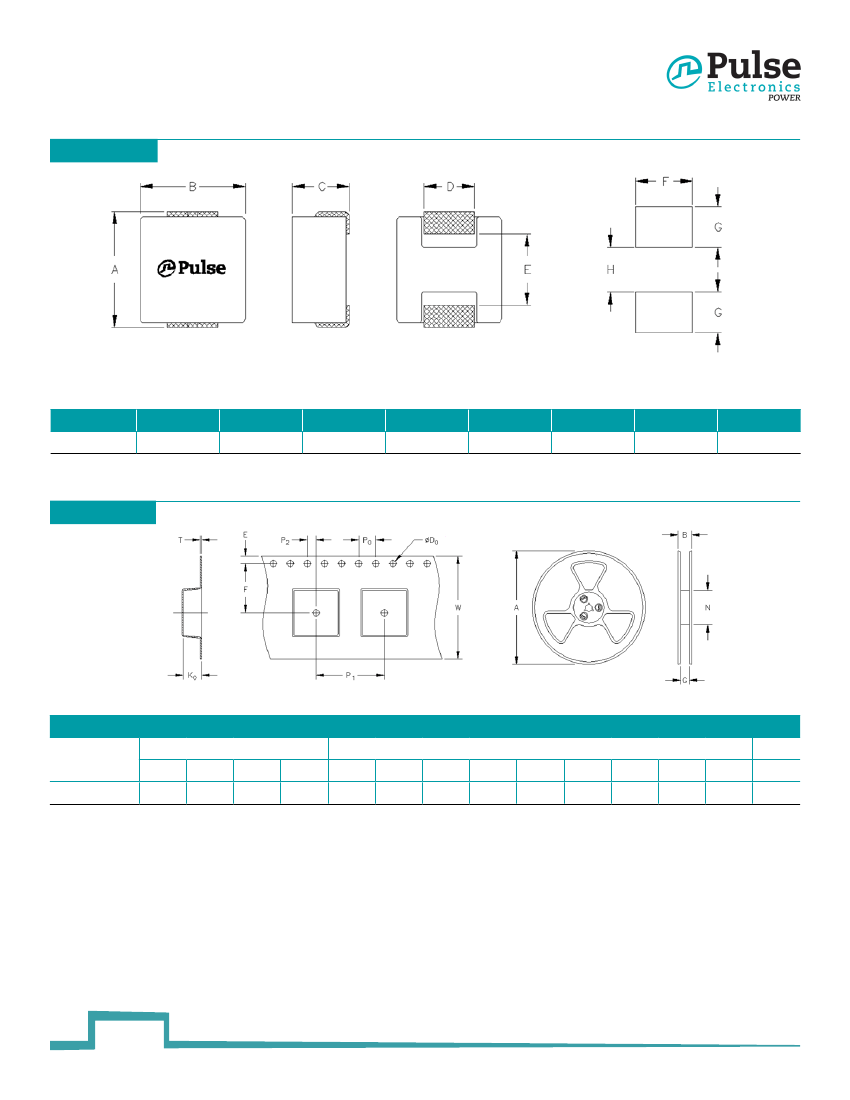

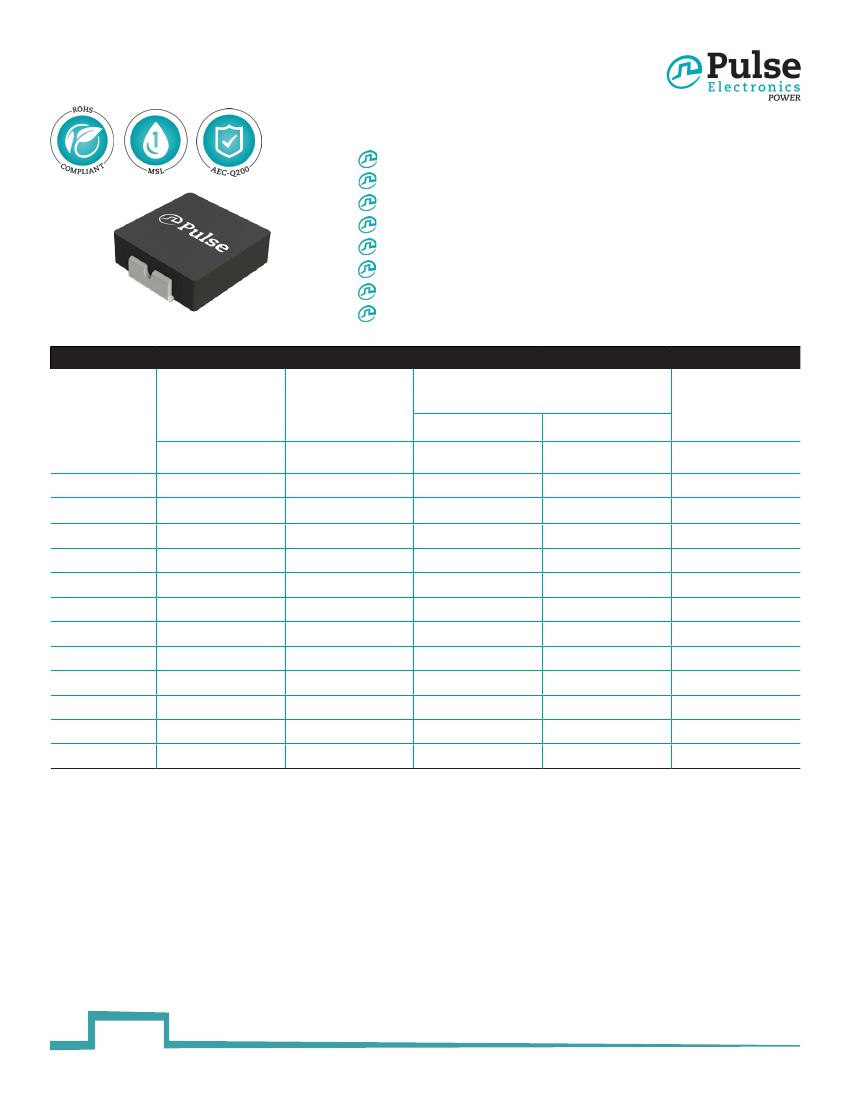

SMT Power Inductor

High Current Molded Power Inductor - PA4345.XXXNLT Series

Height: 2.0mm Max

Footprint: 6.0mm x 5.4mm Max

Current Rating: up to 18.0A

Inductance Range: 0.1uH to 4.7uH

Shielded construction and compact design

High current, low DCR, and high efficiency

Minimized acoustic noise and minimized leakage flux

200Vdc Isolation between terminal and core

Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C

Part

Number

PA4345.101NLT

PA4345.151NLT

PA4345.221NLT

PA4345.241NLT

PA4345.331NLT

PA4345.471NLT

PA4345.681NLT

PA4345.102NLT

PA4345.122NLT

PA4345.152NLT

PA4345.332NLT

PA4345.472NLT

Inductance

100KHz, 1V

0.10±30%

0.15±30%

0.22±20%

0.24±20%

0.33±20%

0.47±20%

0.68±20%

1.0±20%

1.2±20%

1.5±20%

3.3±20%

4.7±20%

Rated

Current

18.0

16.0

15.0

13.0

12.0

11.5

10.0

7.0

6.2

5.5

3.3

2.8

Resistance

MAX.

mΩ

4.0

4.6

5.5

7.0

7.3

8.6

12.4

20.0

28.0

30.5

76.0

116

TYP.

mΩ

3.6

3.8

4.0

6.0

6.3

7.3

11.0

17.5

23.0

26.5

66.0

103

Saturation

Current

Max.

45.0

27.0

25.0

23.0

21.3

18.0

12.8

13.7

11.0

9.8

7.3

5.0

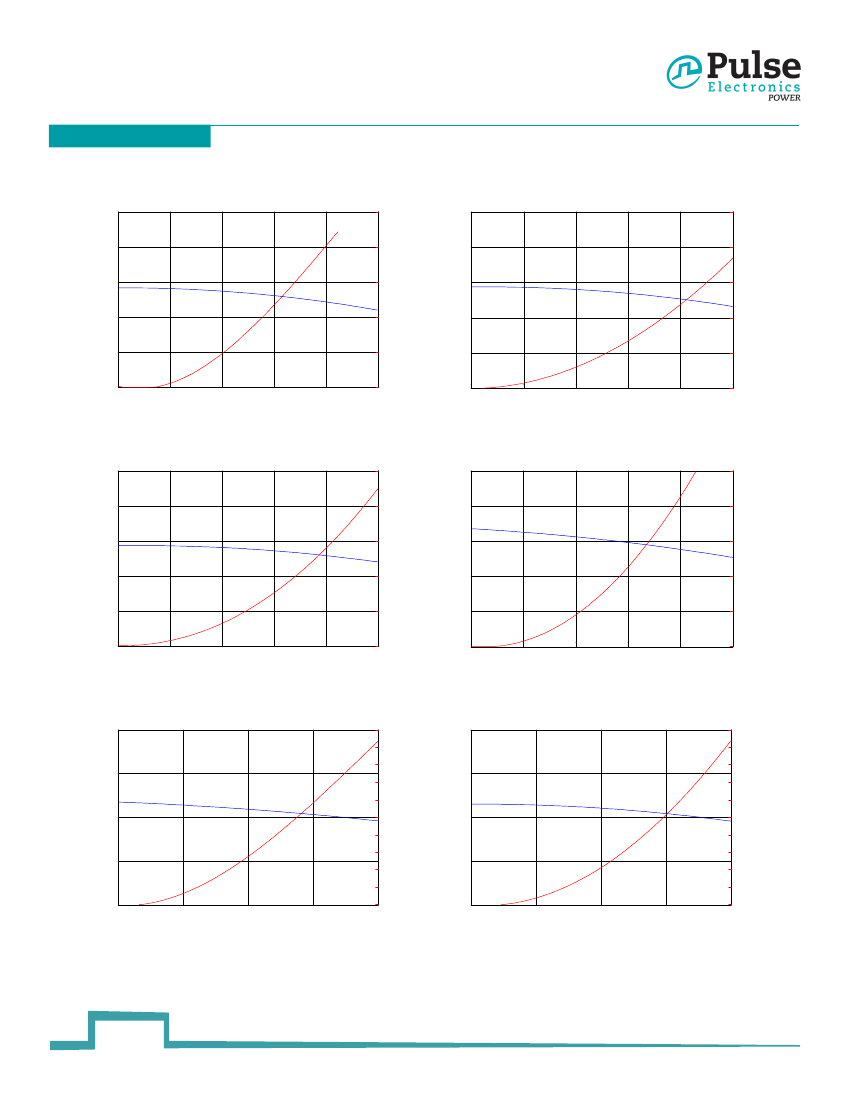

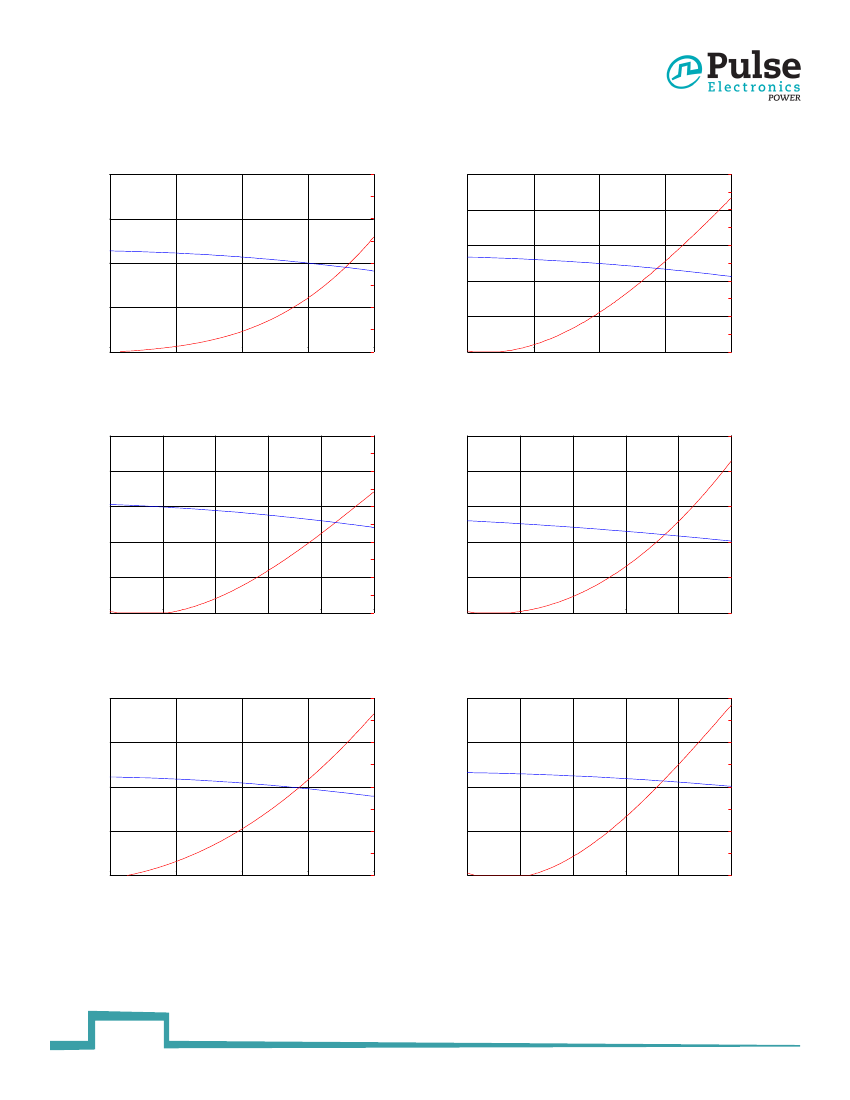

Notes:

1. Actual temperature of the component during system operation (ambient plus tempera- 3.

ture rise) must be within the standard operating range.

2. The saturation current is the current at which the initial inductance drops approximately

30% at the stated ambient temperature. This current is determined by placing the com-

ponent in the specified ambient environment and applying a short duration pulse cur- 4.

rent (to eliminate self-heating effect) to the component.

The rated current is the DC current required to raise the component temperature by

approximately 40½C. Take note that the components’ performanc varies depending on the

system condition. It is suggested that the component be tested at the system level, to

verify the temperature rise of the component during system operation.

The part temperature (ambient+temp rise) should not exceed 125½C under worst case

operating conditions. Circuit design, PCB trace size and thickness, airflow and other cool-

ing provisions all affect the part temperature. Part temperature should be verified in the

end application.

power.pulseelectronics.com

P772.H (11/17)

http://www.power.pulseelectronics.com/contact
