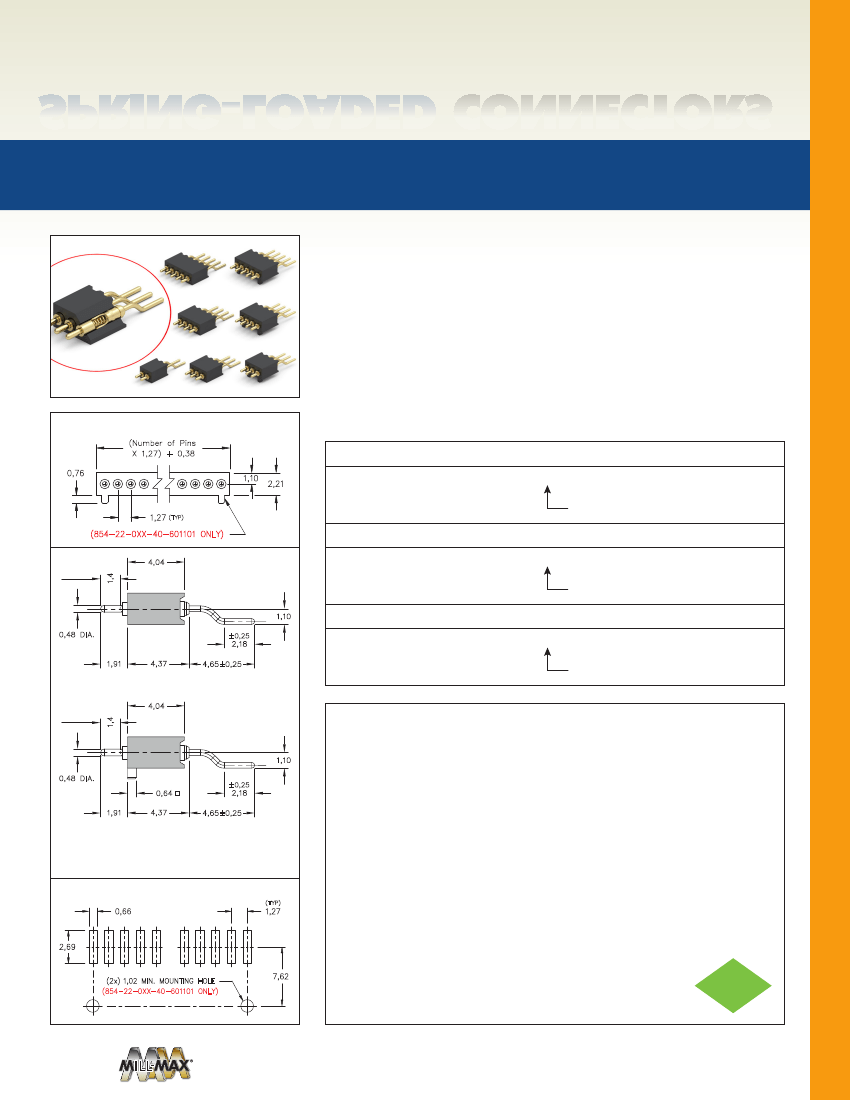

SPRING-LOADED
CONNECTORS
SERIES 854 • 1,27 GRID Z-BEND SURFACE MOUNT •
SINGLE ROW STRIPS
•
Modular contacts for use on 1,27 grid, supplied in single row contact strips. Piston
action is parallel to the board surface
•
Precision-machined piston / base and gold-plated components assure up to 100,000
cycle life durability
•
Pistons have a 0,7 mid. stroke & 1,4 max. stroke
•
Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
•
High temperature thermoplastic insulators are suitable for surface mount soldering
processes
•
854 series contact strips are designed for SMT termination onto printed circuit boards
SINGLE ROW Series 854
ORDERING INFORMATION
Series 854 without Mounting Pegs (Bulk Packaged)
854-22-0XX-40-001101
Specify number of contacts
01-20
Series 854 with Mounting Pegs (Bulk Packaged)
Stroke
854-22-0XX-40-601101
Specify number of contacts
01-20
Series 854 with Mounting Pegs (Tape & Reel Packaged, 2,400 parts per reel)
854-22-0XX-40-601191
854 Series without Mounting Pegs
Stroke
Specify number of contacts
02
854 Series with Mounting Pegs
Coplanarity 0,13. For pin counts >20 positions,
consult Technical Support.
Mechanical:
Spring force @ initial height: 25 grams
Spring force @ mid stroke (0,7): 60 grams
Durability: Up to 100,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW max.
Insulation resistance: 10,000MW min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
Suggested P.C.B. Footprint
7,62
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 18.2 | SPRING-LOADED CONNECTORS
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm gold over
2,54μm nickel
Spring: Beryllium copper-plated 0,25μm gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Technical Specifications
