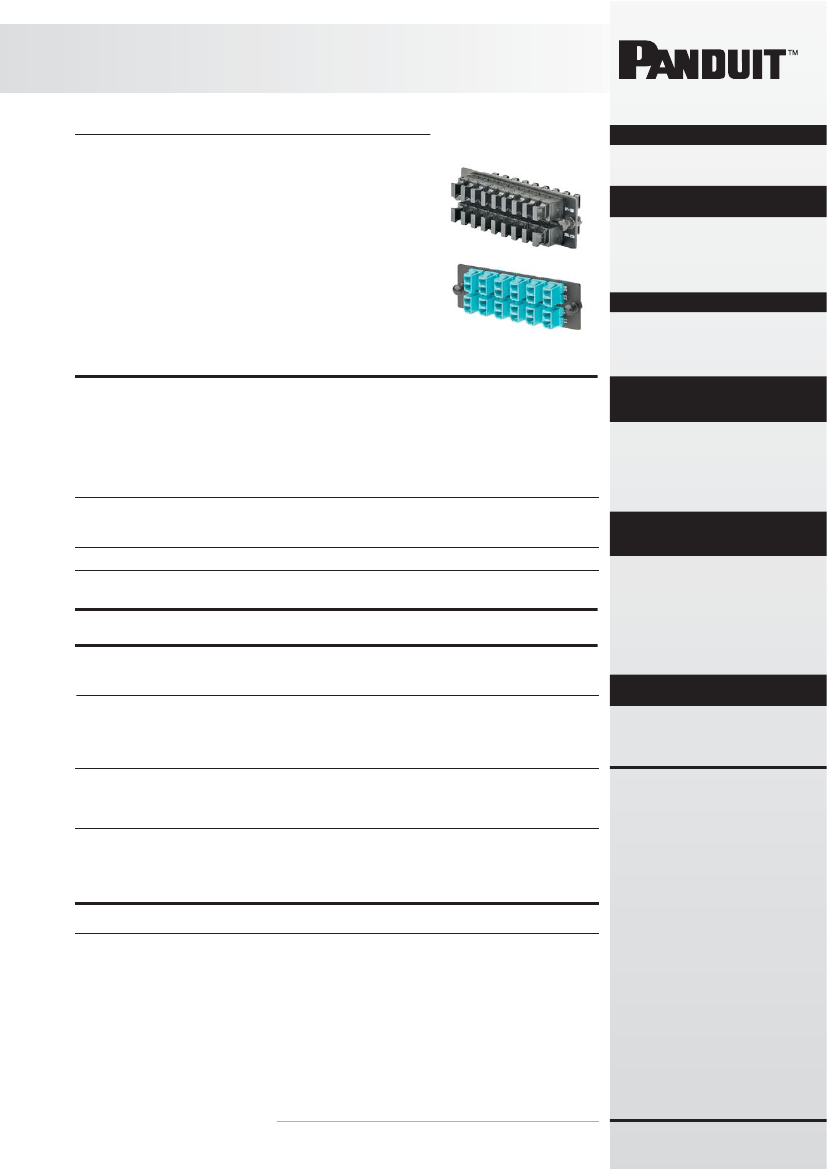

Opticom
™
Fiber Adapter Panels (FAPs)
SPECIFICATION SHEET
specifications
Fiber adapter panels contain TIA/EIA-604 FOCIS compliant or
compatible simplex or duplex fiber optic adapters and meet or
exceed TIA/EIA-568-C.3 requirements. Fiber adapter panels
include horizontal and vertical MPO adapters, LC, keyed LC, SC,
ST, FC, MT-RJ or E-2000 fiber optic adapters. Fiber optic adapters
include phosphor bronze or zirconia ceramic split sleeves to fit
specific network requirements. LC and SC adapter housing colors
follow the TIA/EIA-568-C.3 suggested color identification scheme.
Multimedia modular panels allow customization of installation for
applications requiring integration of fiber optic and copper cables.
Blank fiber adapter panels reserve fiber adapter panel space for
future use. All fiber adapter panels snap quickly into the front of
fiber optic patch panels and enclosures for easy network
deployment or moves, adds, and changes.
Opticom
™
Fiber Adapter Panels

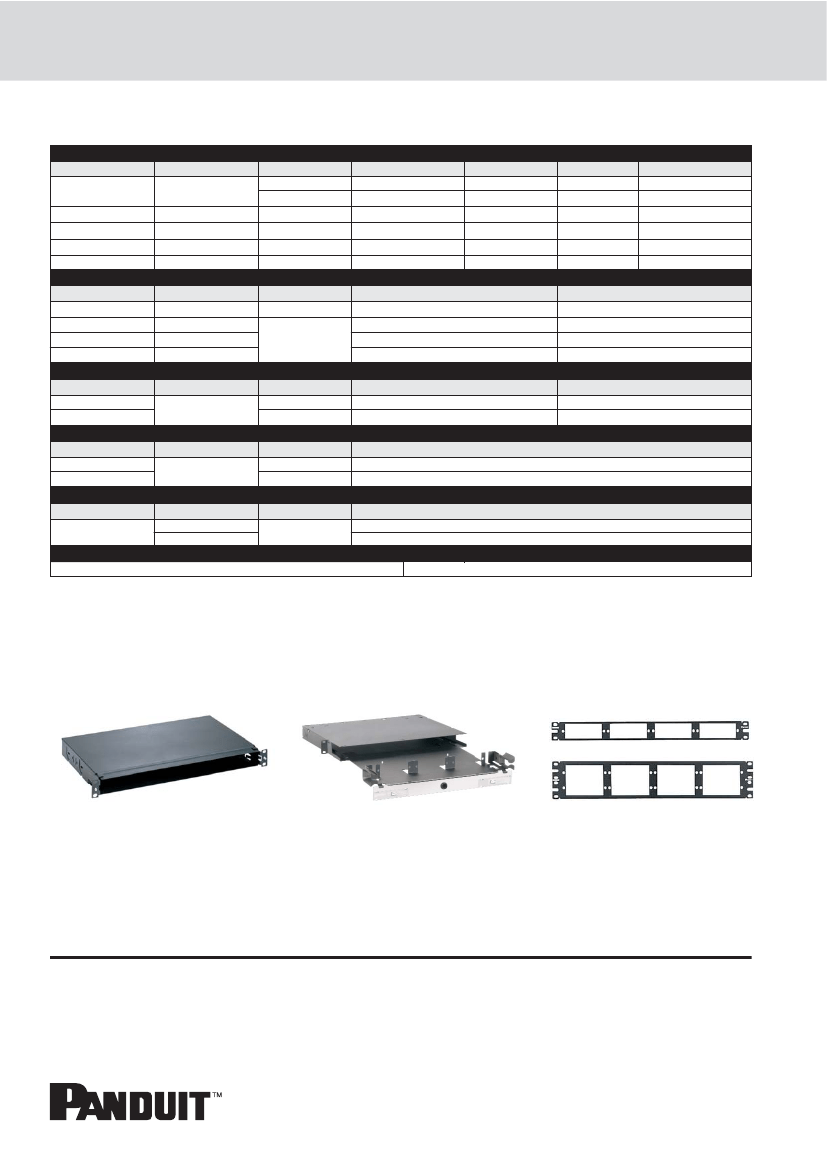

Refer to next page for complete
product listing.
Opticom
™
Rack Mount
Fiber Cassette Enclosures
1 RU, holds 4 FAPs:
FCE1U
1 RU, open access,
holds 4 FAPs:
FCE1UA
2 RU, holds 8 FAPs:
FCE2U
4 RU, holds 12 FAPs:
FCE4U
Opticom
™
Rack Mount Enclosures
1 RU, holds 3 FAPs:
FRME1U
2 RU, holds 6 FAPs:
FRME2U
3 RU, holds 9 FAPs:
FRME3
4 RU, holds 12 FAPs:
FRME4
Opticom
™
Standard Rack Mount
Trays and Fiber Adapter
Patch Panels
1 RU, holds 4 FAPs
with 1 RU std. panel:
FMT1 with
CFAPPBL1
2 RU, holds 8 FAPs
with 2 RU std. panel:
FMT2 with
CFAPPBL2
™
Opticom Angled Rack Mount
Trays and Fiber Adapter
Patch Panels
1 RU, holds 4 FAPs
with 1 RU
angled panel:
2 RU, holds 8 FAPs
with 2 RU
angled panel:
technical information
Standards
requirements:
All adapters meet or exceed TIA/EIA-568-C.3 requirements
MPO: TIA/EIA-604 FOCIS-5 compliant
LC: TIA/EIA-604 FOCIS-10 compatible
SC: TIA/EIA-604 FOCIS-3 compliant
ST: TIA/EIA-604 FOCIS-2 compatible
FC: TIA/EIA-604 FOCIS-4 compliant
MT-RJ: TIA/EIA-604 FOCIS-12 compliant
E-2000: TIA/EIA-604 FOCIS-16 compatible
10Gig
™
OM3/OM4 multimode adapters
OS1/OS2 singlemode adapters
Phosphor bronze: OM1 and OM2 multimode adapters
Supports the performance of connectors/patch cords
Supports singlemode (SPC and UPC) and multimode (PC) connector
polish performance
Zirconia ceramic:
Split sleeve
material:
Insertion loss:
Return loss:
FMT1A with
CFAPPBL1A
key features and benefits
Snap quickly into Opticom
®
Fiber Adapter Patch Panels
and Enclosures
Adapters available separately,
and in Mini-Com
®
Patch Panels
and Modules, and Opticom
®
MPO Fiber Optic Cassettes
LC and SC adapter housing
colors follow TIA/EIA-568-C.3
suggested identification
color scheme
Available with adapters in
multiple colors
Assures flexibility and ease of network deployment and
moves, adds, and changes
Provides a complete system solution for connectivity,
such as horizontal and vertical MPO adapters, LC,
Keyed LC, SC, ST, FC, MT-RJ, E-2000 and
Mini-Com
®
Fiber Optic Adapter Modules, copper jack
modules and audio/video modules
Easy identification of fiber type via adapter colors;
visually compatible with patch cords and connectivity
that also follows the color identification scheme
Type A polarity incorporates a black MPO adapter
housing with a key-up to key-down configuration. Type B
polarity incorporates a charcoal gray MPO adapter
housing with a key-up to key-up configuration.
FMT2A with
CFAPPBL2A
™
Opticom Zero RU Fiber Adapter
Panel Brackets
Angled, 90°,
adhesive and
magnetic mount:
Std., screw mount:
FEABRUA
FEABRU
applications
Opticom
®
Fiber Optic Adapter Panels (FAPs)
are used with Opticom
®
Rack and Wall Mount
Enclosures, Fiber Adapter Patch Panels, and
Opticom
®
Zero RU Fiber Adapter Panel
Brackets to deploy medium to high-density
fiber optic network applications as specified in
the data center cabling standard TIA 942 for
cross connects in main distribution, horizontal
distribution, and equipment distribution areas.
Opticom
®
Fiber Adapter Panels snap quickly
into the patch panels and enclosures for easy
network deployment or moves, adds, and
changes. Opticom
®
Zero RU Fiber Adapter
Panel Brackets mount directly to the rack to
provide location, connection, and quick
deployment of fiber adapter panels without
taking any RU space. Multimedia modular
panels also allow customization for
installation requiring integration of fiber optic
and copper cables. Blank fiber adapter panels
reserve panel space for future use.
w w w. p a n d u i t . c o m
