UTG Series
The plastic circular connector with metal locking
UTG provides the complete answer to the need for economical lightweight
and robust metal coupling
Flammability rating
UL94-V0 compliant
Rapid and secure locking
Locks with audible positive «click»
Intermateable and interchangeable
With UTO, UTP and UTS series
Complete range of contacts
Trim Trio contacts #16
Connection Technologies
UTG Series

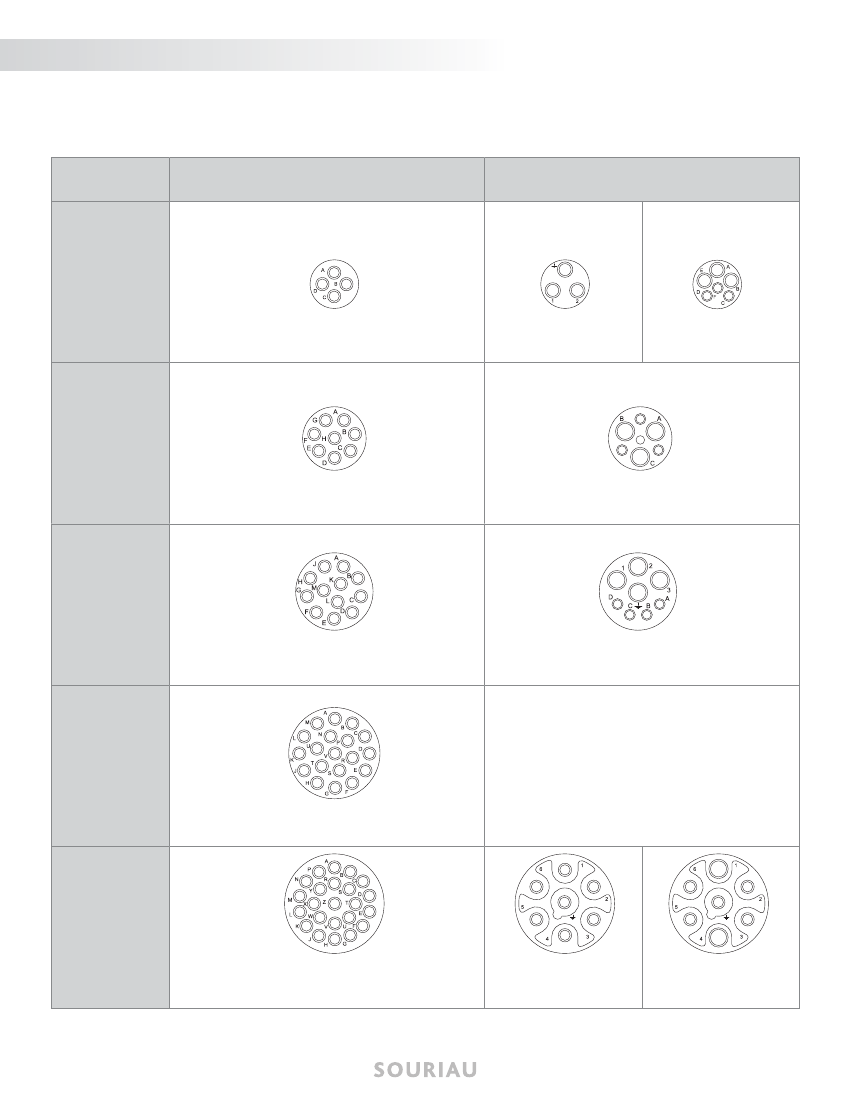

Layout
Shell size
Contact # 16 (Ø 1,6)
Mixed power / signal versions
10
10-4
4 x #16 (Ø 1,6)
10-3
3 x #16 (Ø 1,6)
Group C 250V
10-3W3
3 x #16 (Ø 1,6)
3 x #20 (Ø 1,0)
12
12-8
8 x #16 (Ø 1,6)
122G1
3 x #12 (Ø 2,4)
14
14-12
12 x #16 (Ø 1,6)
14-8
4 x #12 (Ø 2,4)
4 x #16 (Ø 1,6)
16
16-19
19 x #16 (Ø 1,6)
18
18-23
23 x #16 (Ø 1,6)
18-7
Group C 380V
7 x #16 (Ø 1,6)
18-7 34
2 x #12 (Ø 2,4)
5 x #16 (Ø 1,6)
2

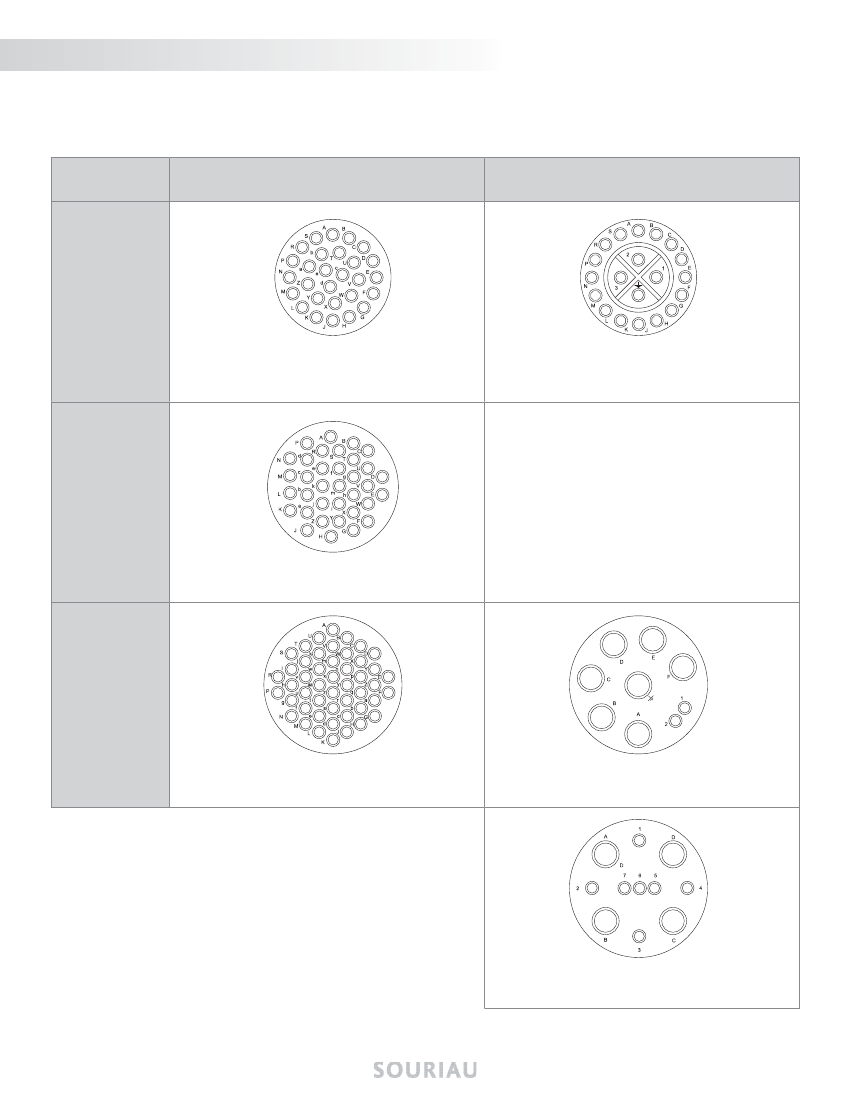

UTG Series
Shell size
Contact # 16 (Ø 1,6)
Mixed power / signal versions
20
20-28
28 x #16 (Ø 1,6)
20-20
20 x #16 (Ø 1,6)
Group C 660V
22
22-35
35 x #16 (Ø 1,6)
24
24-48
48 x #16 (Ø 1,6)
24-7
7 x #8 (Ø 3,6)
2 x #16 (Ø 1,6)
24-11
4 x #8 (Ø 3,6)
7 x #16 (Ø 1,6)
Contact identification positions shown are for mating face of pin contact connectors
and wire face of socket contact connectors.
3
UTG Series

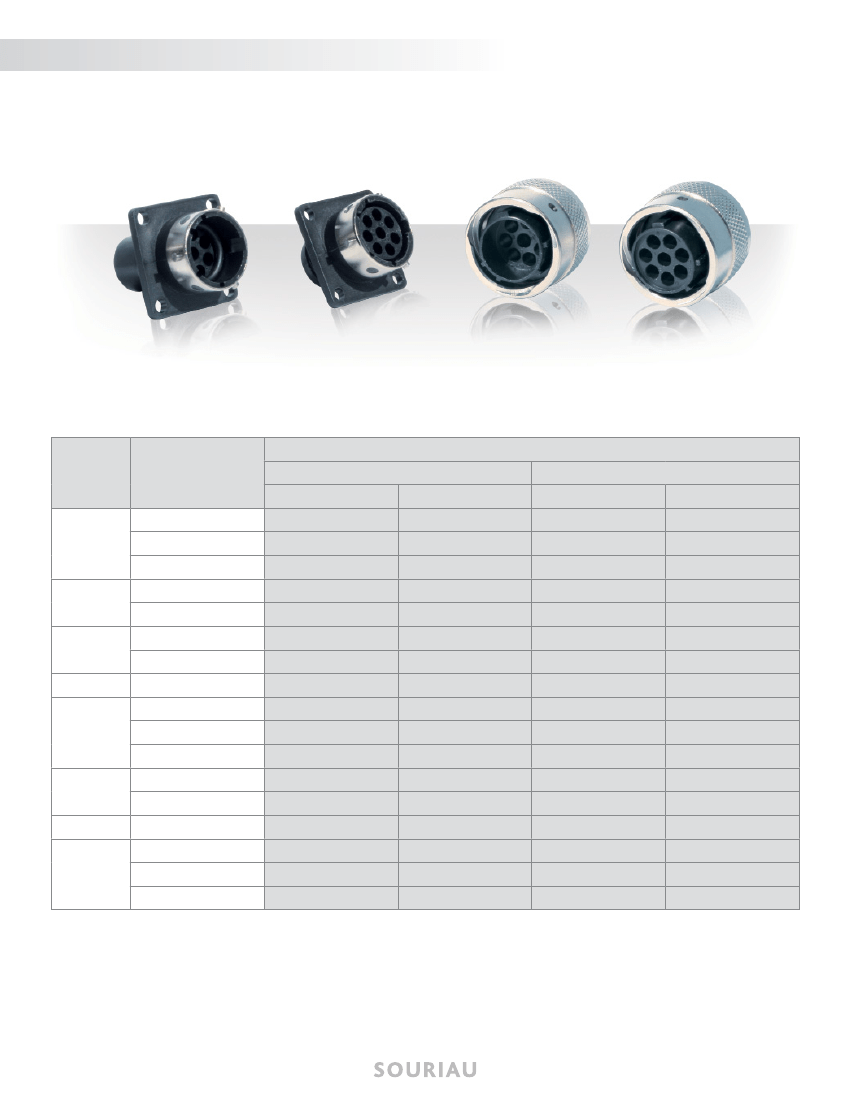

Specifications
Connector type / Part number
Shell size
Contacts number*
Male insert
4 #16
10
2 + ground #16
3 #20 + 3 #16
8 #16
12
3 #12
12 #16
14
4#12 + 4 #16
16
19 #16
23 #16
18
7 #16
2 #12 + 5 #16
28 #16
20
20 #16
22
35 #16
48 #16
24
7 #8 + 2 #16
4 #8 + 7 #16
Cable plug
Female insert
Panel mounting receptacle
Male insert
Female insert
UTG6104PN
UTG6103PN
UTG6103W3PN
UTG6128PN
UTG6122G1PN
UTG61412PN
-
UTG61619PN
UTG61823PN
UTG6187PN
UTG6187PN34
UTG62028PN
UTG62020PN
UTG62235PN
UTG62448PN
UTG6247PN
-
UTG6104SN
UTG6103SN
-
UTG6128SN
UTG6122G1SN
UTG61412SN
UTG6148SN
UTG61619SN
UTG61823SN
UTG6187SN
UTG6187SN34
UTG62028SN
UTG62020SN
UTG62235SN
UTG62448SN
UTG6247SN
UTG62411SN
UTG0104P
UTG0103P
-
UTG0128P
UTG0122G1P
UTG01412P
UTG0148P
UTG01619P
UTG01823P
UTG0187P
UTG0187P34
UTG02028P
UTG02020P
UTG02235P
UTG02448P
UTG0247P
UTG02411P
UTG0104S
UTG0103S
-
UTG0128S
UTG0122G1S
UTG01412S
-
UTG01619S
UTG01823S
UTG0187S
UTG0187S34
UTG02028S
UTG02020S
UTG02235S
UTG02448S
UTG0247S
-
*Contacts supply separately
For IP65 waterprotected version (for only receptacle) add «H» behind N or S. Ex. UTG0103PH
4
UTG Series

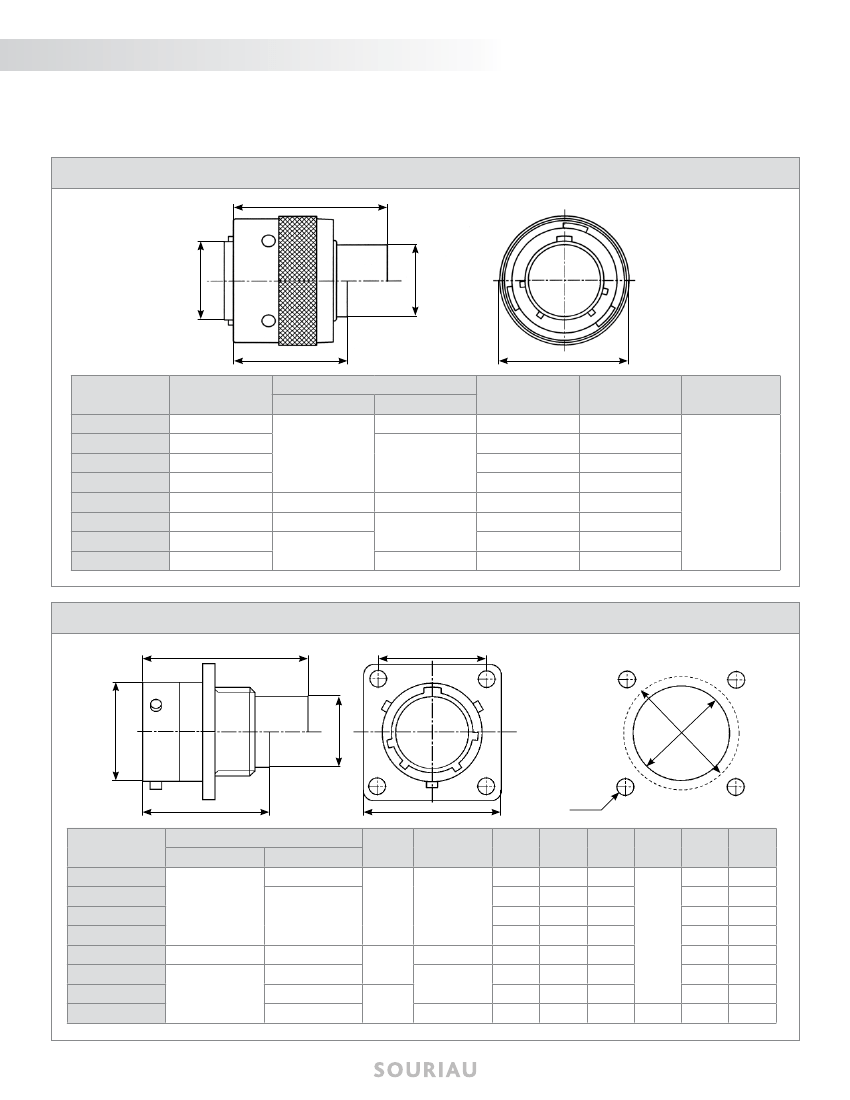

Dimensions
Cable Plug - UTG6
B
Pin contact
ØD
Socket contact
B
B max
Pin contact
Socket contact
23.9 / 26.75
31.8
ØA
Shell size
10
12
14
16
18
20
22
24
ØA
±0.2
21.6
24.8
28.0
31.2
34.3
37.5
47.0
50.1
ØC
ØC
±0.15
10.9
13.8
ØD
±0.15
12.2
15.1
18.3
21.5
24.0
27.2
30.4
33.5
ØE
±0.2
23.9
17.0
19.9
31.8 / 33.0
31.8 / 35.3
31.8
23.9 / 29.0
24.9
26.2
22.4
25.6
28.5
31.7
19.1
Wall Mounting - UTG0
A max
Pin contact
E
ØD
ØC
Ø
J
Ø
H
Socket contact
B max
A max
Pin contact
Socket contact
24.3 / 27.6
31.7
24.3
24.3 / 30.4
27.0
33.3
28.0
30.4
2.3
11.3
F
ØG
Panel cut
Shell size
10
12
14
16
18
20
22
24
B
±0.15
C
±0.2
ØD
±0.15
15.0
19.0
22.2
25.3
28.5
31.7
34.9
38.0
ØE
±0.2
18.3
20.6
23.0
24.6
27.0
29.4
31.8
34.9
F
±0.25
23.8
26.2
28.6
31.0
33.3
36.5
39.7
42.9
ØG
±0.1
ØH
±0.1
17.3
21.8
25.0
ØJ
±0.1
15.1
18.2
21.4
24.6
27.7
30.9
34.1
37.3
3.2
28.1
31.3
34.5
37.7
31.7 / 34.0
2.5
3.5
11.3 / 17.9
14.5
15.3
3.9
40.9
Note: all dimensions are in mm
