Technical Data Sheet
4.3-10
Adaptor
4.3-10 plug – 7/16 plug
60S164-S00N1
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

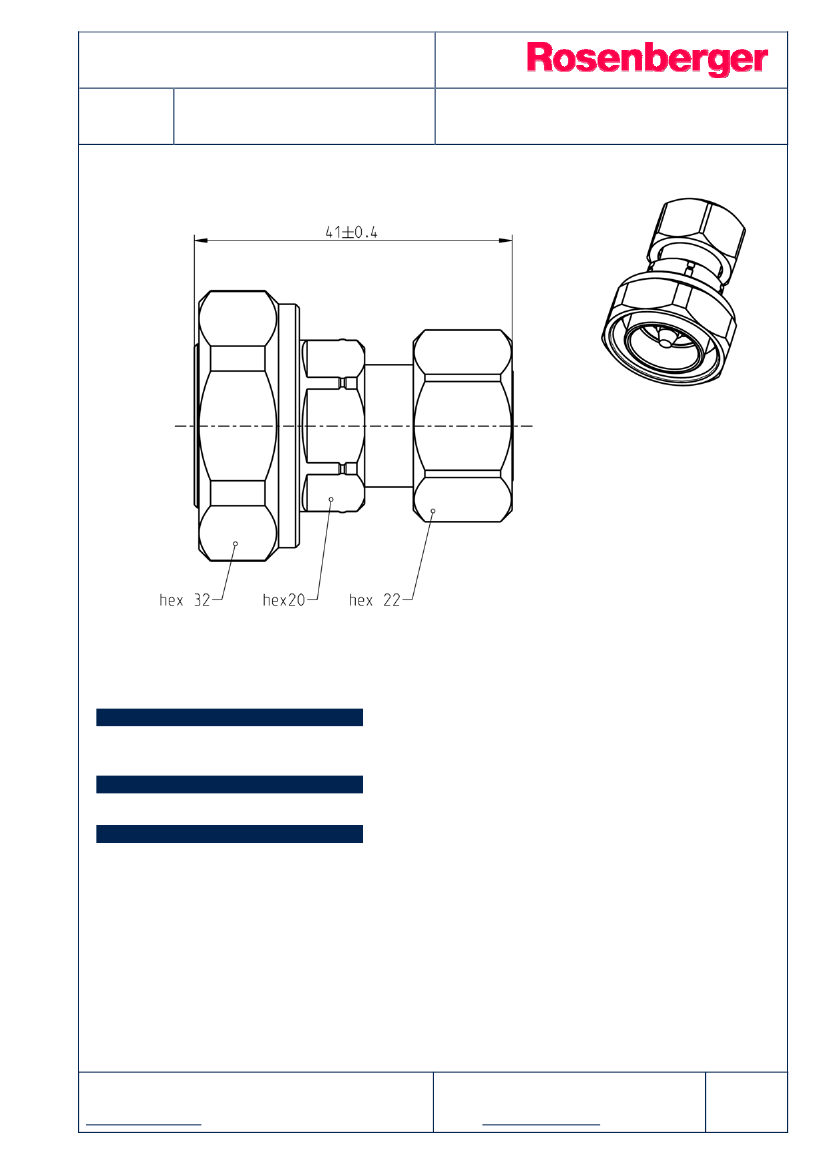

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
4.3-10 side:
7/16 side:
IEC 61169-54
IEC 60169-4, VG 95250, EN 122190, DIN 47223
Documents
Assembly instruction
N/A
Material and plating
Connector parts
Center contact
Center contact
Outer contact
Body
Dielectric
Gasket
4.3-10 side:
7/16 side:
Material
Brass
Brass
Brass
Brass
PTFE
Silicone
Plating
Silver, 3-6 µm
Silver, 3-6 µm
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
4.3-10
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
Power handling
(at 90 °C, altitude 3000m)
Intermodulation
(3
rd
order)
- RL value only valid for the interface -
Adaptor
4.3-10 plug – 7/16 plug
60S164-S00N1
50
DC to 8.3 GHz
36 dB @ DC to 4 GHz
32 dB @ 4 GHz to 6 GHz
0.1 x
f [GHz]
dB
5 G
1.0 m, 4.3-10 side
0.4 m, 7/16 side
1.0 m, 4.3-10 side
1.5 m, 7/16 side
2500 V rms
500 V rms
≥
110 dB @ DC to 6 GHz
500 W @ 2.0 GHz
160 dBc (2 x 46 dBm) @ 0.4 – 4.0 GHz
166 dBc (2 x 43 dBm) @ 0.4 – 4.0 GHz
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Mechanical data
Mating cycles
Center contact captivation: axial
radial
Center contact retention force
Recommended torque
4.3-10 side
100
30 N
> 5 Ncm
1.5 - 20 N
5 Nm
7/16 side
min. 500
200 N
2 Ncm
25 to 30 Nm
Environmental data
Temperature range
Thermal shock
Corrosion resistance
Vibration
Shock
Degree of protection (mated pair)
RoHS
-55 °C to +90 °C operating temperature
IEC 60169-1, Sub-clause 16.4
ISO 21207 method B
IEC 61169-1 9.3.3 and IEC 60068-2-64
IEC 61169-1 9.3.14
IEC 60529, IP68 1h / 25m
compliant
N/A
Tooling
Suitable cables
N/A
Weight
Weight
95.3 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
F. Fraunhofer
Date
26.07.2013
Approved
Sa. K.
Date
24.03.14
Rev.
b00
Engineering change number
14-0352
Name
T. Krojer
Date
24.03.14
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
2/2
