470-013
StarShield™ EMI/RFI Shield Termination Backshell
for MIL-DTL-38999 Series III and IV Connectors
Rear End
Options
High
Ferrule Count
StarShield™
Backshells
Environmental
Self
Nesting
Self
Nestor
Standard
Length

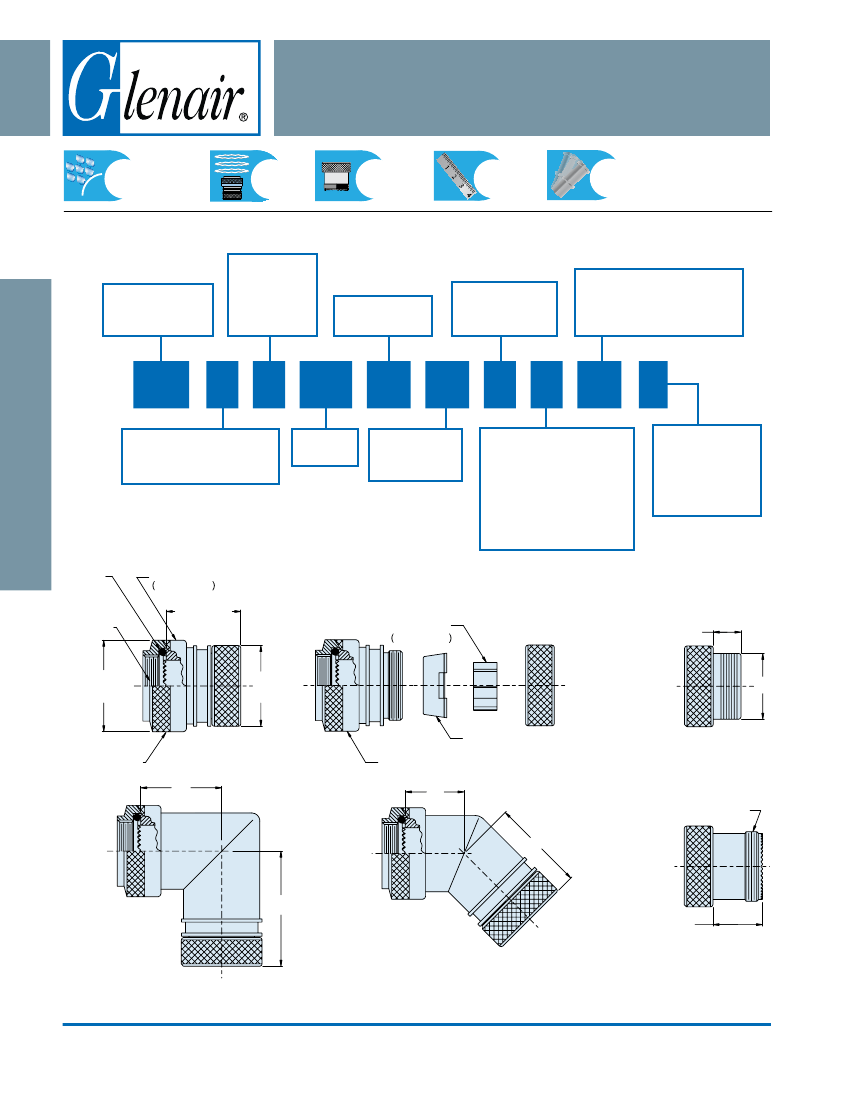

StarShield™ environmental backshell with self-nestor coupling and rear end options
Angular
Function
S
- Straight
H
- 45°
J
- 90°
Ferrule
Quantity Code
(See Table I)
Drilled Star
DS
- Drilled Star - Optional
(Omit if Not Required)
(See Note 4)
Product Series
470
-
StarShield™
Finish Code
(See Table II)
470
H
S
013
Basic
Number
NF
17
6
G
DS
-
T
Shrink Boot
T
= Shrink boot
optional
(Omit for None)
(See Table III)
B
Connector Designator
H
- MIL-DTL-38999
Series III and IV
Order
Number
(See Table I)
Rear End Options
B
- Compression Nut
with Band
C
- Conduit Adapter
G
- Gland Nut
T
- Tinel Nut with Tinel
Ring for Single Braid
O-Ring
Typ
A Thread
Typ
Over Travel Coupling
See Note 5
.980 (25.0)
Max
Star
See Note 4
C Max
Typ
SYMBOL G
Gland Nut
.330 (8.4) Max
B Max
Typ
SYMBOL T
Tinel Nut
H
Knurl Style Mfr
Option - Typ
F
SYMBOL S
Straight
Compression
Ring Assembly
Adapter Assembly
D
J Thread
E
SYMBOL C
Conduit
Adapter
G
SYMBOL J
90°
SYMBOL H
45°
.940 (23.9) Max
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
StarShield™ Zero Length Shield Termination Catalog
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
B-10
E-Mail: sales@glenair.com
for MIL-DTL-38999 Series III and IV Connectors
Table I Dimensions
Order
No.
09
11
13
15
17
19
21
23
25
Connector Shell
Size Ref
A/9
B/11
C/13
D/15
E/17
F/19
G/21
H/23
J/25
A Thread
ISO Metric
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
B Dia
Max
.75 (19.0)
.870 (22.0)
1.000 (25.4)
1.200 (30.5)
1.320 (33.5)
1.460 (37.0)
1.520 (38.5)
1.650 (42.0)
1.830 (46.5)
C Dia
Max
.690 (17.5)
.850 (21.5)
.890 (22.5)
1.000 (25.4)
1.120 (28.5)
1.240 (31.5)
1.380 (35.0)
1.500 (38.0)
1.610 (41.0)
D
Max
.490 (12.5)
.510 (13.0)
.550 (14.0)
.570 (14.5)
.590 (15.0)
.610 (15.5)
.650 (16.5)
.670 (17.0)
.710 (18.0)
E
Max
1.000 (25.4)
1.020 (26.0)
1.040 (26.5)
1.080 (27.5)
1.100 ((28.0)
1.120 (28.5)
1.140 (29.0)
1.180 (30.0)
1.220 (31.0)
F
Max
.630 (16.0)
.690 (17.5)
.750 (19.0)
.810 (20.5)
.870 (22.0)
.930 (23.5)
1.000 (25.4)
1.060 (27.0)
1.120 (28.5)
Table I: Dimensions (Continued)
Order
No.
09
11
13
15
17
19
21
23
25
G
Max
1.140 (29.0)
1.200 (30.5)
1.260 (32.0)
1.320 (33.5)
1.380 (35.0)
1.440 (36.5)
1.520 (38.5)
1.570 (40.0)
1.630 (41.5)
H
± .003 (.08)
.435 (11.0)
.623 (15.8)
.746 (18.9)
.871 (22.1)
.996 (25.3)
1.121 (28.5)
1.245 (31.6)
1.371 (34.8)
1.371 (34.8)
J Thread
ISO Metric
M12 X 1 - 6g
M15 X 1 - 6g
M18 X 1 - 6g
M22 X 1 - 6g
M25 X 1 - 6g
M28 X 1 - 6g
M31 X 1 - 6g
M34 X 1 - 6g
M37 X 1 - 6g
K
± .004 (.10)
.315 (8.00)
.531 (13.5)
.591 (15.0)
.709 (18.0)
.827 (21.0)
.945 (24.0)
1.063 (27.0)
1.181 (30.0)
1.299 (33.0)
Table III: Shrink Boot
Shell
Size
09
11
13
15
17
19
21
23
25
Shrink Boot
Part Number
770-001S1 04
770-001S1 06
770-001S1 06
770-001S1 07
770-001S1 07
770-001S1 08
770-001S1 08
770-001S1 08
770-001S1 09
Ferrule Quantity
(See Note 4)
Table II: Material and Finish Options
Code
Material; Finish Description
M
Aluminum; electroless nickel
MT
NF
ZN
ZR
ZRC
Z1
ZM
Aluminum; nickel - PTFE
Aluminum; CAD/O. D. over
electroless nickel
Aluminum; zinc nickel/O. D. over
electroless nickel
Aluminum; zinc nickel/black over
electroless nickel (RoHS)
Aluminum; zinc nickel over
electroless nickel (RoHS)
Stainless steel; passivate
Stainless steel; electroless nickel
Std.
1
2
3
5
6
7
9
10
12
Opt.
-
-
-
-
7
-
11
13
17
Material/Finish
Backshell, elbows, coupling
Aluminum alloy or
and gland nut, compression
CRES/Table II
ring and star
Nickel-titanium
Tinel ring
alloy/n.a.
Band
O-ring
CRES/Passivate
Silicone/n.a.
1.170 (29.7)
Max
Banding Nut
Notes:
K
Di
Band
(601-040)
SYMBOL B
Banding Nut with Band
1. Assembly identified with manufacturer’s name,
part number and date code, space permitting.
2. For effective grounding, connector with
conductive finish should be used.
3. Glenair 600 Series Backshell Assembly Tools are
recommended for assembly and installation.
4. Star not supplied with Order Number 09. Drilled
star is available on order numbers 15-25 only. If
optional ferrule quantity per Table I is selected,
one split and one solid star will be supplied.
5. Over-travel coupling design provides self-
seating and self-locking functionality,
eliminating lock-wire requirements.
6. Ferrule kit sold separately.
687-764 ferrule and HST device kit
687-809 ferrule and sealing device kit
687-748 solder ferrule
687-841-01 HST flex device
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
StarShield™ Zero Length Shield Termination Catalog
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
B-11
E-Mail: sales@glenair.com
StarShield™
Backshells
470-013
StarShield™ EMI/RFI Shield Termination Backshell
