FX18-60P-08SV10 datasheet, PDF

Datasheet> All Categories > The connector> FX18-60P-08SV10

FX18-60P-08SV10: DescriptionBoard to Board & Mezzanine Connectors 0.8MM 60P HDR VERT SMT SV10 TYPE; CategoryThe connector; File Size797KB，16 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric Compare View All

FX18-60P-08SV10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FX18-60P-08SV10	-	-	View	Buy Now

FX18-60P-08SV10 Overview

Board to Board & Mezzanine Connectors 0.8MM 60P HDR VERT SMT SV10 TYPE

FX18-60P-08SV10 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Hirose Electric
Product Category	Board to Board & Mezzanine Connectors
RoHS	Details
Product	Headers
Number of Positions	60 Position
Pitch	0.8 mm
Termination Style	Through Hole
Mounting Angle	Vertical
Current Rating	500 mA
Voltage Rating	100 V
Packaging	Tray
Contact Plating	Gold
Housing Material	Polyamide (PA)
Contact Material	Phosphor Bronze
Insulation Resistance	1000 MOhms
Maximum Operating Temperature	+ 80 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	1
Unit Weight	0.176370 oz

Preview

Download Datasheet

View All

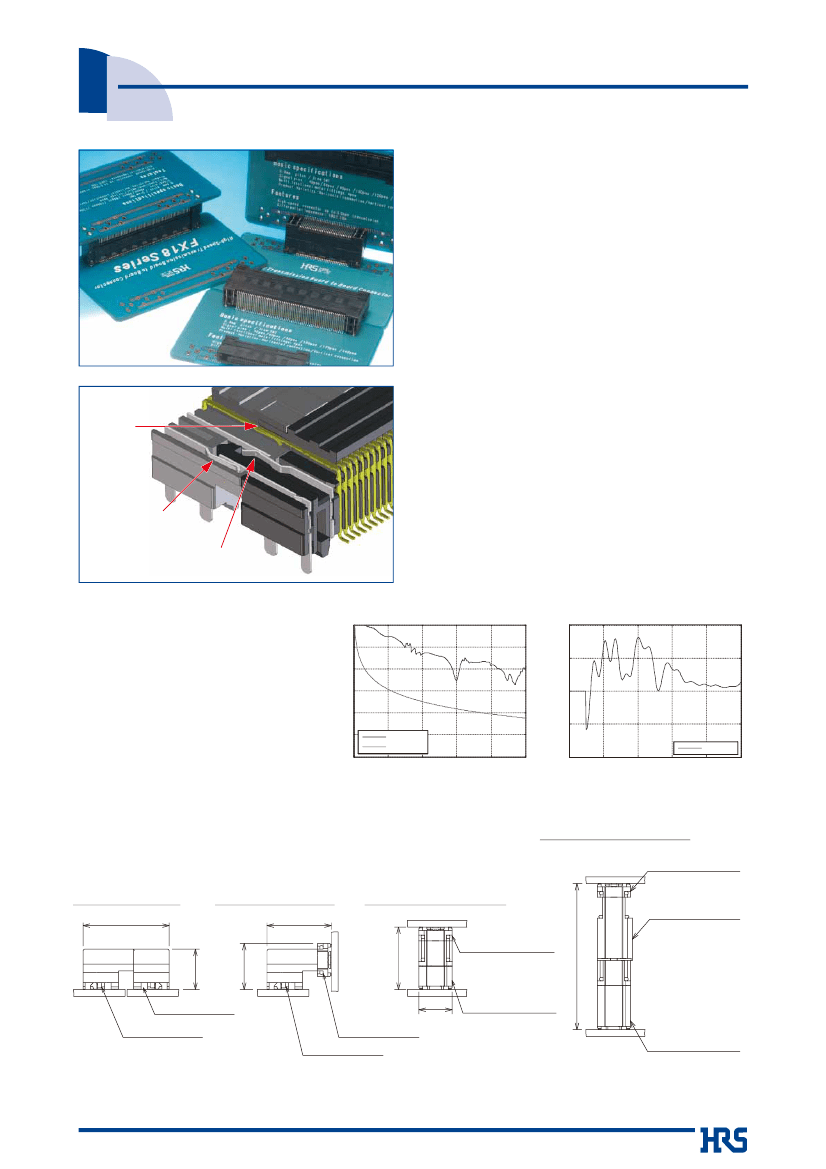

High Speed Transmission, 0.8 mm Pitch Connectors for PCB Connections

FX18 Series

■Features

●

0.8 mm pitch

●

Connection type: Coplanar /right angle /

parallel (height: 10 to 45 mm)

●

No of pos.: 40, 60, 80, 100, 120, 140

●

MF (multi-functional) contact

The FX18 series utilizes guideposts on both sides of the

connector. These guide posts double as multi-functional

contacts as well as an aligning structure.

1) Enhanced ground connections between PCB’s

2) Capable of being used as power source lines (3 A/line)

3) A sequenced 3-level structure that contains signal contacts

●

Effective mating length of 2 mm (Signal

contact)

This connector utilizes a 2.0 mm effective mating

length for its signal contacts and provides a

sufficient amount of margin for its mating sequence.

(MF contact A: 2.5 mm/ MF contact B: 1.5 mm)

●

Resistant to excess mating force

The structure is equipped with dip contacts that help

prevent damage caused by excessive mating forces

and provides stability to both sides of the connector.

●

Simplified mating with large guides

Generous lead-in shape simplifies the mating

operation. (lead in opening amount: ± 1 mm).

The guides also prevent inverse mating.

■

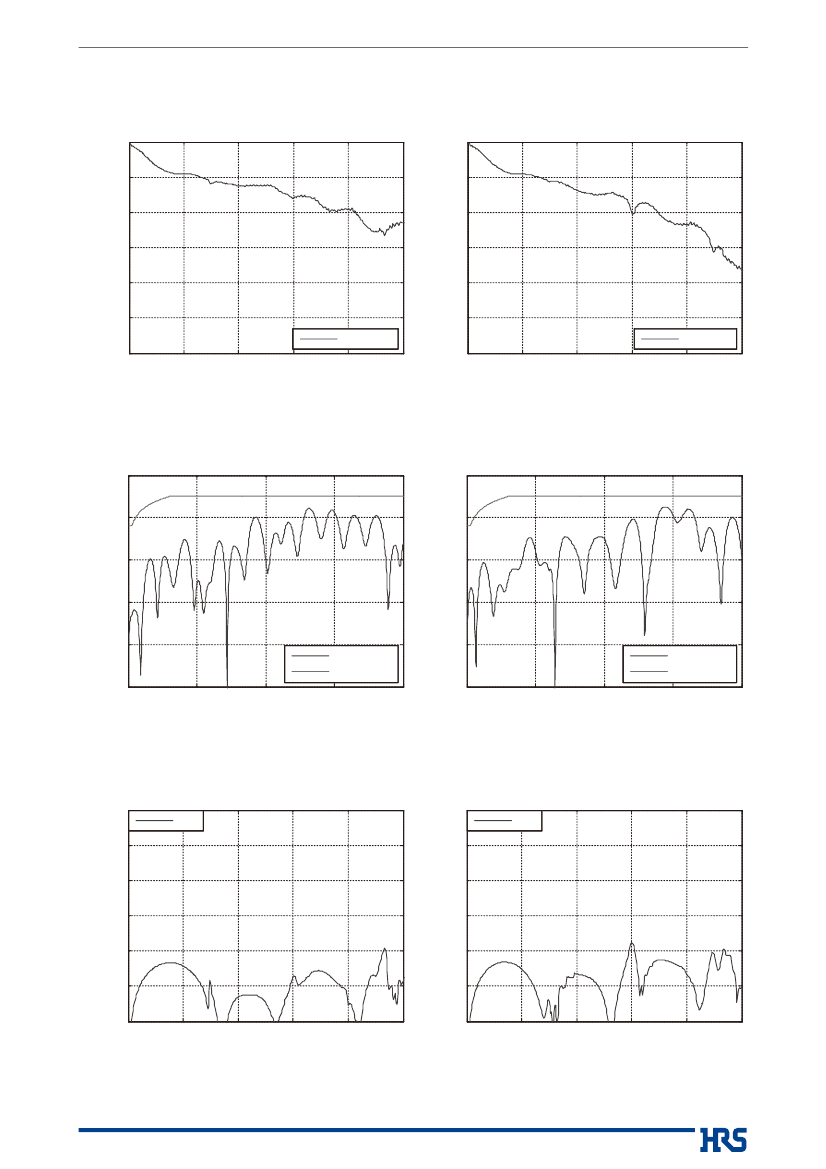

High speed transmission

characteristics

Enough margin with regulated ICR

data of IEEE802.3ap 10 Gbps

transmission standard.

ICR (dB)

ICR

105

ICR

IEEE spec

Frequency (GHz)

0.2

Z (Ohms)

100

110

Impedance

●

ICR

（Insertion-loss-to-Crosstalk-Ratio）

●

Differential impedance data

With a strict time of Tr = 35ps, its

contact structure matches 100 Ohm

±10% differential impedance.

Inner row

0.4

0.6

Time (ns)

0.8

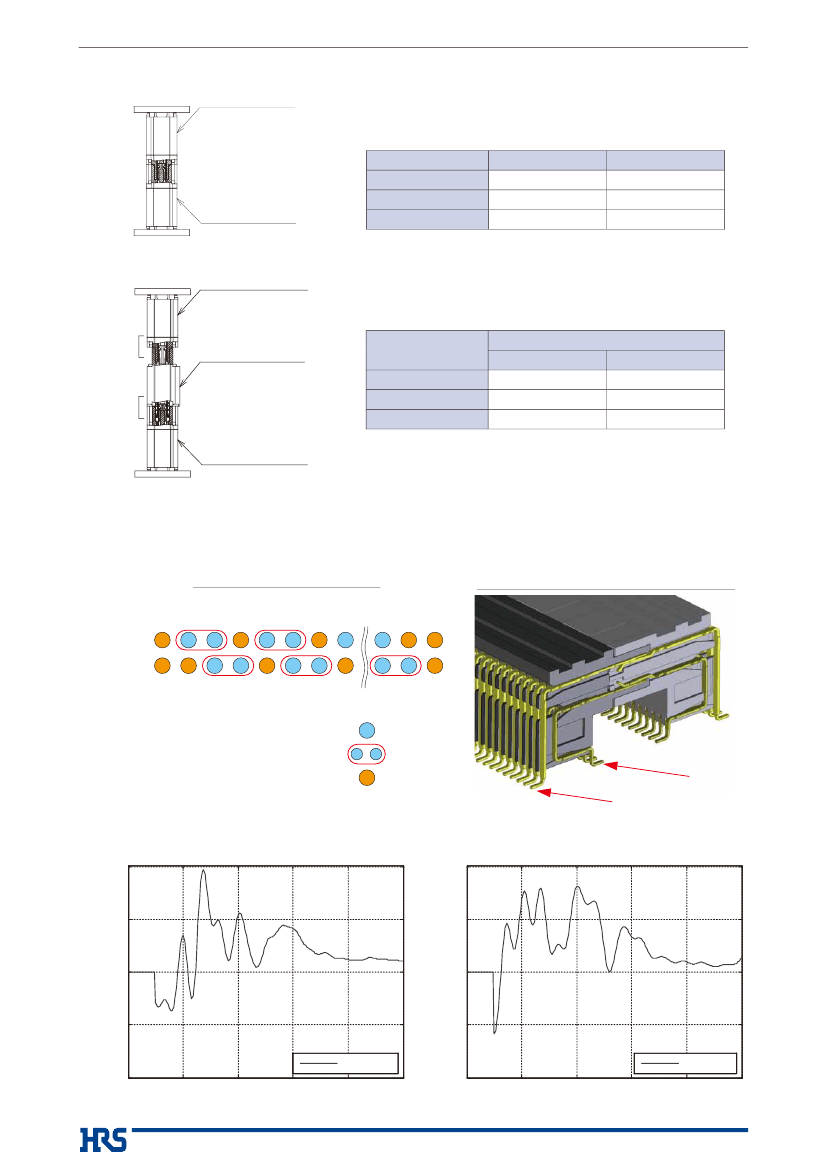

■Mating

variation diagram

Parallel connection type (3 piece)

FX18-**P-0.8SV**

Coplanar connection type

20.3

Right angle connection type

15.15

∼

FX18-**P-0.8SV**

Parallel connection type (2 piece)

FX18-**PS-0.8H15

10.85

9.5

FX18-**P-0.8SH

FX18-**S-0.8SH

FX18-**P-0.8SV

FX18-**S-0.8SH

7.8

FX18-**S-0.8SV**

2014.1

②

FX18-60P-08SV10 Related Products

	FX18-60P-08SV10	FX18-40P-08SV	FX18A-140P-0.8SV
Description	Board to Board & Mezzanine Connectors 0.8MM 60P HDR VERT SMT SV10 TYPE	Board to Board & Mezzanine Connectors 0.8MM 40P HDR VERT SMT	Board to Board & Mezzanine Connectors
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Hirose Electric	Hirose Electric	Hirose Electric
Product Category	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors
Product	Headers	Headers	Headers
Number of Positions	60 Position	40 Position	140 Position
Pitch	0.8 mm	0.8 mm	0.8 mm
Termination Style	Through Hole	Through Hole	SMD/SMT
Mounting Angle	Vertical	Straight	Straight
Current Rating	500 mA	3 A	3 A
Voltage Rating	100 V	100 V	100 VAC
Contact Plating	Gold	Gold	Gold
Housing Material	Polyamide (PA)	Polyamide (PA)	Polyamide (PA)
Contact Material	Phosphor Bronze	Phosphor Bronze	Copper alloy
Factory Pack Quantity	1	1	1
RoHS	Details	Details	-
Packaging	Tray	Tray	-
Maximum Operating Temperature	+ 80 C	-	+ 85 C
Minimum Operating Temperature	- 55 C	-	- 55 C
Unit Weight	0.176370 oz	0.282192 oz	-
