47391-3002

Description
I/O Connectors EXTERNAL SATA PLUG SMT WITH SHELL
CategoryThe connector
File Size36KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

47391-3002 Online Shopping

Suppliers Part Number Price MOQ In stock
47391-3002 - - View Buy Now

47391-3002 Overview

I/O Connectors EXTERNAL SATA PLUG SMT WITH SHELL

47391-3002 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryI/O Connectors
RoHSDetails
ProductSATA Connectors
GenderMale
Number of Positions7 Position
Pitch1.27 mm
Voltage Rating15 VDC
Contact PlatingGold
Mounting StyleSMD/SMT
Termination StyleSMD/SMT
Mounting AngleRight
PackagingCut Tape
PackagingMouseReel
PackagingReel
ColorBlack
Current Rating1.5 A
Contact MaterialTin
Number of Ports1
Maximum Operating Temperature+ 85 C
Minimum Operating Temperature- 35 C
Factory Pack Quantity500
Unit Weight0.070442 oz

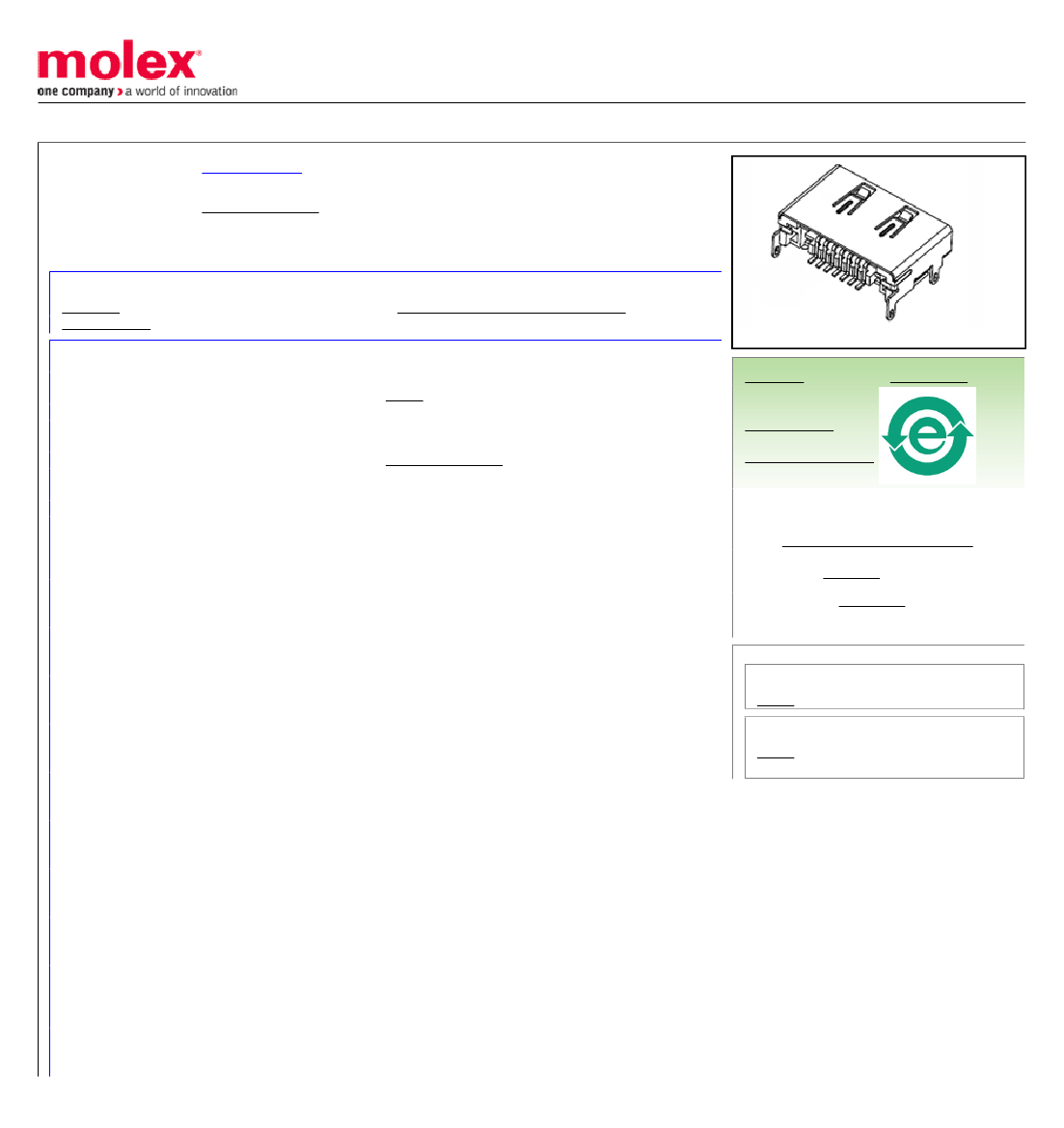

This document was generated on 09/05/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
47391-3002
Active
External Serial ATA
1.27mm Pitch External Serial ATA Shelled Plug without Flange, Bottom Mount, Right
Angle, Unmated Height 5.35mm, 0.38µm Gold (Au) Plating, 7 Circuits, with Vacuum
Pick-Up Tape, Lead-Free
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Type
UPC
I/O Connectors
47391
Wire-to-Board
Without Flange
Plug, Receptacle
External Serial ATA
External Serial ATA
N/A
884982135741
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Gender
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Ports
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
N/A
7
7
Black
Plug
Yes
Yes
Gold
Tin
1.997/g
1
Right Angle
Yes
Yes
1.30mm
Embossed Tape on Reel
Yes
1.27mm
1.27mm
0.381µm
1.270µm
Yes
Yes
1
-35°C to +85°C
Surface Mount
No
Search Parts in this Series
47391Series
Mates With
68782 External Serial ATA Receptacle
Cable
Electrical
Current - Maximum per Contact
Grounding to Panel
Shielded
Voltage - Maximum
1.5A
Yes
Yes
15V DC
