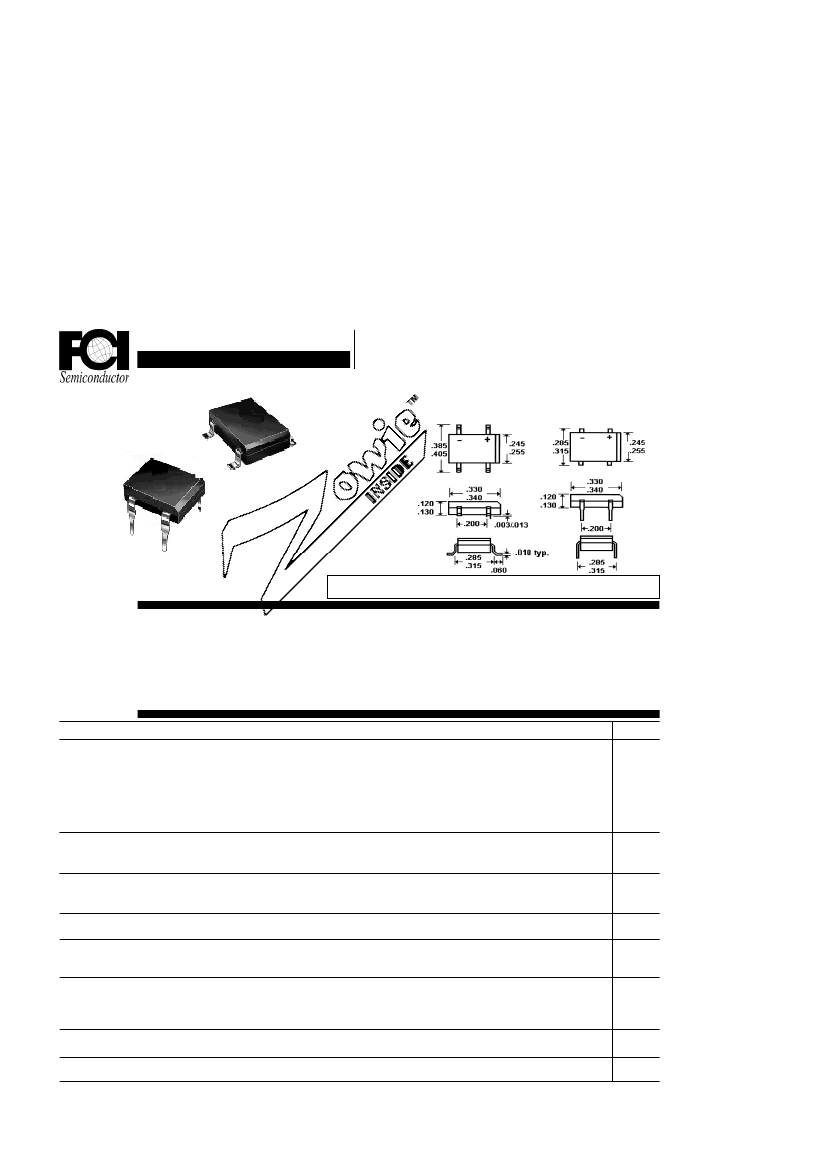

Preliminary Data Sheet

1.0 Amp Glass Passivated

Description

Sintered Bridge Rectifiers

Mechanical Dimensions

DFZ005 . . . 10 Series

Add Suffix S for SMD.

Example: DFZ04S = 400V/1 Amp SMD part

Mechanical Data:

Terminal Leads - Solderable per Mil Std. 202. Polarity - Molded

on Case. Mounting Position - Any. Weight - 0.04 Ounces, 1 Gram.

Features

LOWEST COST FOR GLASS SINTERED

CONSTRUCTION

LOWEST V

FOR GLASS SINTERED

CONSTRUCTION

TYPICAL I

< 100 nAmps

1.0 AMP OPERATION @ T

= 65°C, WITH

NO THERMAL RUNAWAY

SINTERED GLASS CAVITY-FREE

JUNCTION

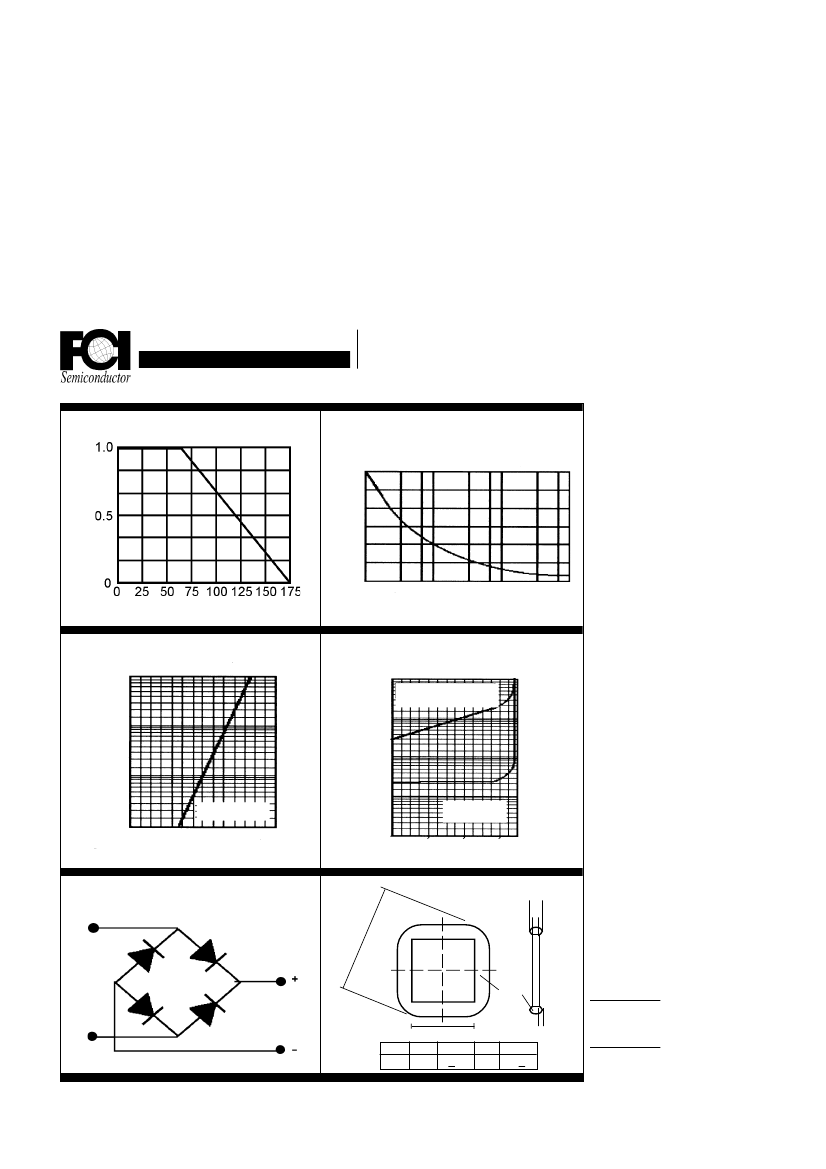

Electrical Characteristics @ 25

Maximum Ratings

Peak Repetitive Reverse Voltage...V

RRM

RMS Reverse Voltage...V

R(rms)

DC Blocking Voltage...V

Average Forward Rectified Current...I

F(av)

= 65°C

Non-Repetitive Peak Forward Surge Current...I

FSM

8.3 mS Single ½ Sine Wave Imposed on Rated Load

Point Rating for Fusing...(T < 8.3 mS)

Forward Voltage...V

Bridge Element @ 1.0 Amp

DC Reverse Current...I

@ Rated DC Blocking Voltage

Operating Temperature Range...T

Storage Temperature Range...T

STRG

= 25°C

=125°C

DFZ005 . . . 10 Series

DFZ005 DFZ01

100

DFZ02

200

140

200

DFZ04

400

280

400

DFZ06

600

420

600

DFZ08

800

560

800

DFZ10

1000

700

1000

Units

Volts

Amps

Volts

............................................. 1.0 ...............................................

............................................. 5 0 ...............................................

............................................. 5.0 ...............................................

............................................. 1.0 ...............................................

............................................. 1 0 ...............................................

............................................. 0.5 ...............................................

......................................... -55 to 175 ..........................................

µA

°C
