26-60-5081 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 26-60-5081

26-60-5081: DescriptionHeaders & Wire Housings KK 156 Hdr Assy FrLk FrLk RtAn 08 Ckt Tin; CategoryThe connector The connector; File Size188KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

26-60-5081 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	26-60-5081	-	-	View	Buy Now

26-60-5081 Overview

Headers & Wire Housings KK 156 Hdr Assy FrLk FrLk RtAn 08 Ckt Tin

26-60-5081 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

CKT

DIM. A

7.77

.306

11.73

.462

15.70

.618

19.66

.774

23.62

.930

27.58

1.086

31.55

1.242

35.51

1.398

39.47

1.554

43.43

1.710

47.40

1.866

51.36

2.022

55.32

2.178

59.28

2.334

63.25

2.490

67.21

2.646

71.17

2.802

DIM. B

5.11

.201

DIM. A REF.

3.96

0.05

.156

.002

7.92

0.08

.312

.003

11.89

0.08

.468

.003

15.85

0.10

.624

.004

19.81

0.10

.780

.004

23.77

0.10

.936

.004

27.74

0.13

1.092

.005

31.70

0.13

1.248

.005

35.66

0.13

1.404

.005

39.62

0.15

1.560

.006

43.59

0.15

1.716

.006

47.55

0.15

1.872

.006

51.51

0.18

2.028

.007

55.47

0.18

2.184

.007

59.44

0.18

2.340

.007

63.40

0.20

2.496

.008

67.36

0.20

2.652

.008

SLOT LOC

BETWEEN CKTS

NONE

3&4

4&5

5&6

6&7

4&5

8&9

4&5

9 & 10

5&6

9 & 10

5&6

10 & 11

5&6

11 & 12

6&7

11 & 12

6&7

12 & 13

SEE NOTE 9

2.41

.095

GOLD

0.38

.015

3.96REF.

.156

TYP. BETWEEN ANY

2 CONSECUTIVE

CIRCUITS

AT DATUM -D-

CENTERLINE OF PIN AT TIP

NOT TO VARY FROM CENTERLINE OF

PIN AT DATUM -D- BY MORE THAN

0.20 / .008 IN ANY DIRECTION.

DIM. B

11.33

0.51

.446

.020

TYP

3.30

REF

.130

0.25

.010

TYP

TIN

CENTERLINE OF PIN AT TIP

NOT TO VARY FROM CENTERLINE OF

PIN AT DATUM -D- BY MORE THAN

0.20 / .008 IN ANY DIRECTION.

OPTIONAL VOIDED CIRCUIT

SEE CHART FOR LOCATIONS

CIRCUIT 1 REF.

SEE NOTE 10

10.01

0.51

.394

.020

REF.

3.96

0.05

.156

.002

TYP NON-ACCUM.

1.70

0.05

.067

.002

DIA TYP

NOTES:

1. MATERIAL: HEADER-GLASS FILLED POLYESTER, 94V-0, MOLDED NATURAL (WHITE).

2. FINISH: (197) OVERALL REFLOWED MATTE TIN: 0.00152/.000060 MIN.

OVER 0.00127/.000050 MIN. NICKEL OVERALL.

(154) OVERALL TIN: .00254/.000100 MIN OVER .00127/.000050 MIN NICKEL.

(208) SELECT GOLD: .00038/.000015 MIN, SELECT TIN: .00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: .00127/.000050 MIN.

(228) SELECT GOLD: .00076/.000030 MIN, SELECT TIN: .00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: .00127/.000050 MIN.

(241) SELECT GOLD: 0.00051/.000020 MIN.

SELECT TIN: 0.00254/.000100 MIN.

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

FOR ADDITIONAL PLATING INFO, SEE SDES-88.

3. PRODUCT SPECIFICATION AND PROCESS PARAMETERS: SEE PS-08-50.

4. PACKAGING INFORMATION: SEE CHART

5. SOLDERABILITY: PER SMES-152.

6. PIN PUSH-OUT FORCE: PRIOR TO SOLDERING, A 3 LB. MINIMUM FORCE (IN EITHER DIRECTION)

7. PARTS ARE STACKABLE END TO END ON 3.96/.156 CENTERS.

8. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPECIFICATION PS-45499-002.

9. SLOTS ON BACKWALL ARE BETWEEN CIRCUITS. SEE CHART FOR LOCATION.

10. CIRCUIT 1 DESIGNATION IS USED TO DEFINE VOID LOCATION. CIRCUIT 1 MAY OR MAY NOT LINE UP

WITH CIRCUIT 1 ON THE MATING HOUSING.

2017/01/10

2017/01/19

2017/01/30

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

PCB LAYOUT: COMPONENT SIDE

ADD 41792-0704

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

2:1

11-07-03

DATE

INCH

0.01

0.015

4 PLACES

3 PLACES

2 PLACES

0.25

0.38

JSCHAFER

CHK'D BY

112230

MKIPPER

JDFOX

FSMITH

KSAMIEC

APPR BY

DATE

11-10-03

11-17-03

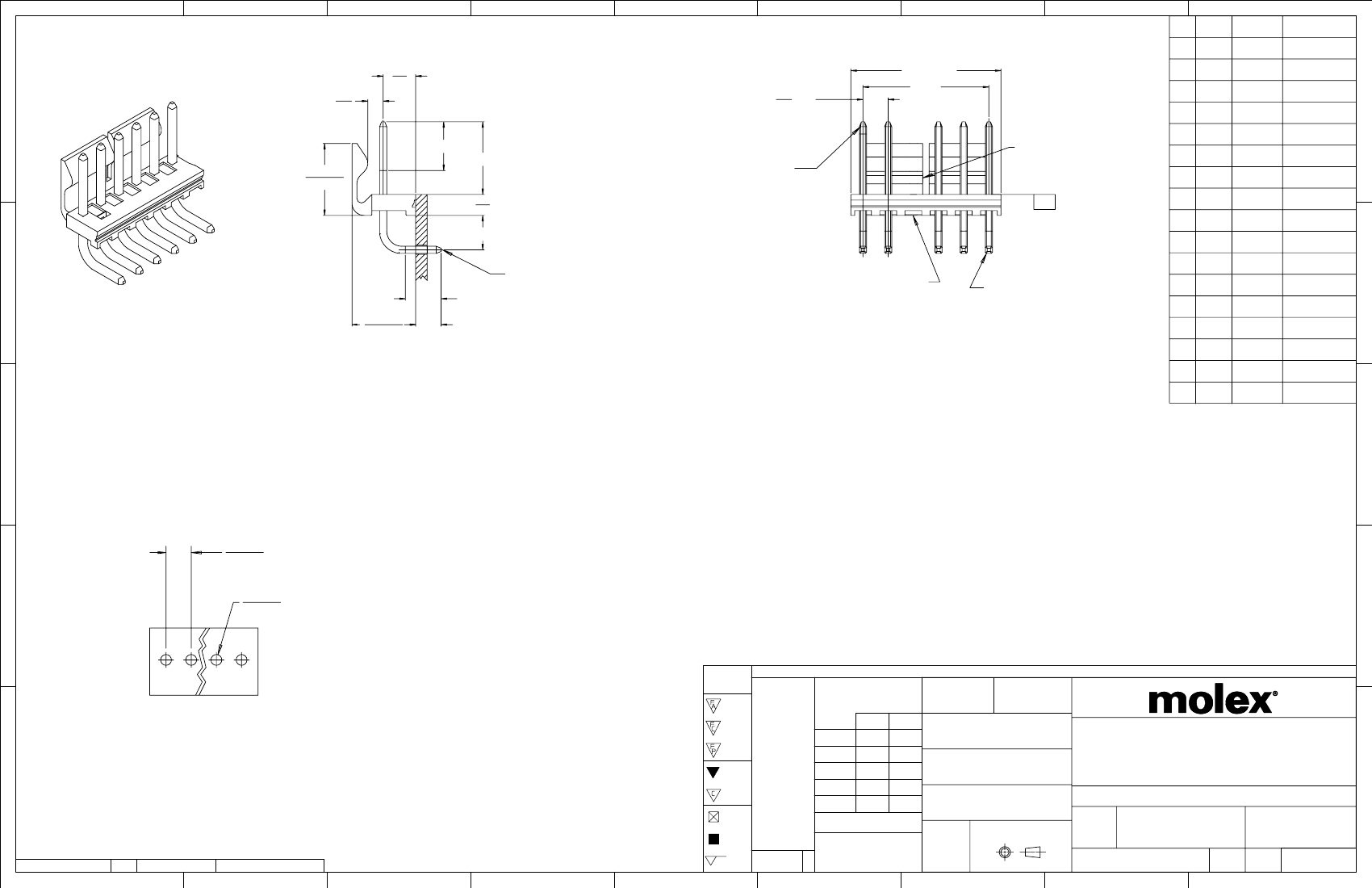

KK .156 HEADER ASSEMBLY

FRICTION LOCK RIGHT ANGLE W/O PEGS

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

1 PLACES

0 PLACES

MARGULIS

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

0.5

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

THIRD ANGLE PROJECTION

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-B

REVISION: C

DATE: 2016/04/04

RELEASE DATE

REV

Model: EM-41792 (SD Package)

41792

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

SDA-41792

PSD

000

1 OF *
