214019: DescriptionHeaders & Wire Housings 8P 1.27MM SMT VERT MALE TYPE P SNGL ROW; CategoryThe connector; File Size59KB，2 Pages; ManufacturerERNI Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

214019 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	214019	-	-	View	Buy Now

214019 Overview

Headers & Wire Housings 8P 1.27MM SMT VERT MALE TYPE P SNGL ROW

214019 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ERNI Electronics
Product Category	Headers & Wire Housings
RoHS	Details
Product	Headers
Type	Shrouded
Number of Positions	8 Position
Pitch	1.27 mm
Number of Rows	1 Row
Mounting Style	Mounting Peg
Termination Style	SMD/SMT
Mounting Angle	Straight
Contact Gender	Pin (Male)
Contact Plating	Gold
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Accessory Type	-
Contact Type	-
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Flammability Rating	UL 94 V-0
Row Spacing	-
Insulation Resistance	10000 MOhms
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	650
Unit Weight	0.011993 oz

Preview

Download Datasheet

View All

Ansaughaube

hood

Anforderungsstufe 1

ohne Ansaughaube -

without hood

5,52

Verpackt in Gurtverpackung

3,5

2,5

-0,2

+0,1

Performance Level 1

Kontaktbereich vergoldet

Tape on Reel Packaging

Kontaktbezeichnung

contact marking

Verpackungseinheit: 650 Stück

Mating Area gold plating

Packaging unit: 650 pcs

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

5,6

4,38

1,27

0,99

1,98

330

5

7

Abspulrichtung -

Reel off Direction

7,62

0,75

-0,05

3,38

5,69

±0,03

1,5

-0,03

24

5,25

6,1

Pos. 1

12

2,93

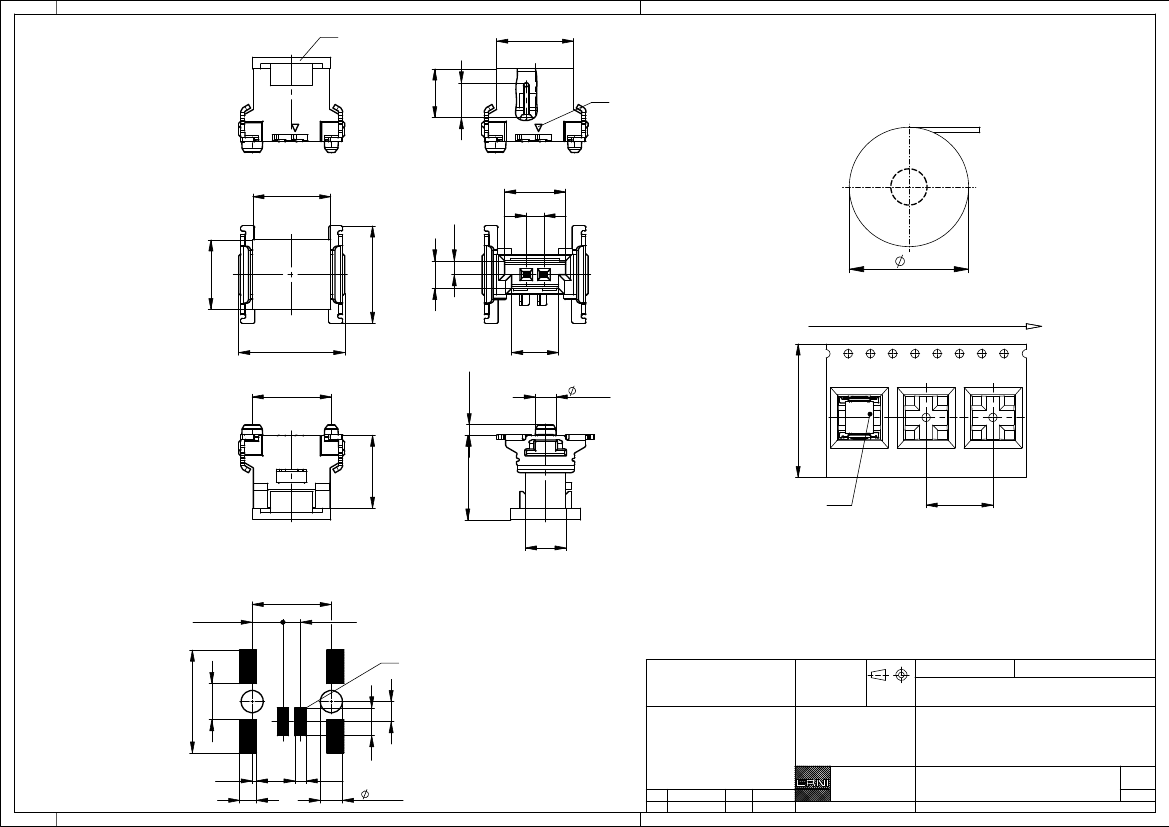

Leiterplatten-Layout für SMT

PCB-Layout for SMT

5,69

±0,03

2,21

±0,03

1,27

Kontaktbezeichnung bei Pin 1

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

contact marking at pin 1

2,6

7,4

Information:

vergrösserte Lötpads -

enlarged solder pads

Tolerances

All Dimensions

in mm

Scale

5:1

1,45

0,3

1,2

0,8

1,6

-0,03

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

d

Index

03.04.2013

Date

Designation

2

Subject to modification without

prior notice.

Drawing will not be updated.

M 1,27 SRC P, 2-polig BA1

www.ERNI.com

Class

284695

SRCP

I

A3
