257-012-2-16S-1P datasheet, PDF

Datasheet> All Categories > The connector> 257-012-2-16S-1P

257-012-2-16S-1P: DescriptionCircular MIL Spec Connector ENV RESISTANT PLUG PIN; CategoryThe connector; File Size155KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

257-012-2-16S-1P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	257-012-2-16S-1P	-	-	View	Buy Now

257-012-2-16S-1P Overview

Circular MIL Spec Connector ENV RESISTANT PLUG PIN

257-012-2-16S-1P Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Connector
Number of Positions	7 Position
Insert Arrangement	16S-1
Contact Gender	Pin (Male)
MIL Type	MIL-DTL-5015
Product	Connectors
Shell Size	16S
Shell Style	Receptacle
Mounting Style	Cable
Termination Style	Solder
Current Rating	10 A
Contact Plating	Gold
Contact Material	Copper Alloy
Mounting Angle	Straight
Voltage Rating	250 VDC
Shell Plating	Hard Coat
Mating Style	-
Shell Material	Aluminum Alloy
Wire Gauge	-

Preview

Download Datasheet

View All

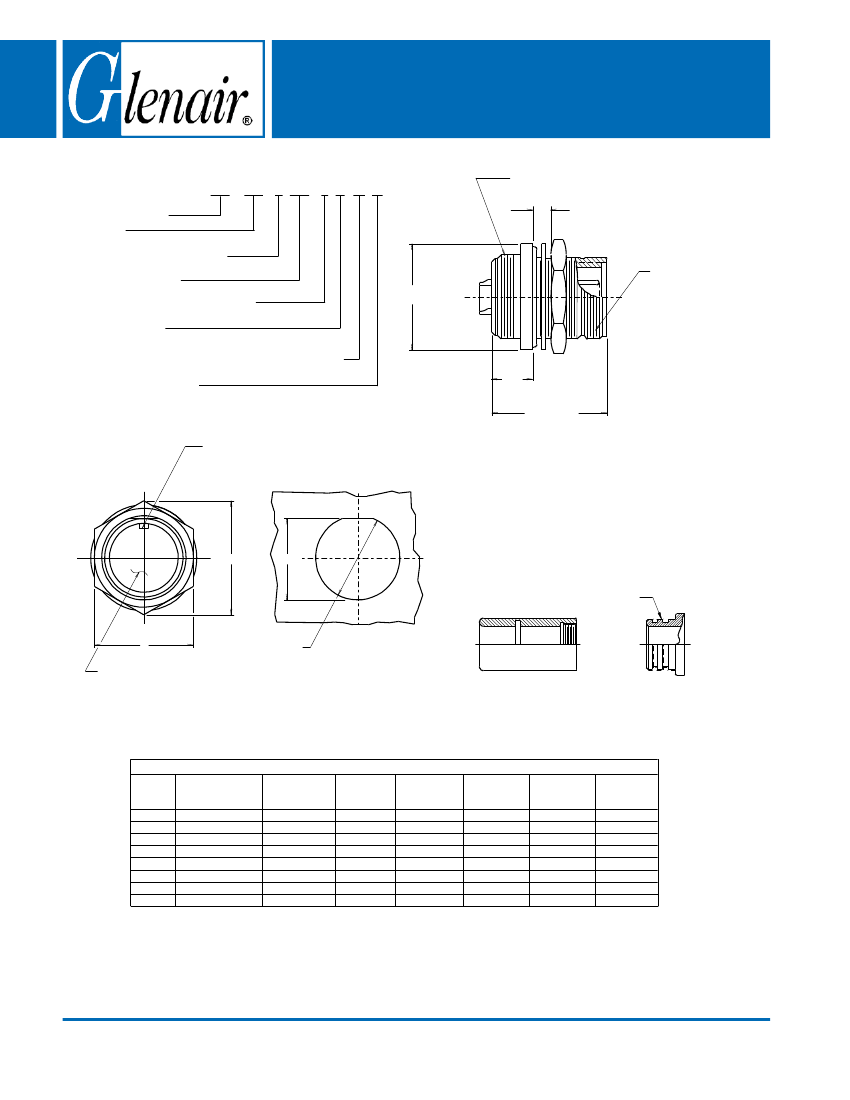

Mates to Mil-C-5015 (MS3106) Type Receptacle Connector

HOW TO ORDER:

EXAMPLE:

PRODUCT SERIES

BASIC NO

2 = RECEPTACLE ASSEMBLY

SHELL SIZE, TABLE I

INSERT ARRANGEMENT DASH NO

CONTACT STYLE:

P = PIN

S = SOCKET

ALTERNATE INSERT POSITION, OMIT FOR NORMAL

M = MOLDING ADAPTER

P = POTTING ADAPTER

(OMIT FOR NONE)

POLARIZING KEY

.54

1.62 MAX

C DIA

A THREAD TYP.

257 - 012 - 2 -14S - 5 P W M

B THREAD

.156 MAX. PANEL

.030 MIN. PANEL

257-012

Environment Resistant Receptacle

MIL-DTL-5015 Type

MIL-DTL-5015

SHELL

SIZE

10SL

14S

16S

A THREAD

CLASS 2A

5/8 -24 UNEF

3/4 -20 UNEF

7/8 -20 UNEF

1 -20 UNEF

1 1/8 -18 UNEF

1 1/4 -18 UNEF

1 1/2 -18 UNEF

1 3/4 -18 UNEF

www.glenair.com

SAND BLAST

RECOMMENDED

PANEL CUTOUT

REF: GLENAIR 290WS018

(P)

REF: GLENAIR 290WS011

(M)

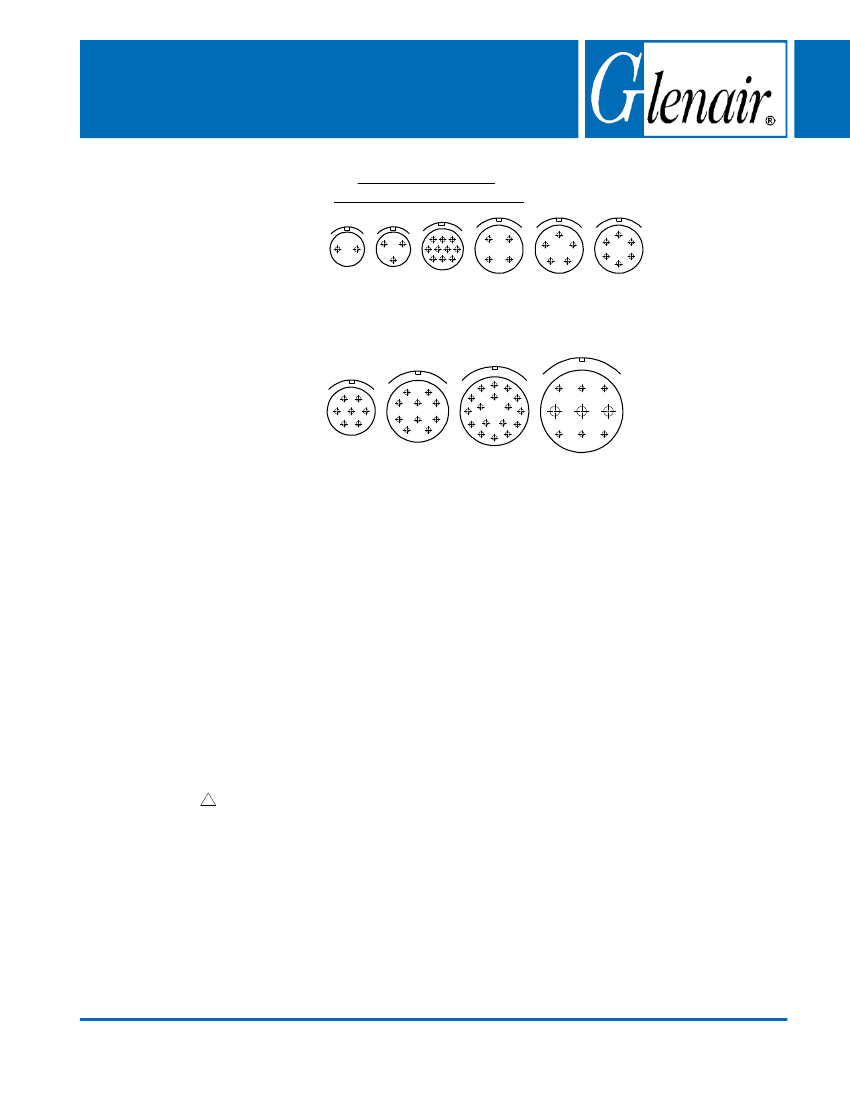

INSERT ARRANGEMENT WITH SOLDER POT

CONTACTS, SEE FACE VIEWS & P/N DEVELOPMENT

TABLE I: CONNECTOR DIMENSIONS

B THREAD

CLASS 2A

MAX

5/8 -24 UNEF

3/4 -20 UNEF

7/8 -20 UNEF

1 -20 UNEF

1 1/8 -16 UN

1 1/4 -16 UN

1 1/2 -16 UN

1 3/4 -18 UN

1.03 (26.2)

1.16 (29.5)

1.28 (32.5)

1.42 (36.1)

1.66 (42.2)

1.78 (45.2)

2.03 (51.6)

2.28 (57.9)

+.010 - .000

(+0.3 - 0)

.635 (16.1)

.760 (19.3)

.885 (22.5)

1.010 (25.7)

1.135 (28.8)

1.260 (32.0)

1.510 (38.4)

1.760 (44.7)

+.010 - .000

(+0.3 - 0)

.585 (14.9)

.710 (18.0)

.835 (21.2)

.960 (24.4)

1.085 (27.6)

1.210 (30.7)

1.460 (37.1)

1.710 (43.4)

MAX

.875 (22.2)

1.000 (25.4)

1.125 (28.6)

1.250 (31.8)

1.500 (38.1)

1.625 (41.3)

1.875 (47.6)

2.125 (54.0)

MAX

.94 (23.9)

1.09 (27.7)

1.25 (31.8)

1.39 (35.3)

1.69 (42.9)

1.82 (46.2)

2.12 (53.8)

2.42 (61.5)

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

C-16

257-012-2-16S-1P Related Products

	257-012-2-16S-1P	257-012-2-14S-6P	257-012-2-20-29SM	257-012-2-14S-6PM	257-012-2-20-29SWM
Description	Circular MIL Spec Connector ENV RESISTANT PLUG PIN	Circular MIL Spec Connector ENV RESISTANT PLUG PIN POTTING ADAPTER	Circular MIL Spec Connector ENV RESISTANT PLUG SKT MOLDING ADAPTER	Circular MIL Spec Connector ENV RESISTANT PLUG PIN MOLDING ADAPTER	Circular MIL Spec Connector
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Glenair	Glenair	Glenair	Glenair	Glenair
Product Category	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector
MIL Type	MIL-DTL-5015	MIL-DTL-5015	MIL-DTL-5015	MIL-DTL-5015	MIL-DTL-5015
Product	Connectors	Connectors	Connectors	Connectors	Connectors
Number of Positions	7 Position	6 Position	17 Position	-	-
Insert Arrangement	16S-1	14S-6	20-29	-	-
Contact Gender	Pin (Male)	Pin (Male)	Socket (Female)	-	-
Shell Size	16S	14S	20	-	-
Shell Style	Receptacle	Receptacle	Receptacle	-	-
Mounting Style	Cable	Cable	Cable	-	-
Termination Style	Solder	Solder	Solder	-	-
Current Rating	10 A	10 A	10 A	-	-
Contact Plating	Gold	Gold	Gold	-	-
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	-	-
Mounting Angle	Straight	Straight	Straight	-	-
Voltage Rating	250 VDC	250 VDC	250 VDC	-	-
Shell Plating	Hard Coat	Hard Coat	Hard Coat	-	-
Shell Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	-	-

Recommended Resources
