503772-3010: DescriptionBoard to Board & Mezzanine Connectors 30Ckt SMT Vert Recpt 0.40mm Pitch BTB; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

503772-3010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	503772-3010	-	-	View	Buy Now

503772-3010 Overview

Board to Board & Mezzanine Connectors 30Ckt SMT Vert Recpt 0.40mm Pitch BTB

503772-3010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SLIMSTACK
Board mount options	SOLDER HOLDING POSTS
body width	0.098 inch
subject depth	0.025 inch
body length	0.331 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.016 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.143 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	30

Preview

Download Datasheet

View All

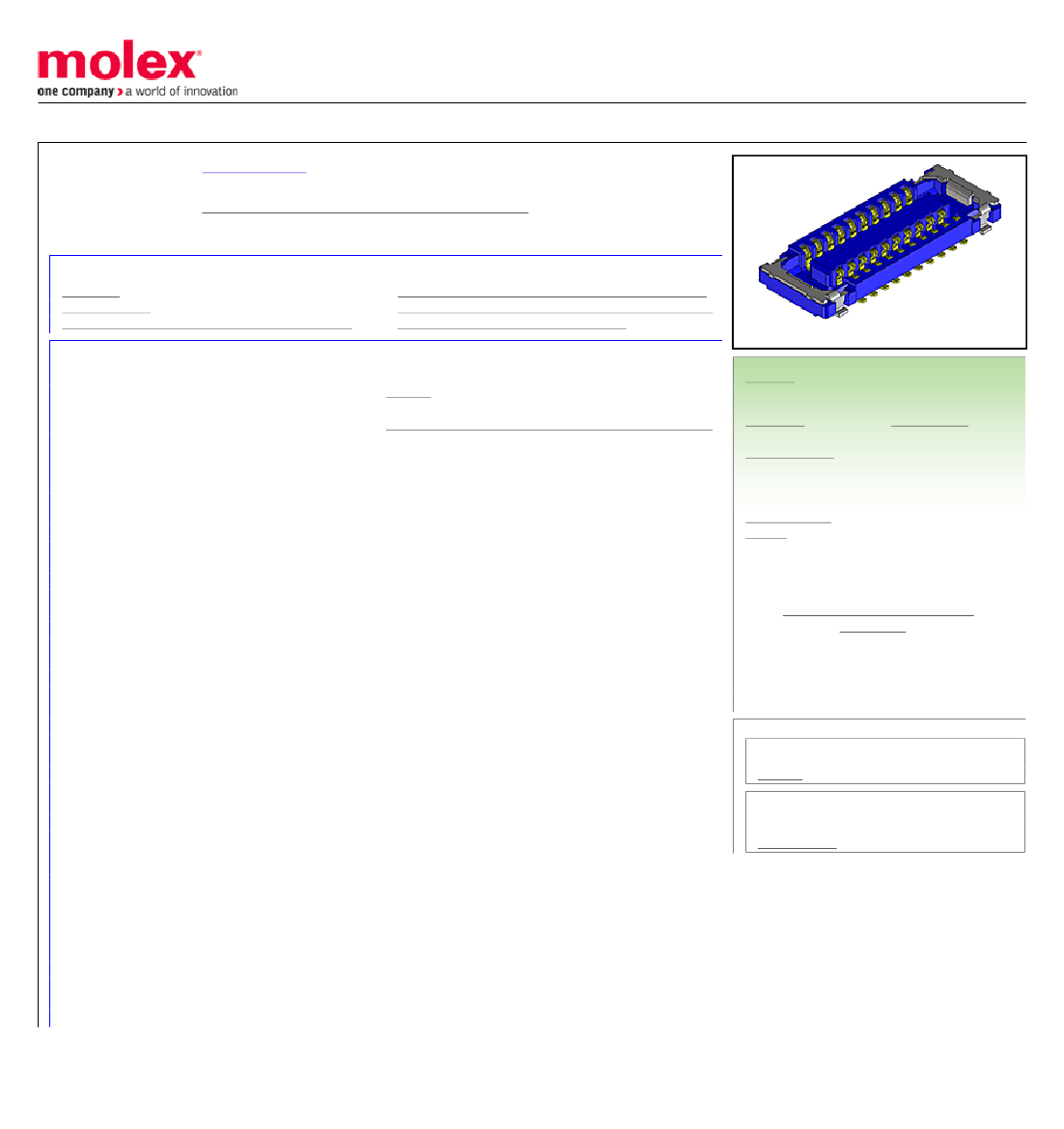

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5037723010

Active

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

0.40mm Pitch SlimStack B8 Board-to-Board Receptacle, Surface Mount, Dual Row,

Vertical, 0.80mm Stacking Height, 30 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-503772-001-001 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Capable

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Application Specification AS-503772-001-001 (PDF)

Packaging Specification SPK-503772-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Receptacles

503772

Board-to-Board, Signal

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

SlimStack B8

884982554047

Black

Yes

0.80mm

Copper Alloy

Gold

21.147/mg

Vertical

Yes

Embossed Tape on Reel

0.40mm

-40°C to +85°C

Surface Mount

0.3A

50V AC/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

503772 Series

Mates With

SlimStack B8 Board-to-Board Plug

503776-3010

AS-503772-001-001

SPK-503772-001-001

PS-503772-001-001

5037720000-000, 5037721000-000
