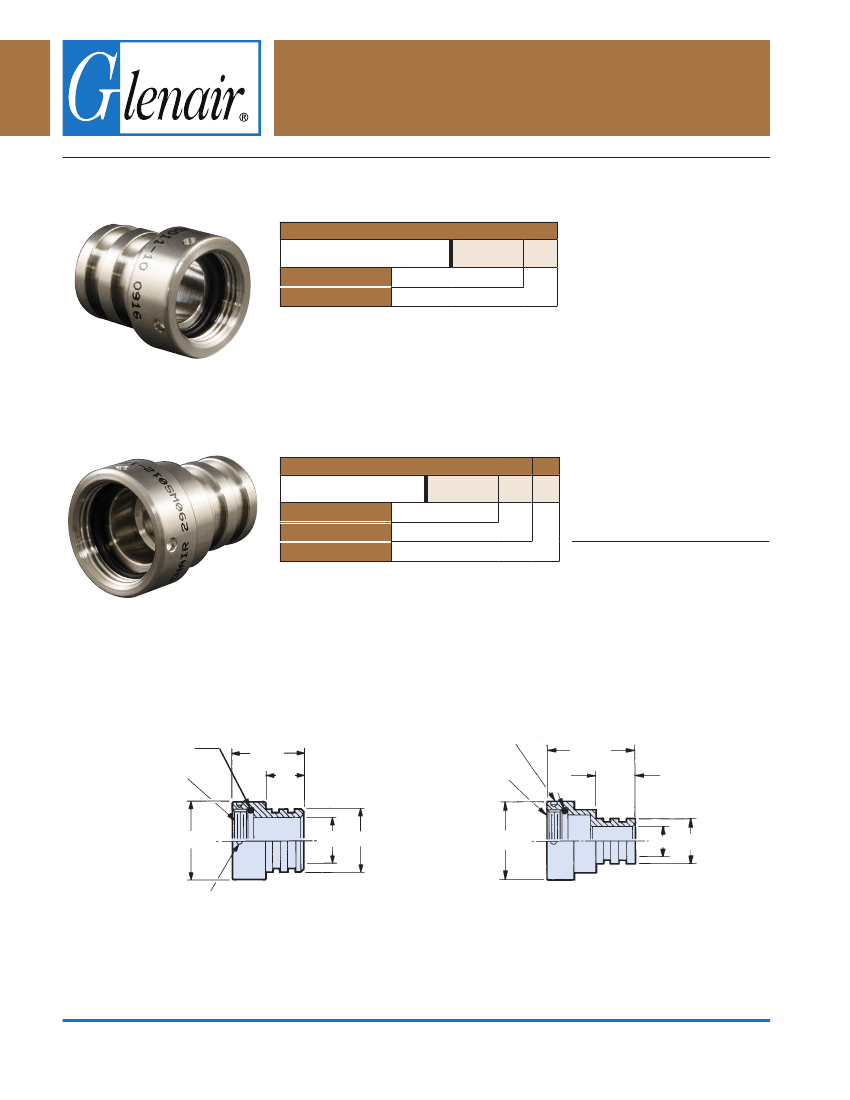

Geo-Marine
®
Accessories
Basic Number
Shell Size
Basic Number
Shell Size
Cable Entry Size
290-011 and 290-012
Stainless Steel Molding Adapters
STAINLESS STEEL MOLDING ADAPTERS, STANDARD OR WITH OPTIONAL CABLE ENTRY DIAMETERS
Tips
How To Order
Sample Part Number
290WS011
See Table I
290WS011
–18
To select the appropriate molding
adapter, consider the following basic
suggestions to ensure a high integrity,
quality molded termination:
•
Select a molding adapter which
will provide adequate inside
working room to accept the
termination envelope, especially
if there are shield terminations,
splices, etc.
If the termination is to be molded
with neoprene or other material
using a transfer molding process,
select the molding adapter cable
entry diameter close to the
outside diameter of the cable or
termination envelope.
•
How To Order
Sample Part Number
290WS012
–18
12
290WS012
See Table II
See Table II
Notes
1. Prior to use, lubricate O-rings with
high grade silicone lubricant (Moly-
kote M55 or equivalent).
2. Material:
Adapter - stainless steel.
O-ring - nitrile
290WS011 STANDARD
O-ring
A Thread
1.28 (32.5)
Max
.60
(15.2)
290WS012 OPTIONAL CABLE ENTRY DIAMETERS
Tightening & Staking
Indentations
A Thread
2.00
(50.8)
Max
O-ring
.60
(15.2)
D
B
C
D
E
F
G
Tightening & Staking
Indentations
© 2014 Glenair, Inc.
Series 22 Geo-Marine
®
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-2
E-Mail: sales@glenair.com
290-011 and 290-012
Stainless Steel Molding Adapters
Table I: 290WS011 Fixed Entry Dimensions
Shell Size
10
12
14
16
18
20
22
24
A Thread Class 2B
5/8 - 24 UNEF
3/4 - 20 UNEF
7/8 - 20 UNEF
1 - 20 UNEF
1 1/8 - 16 UN
1 1/4 - 16 UN
1 3/8 - 16 UN
1 1/2 - 16 UN
B Dia Max
.855 (21.7)
.965 (24.5)
1.090 (27.7)
1.220 (31.0)
1.370 (34.8)
1.525 (38.7)
1.655 (42.0)
1.775 (45.1)
C Dia
.430 (10.9)
.535 (13.6)
.660 (16.8)
.785 (19.9)
.880 (22.4)
1.005 (25.5)
1.130 (28.7)
1.255 (31.9)
D Dia
.670 (17.0)
.780 (19.8)
.905 (23.0)
1.020 (25.9)
1.135 (28.8)
1.250 (31.8)
1.383 (35.1)
1.510 (38.4)
Table II: 290WS012 Variable Entry Dimensions
Shell Size
10
12
14
16
18
20
22
24
A Thread Class 2B
5/8 - 24 UNEF
3/4 - 20 UNEF
7/8 - 20 UNEF
1 - 20 UNEF
1 1/8 - 16 UN
1 1/4 - 16 UN
1 3/8 - 16 UN
1 1/2 - 16 UN
E Dia Max
.855 (21.7)
.965 (24.5)
1.090 (27.7)
1.220 (31.0)
1.370 (34.8)
1.525 (38.7)
1.655 (42.0)
1.775 (45.1)
Table IV:
Torque Values
Entry No.
10
12
14
16
18
20
22
24
Torque
± 5 In. Lbs.
80
100
120
120
140
140
140
150
24
20
16
12
Max Entry
F Dia
.430 (10.9)
.535 (13.6)
.660 (16.8)
.785 (19.9)
.880 (22.4)
1.005 (25.5)
1.130 (28.7)
1.255 (31.9)
Table V: Replacement O-Ring
Part Numbers *
Shell
Size
10
12
14
16
18
20
22
24
Piston
O-Ring
2-014
2-016
2-018
2-020
2-022
2-024
2-026
2-028
G Dia
.670 (17.0)
.780 (19.8)
.905 (23.0)
1.020 (25.9)
1.135 (28.8)
1.250 (31.8)
1.383 (35.1)
1.510 (38.4)
* Parker o-ring part numbers.
Compound N674-70 or equivalent.
Instructions for using cable molding adapters
1. Slide 290WS011/012 adapter over cable
2. Prepare cable and wires
3. If using shrink sleeves, slide them over wire insulation and
solder terminated wires to solder cup contacts; slide shrink
sleeves to correct position and apply recommended heat.
4. Slide 290WS011/012 adapter and attach hand-tight to plug
connector.
5. Use Plug Holding Tool (P/N 600-005) along with Hand Held
Torque Wrench (P/N 600-076) and Spanner Wrench (P/N 600-
171) to tighten to recommended torque value.
© 2014 Glenair, Inc.
Series 22 Geo-Marine
®
Please note that the “tightening/staking indentations” are on the
290WS011/012Adapter, NOT on the Marine Bronze Coupling Nut. The
“holes” in the coupling nut retain the spring for the anti-decoupling
feature of the cable plug.
The TG70 Strap Wrench and the 600-076 Torque Wrench should be
utilized to properly torque the cable/plug assembly to the appropriate
receptacle
