KF66X-C62P-N30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KF66X-C62P-N30

KF66X-C62P-N30: DescriptionD-Sub High Density Connectors HD62 FML FE-G/BKT NON THRD INS; CategoryThe connector The connector; File Size650KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

KF66X-C62P-N30 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KF66X-C62P-N30	-	-	View	Buy Now

KF66X-C62P-N30 Overview

D-Sub High Density Connectors HD62 FML FE-G/BKT NON THRD INS

KF66X-C62P-N30 Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.634 inch
body length	2.729 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.095 inch
Match contact row spacing	0.078 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	75 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.138 inch
Terminal pitch	2.413 mm
Termination type	SOLDER
Total number of contacts	62
Base Number Matches	1

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KF66X-E15P-N30

Part Number Builder

LR78160

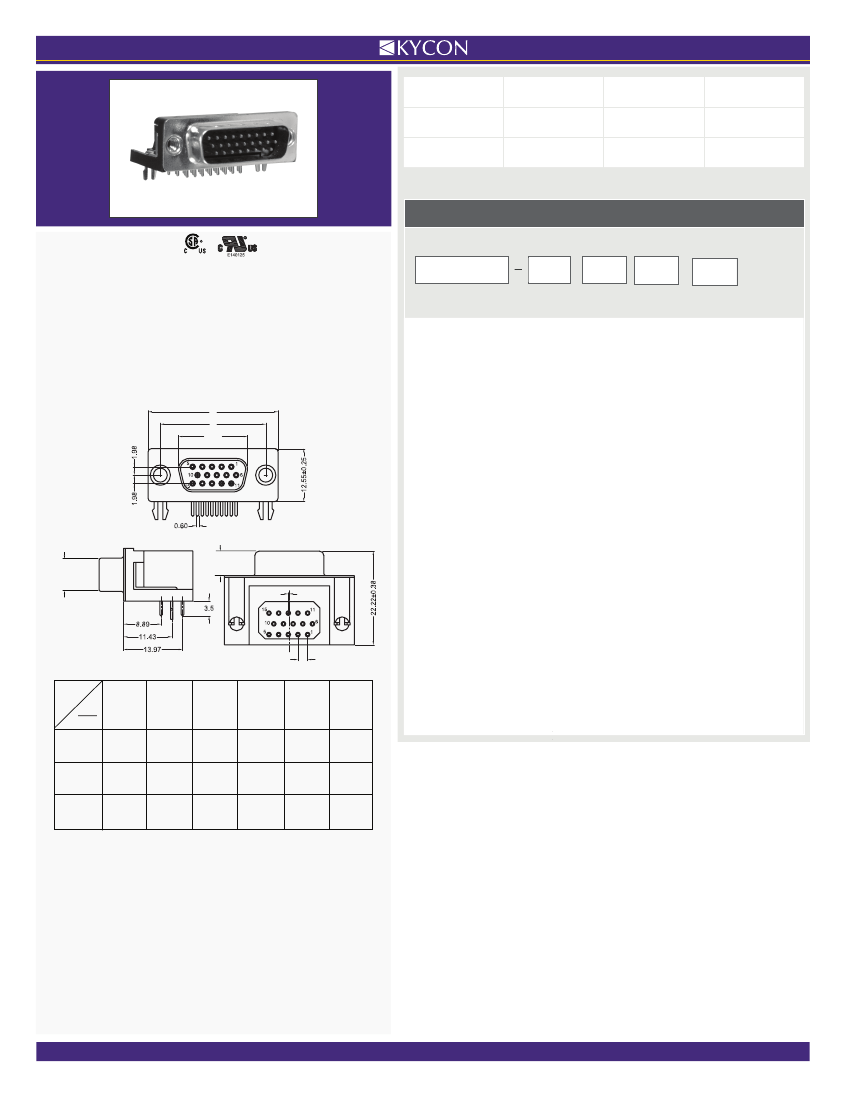

D-SUBMINIATURE CONNECTORS:

KF66X

Series

Right Angle PCB Mount With Ferrite

KF66X

Series Dimensions

Dimensions in mm

KF66X

Series

E15

Shell Size

Contact

Type

Mounting

Option

Plating

Option

Series

KF66X

High Density D-Subminiature Connector, Right Angle

PCB Termination, 0.350” Footprint, with Ferrite

Shell Size-Contact Option

- 15 Contacts

- 26 Contacts

- 44 Contacts

Contact Type

Pin Contact (Plug)

Socket Contact (Receptacle)

C, C1

8.36 Plug Interior

7.90 Socket Exterior

6.1 Plug

5.8 Socket

Mounting Option

With Boardlocks and

#4-40 UNC Threaded Insert

With Boardlocks and

#4-40 Jackscrews Installed

Plating Option

Blank

Gold Flash

30µ” Gold

Shell

Size

.015

0.38

1.213

30.81

1.541

39.14

2.088

53.04

.005

0.13

.984

24.99

1.312

33.32

1.852

47.04

.010

0.25

.643

16.33

.971

24.66

1.511

38.38

.010

0.25

.666

16.92

.994

25.25

1.534

38.96

.005

0.13

.090

2.29

.090

2.29

.090

2.29

.005

0.13

.010

0.25

.020

0.51

.020

0.51

Contact Kycon for VESA and Other Options

(E)

(A)

(B)

C = Exterior of Female Shell (S)

C1 = Interior of Male Shell (P)

Electrical Characteristics

Rated Current:

1.5A

Rated Voltage:

29Vac

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

0318
