M80-5514422 datasheet, PDF - EEWORLD Datasheet

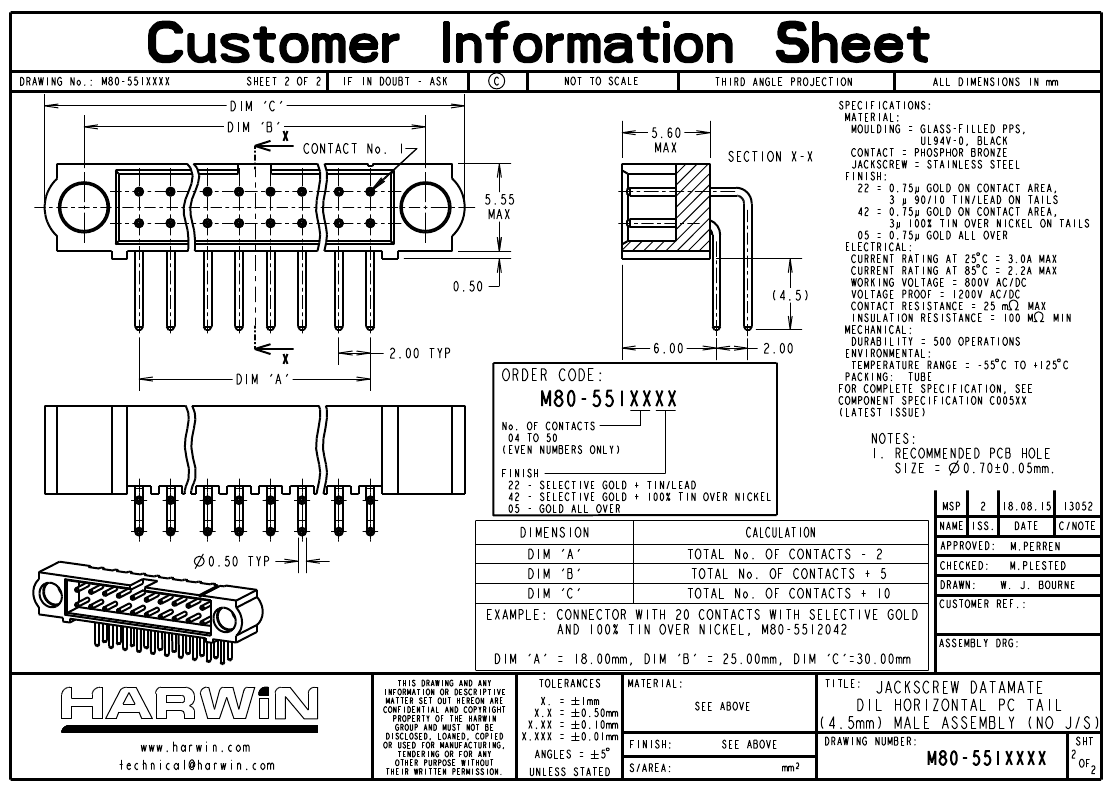

M80-5514422: DescriptionHeaders & Wire Housings 44P Male Vert Pb, Sn 4.5mm PC Tail W/O JS; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M80-5514422 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-5514422	-	-	View	Buy Now

Headers & Wire Housings 44P Male Vert Pb, Sn 4.5mm PC Tail W/O JS

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.238 inch
subject depth	0.315 inch
body length	2.126 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	M80-551
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0
Base Number Matches	1
