74651-2514 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 74651-2514

74651-2514: DescriptionHigh Speed / Modular Connectors HSD BP 8R 25C SHIELD D END GUIDE/KEY ASSY; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74651-2514 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74651-2514	-	-	View	Buy Now

74651-2514 Overview

High Speed / Modular Connectors HSD BP 8R 25C SHIELD D END GUIDE/KEY ASSY

74651-2514 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
body width	0.85 inch
subject depth	0.484 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of rows loaded	8
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	150
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

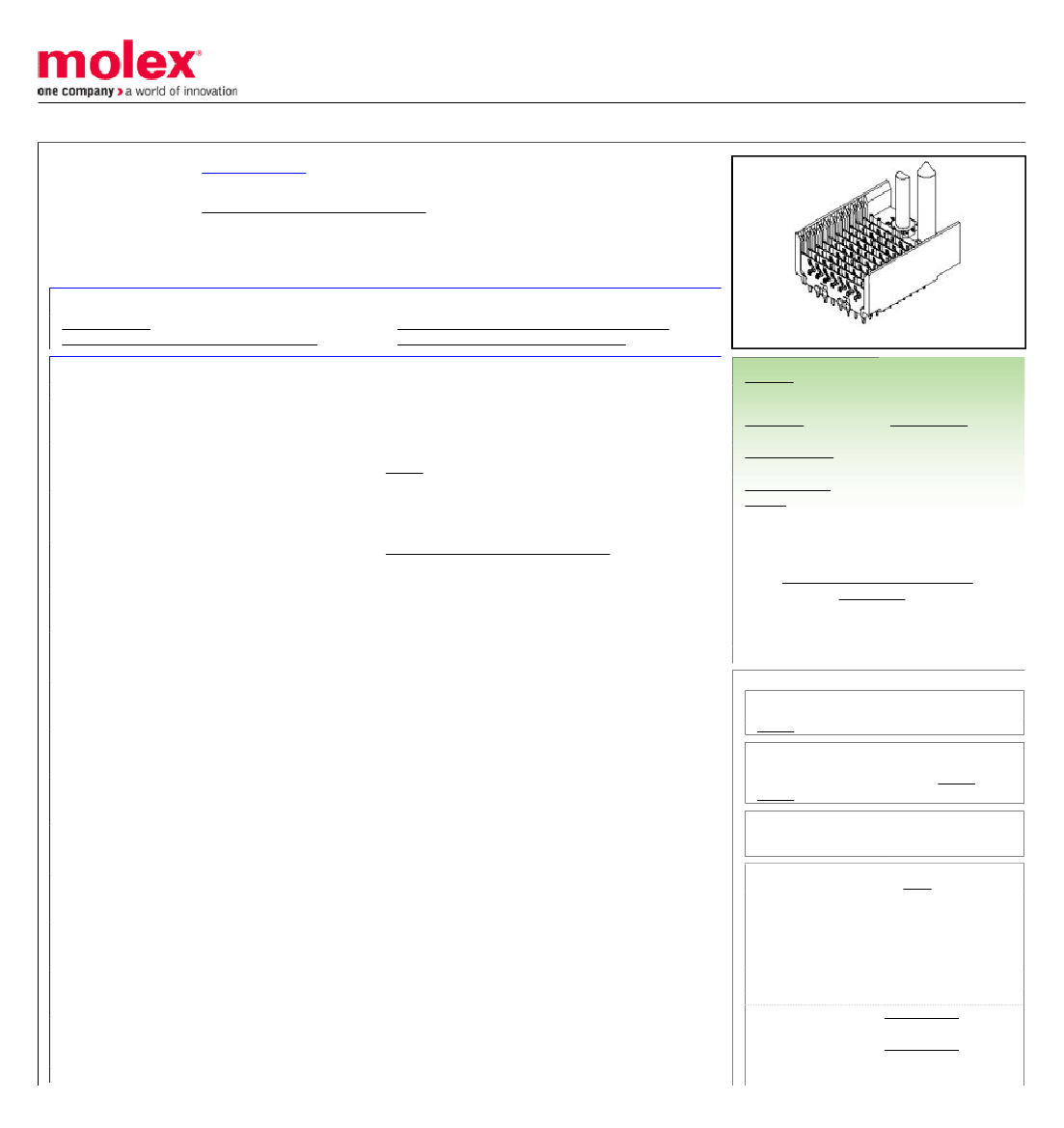

This document was generated on 09/30/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0746512514

Active

VHDM-HSD™ Backplane Connectors

VHDM-HSD™ Backplane Header, 2.00mm Pitch, 8-Row, Guide Pin Signal Module,

Shield End Version, 150 Circuits, Pin Length 5.15mm, Keying Option A. Series:74659

Enables designers to create custom loaded connectors utilizing standard pin lengths

4.25, 4.75, 5.15

Documents:

Drawing (PDF)

Product Specification PS-74031-999 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Application Tooling Documents

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Packaging Specification PK-74061-003 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Not Reviewed

LR19980

E29179

Backplane Connectors

74651

Backplane

TM-622010999

Keying Orientation A

PCB Header

VHDM-HSD™ Backplane Connectors

VHDM-HSD™

756054379127

150

Black

200

94V-0

Yes

Copper-Nickel-Silicon, High Performance Alloy (HPA),

Stainless Steel

Gold

Matte Tin

High Temperature Thermoplastic

Open Pin Field

Vertical

2.50mm

None

1.80mm

Tube

2.00mm

0.762µm

Yes

-55°C to +105°C

Search Parts in this Series

74651 Series

Mates With

VHDM-HSD™ Daughtercards 74680 ,

74686

Use With

Daughtercard Modules

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Signal Pin Inserter 0622015700

Repair Tool

Insertion Module

0622020206

for Advanced Mate

Signal Header, 6-
