Base strip - MCO 1,5/ 4-G1R-3,5 KMGY - 2278377
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

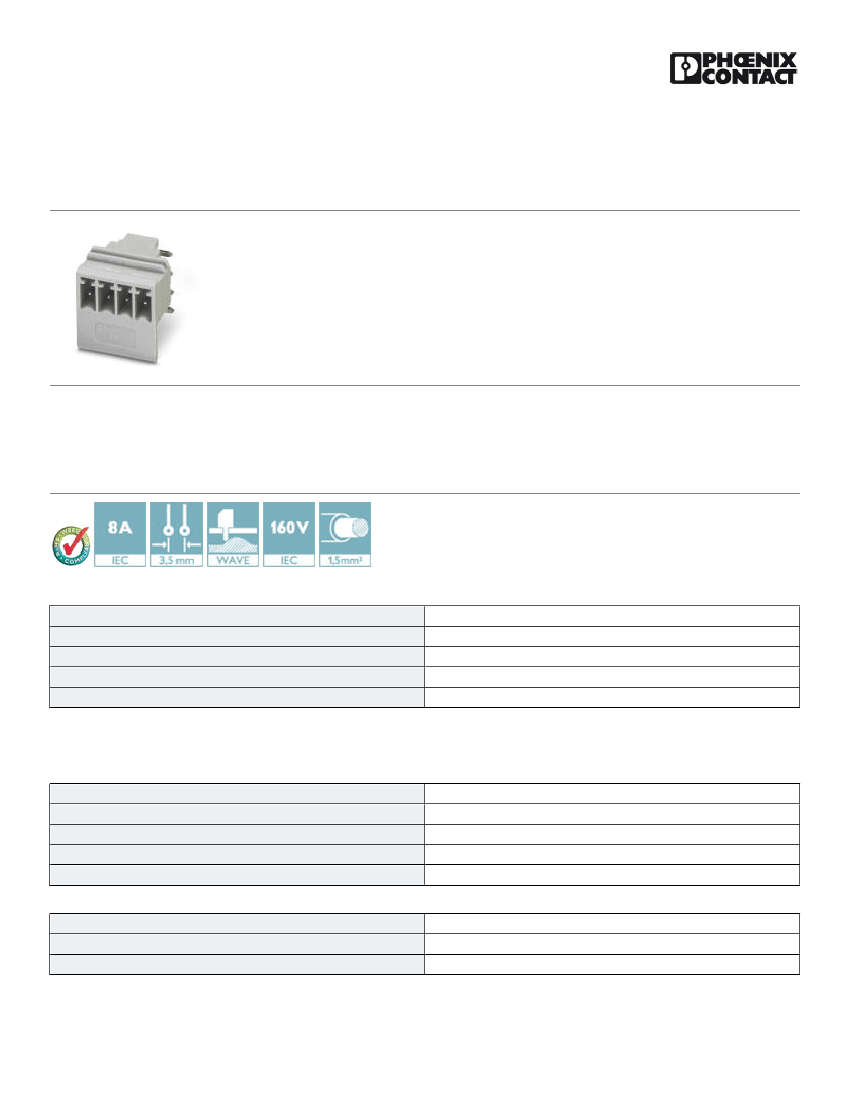

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 3.5 mm, Mounting:
Soldering, Article with lateral pin exit
Product Features
■
■
■
Headers for ME and ME MAX electronics housing
Plug-in direction orthogonal to the PCB
Pitch: 3.5 mm
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
2.38 g
85366990
Poland
Technical data
Dimensions
Pitch
Dimension a
Length of the solder pin
Pin dimensions
Hole diameter
3.50 mm
10.5 mm
3 mm
0,8 x 0,8 mm
1.2 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
MCO 1,5/..-G1R
I
2.5 kV
04/24/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/2278377
Base strip - MCO 1,5/ 4-G1R-3,5 KMGY - 2278377
Technical data
General
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Number of positions
2.5 kV
2.5 kV
160 V
160 V
320 V
8A
8A
PA
V0
4
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27180401
27180401
27180506
27260701
27260704
27440402
27440402
27440402
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
31261501
31261501
31261501
31261501
04/24/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/2278377
Base strip - MCO 1,5/ 4-G1R-3,5 KMGY - 2278377
Classifications
UNSPSC
UNSPSC 13.2
31261501
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
8A
300 V
D
8A
300 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
8A
300 V
D
8A
300 V
EAC
EAC
04/24/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/2278377
Base strip - MCO 1,5/ 4-G1R-3,5 KMGY - 2278377
Approvals
cULus Recognized
Accessories
Accessories

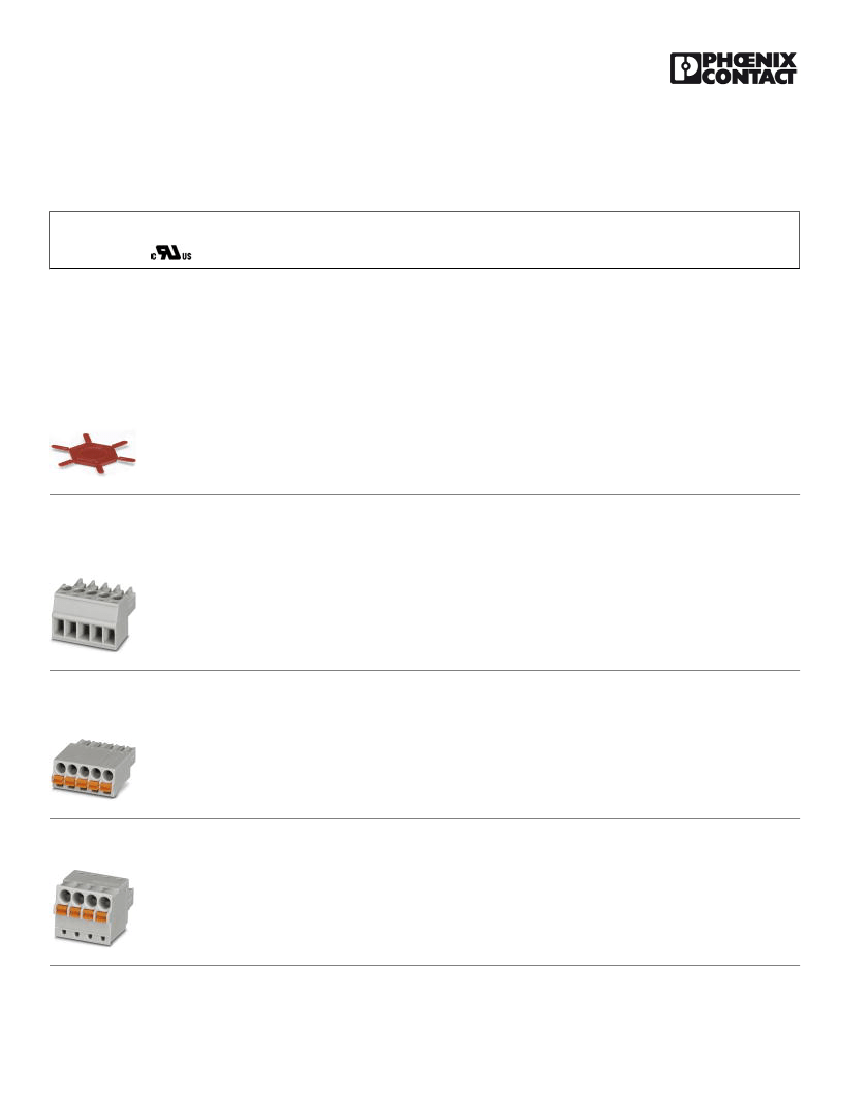

Coding element
Coding profile - CP-MSTB - 1734634
Coding profile, is inserted into the slot on the plug or inverted header, red insulating material
Required add-on products

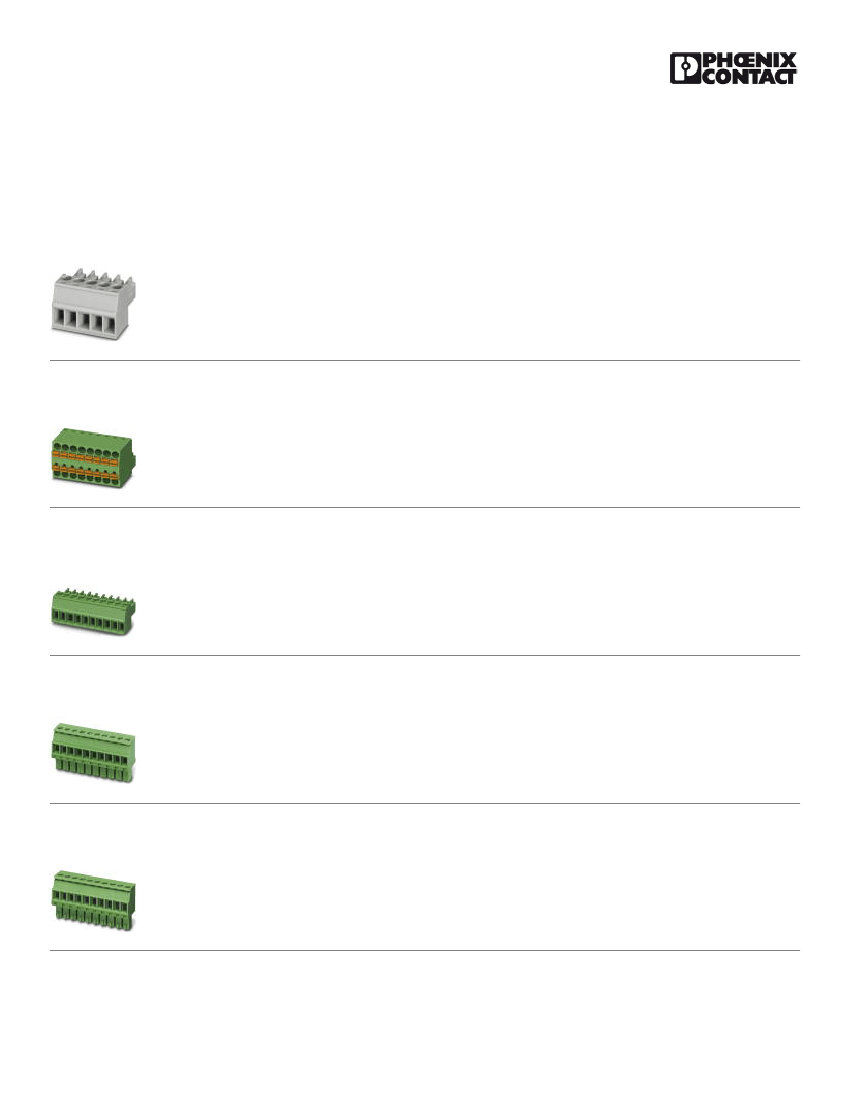

Printed-circuit board connector - MC 1,5/ 4-ST-3,5 GY7035 - 1769074
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 3.5 mm, Connection
method: Screw connection with tension sleeve, Color: light gray, Contact surface: Tin
Printed-circuit board connector - FMC 1,5/ 4-ST-3,5 GY7035 - 1773578
Plug component, Nominal current: 8 A, Number of positions: 4, Pitch: 3.5 mm, Connection method: Push-in spring
connection, Color: light gray, Contact surface: Tin
Printed-circuit board connector - FK-MCP 1,5/ 4-ST-3,5 GY7035 - 1773594
Plug component, Nominal current: 8 A, Number of positions: 4, Pitch: 3.5 mm, Connection method: Push-in spring
connection, Color: light gray, Contact surface: Tin
04/24/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/2278377
Base strip - MCO 1,5/ 4-G1R-3,5 KMGY - 2278377
Accessories
Additional products
Printed-circuit board connector - MC 1,5/ 4-ST-3,5 GY7035 - 1769074
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 3.5 mm, Connection
method: Screw connection with tension sleeve, Color: light gray, Contact surface: Tin
Printed-circuit board connector - TFMC 1,5/ 4-ST-3,5 - 1772634
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 3.5 mm, Connection
method: Push-in spring connection, Color: green, Contact surface: Tin
Printed-circuit board connector - MC 1,5/ 4-ST-3,5 - 1840382
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 3.5 mm, Connection
method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Printed-circuit board connector - MCVW 1,5/ 4-ST-3,5 - 1862878
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 3.5 mm, Connection
method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Printed-circuit board connector - MCVR 1,5/ 4-ST-3,5 - 1863178
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 3.5 mm, Connection
method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
04/24/2016 Page 5 / 6
