87333-16201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87333-16201

87333-16201: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87333-16201 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

87333-16201 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	87333
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

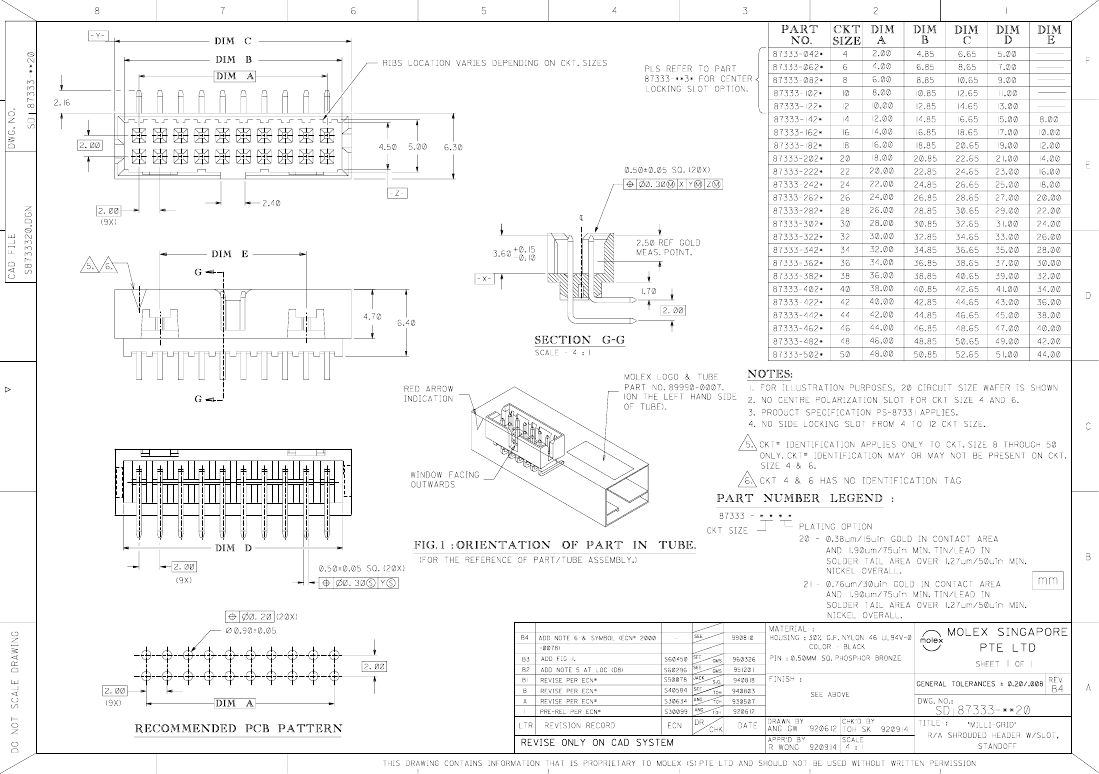

Preview

Download Datasheet

View All

87333-16201 Related Products

	87333-16201	87333-36201	87333-08201	87333-10201	87333-20201	87333-22201	87333-30201	87333-40201	87333-50201	87333-24201
Description	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	87333	87333	87333	87333	87333	87333	87333	87333	87333	87333
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	36	8	10	20	22	30	40	50	24
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1	1
