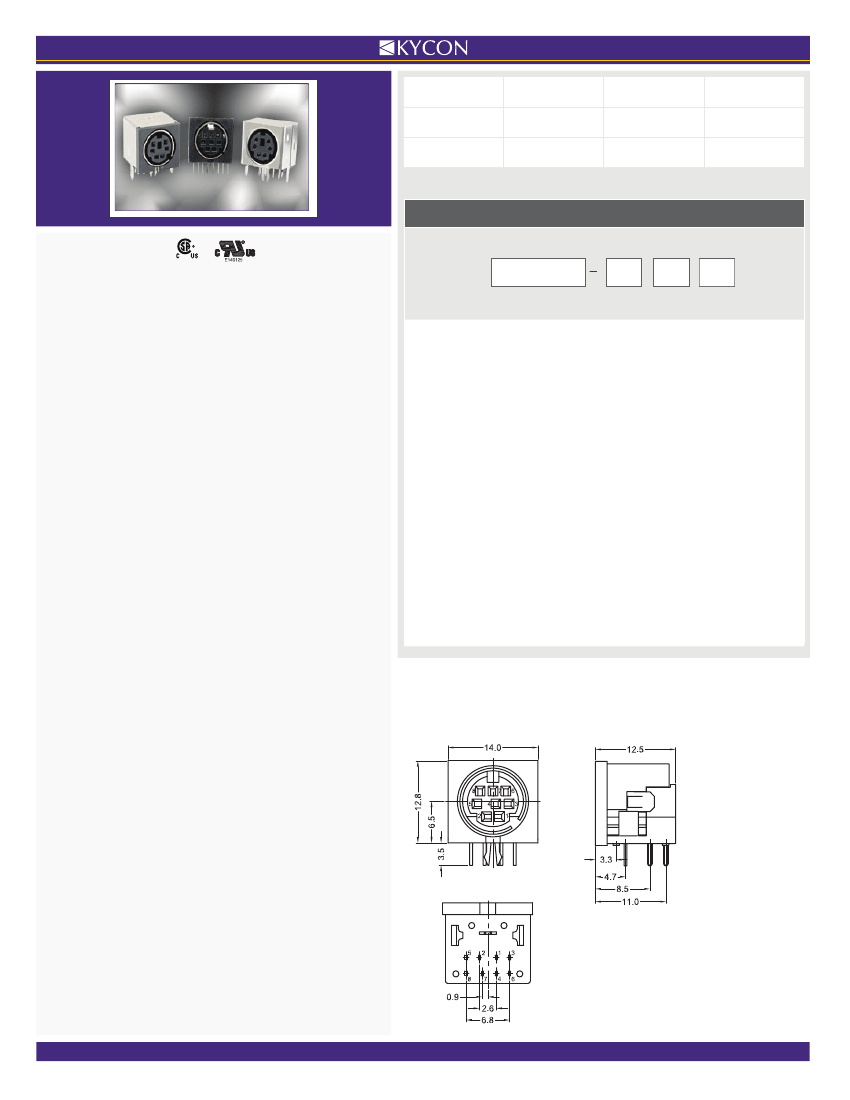

Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 1598158403 |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.504 inch |
| subject depth | 0.492 inch |
| body length | 0.551 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CIRCULAR DIN CONNECTOR |
| Contact to complete cooperation | SILVER |
| Contact completed and terminated | Silver (Ag) |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| Contact resistance | 30 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | YES |
| Dielectric withstand voltage | 350VAC V |
| Durability | 1000 Cycles |
| Electromagnetic interference shielding | NO |
| IEC compliance | NO |
| Insulation resistance | 50000000 Ω |
| Insulator color | BLACK |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of ports | 1 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 2 A |
| Guideline | UL |
| Shell surface | TIN |
| Shell material | STEEL |
| Terminal length | 0.138 inch |
| Termination type | SOLDER |
| Total number of contacts | 4 |
| KMDLX-4S-N | KMDLX-7S-BS | KMDLX-6S-N | KMDLX-7S-AS | KMDLX-7S-N | KMDLX-3S-BS | KMDLX-5S-BS | KMDLX-3S-AS | KMDLX-6S-BS | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT | Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT | Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT | Circular DIN Connectors 7P 4SD SHLD SOCKET R/A SNAP AND LOCK | Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT | Circular DIN Connector, 3 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT | Circular DIN Connectors 5P FULL SHLD SOCKET R/A SNAP AND LOCK | Circular DIN Connector, 3 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT | Circular DIN Connectors 6P FULL SHLD SOCKET R/A SNAP AND LOCK |
| package instruction | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| body width | 0.504 inch | 0.504 inch | 0.504 inch | 0.504 inch | 0.504 inch | 0.504 inch | 0.504 inch | 0.504 inch | 0.504 inch |
| subject depth | 0.492 inch | 0.492 inch | 0.492 inch | 0.492 inch | 0.492 inch | 0.492 inch | 0.492 inch | 0.492 inch | 0.492 inch |
| body length | 0.551 inch | 0.551 inch | 0.551 inch | 0.555 inch | 0.551 inch | 0.551 inch | 0.551 inch | 0.551 inch | 0.551 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR | CIRCULAR DIN CONNECTOR |
| Contact to complete cooperation | SILVER | SILVER | NOT SPECIFIED | SILVER | SILVER | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | Silver (Ag) | SILVER | Silver (Ag) | SILVER | Silver (Ag) | Silver (Ag) | Silver (Ag) | Silver (Ag) | Silver (Ag) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE | PHOSPHOR BRONZE | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact resistance | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Dielectric withstand voltage | 350VAC V | 350VAC V | 350VAC V | 350VAC V | 350VAC V | 350VAC V | 350VAC V | 350VAC V | 350VAC V |
| Durability | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles |
| Electromagnetic interference shielding | NO | YES | NO | YES | NO | YES | YES | YES | YES |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Insulation resistance | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω | 50000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 | e4 | e4 | e4 | e4 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C | 75 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL | UL |
| Shell surface | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL |
| Terminal length | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 4 | 7 | 6 | 7 | 7 | 3 | 5 | 3 | 6 |
| Is it Rohs certified? | conform to | - | conform to | - | conform to | conform to | conform to | conform to | conform to |
| Objectid | 1598158403 | 1598158411 | 1598158409 | - | 1598158412 | 1598158399 | - | 1598158398 | - |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - | - | EAR99 |
