289-0121H15MEGR datasheet, PDF

Datasheet> All Categories > The connector> The connector> 289-0121H15MEGR

289-0121H15MEGR: DescriptionD-Sub MIL Spec Connectors; CategoryThe connector The connector; File Size542KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

289-0121H15MEGR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	289-0121H15MEGR	-	-	View	Buy Now

289-0121H15MEGR Overview

D-Sub MIL Spec Connectors

289-0121H15MEGR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks 5 days
Other features	LOW PROFILE
body width	0.494 inch
subject depth	0.403 inch
body length	1.213 inch
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	GOLD (50)
Contact point gender	MALE-FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	289-012
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	PANEL
触点数量:侧 1	15
触点数量:侧 2	15
Number of rows loaded	3
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Rated current (signal)	5 A
reliability	COMMERCIAL
Shell surface	ELECTROLESS NICKEL
Shell material	ALUMINUM ALLOY
direct connection	YES
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

Sav-Con

connector savers

HiPer-D

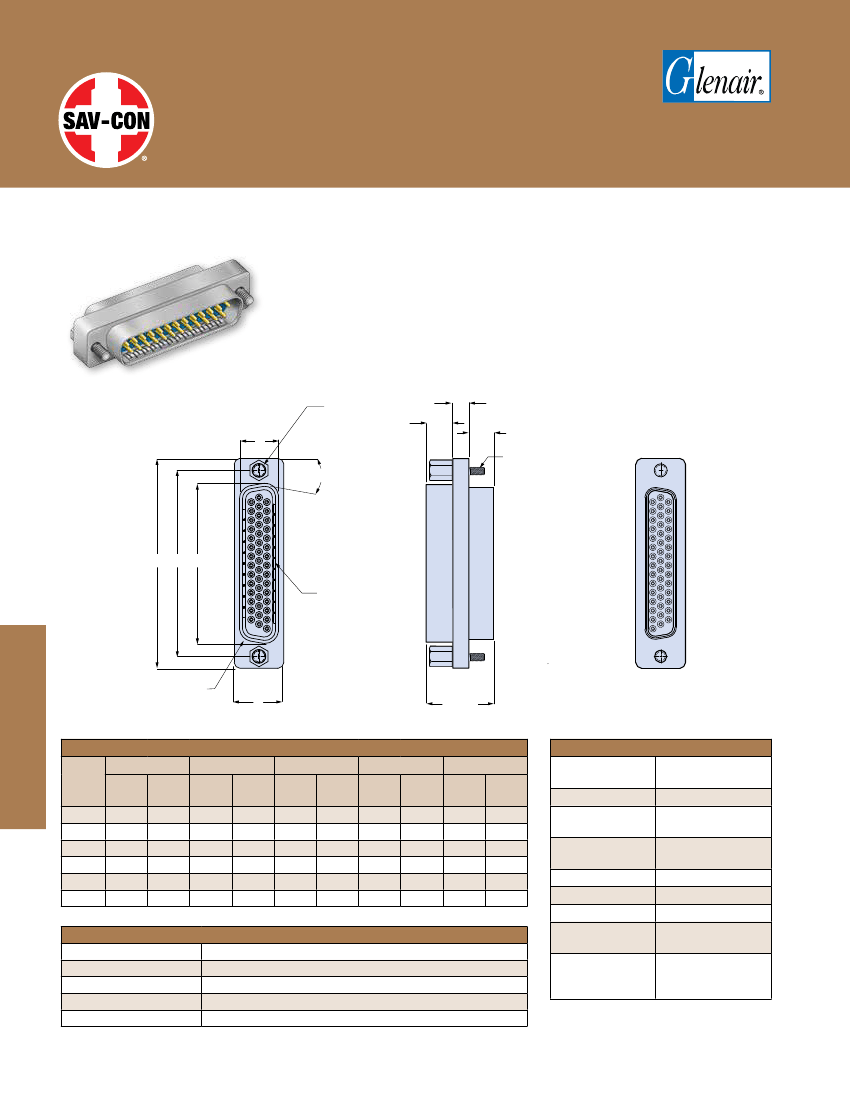

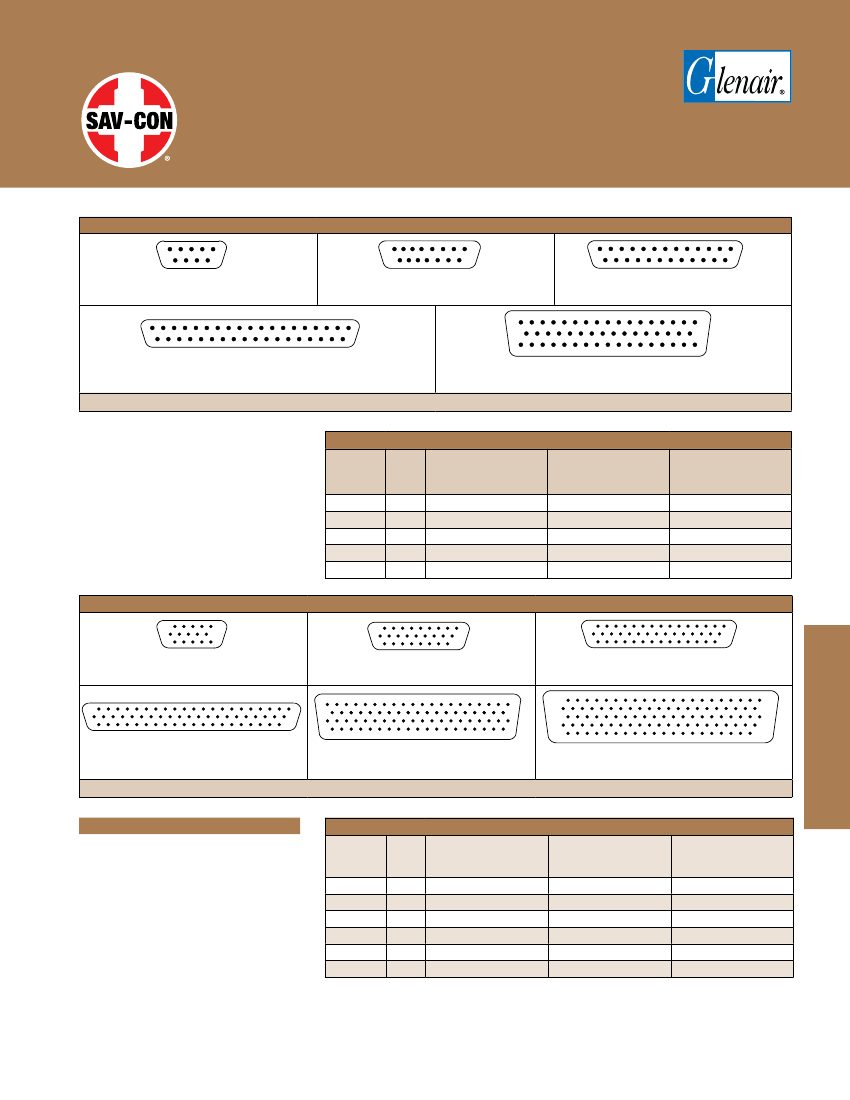

Series 28 D-Subminiature

289-012 Standard and High Density

Sav-Con® D-Subminiature Connector Saver

Low profile one-piece machined aluminum housing and ground spring protects circuits

from EMI problems. Available in standard density and high density contact arrangements. Pin

mating face has fluorosilicone rubber seal. Choose electroless nickel shell finish for avionics

and space applications. Choose cadmium for compatibility with cadmium or zinc plated

M24308 connectors, or choose nickel-PTFE for maximum corrosion protection. Other materials

and finishes available on request.

#4-40 UNC

10° TYP

.160 (4.06)

.243 (6.17)

#4-40 UNC JACKPOST

- JACKSCREW

(SUPPLIED

UNASSEMBLED)

.262

(6.65)

GROUND

SPRING 2

PLCS

SOCKET

REF

R .134 (3.40)

Shell

Size

± .015

1.213

1.541

2.088

2.729

2.635

2.729

± 0.38

30.81

39.14

53.04

69.32

66.93

69.32

± .015

.494

.605

.668

REF .665

(1.689)

Dimensions

C Basic

± 0.38

12.55

15.37

16.97

in.

.984

1.312

1.852

2.500

2.406

2.500

24.99

33.32

47.04

63.50

61.11

63.50

± .005

.726

1.054

1.594

2.242

2.139

2.272

± 0.13

18.44

26.77

40.49

56.95

54.33

57.71

± .005

.389

.501

.563

± 0.13

9.88

12.73

14.30

Current Rating

Test Voltage

Specifications

#22D 5 AMPS, #20 7.5

AMPS

1000 VAC RMS

5000 megohms

minimum

-65° C. to +200° C.

IP 67

300 g.

43.92 g.

2 µ maximum

Postcure required to

meet ASTM E595 NASA

requirement

Insulation Resistance

Operating

Temperature

Ingress Protection

Shock

Vibration, Random

Magnetic

Permeability

Outgassing

(1)

Materials and Finishes

Shell

Contacts

insulator

interfacial Seal

Hardware

Aluminum alloy

Copper alloy, 50 microinches gold plated, SST hood

Thermoset epoxy

Fluorosilicone rubber

300 series stainless steel

Dimensions in Inches (millimeters) are subject to change without notice.

289-0121H15MEGR Related Products

	289-0121H15MEGR	289-0122S15MEGR	289-0121S9MEGR	289-0124H62MEGR	289-0124S37MEGR	289-0123S25MEGR	289-0122H26MEGR	289-0125S50MEGR	289-0125H78MEGR	289-0121S9Z2GR
Description	D-Sub MIL Spec Connectors	D-Sub MIL Spec Connectors	D-Sub MIL Spec Connectors COMMERCIAL	D-Sub MIL Spec Connectors	D-Sub MIL Spec Connectors	D-Sub MIL Spec Connectors	D-Sub MIL Spec Connectors	D-Sub MIL Spec Connectors	D-Sub MIL Spec Connectors	D-Sub MIL Spec Connectors
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER	RECTANGULAR CONNECTOR ADAPTER
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	-
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	-	-
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	-
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.605 inch	0.605 inch	-
subject depth	0.403 inch	0.403 inch	0.403 inch	0.403 inch	0.403 inch	0.403 inch	0.403 inch	0.403 inch	0.403 inch	-
body length	1.213 inch	1.541 inch	1.213 inch	2.729 inch	2.729 inch	2.088 inch	1.541 inch	2.635 inch	2.635 inch	-
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	-
Contact to complete cooperation	GOLD (50)	GOLD (50)	GOLD (50)	GOLD (50)	GOLD (50)	GOLD (50)	GOLD (50)	GOLD (50)	GOLD (50)	-
Contact completed and terminated	GOLD (50)	GOLD (50)	Gold (Au)	Gold (Au)	GOLD (50)	Gold (Au)	GOLD (50)	Gold (Au)	Gold (Au)	-
Contact point gender	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	MALE-FEMALE	-
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	-
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	-
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	-
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	-
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	-
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	-
触点数量:侧 1	15	15	9	62	37	25	26	50	78	-
触点数量:侧 2	15	15	9	62	37	25	26	50	78	-
Number of rows loaded	3	2	2	3	2	2	3	3	3	-
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	-
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Plating thickness	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	-
Rated current (signal)	5 A	7.5 A	7.5 A	5 A	7.5 A	7.5 A	5 A	7.5 A	5 A	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Shell surface	ELECTROLESS NICKEL	ELECTROLESS NICKEL	ELECTROLESS NICKEL	ELECTROLESS NICKEL	ELECTROLESS NICKEL	ELECTROLESS NICKEL	ELECTROLESS NICKEL	ELECTROLESS NICKEL	ELECTROLESS NICKEL	-
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	-
direct connection	YES	YES	YES	YES	YES	YES	YES	YES	YES	-
Total number of contacts	15	15	9	62	37	25	26	50	78	-
