0.5mm Pitch SMT Board-to-Board Connector
DF12 Series
Correspond to automatic mounting
The vacuum pick-up area secures the automatic mounting
machine for pick and place.
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

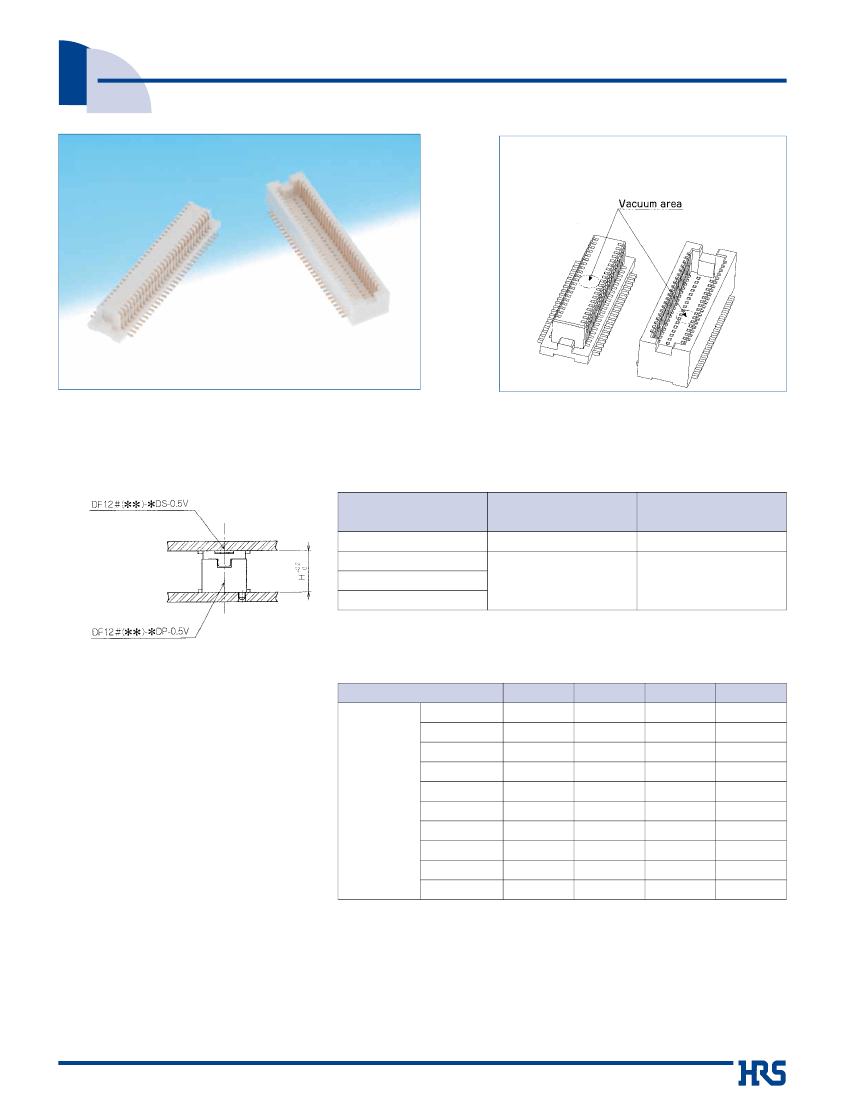

Fig.1
■Features
1. Broad Variations of Stacking Height
In addition to 0.5mm pitch ultra-miniature size connector, the stacking height of 3mm, 3.5mm, 4mm, and 5mm are provided.
DF12#(3.0)-*DS-0.5V
3.0
–––––––
–––––––
–––––––
DF12#-*DS-0.5V
–––––––
3.5
4.0
5.0
Header/Receptacle
DF12#(3.0)-*DP-0.5V
DF12#(3.5)-*DP-0.5V
DF12#(4.0)-*DP-0.5V
DF12#(5.0)-*DP-0.5V
Combination
stacking height
Combination
stacking height
Note 1 : (
**
) of the product name DF12# (
**
) indicates the stacking height.
Note 2 : The stacking height doesn't include the soldering paste thickness.
[Stacking Height Variation]
Stacking Height
10 contacts
14 contacts
20 contacts
30 contacts
32 contacts
Number of Contacts
36 contacts
40 contacts
50 contacts
60 contacts
80 contacts
3.0mm
K
K
K
K
K
K
K
K
K
K
3.5mm
–––––––
–––––––
K
K
–––––––
K
K
K
K
–––––––
4.0mm
–––––––
–––––––
K
K
K
K
K
K
K
–––––––
5.0mm
–––––––
–––––––
K
K
–––––––
K
K
K
K
–––––––
2. Corresponding to Automatic Mounting
The connector has the vacuum pick-up area to enable automatic mounting with the embossed tape packaging.(Fig.1)
3. Metal Fitting Available
The product including the metal fitting to prevent solder peeling is provided, considering the mounting on FPC.
A193
DF12 Series●0.5mm Pitch SMT Board-to-Board Connector
■Product
Specifications
Rating
Current rating 0.3A
Operating Temperature Range
-45 to +125ç
(Note 1) Storage Temperature Range
-40
to
80%
Storage Humidity Range
-10 to +60ç
(Note 2)
-40
to
70% (Note 2)
Voltage rating 50V AC Operating Humidity Range
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
500MΩ
min.
Specification
100V DC
150V AC/1 minute
100mA
Condition
No flashover or insulation breakdown.
50mΩ max.
No electrical discontinuity of 1μs or more
Frequency : 10 to 55 Hz, single amplitude of 0.75mm, 2 hours in each of the 3 directions.
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5.
Humidity (Steady state)
Contact resistance : 50mΩ max. Insulation resistance:500MΩ min
96 hours at temperature of 40±2ç and humidity of 90% to 95%
6. Temperature Cycle
Contact resistance : 50mΩ max. Insulation resistance:500MΩ min (-65ç : 30 minutes 5 to 35ç : 10 minutes 125ç : 30 minutes 5 to 35ç : 10 minutes) 5 cycles
50 cycles
7. Durability (Mating/un-mating) Contact resistance : 50mΩ max.
8. Resistance to Soldering heat
No deformation of components affecting performance.
Reflow : At the recommended temperature profile
Manual soldering : 350ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
■Material
/ Finish
Product
Receptacle/Header
Part
Insulator
Contact
Fitting
Material
Polyamide
Phosphor copper
Brass
Finish
Beige
Gold plated
Tin plated
Remarks
UL94-V0
–––––––
–––––––
■Product
Number Structure
●Receptacle
DF12
q
: DF12
Fitting
Blank
A
B
C
K
∞
K
∞
Boss
K
K
∞
∞
#
(**)
-
*
DS - 0.5 V
(**)
w
e
r
t
y
u
i
e
Stacking height
3.0
: 3.0mm
Blank : 3.5
to
5.0mm
r
Number of Contacts : 10, 14, 20, 30, 32,
36, 40, 50, 60, 80
t
Connector Type
DS : Double-row receptacle
y
Contact Pitch : 0.5mm
u
Contact Style
V : Straight SMT
i
Packaging Type
(81) : Embossed tape packaging
(1,000pcs/reel) (A, C type)
(86) : Embossed tape packaging
(1,000pcs/reel) (Blank, B type)
q
Series Name
w
Type
●Header
DF12
q
: DF12
Fitting
Blank
B
D
E
K
K
∞
∞
Boss
K
∞
K
∞
#
(**)
-
*
DP - 0.5 V (
**
)
w
e
r
t
y
u
i
e
Stacking height
Indication Stacking Height
3.0
3.5
4.0
5.0
3.0mm
3.5mm
4.0mm
5.0mm
q
Series Name
w
Type
t
Connector Type
DP : Double-row pin header
y
Contact Pitch : 0.5mm
u
Contact Style
V : Straight SMT
i
Packaging Type
(81) : Embossed tape packaging
(1,000pcs/reel) (D, E type)
(86) : Embossed tape packaging
(1,000pcs/reel) (Blank, B type)
r
Number of Contacts : 10, 14, 20, 30, 32,
36, 40, 50, 60, 80
A194
