220-06E18-22PN

Description
Circular MIL Spec Connector CABLE CONN PLUG ASSY STANDARD ENV PINS
CategoryThe connector    The connector
File Size177KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

220-06E18-22PN Online Shopping

Suppliers Part Number Price MOQ In stock
220-06E18-22PN - - View Buy Now

220-06E18-22PN Overview

Circular MIL Spec Connector CABLE CONN PLUG ASSY STANDARD ENV PINS

220-06E18-22PN Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Other featuresPOLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR
Back shell typeSOLID
Body/casing typePLUG
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialNOT SPECIFIED
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Environmental characteristicsCORROSION/ENVIRONMENT RESISTANT
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE AND PANEL
OptionsWATERPROOF
Shell materialSTAINLESS STEEL
Housing size18
Termination typeSOLDER
Total number of contacts22
Base Number Matches1
Geo-Marine
®
Connectors
220-06 and 220-16

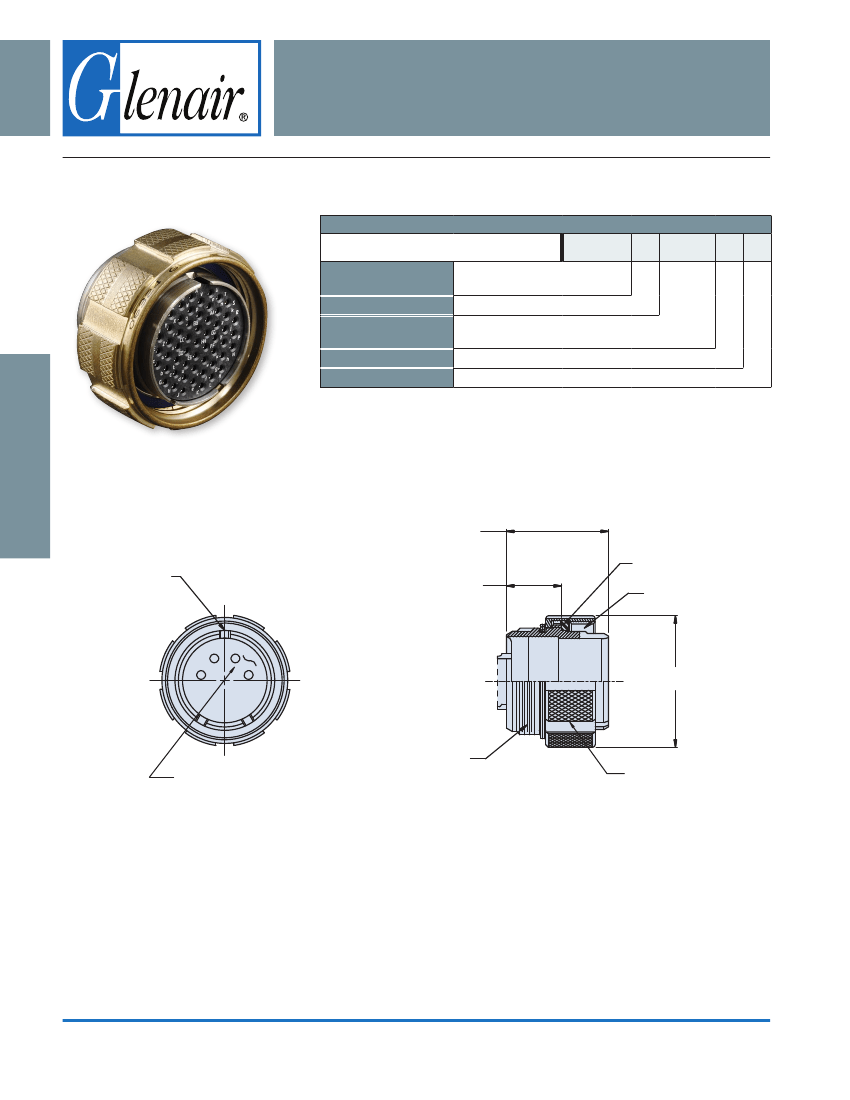

High-Pressure Environmental Cable Plug
SERIES 22 CABLE PLUG IN STANDARD OR SCOOP-PROOF SHELL WITH PIN OR SOCKET CONTACTS
How To Order
Sample Part Number
Series and Shell Style
Class
Shell Size - Insert
Arrangement
Contact Style
Polarization
220-06
- Standard
220-16
- Scoop-Proof
E
= High-Pressure Environmental
See page A-6
P
= Pin
S
= Socket
N, 1, 2, 3, 4
See page A-6
220-06
E
24-61
S
N
B
220-06
: 1.19 (30.2) Max
220-16
: 1.59 (40.4) Max
Flat Compression Seal
Polarizing Keyway
.66 (16.8) Ref
C Thread
B Dia.
See page A-6 for Insert
Arrangement
A Thread
(Modified Major)
Knurl Style Mfr Option
Metric dimensions (mm) are indicated in parentheses
