Patch panels - FL-PP-RJ45-SC - 2901643
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

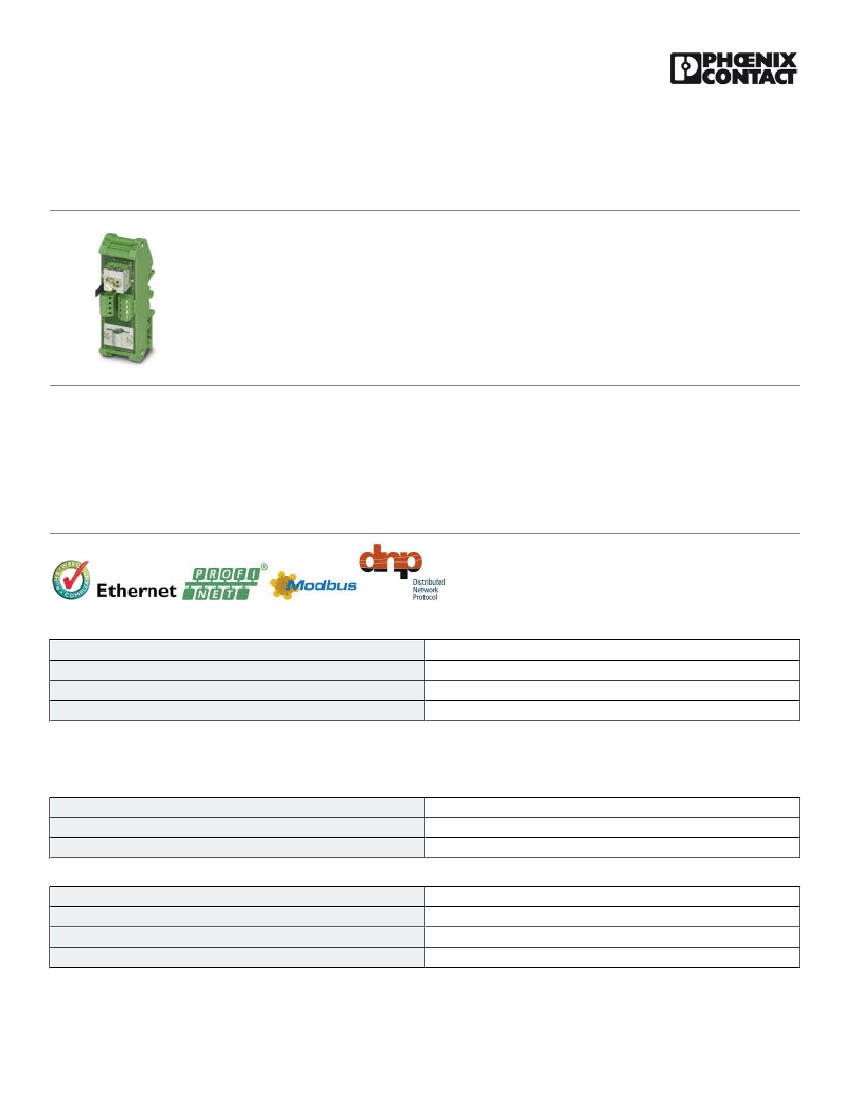

Patch panel, one RJ45 socket to 8 screw connection terminal blocks (1:1 assignment), CAT5e, 10/100/1000
Mbps, DIN rail mounting, IP20, option of shield contacting on DIN rail via jumpers
Product Features
■
■
■
■
■
Safe shield connection to ground potential
10/100/1000 Mbps
Mounting on a DIN rail
CAT5e
Optional shield connection via jumpers
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
62.0 g
85366990
Germany
Technical data
Dimensions
Width
Height
Depth
29 mm
90 mm
53 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Degree of protection
-25 °C ... 70 °C
-25 °C ... 85 °C
25 % ... 95 % (non-condensing)
IP20
04/27/2016 Page 1 / 11
https://www.phoenixcontact.com/us/products/2901643
Patch panels - FL-PP-RJ45-SC - 2901643
Technical data
General
Net weight
Housing material
Color
MTBF
58.08 g
PVC / PA
green
6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5
days a week, 8 hours a day))
2962 Years (Telcordia standard, 40°C temperature, 34.25% operating
cycle (5 days a week, 12 hours a day))
ATEX
II 3 G Ex nA IIC Gc U (Please follow the special installation instructions
in the documentation!)
Serial interface
Interface 1
Connection method
Transmission length
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Torque
Pin assignment
Serial transmission speed
Interface 2
Connection method
Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
Screw connection
100 m (including patch cables)
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
26
16
0.22 Nm ... 0.25 Nm
1:1
10/100/1000 Mbps
Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
RJ45 CAT5e
Standards and Regulations
Type of test
Test result
Type of test
Test result
ATEX
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
5g, 10-150 Hz, 2.5 h, in XYZ direction
Shock in acc. with EN 60068-2-27/IEC 60068-2-27
25g, 11 ms period, half-sine shock pulse
II 3 G Ex nA IIC Gc U
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
27250591
27240409
27259207
04/27/2016 Page 2 / 11
https://www.phoenixcontact.com/us/products/2901643
Patch panels - FL-PP-RJ45-SC - 2901643
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27230207
27230207
27230207
19170112
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000313
EC001128
EC001128
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211506
39121008
39121008
39121008
39121008
Approvals
Approvals
Approvals
DNV / EAC
Ex Approvals
ATEX
Approvals submitted
Approval details
DNV
EAC
04/27/2016 Page 3 / 11
https://www.phoenixcontact.com/us/products/2901643
Patch panels - FL-PP-RJ45-SC - 2901643
Accessories
Accessories
Data cable by the meter
Cable - FL CAT5 HEAVY - 2744814
CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm², solid conductor,
shielded, outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter
Network cable - FL CAT5 FLEX - 2744830
CAT5-SF/UTP cable (J-LI02YS(ST)C H 2 x 2 x 26 AWG), light-duty, flexible installation cable 2 x 2 x 0.14 mm², stranded,
shielded, outer sheath: 5.75 mm ± 0.15 mm diameter
Data cable preassembled
Network cable - FL CAT5 HEAVY CONF/ - 2744827
CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm², solid conductor,
shielded, outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter, preassembled on both sides with
RJ45 plug, crossover or line
Network cable - FL CAT5 FLEX CONF/ - 2744843
CAT5-SF/UTP cable (J-LI02YS(ST)C H 2 x 2 x 26 AWG), light-duty, flexible installation cable 2 x 2 x 0.14 mm², stranded,
shielded, outer sheath: 5.75 mm ± 0.15 mm diameter, preassembled on both sides with RJ45 plug, crossover or line
assignment
Data plug
04/27/2016 Page 4 / 11
https://www.phoenixcontact.com/us/products/2901643
Patch panels - FL-PP-RJ45-SC - 2901643
Accessories

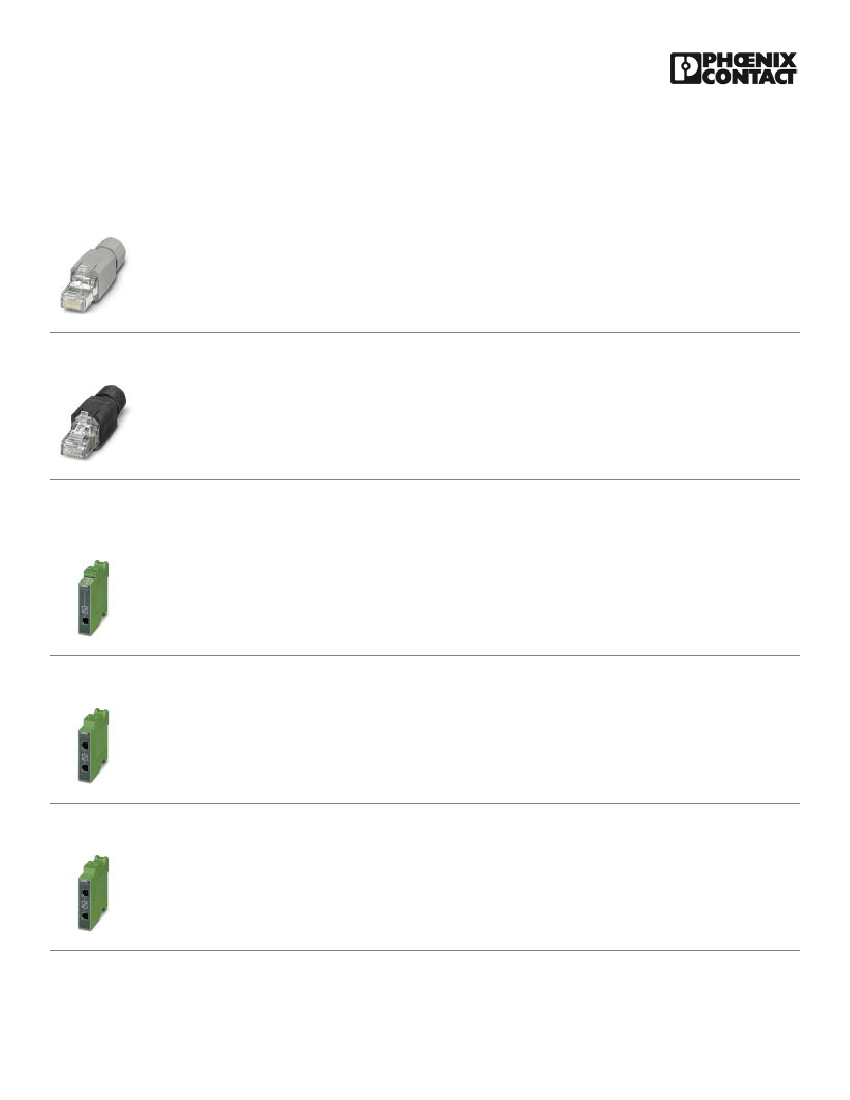

RJ45 connector - VS-08-RJ45-5-Q/IP20 - 1656725
RJ45 connector, Degree of protection: IP20, Number of positions: 8, 1 Gbps, CAT5 (IEC
11801:2002), Material: PA, Connection method: IDC fast connection, Connection cross section: AWG 26-23, Cable
exit: straight
RJ45 connector - VS-08-RJ45-5-Q/IP20 BK - 1658008
RJ45 connector, Degree of protection: IP20, Number of positions: 8, 1 Gbps, CAT5 (IEC
11801:2002), Material: PA, Connection method: IDC fast connection, Connection cross section: AWG 26-23, Cable
exit: straight
Passive isolators
Network isolator - FL ISOLATOR 100-RJ/SC - 2313928
Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential
differences of up to 4 kV. Can be used for transmission speeds of up to 100 Mbps. Connection using RJ45 and
COMBICON plug-in screw terminal block.
Network isolator - FL ISOLATOR 100-RJ/RJ - 2313931
Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential
differences of up to 4 kV. Can be used for transmission speeds of up to 100 Mbps. Possible to connect two RJ45 plugs.
Network isolator - FL ISOLATOR 1000-RJ/RJ - 2313915
Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential
differences of up to 4 kV. Can be used for transmission speeds of up to 1 Gbps. Possible to connect two RJ45 plugs.
04/27/2016 Page 5 / 11
