FA1006SA1-R8000: DescriptionFFC & FPC Connectors 6P LIF FPC 0.5mm P 0.9mm Ht, 3.2mm D; CategoryThe connector; File Size203KB，2 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

FA1006SA1-R8000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FA1006SA1-R8000	-	-	View	Buy Now

FA1006SA1-R8000 Overview

FFC & FPC Connectors 6P LIF FPC 0.5mm P 0.9mm Ht, 3.2mm D

FA1006SA1-R8000 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	JAE Electronics
Product Category	FFC & FPC Connectors
RoHS	Details
Product	Connectors
Number of Positions	6 Position
Pitch	0.5 mm
Termination Style	SMD
Contact Location	Dual Contact
Contact Plating	Gold
Current Rating	500 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Housing Material	Resin
Voltage Rating	50 V
Contact Material	Copper Alloy
Actuation Type	LIF
Factory Pack Quantity	8000
Unit Weight	0.003104 oz

Preview

Download Datasheet

View All

版数

VER.

2

3

4

年月日

D A T E

09/NOV/2011

24/AUG/2012

20/DEC/2012

CN NO.

000660

003427

004596

　　　　　　　　変更内容

　　　　　　　　DESCRIPTION

CHANGED DIMENSIONS

CHANGED THE PART NUMBER

ADDED NEW ITEMS

½　図

DR.

担　½

CHK.

K.ASHIBU

査　閲

APPD.

T.NEMOTO

承　認

APPD.

M.KIKUCHI

A

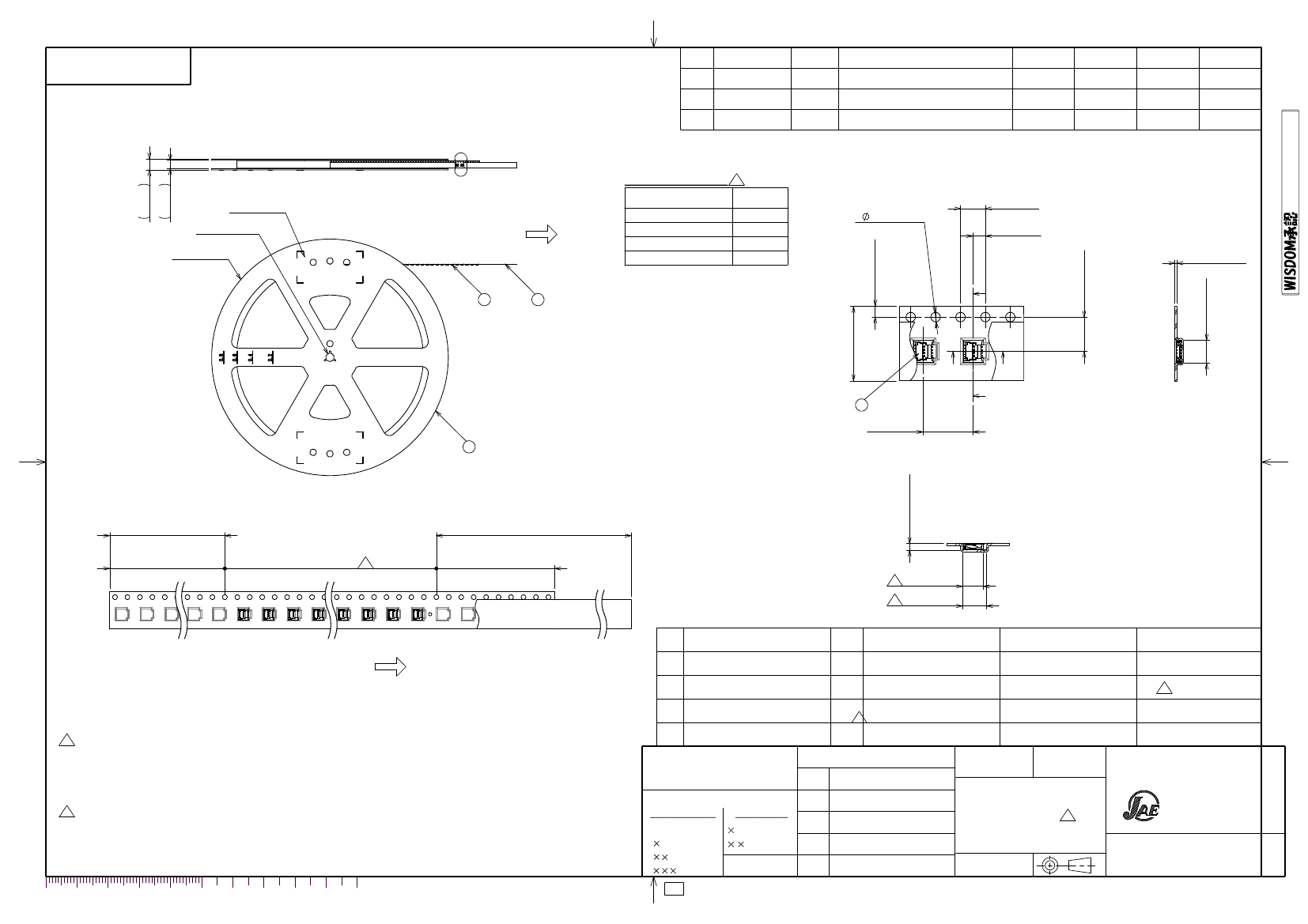

TABLE1. DIMENSION

17.4

13.4

4

(NOTE. 2)

（φ13）

PRODUCT NO.

A

3.65

4.15

4.65

6.65

2

3

12

±0.3

C

B

1

8

±0.1

C

4

1.05

±0.05

DETAIL A

DETAIL (2 : 1)

SECT. B-B

SCALE (2 : 1)

ENDING PORTION(終端部)

W/O CONNECTOR(空部)

（200mm MIN.）

W/O CONNECTOR(½ﾈ½ﾀ装着部)

（8000 PCS.）

3

BEGINNING PORTION(ﾘ½ﾀﾞ部)

（400mm MIN.）

W/O CONNECTOR(空部)

（100mm MIN.）

2

3.35

±0.1

3.85

±0.1

SECT C-C

SCALE (2 : 1)

-

2

4

DIRECTION

引き出し方向

3

2

1

PLASTIC REEL

ﾌﾟﾗ½½ﾁ½½ﾘ½ﾙ

COVER TAPE

½ﾊﾞ½ﾃ½ﾌﾟ

CARRIER TAPE

½½ﾘ½ﾃ½ﾌﾟ

CONNECTOR

½ﾈ½ﾀ

名　　　称

DESCRIPTION

1

3

PS

POLYESTER

ﾎﾟﾘ½½½ﾃﾙ

ANTI-STATIC CHARGE PS

帯電防止PS

8000 -

個　数

QTY.

材　　料

MATERIAL

FA10**SA1

(SJ111450)

仕　上

FINISH

備　　考

REMARKS

3

DCF-C-212H(12.08)

NOTE1.SUFFIX"FA10**SA1-R8000"OF THE PART NUMBER INDICATES

THAT 8000 PCS. OF FA10**SA1-R8000 CONNECTORS.

2.THE LABEL IN WHICH PART NO.,NUMBER OF CONNECTORS,LOT NO.,

TAPE WIDTH AND FEED PITCH ARE MARKED IS ATTACHED.

3.REFER TO THE DRAWING, SJ111450(TITLE:FA10**SA1)

注1."FA10**SA1-R8000"は収納数8000個入りの

　　リールに収納された品名を表す。

　2.図示の½½にシールを貼り、品名,収納数,ロットNo.

　　及び、テープの幅と送りピッチを記入すること。

　3.コネクタ寸法はSJ111450(FA10**SA1)参照。

10

20

30

40

50

60

70

80

90

100

符号

NO.

仕様書(SPECIFICATION)

第1版(ORIGINAL DATE)

½図

DR.

01/APR/2011

尺度(SCALE)

名称(TITLE)

K.ASHIBU

―

M.KIKUCHI

質量(MASS)

3

寸法(DIMENSION)

．

±

0.8

±

0.4

±

0.1

±

角度(ANGLES)

FA10**SA1-R8000

3

INDUSTRY,LTD.

図面番号(DRAWING NO.)

°

±

’

°

±

単½(UNIT)：㎜

承認

APPD.

版数

(VER.)

SJ111451

0

S/W

SIZE

一般公差(GENERAL TOLERANCE)

担½

CHK.

査閲

APPD.

JAPAN AVIATION

Reference Only

ELECTRONICS

A3

JAE-CONNECTOR.COM

シリーズ(SERIES)

1:5

FA10

日本航空電子工業株式会社

A

±0.1

B

5.5

±0.05

（φ380）

1.75

±0.1

DIRECTION

引き出し方向

FA1004SA1

FA1005SA1

FA1006SA1

FA1010SA1

+0.1

1.5

0

4

±0.1

2

±0.05

t0.3

±0.05

4

2012/12/12

図面番号(DRAWING NO.)

SJ111451

FA1006SA1-R8000 Related Products

	FA1006SA1-R8000
Description	FFC & FPC Connectors 6P LIF FPC 0.5mm P 0.9mm Ht, 3.2mm D
Product Attribute	Attribute Value
Manufacturer	JAE Electronics
Product Category	FFC & FPC Connectors
RoHS	Details
Product	Connectors
Number of Positions	6 Position
Pitch	0.5 mm
Termination Style	SMD
Contact Location	Dual Contact
Contact Plating	Gold
Current Rating	500 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Housing Material	Resin
Voltage Rating	50 V
Contact Material	Copper Alloy
Actuation Type	LIF
Factory Pack Quantity	8000
Unit Weight	0.003104 oz
Packaging	Reel

Recommended Resources

Design of wireless transmitting and receiving circuit based on Bluetooth

Circuit design of electronic imitation mouse repeller

Neon flash circuit (1)

Multiple groups of high-power colored light chain circuits that flash in turn (Part 2)
