2FA1-NBSP-C01-1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2FA1-NBSP-C01-1

2FA1-NBSP-C01-1: DescriptionRF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

2FA1-NBSP-C01-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2FA1-NBSP-C01-1	-	-	View	Buy Now

2FA1-NBSP-C01-1 Overview

RF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA

2FA1-NBSP-C01-1 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Body/casing type	PLUG
Cable type	RG-174
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact style	COAX
Dielectric withstand voltage	1400VAC V
Durability	100 Cycles
Insulator color	NATURAL
Manufacturer's serial number	2FA1
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating frequency	2 GHz
reliability	COMMERCIAL
Shell surface	NICKEL OVER COPPER
Shell material	ZINC
Total number of contacts	1
voltage standing wave ratio	1.22

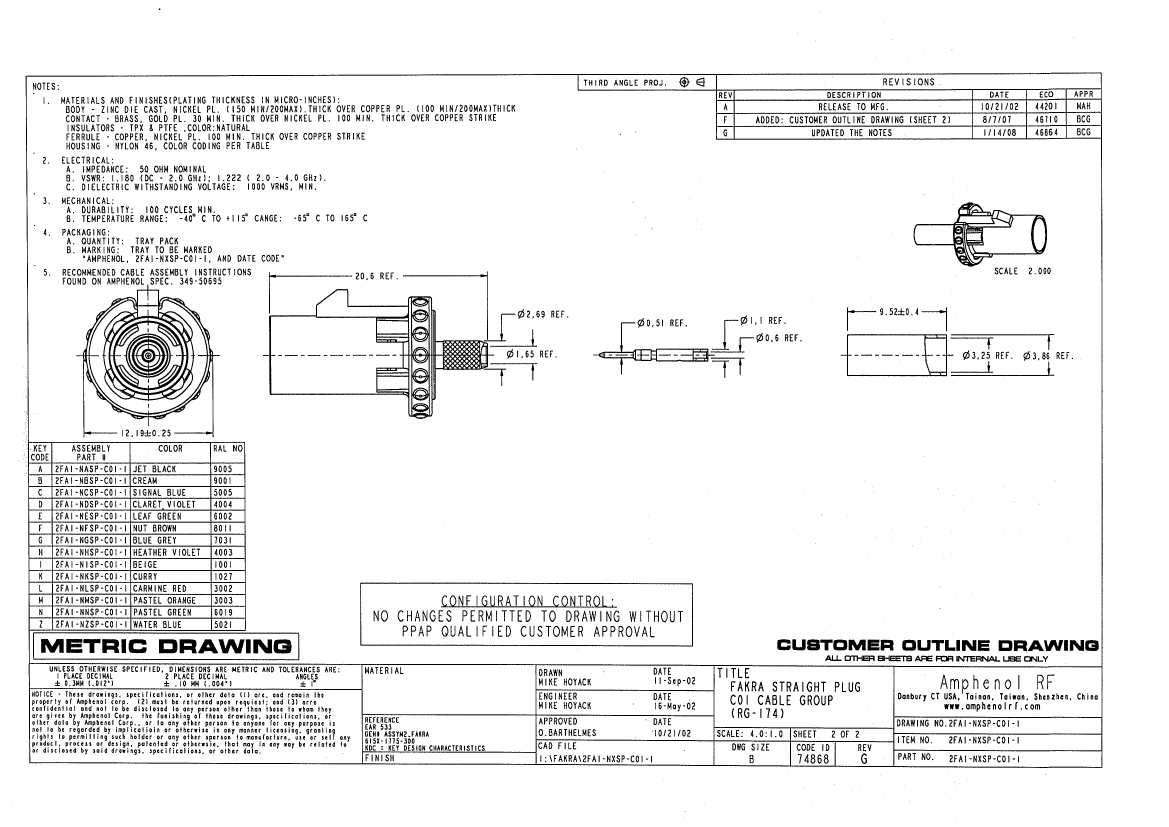

Preview

Download Datasheet

View All

2FA1-NBSP-C01-1 Related Products

	2FA1-NBSP-C01-1	2FA1-NCSP-C01-1	2FA1-NESP-C01-1	2FA1-NKSP-C01-1	2FA1-NASP-C01-1	2FA1-NHSP-C01-1	2FA1-NZSP-C01-1	2FA1-NFSP-C01-1
Description	RF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA	RF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA	RF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA	RF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA	RF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA	RF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA	RF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA	RF Connectors / Coaxial Connectors PLUG RG-174,188,316 FAKRA
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Cable type	RG-174	RG-174	RG-174	RG-174	RG-174	RG-174	RG-174	RG-174
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact style	COAX	COAX	COAX	COAX	COAX	COAX	COAX	COAX
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of ports	1	1	1	1	1	1	1	1
Maximum operating frequency	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL OVER COPPER	NICKEL OVER COPPER	NICKEL OVER COPPER	NICKEL OVER COPPER	NICKEL OVER COPPER	NICKEL OVER COPPER	NICKEL OVER COPPER	NICKEL OVER COPPER
Shell material	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC
Total number of contacts	1	1	1	1	1	1	1	1
voltage standing wave ratio	1.22	1.22	1.22	1.22	1.22	1.22	1.22	1.22
Manufacturer's serial number	2FA1	-	2FA1	2FA1	-	2FA1	-	2FA1
