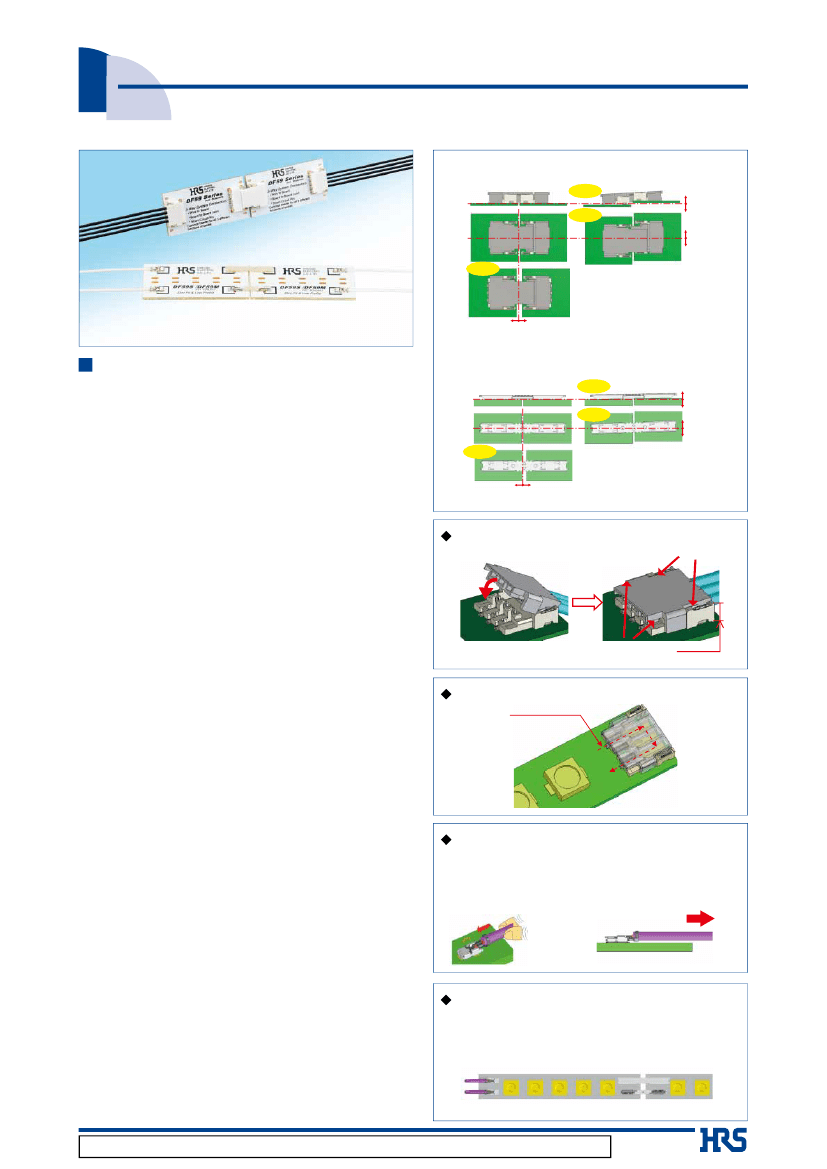

2mm Pitch, Multi Functional Connector System
(Floating [Board-to-Board], Swing-Lock [Wire-to-Board], Short-Circuit Pin)
DF59 Series
DF59 floating amount ±0.5mm(X,Y, Z directions)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
DF59S/SN floating amount
●
Common to all series
Features
±0.5mm(X,Y direction), ±0.2mm(Z direction)
1. High Operating Temperature
●DF59
DF59’s are rated at temperatures up to 105 ç.
The DF59 features a “swing-lock” mechanism that employs
both a positive and friction lock. This helps to prevent
accidental unmating by severe wiring and mechanical stress.
2. Swing Lock Structure (Wire-to-Board)
3. Short-Circuit Pin
The Short-Circuit Pin allows the termination of an open circuit.
Typically used at the end of a series of connected circuit boards.
Fig.1
4. Multi Function Design
The DF59 has the ability to function as either a Board-to-
Wire or Board-to-Board System. The PCB mounted
receptacle is designed to mate with the W-to-B, B-to-B,
and Short Circuit Pin connectors. This multi function ability
allows versatility while keeping connectors to a minimum.
Swing-Lock Structure
(Board-to-Wire Type)
Positive Lock
5. Contact Design
The terminal design features two-point contact to
ensure a highly reliable connection.
Friction Lock
2.48mm
Fig.2
6. Common Applicator
Crimping can be performed using the applicator (AP105-
DF11-22S) for the existing series DF11-22S C F(A), by
replacing the die with the one for DF59 series.
* For crimping quality standards and crimping conditions,
crimping needs to be performed in accordance with the
specific conditions of DF59-22PCFA.
The Board-to-Board connector can be used to connect two PCB
together in a co-planar arrangement and features a “Stress free
contact” that floats ± 0.5mm in the X, Y and Z dimensions.
Short-Circuit Pin
●Common
to DF59/59S/59SN
7. Floating Structure (Board-to-Board)
W-to-B structure (DF59M)
Fig.3
8. Space Savings
The DF59 series offers high performance in a compact,
space saving design; featuring a 2mm pitch and coupled
with a mated height of only 2.48mm with AWG#22 cable.
The single position floating plugs DF59S and DF59SN
are specifically designed to save space, and can be
mounted in high density applications.
Clear tactile click and high locking strength achieved
by the robust locking mechanism
Mating force : 16N min. (in a horizontal direction)
16N min.
9. Robust locking structure on DF59M (W-to-B Connection)
The lock mechanism on compact DF59M provides
16N horizontal lock strength. (Fig.4)
Fig.4
10. Standardization of PCB layout
The DF59S/SN type is used on board-to-board connections,
and the DF59M type is intended for wire-to-board
connections. Although they have different receptacles, the
PCB mounting pattern can be used for these two types.
Different combinations of these connectors can be used in the
same system with a common PCB. This allows for
standardization of PCB. (Fig.5)
Note : Each stencil mask is necessary
Standardization of PCB pattern
DF59S/SN type and DF59M type can be used in the
same system by using a common PCB.
Fig.5
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2017.9t
1
DF59 Series●2mm Pitch, Multi Functional Connector System (Floating [Board-to-Board], Swing-Lock [Wire-to-Board], Short-Circuit Pin)
Product Specifications
DF59/S/SN
Current rating
DF59M
DF59/S/SN
DF59M
3A
6A (22 AWG), 5A (24 AWG)
4A (26 AWG), 3A (28 AWG)
AC/DC 230V (Note 3)
AC/DC 350V (Note 3)
Operating Temperature : -40 to 105ç (Note 1)
Operating Humidity Range : 20 to 80%
Storage Temperature Range : -10 to 60ç (Note 2)
Storage Humidity Range : 40 to 70% (Note 2)
Ratings
Voltage rating
Items
Specifications
DF59-＊P-2FC/SP
50mø min.
DF59S/SN
DF59M-1S-H
45mø min.
DF59-＊P-2C
30mø min.
No electrical discontinuity over 1µs.
No electrical discontinuity over 1µs.
■Contact
resistance
■Insulation
resistance
Conditions
Under 6V DC, must be measured by 100mA
(DC or 1000Hz)
Frequency 10 to 55Hz, single amplitude 0.75mm,
3 directions, 10 cycles each
2
Acceleration 490 m/s , 11ms; duration, sine half-wave
3 cycles in each of the 3 axis.
Temperature 40 ± 2ç, humidity 90 to 95%,
1000Mø max.
left for 96 hours
1.Contact resistance
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2.Vibration
3.Shock
4.Humidity
DF59-＊P-2FC/SP
50mø min.
DF59S/SN
DF59M
45mø min.
DF59-＊P-2C
30mø min.
DF59-＊P-2FC/SP
50mø min.
DF59S/SN
DF59M
DF59-＊P-2C
45mø min.
30mø min.
■Contact
resistance
■Insulation
resistance
5.Temperature cycle
(-55ç : 30 min.
➝
5-35ç : 2 to 3 min.
➝85ç
:
30 min.
➝5-35ç
: 2 to 3 min.)
5 cycles
■Number
of insertion and withdrawal force
30 times
10 times
20 times
30 times
Reflow : Depends on recommended temperature profile.
Hand soldering : Soldering iron temperature 350 ± 10ç, 3 sec.
1000Mø max.
■Contact
resistance
DF59-＊P-2FC
DF59-＊P-2FC/SP 50mø min.
DF59S/SN
DF59M
DF59-＊P-2C
7.Resistance to
soldering heat
45mø min.
30mø min.
6. Operating Life
No melting of resin which affect the performance.
Note 1 :
Including temperature rise caused by current flow.
Note 2 :
The term “storage” refers to products stored for long period of time prior to mounting and use.
Operating temperature and humidity range covers connectors after installation, storage, shipment or during transportation.
Note 3 : The rated voltage is the applied voltage when connectors are mounted parallel to each other on the PCB with a distance of 1.6mm
or more between them. Hirose recommends his mounting distance.
This mounting distance is required in order to prevent creepage between the printed wiring to maintain an effective voltage of
300V, according to IEC 60664 and JIS C 60664 standards.
Materials / Finish
Items
DF59
Receptacle
DF59S
DF59M
DF59
Floating plug
DF59S
DF59SN
Crimp contact
DF59M
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
Contact
Parts
Insulator
Contact
Materials
LCP
Phosphor bronze
Copper Alloy
PBT
Brass
LCP
Brass
LCP
Brass
Copper Alloy
PBT
Brass
PBT
Phosphor bronze
Treatment
Natural
Gold plated
Tin plated
White
Gold plated
Natural
Tin plated
Natural
Tin plated
White
Gold plated
White
Gold plated
UL Specification
UL94V-0
---------------
UL94V-0
---------------
UL94V-0
---------------
UL94V-0
---------------
UL94V-0
Short pin
Crimp case
Crimp contact
---------------
UL94V-0
---------------
2
DF59 Series●2mm Pitch, Multi Functional Connector System (Floating [Board-to-Board], Swing-Lock [Wire-to-Board], Short-Circuit Pin)
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●
Receptacle
DF 59 # −
*
S −
*
V
q
w
e
r
t
y
u
y
Pitch
None
: Single contact type
2 : Standard 2mm (4mm : Without the central contact)
q
Series Name : DF
w
Series No. : 59
e
None : Standard
S
：
B-to-B type
M
：
W-to-B type
u
Termination form
V
: SMT straight type (B-to-B type)
H
: SMT right angle type (W-to-B type)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
r
Number of contacts : 1, 2, 3, 4
t
Type of connector
S : Receptacle
●
Plug
DF 59 # −
*
P −
*
FC
q
w
e
r
t
y
u
t
Type of connector
P : Plug
q
Series Name : DF
w
Series No. : 59
e
None : Standard
S
：
Single contact type
SN
：
Single contact slim type
y
Pitch
2 : DF59 : 2mm (4mm : Without the central contact)
None
: DF59S/SN/M
r
Number of contacts
DF59
：
2, 3, 4
DF59S/SN
：
1
u
Termination form
FC : Floating
●
Short-Circuit pin
DF 59 −
*
P − 2 SP
q
w
e
r
t
y
t
Pitch : 2mm
y
Termination form
SP : Short Pin
q
Series Name : DF
w
Series No. : 59
e
Number of contacts
：
2, 3, 4
r
Type of connector
P : Plug
●
Crimp Socket
DF 59 −
*
P − 2 C
q
w
e
r
t
y
t
Pitch : 2mm
y
Termination form
C :
Crimp case
q
Series Name : DF
w
Series No. : 59
e
Number of contacts
：
2, 3, 4
r
Type of connector
P : Plug
●Contact W-to-B）
（
DF 59 M − 2224 PCF
q
w
e
r
t
t
Form Type/Package Type/Plating type
PCFA : Plug crimping contact·Reel contact·Gold plating
PCA : Plug crimping contact·Bulk contact·Gold plating
PCF : Plug crimping contact·Reel contact·Tin plating
PC
: Plug crimping contact·Bulk contact·Tin plating
q
Series Name : DF
w
Series No. : 59
e
None : Standard
M
：
Single contact type (W-to-B M=micro)
r
Applicable Wire
22
：
22 AWG
2224
：
22 to 24 AWG
2628
：
26 to 28 AWG
3
DF59 Series●2mm Pitch, Multi Functional Connector System (Floating [Board-to-Board], Swing-Lock [Wire-to-Board], Short-Circuit Pin)

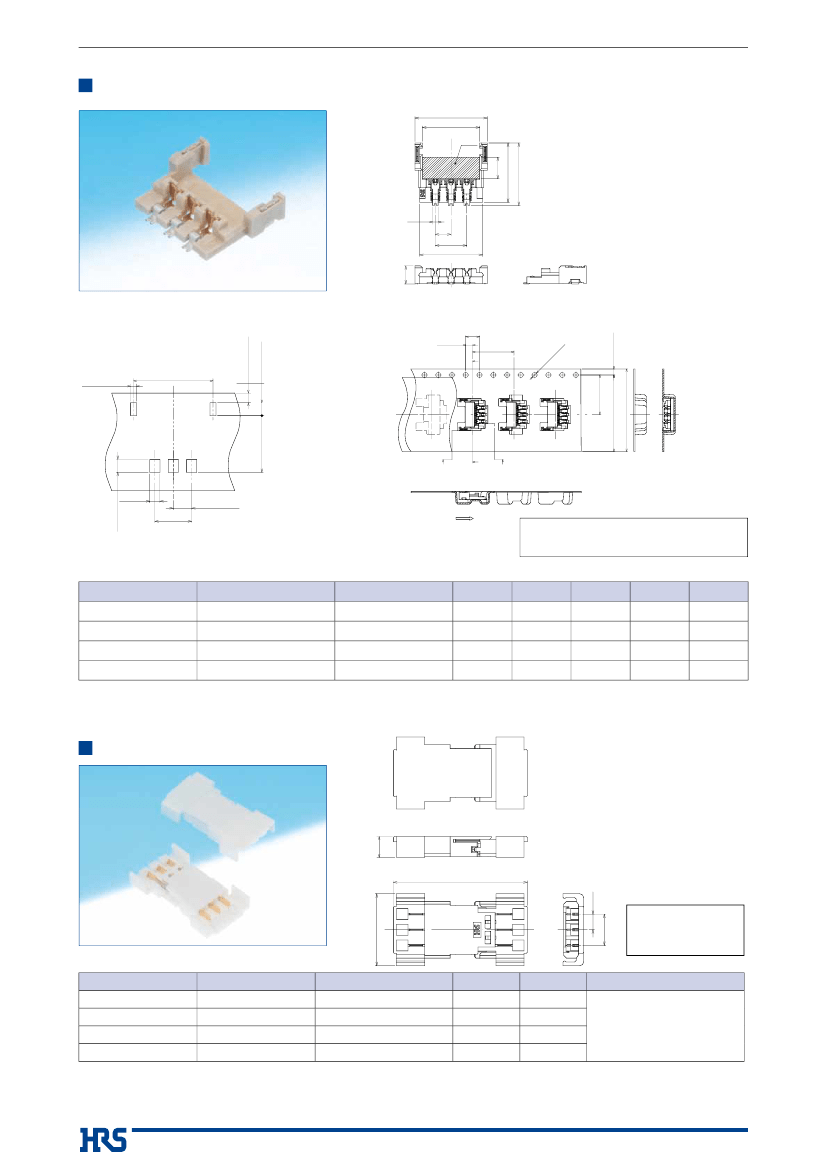

Straight Receptacle (SMT)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●Recommended
PCB Dimensions (t=1.6mm)
●Packaging
Dimensions
11.5±0.1
22.25
+0.2
1.75±0.1
0
(24)
G
F
G-G
G
Unreeling Direction
[Specification No.]
(51) : Gold plating, emboss packaging
Unit : mm
Part No.
DF59-2S-2V(51)
DF59-3S-2V(51)
DF59-4S-2V(51)
DF59-2S-4V(51)
HRS No.
667-0001-0 51
667-0002-3 51
667-0003-6 51
667-0021-8 51
No. of contacts
2
3
4
2*
A
7.2
9.2
11.2
9.2
B
5.3
7.3
9.3
7.3
C
2.0
4.0
6.0
4.0
D
6.0
8.0
10.0
8.0
E
6.62
8.62
10.62
8.62
* DF59-2S-4V(51) is made by removing the middle pin of DF59-3S-2V(51) at the factory.
Note : Please order in full reel quantities. (2,000 pcs/reel)
Floating Plug
2.65
17.1
P=2
Ø1
.
4±0.1
2±0.1
12±0.1
F
5
+
0
0 .1
F-F
[Specification No.]
(50) : Gold plating,
tray packaging
A
Part No.
DF59-2P-2FC(50)
DF59-3P-2FC(50)
DF59-4P-2FC(50)
DF59-2P-4FC(50)
HRS No.
667-0006-4 50
667-0007-7 50
667-0008-0 50
667-0020-5 50
No. of contacts
2
3
4
2*
A
7.2
9.2
11.2
9.2
B
2.0
4.0
6.0
4.0
B
Unit : mm
Packaged Quantity/Tray
50
* DF59-2P-4FC(50) is made by removing the middle pin of DF59-3P-2FC(50) at the factory.
Note : Please order in full tray quantities. (50 pcs/tray)
4
DF59 Series●2mm Pitch, Multi Functional Connector System (Floating [Board-to-Board], Swing-Lock [Wire-to-Board], Short-Circuit Pin)

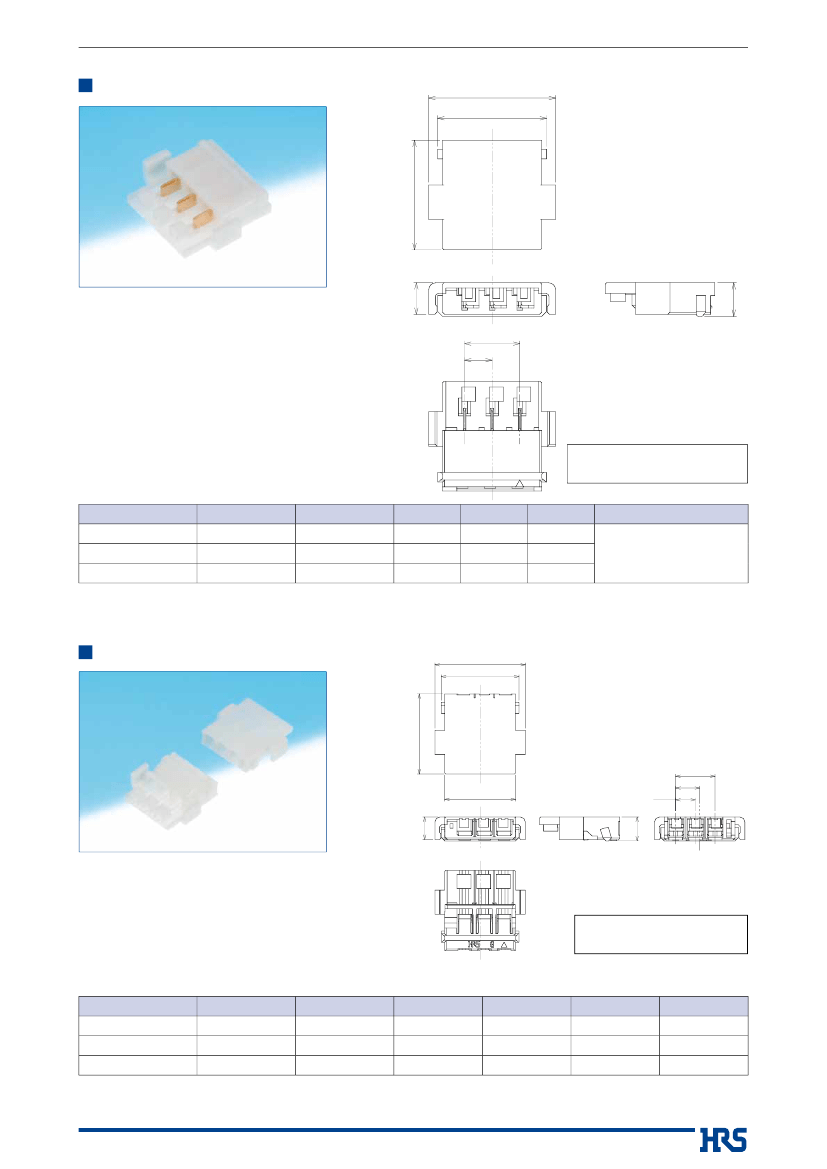

Short-Circuit Pin
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
[Specification No.]
(50) : Gold plated, Tray packaging
Unit : mm
Part No.
DF59-2P-2SP(50)
DF59-3P-2SP(50)
DF59-4P-2SP(50)
HRS No.
667-0017-0 50
667-0018-3 50
667-0046-9 50
No. of contacts
2
3
4
A
7.2
9.2
11.2
B
5.9
7.9
9.9
C
2.0
4.0
6.0
Packaged Quantity/Tray
100
Note 1 : Please order in full tray quantities.
Note 2 : For 4 pos. type contact No.1 and 2, No.3 and 4 are connected respectively.
Crimp Socket
[Specification No.]
None : 100 pcs/pack
Unit : mm
Part No.
DF59-2P-2C
DF59-3P-2C
DF59-4P-2C
HRS No.
667-0011-4 00
667-0012-7 00
667-0013-0 00
No. of contacts
2
3
4
A
7.2
9.2
11.2
B
5.9
7.9
9.9
C
5.2
7.2
9.2
D
2.0
4.0
6.0
Note : Please order in full pack quantities. (100 pcs/pack)
5
京公网安备 11010802033920号
EEWORLD
