USB331x Family
Highly Integrated, Hi-Speed USB 2.0 ULPI Transceiver Family for Portable
Consumer Electronics Applications
The USB331x family of Hi-Speed USB 2.0 transceivers provides a highly integrated, small
footprint solution designed for portable consumer electronics devices including cell phones,
PDAs, portable media players and GPS/personal navigation devices. The USB331x family
eliminates the need for external USB switches and electrostatic discharge (ESD) protection
devices, which minimizes eBOM part count and printed circuit board (PCB) area. The
USB331x provides an extremely flexible solution which allows the USB connector to act as
a single port of connection for high speed data transfer, battery charging and stereo/mono
audio accessories.
Highlights
n
Highly integrated, Hi-Speed USB 2.0
n
SMSC flexPWR™ technology
transceivers
Integrated USB switch
Internal ESD protection circuits
Integrated 3.3V LDO regulator
External passive components
minimized
n
Industry’s best current ESD performance
in a Hi-Speed USB transceiver
±8kV HBM
±8kV/±15kV IEC (contact/air)
No external ESD protection circuits
required
n
Ability to use the USB connector as a
single port of connection
Switch Hi-Speed data, battery
charging and stereo/mono audio
accessories
n
n
n
n
n
Variable I/O voltage capability (fixed
1.8V or a range of 1.8V to 3.3V)
Low power and standby modes
of operation to minimize power
consumption
Flexible reference clock to support major
system clock frequencies - 13MHz,
19.2MHz, 24MHz and 26MHz
Robust design tolerates “noisy” clock
and power supplies
Small package size and very low eBOM
part count
Hi-Speed USB On-The-Go (OTG) - host
and device capable
Supports commercial (0° to 70°C) and
industrial (-40° to 85°C) temperature
ranges
Target Applications
n
Cell Phones
n
Smart Phones
n
PDAs
n
GPS Personal Navigation Devices
n
Personal Media Players (PMPs)
n
Digital Still and Video Cameras
n
External Hard Disk Drives
n
Printers
n
Set-top Boxes
n
Digital TVs
n
Gaming Consoles
n
Industrial Systems
Features and Benefits
FEATURES
BENEFITS
Integrated USB switch and ESD protection Provides lower eBOM part count and smaller PCB footprint area
USB utilized as a single port of connection Reduction of end product size and cost
SMSC flexPWR technology
Flexible and easy-to-use solution
Ability to tolerate “noisy” clocks and
power supplies
Small package footprint
Longer battery life
Faster time-to-market and lower product development cost
Does not require costly filtering or clock generator circuits to preserve
Hi-Speed eye diagram integrity
Efficient PCB board space utilization
Multiple clock input frequencies supported Eliminates cost and size of external crystal oscillator for typical systems
What is SMSC flexPWR Technology?
SMSC flexPWR provides:
Low current design well-suited for battery powered applications
•
Integrated battery to 3.3V linear regulator
•
Variable I/O voltage to support a wide variety of processors
•
Low current sleep mode tri-states all ULPI pins
•
Allows OTG host to turn VBUS off to conserve battery
•
TM

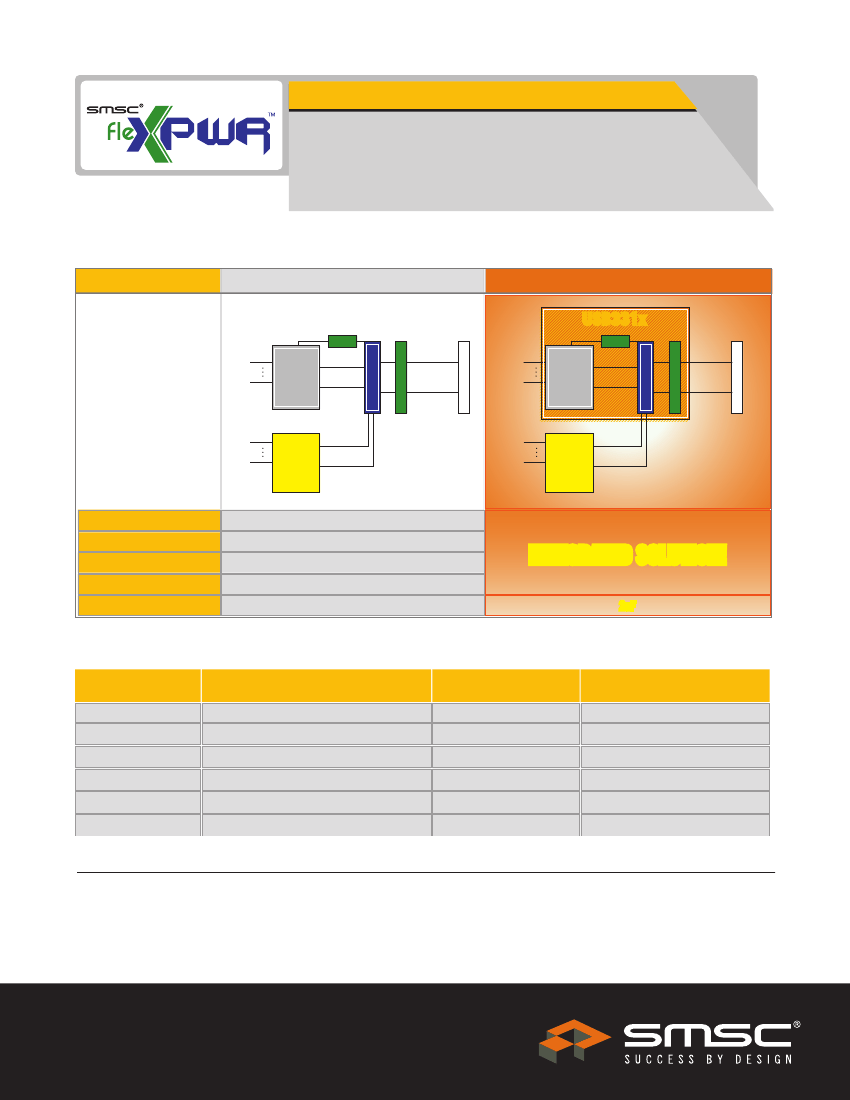

USB331x Integrates Four Functions into One Solution!
FUNCTION
CURRENT IMPLEMENTATION
SMSC SOLUTION
USB331x
Reg
DP
DM
Reg
DP
ESD Protection Circuits
ESD Protection Circuits
ULPI To
Processor
Hi-Speed
USB
Transceiver
ULPI To
Processor
DM
Hi-Speed
USB
Transceiver
DP
DM
DP
USB Connector
USB Connector
USB Switch
USB Switch
DM
To
Processor
Battery
Charging
Audio
USB 1.1
To
Processor
Battery
Charging
Audio
USB 1.1
HI-SPEED USB TRANSCEIVER
USB SWITCH
REGULATOR
ESD PROTECTION
CAPACITORS
Discrete
Discrete
Discrete
External
4.7uF
2uF
INTEGRATED SOLUTION!
Which USB331x Family Member is Right for Your Design?
PART NUMBER
USB3311
USB3315
USB3316
USB3317
USB3318
USB3319
SMSC Literature #CP-PHY-036-06/07
REFERENCE CLOCK FREQUENCY
26MHz
24MHz
19.2MHz
26MHz
13MHz
13MHz
I/0 VOLTAGE
1.8V
1.8 - 3.3V
1.8V
1.8 - 3.3V
1.8 - 3.3V
1.8V
INTEGRATED USB SWITCH
YES
NO
YES
NO
NO
YES
