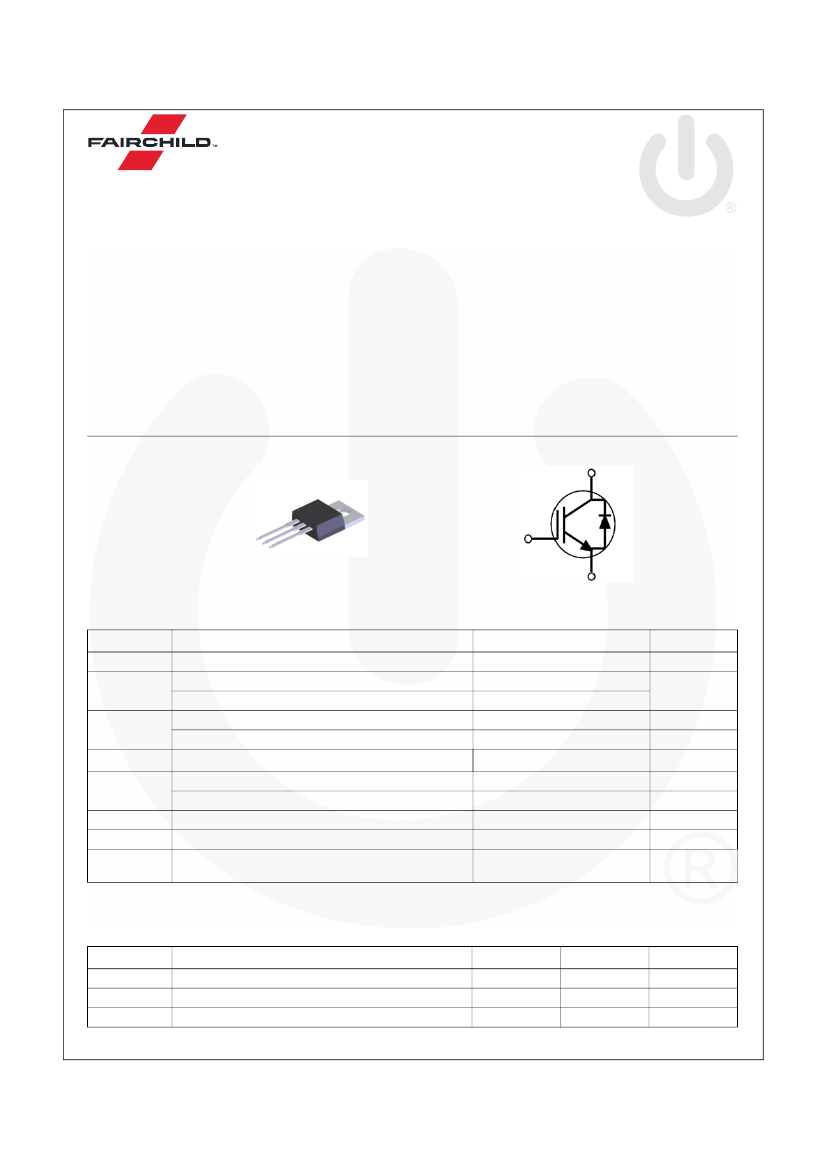

FGP20N60UFD — 600 V, 20 A Field Stop IGBT
March 2015
FGP20N60UFD
600 V, 20 A Field Stop IGBT
Features
• High Current Capability
• Low Saturation Voltage: V
CE(sat)
= 1.8 V @ I
C
= 20 A
• High Input Impedance
• Fast Switching
• RoHS Compliant
General Description
Using novel field stop IGBT technology, Fairchild’s field stop
IGBTs offer the optimum performance for solar inverter, UPS,
welder and PFC applications where low conduction and switch-
ing losses are essential.
Applications
• Solar Inverter, UPS, Welder, PFC
C
G
GCE
TO-220
E
Absolute Maximum Ratings
Symbol
V
CES
V
GES
I
C
I
CM (1)
P
D
T
J
T
stg
T
L
Description
Collector to Emitter Voltage
Gate to Emitter Voltage
Transient Gate-to-Emitter Voltage
Collector Current
Collector Current
Pulsed Collector Current
Maximum Power Dissipation
Maximum Power Dissipation
Operating Junction Temperature
Storage Temperature Range
Maximum Lead Temp. for soldering
Purposes, 1/8” from case for 5 seconds
@ T
C
= 25
o
C
@ T
C
= 100
o
C
@ T
C
= 25
o
C
@ T
C
= 25
o
C
@ T
C
= 100 C
o
Ratings
600
±20
±30
40
20
60
165
66
-55 to +150
-55 to +150
300
Unit
V
V
A
A
A
W
W
o
o
C
C
o
C
Notes:
1: Repetitive rating: Pulse width limited by max. junction temperature
