87436-1627 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 87436-1627

87436-1627: DescriptionBoard Stacking Connector, 31 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Natural Insulator, Plug; CategoryThe connector; File Size87KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

87436-1627 Overview

Board Stacking Connector, 31 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Natural Insulator, Plug

87436-1627 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ZYTON
body width	0.197 inch
subject depth	0.631 inch
body length	0.799 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	30 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	87436
Plug contact pitch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	4.191 mm
Plating thickness	30u inch
polarization key	D-SHAPE
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	31
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

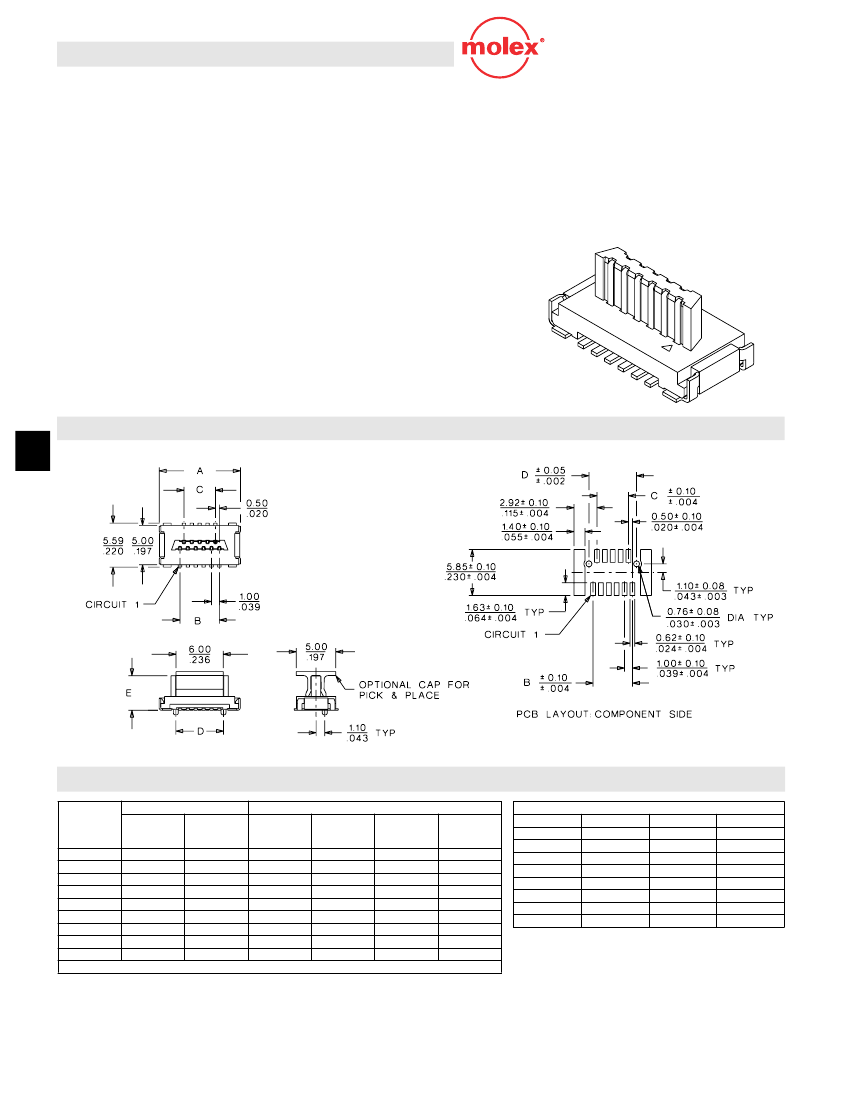

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Leaf-style contact design prevents damage to contacts

during mating and unmating

Highly reliable contact interface

Trapezoidal-shaped housing provides polarization

Fitting nails increase retention to board

Options include polarizing pegs and pick-and-place cover

Reference Information

Product Speciﬁcation: PS-87433-0001

Packaging: Tube or embossed tape and reel

Mates With: 87433 receptacle

Designed In: Millimeters

Electrical

Voltage: 125V

Current: 1.0A

Contact Resistance: 30m

Ω

max.

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: High-temperature thermoplastic, UL 94V-0

Contact: Phosphor Bronze

Plating: 30

" (0.76

m min.) select Gold

Temperature: -30 to +85˚C

1.00mm (.039") Pitch

ZYTON

™

Stacking System

Board-to-Board

Plug

87436

SMT, Dual Row

Vertical Stacking

Micro Connectors

ORDERING INFORMATION AND DIMENSIONS

Order No.

Circuits

5.00mm

Stacked Height

E=4.47 (.176)

87436-05*5

87436-06*5

87436-08*5

87436-11*5

87436-13*5

87436-16*5

87436-21*5

87436-26*5

87436-35*5

Dimension

3.00

4.00

6.00

9.00

11.00

14.00

19.00

24.00

33.00

(.118)

(.157)

(.236)

(.354)

(.433)

(.551)

(.748)

(.945)

(1.299)

5.05

6.05

8.05

11.05

13.05

16.05

21.05

26.05

35.05

(.199)

(.238)

(.317)

(.435)

(.514)

(.632)

(.829)

(1.026)

(1.380)

7.00mm

Stacked Height

E=6.47 (.255)

87436-05*7

9.30 (.366)

4.00 (.157)

87436-06*7

10.30 (.406)

5.00 (.197)

87436-08*7

12.30 (.484)

7.00 (.276)

87436-11*7

15.30 (.602)

10.00 (.394)

87436-13*7

17.30 (.681)

12.00 (.472)

87436-16*7

20.30 (.799)

15.00 (.591)

87436-21*7

25.30 (.996)

20.00 (.787)

87436-26*7

30.30 (1.193)

25.00 (.984)

87436-35*7

39.30 (1.547)

34.00 (1.339)

Replace (

) with options desired

Note: * For Polarizing Pegs, Cover and Packaging Options

Pegs

Cover

Packaging

Tube

Yes

Tube

Yes

Tube

Reel

Yes

Reel

Yes

Reel

I-36

990
