180-091XWS7-19-8PC datasheet, PDF

Datasheet> All Categories > The connector> The connector> 180-091XWS7-19-8PC

180-091XWS7-19-8PC: DescriptionMIL Series Connector, 8 Contact(s), Male, Receptacle; CategoryThe connector The connector; File Size279KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-091XWS7-19-8PC Overview

MIL Series Connector, 8 Contact(s), Male, Receptacle

180-091XWS7-19-8PC Parametric

Parameter Name	Attribute value
Reach Compliance Code	_compli
Other features	STADARD: MIL-DTL-38999
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	180-091
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM OLIVE DRAB OVER ELECTROLESS NICKEL
Housing size	19
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

MIL-DTL-38999

Connectors

Product Series

Basic Number

Finish Symbol

(Table II)

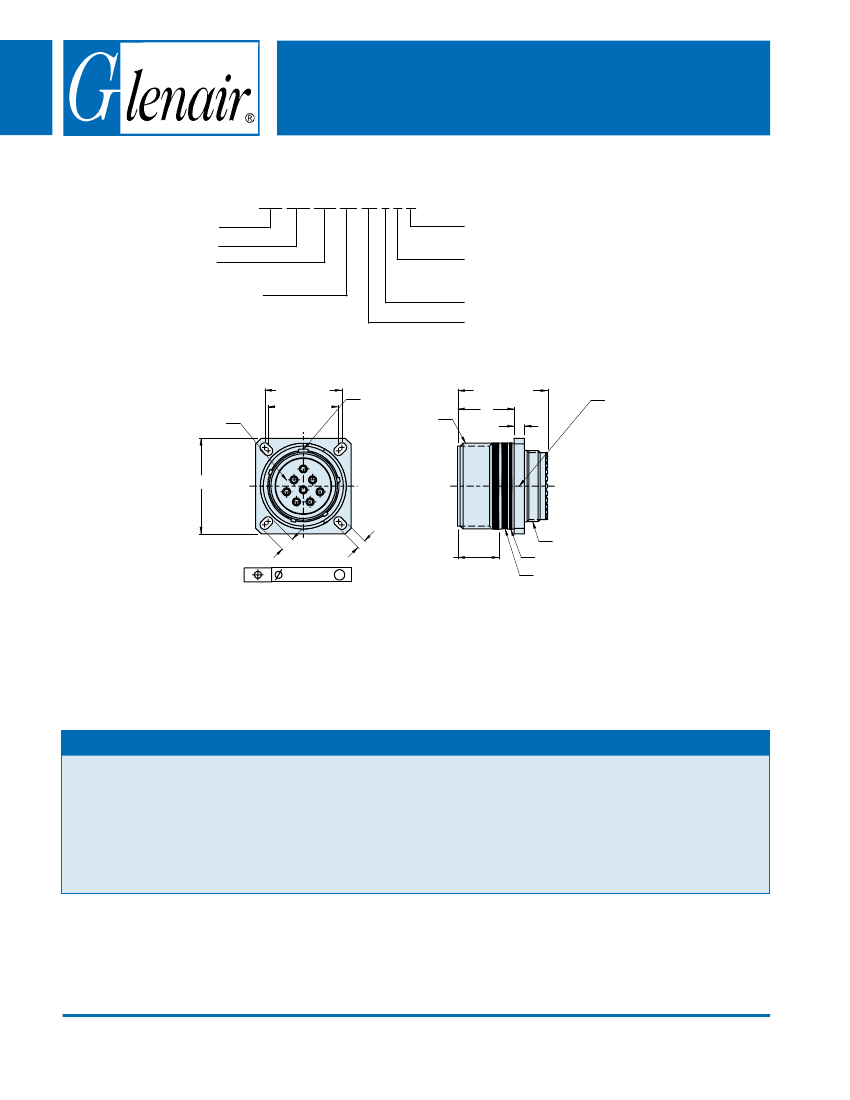

Wall Mount Receptacle

with Slotted Holes

See Notes 3 and 4

B SQ

4X F

180-091 (S7 - Square Flange Wall Mount)

Advanced Fiber Optic Receptacle Connector

MIL-DTL-38999 Series III Style with Slotted Holes

180-091 XW S7-17-8 P N

Alternate Key Position per MIL-DTL-38999

A, B, C, D, or E (N = Normal)

Insert Designator

P = Pin

S = Socket

Insert Arrangement (See page B-10)

Shell Size (Table I)

2X C BSC

2X D BSC

See Note 7

Master

Keyway

A Thread

1.240 (31.5)

Max

See Note 2

4X E

.005 (0.1)

.520 (13.2) Max

Fully Mated Red

Indicator Band

J Thread

Yellow Color band

Blue Color Band

See Note 5

S7 - WALL MOUNT RECEPTACLE

WITH SQUARE FLANGE AND SLOTTED HOLES

APPLICATION NOTES

1. Material/ Finishes:

Shell - See Table II

Insulators- High Grade Rigid Dielectric/ N.A

Seals- Fluorosilicone/ N.A.

2. Assembly to be identified with Glenair’s name, part number

and date code space permitting.

3. Insert arrangement in accordance with MIL-STD-1560,

See Page B-10.

4. Insert arrangement shown is for reference only.

5. Blue Color Band indicates rear release retention system.

6. For appropriate Glenair Terminus part numbers see Glenair

Drawing 181-001 and 181-002.

7. Front Panel Mount Only.

8. Metric dimensions (mm) are in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

B-20
