Specifically designed for electro-surgical catheter applications, the compact
and cost effective PL-900 Series offers more features, contacts, and termination
options than the competition.
Pulse-Lok®
auto-latch / mating confirmation
Packaging (intuitive, compact, configurable)
mechanism confirms continuity in critical surgical
applications
14 standard color combinations
Proprietary keying protects your single-use from
being copied, or mated with the wrong connector
Custom configurations including passive and active
devices for coding or limiting catheter usage
Performance (for harsh environments)
Water proof (IP-67 rated)
Sterilizable
Chemical resistant housing
Up to 5,000 mating cycles (with std.Contacts)
Factory terminated, overmolded cable
assemblies for enhanced flex and stain relief
SPECIFICATIONS
Electrical (see below)
Mating Life: 5,000 cycles min.
Contact Resistance: < 10 milliohms*
Material
Connector Housing: Thermoplastic
Flex Reliefs: Thermoplastic Rubber
Contacts/Sockets: Brass / BeCu,
Gold Plate per MIL-G-45204
Reusable Socket = 30-45µ” Gold over 50-
200µ” Nickel strike
Disposable Pin = 10-30µ” Gold over 50-200µ”
Nickel strike
Mechanical
Mating Cycles: 5K cycles max
Retention Force:
Mated Connectors: 50 lbs. Minimum
Cable to Connector: 50 lbs. Typical
Backshell to Connector: 50 lbs. Minimum
Environmental
Operating Temp:
-20C
to +85C**
Moisture Resistance: to IP-67 (encapsulated)
Sterilizable: gamma, EtO & Autoclave
Chem. Resistance: common OR cleaning solvents
Shelf Life: 3 years (min) Disposable Connectors
* post conditioning
**Dependent on overmold material
TABLE A:
Number of
Poles
52
41
35
28
24
24
17
15
11
9
STANDARD CONTACT CONFIGURATIONS & SPECFICATIONS
Up to 52 Contact
Positions
Contact Size
Pin
φ
(mm)
0.5
0.5
0.5
0.5
0.5
0.7
0.5
0.7
0.5
0.7
Max Wire
Gauge
26
22
26
26
26
22
26
22
26
22
Operating
Operating Current
Voltage Max
Max (A)
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
2.0
2.0
2.0
2.0
2.0
5.0
2.0
5.0
2.0
5.0
Contact
Resistance
(ohms)
<10m
<10m
<10m
<10m
<10m
<10m
<10m
<10m
<10m
<10m
Custom contact inserts are available. Consult factory.
Disposable Receptacle Assembly
.90φ
Rear Panel-Mount
Receptacle Assembly
0.460 typ.

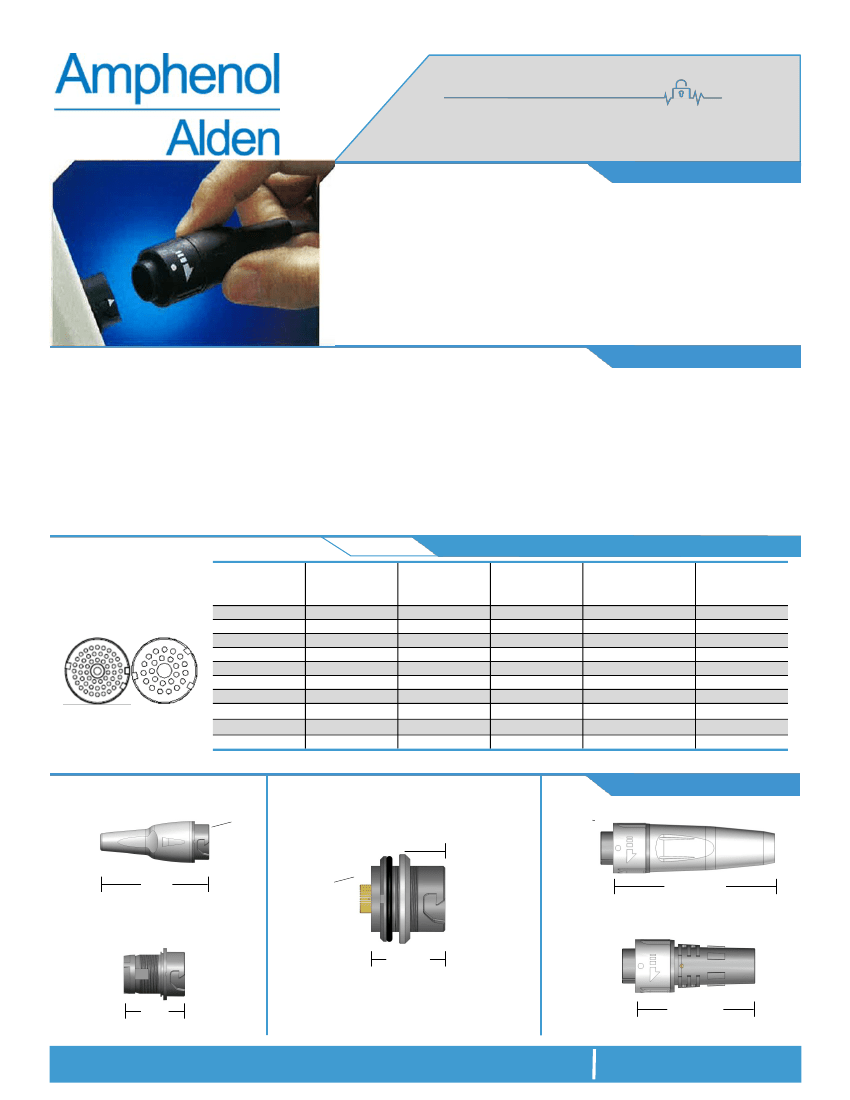

STANDARD HOUSING OPTIONS
.90φ
In-Line Plug Assembly
2.37
Shown with optional backshell (See Table C)
1.00φ
2.90
Showm with Overmolded Strain Relief
Disposable Receptacle
1.02
In-Line Plug Kit (For overmolding)
1.05
Select this component from Table B
Panel Thickness Range = 0.063 to 0.250
Select this component from Table B
2.00
Select this component from Table B
Connector housings and backshells are illustrated in light gray with gray couplers. Standard color is black on black. *All dimensions shown in inches except where indicated
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
1
PL-900RG-N SERIES
Number of
Poles
52
41
35
28
24 (26AWG)
24 (22AWG)
17
15
11
9
Plastic
Shell Auto-Coupling Connectors
52 pole
capacity disposable receptacle and support interconnects
TABLE B:
Disposable Receptacle
Solder Cup
341406
341392
341378
341364
341350
341336
341322
341308
341294
341280
STANDARD PART NUMBERS
Rear Panel-Mount
Receptacle
Solder Cup
342512
342484
342456
342428
342541
342372
342344
342316
342288
342260
In-Line Plug
Solder Cup
341252
341224
341196
341168
341140
341112
341084
341056
341028
341000
PCB
342946
342932
342918
342904
342890
342876
342862
342848
342834
342820
PCB
342519
342491
342463
342435
342407
342379
342351
342323
342295
342267
Note: Part numbers cover black housings in Key 1 configuration. For other color and housing options utilize the Amphenol Alden connector configurator located at
www.amphenolalden.com/configurator
Options Include:
Indicator Color Options
Mating Key Options
Panel-Mount Thickness Options
Black (std.), Gray, White, Blue, Red, Green, Yellow
2 Standard Keys, Proprietary Keys Available
.125 (std.), .063, .187,.250

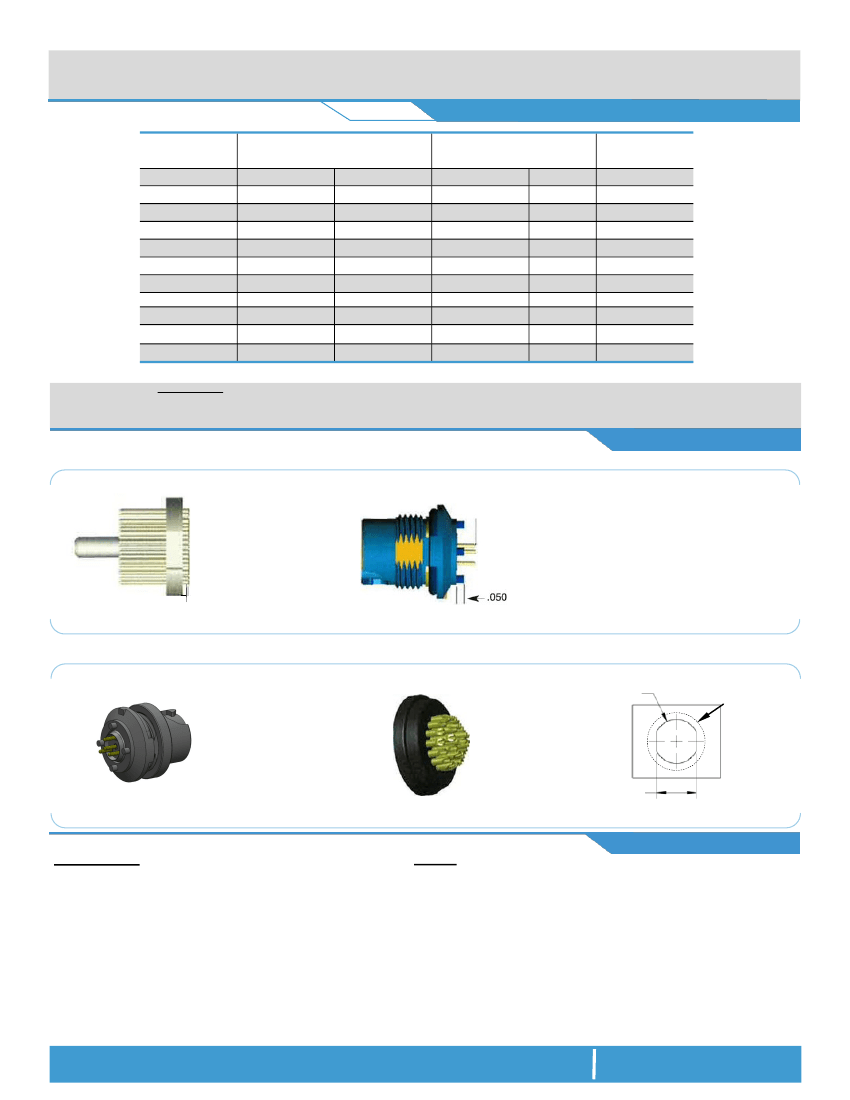

CONTACT TERMINATION OPTIONS
Termination Styles
Pin Length & Application
Pin Length & Applications
Panel 1
Flex Circuits Benefits
Facilitates the automated internal
application of passive and active
electronic components
Facilitates the introduction of
automated mass termination
techniques. These termination
methods are extremely cost
effective when terminating 52 pole
connectors
0.040
Intended for termination to flex circuit
Intended for mounting on rigid PC Board
Panel 2
PCB (Panel-Mount Receptacles only)
Features & Benefits
Available in most pole counts
PCB stand-offs ensure proper
Convenient packaging high
Request Sales Drawing for PCB
mounting template
positioning
temperature contect cures may
be soldered to PCB and snapped
into panel-mounted receptacle
housing later
from 9 to 52 Poles
Panel-Mount, Cut-Out Template
Features & Benefits
Tiered solder cups
provide easy access to
center positions. Canted
cups facilitate quick and
easy wire positioning.
Standard on 9-52 pole
configurations
.880φ
1.05
φ
mounting
Flange Footprint
.775
Applies to Rear Panel-Mount
Receptacles
Receptacles:
AI-PL900RGN-ILR01 (3Pole, 12AWG)
AI-PL900RGN-ILR02 (7Pole, 16AWG)
AI-PL900RGN-ILR03 (10-14Pole, 22AWG)
AI-PL900RGN-RPM01 (3Pole, 12AWG)
AI-PL900RGN-RPM02 (7Pole, 16AWG)
AI-PL900RGN-RPM03 (10-14Pole, 22AWG)
Plugs:
ASSEMBLY INSTRUCTIONS
AI-PL900RGN-P01 (3Pole, 12AWG)
AI-PL900RGN-P02 (7Pole, 16AWG)
AI-PL900RGN-P03 (10-14Pole, 22AWG)
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
2
PL-900RG-N SERIES
Backshell
Plastic
Shell Auto-Coupling Connectors
52 pole
capacity disposable receptacle and support interconnects
TABLE C:
(Wire exit i.d.)
A
Dimension A
0.140
0.166
0.180
0.210
0.260
Part Number
107307-01
107307-08
107307-15
107307-22
107307-29

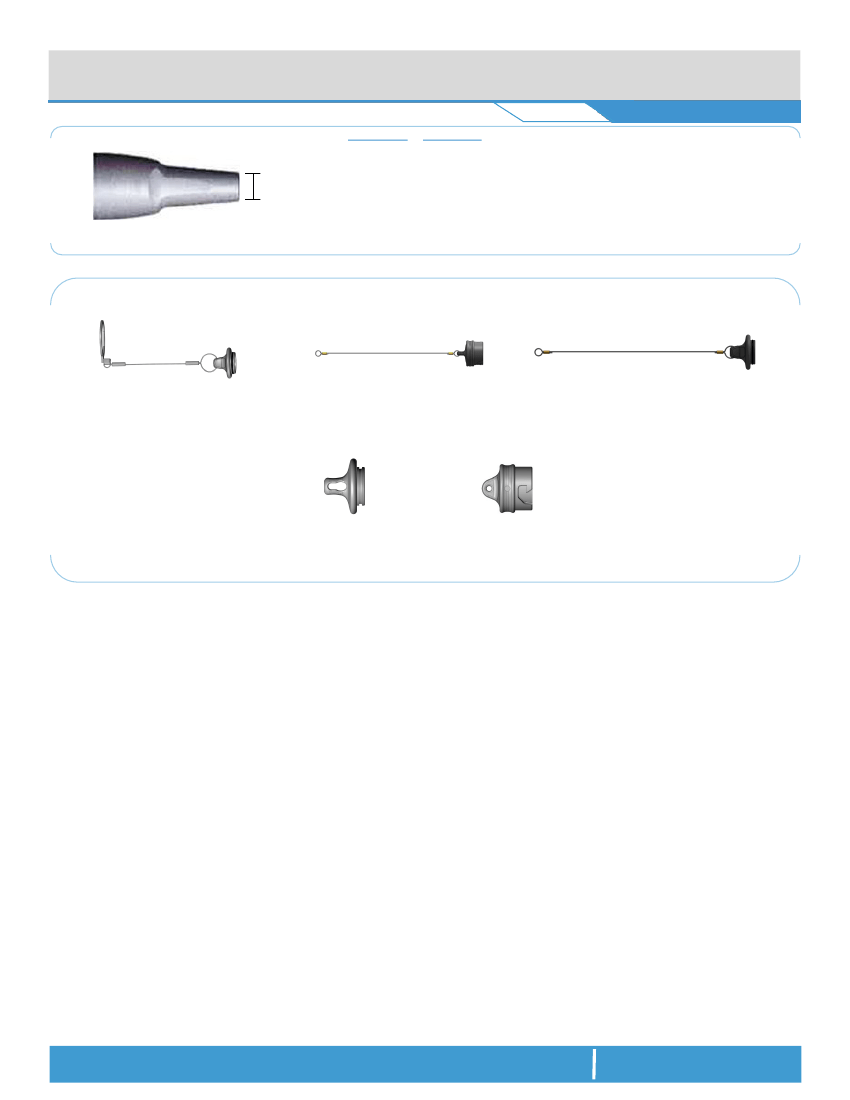

ACCESSORIES
Disposable Receptacle Backshell:
In applications where the disposable receptacle is attached directly to
a cable or catheter this one piece backshell is available to protect
light gauge wire terminations and provide an anchor point for the
catheter jacket. These backshells snap into place and may be
encapsulated
Standard color is black. Gray is optional.
Protective Connective Caps (IP-67 Seal Rating)
Panel-Mount Receptacle Dust Cover
(Nylon Tether locks into panel washer)
Plug Soaking Cap
(Wire Tether with cable loop)
In-Line Receptacle Dust Cover
(Wire Tether with cable loop)
P/N
110401-01
Panel-Mount Receptacle Dust Cover:
The PL-900 Series receptacle dust
cover protects the receptacles contact
system from dust, moisture, and
mechanical stress when the connector
pair is disengaged. When secured the
dust cover will provide an IP-67
environmental seal. The cover is
equipped with a tether for security.
P/N
111179-01
P/N
111026-01
Plug Soaking Cap:
The PL-900 Series Plug Soaking Cap is
designed to protect the plug’s contact
system when a cable assembly is being
cleaned or not in use. The soaking cap
locks onto the plug providing an IP-67 seal
that is ideal for soaking lin liquid
disinfectants. The soaking cap can be
permanently attached to a a cable assembly
by means of a light weight tether.
Receptacle Dust Cover
(Without Wire Tether)
Plug Soaking Cap
(Without Wire Tether)
P/N
107522-01
P/N
107521-01
Note: Black (std.) Gray (opt.)
