1
2.16 max
2
3

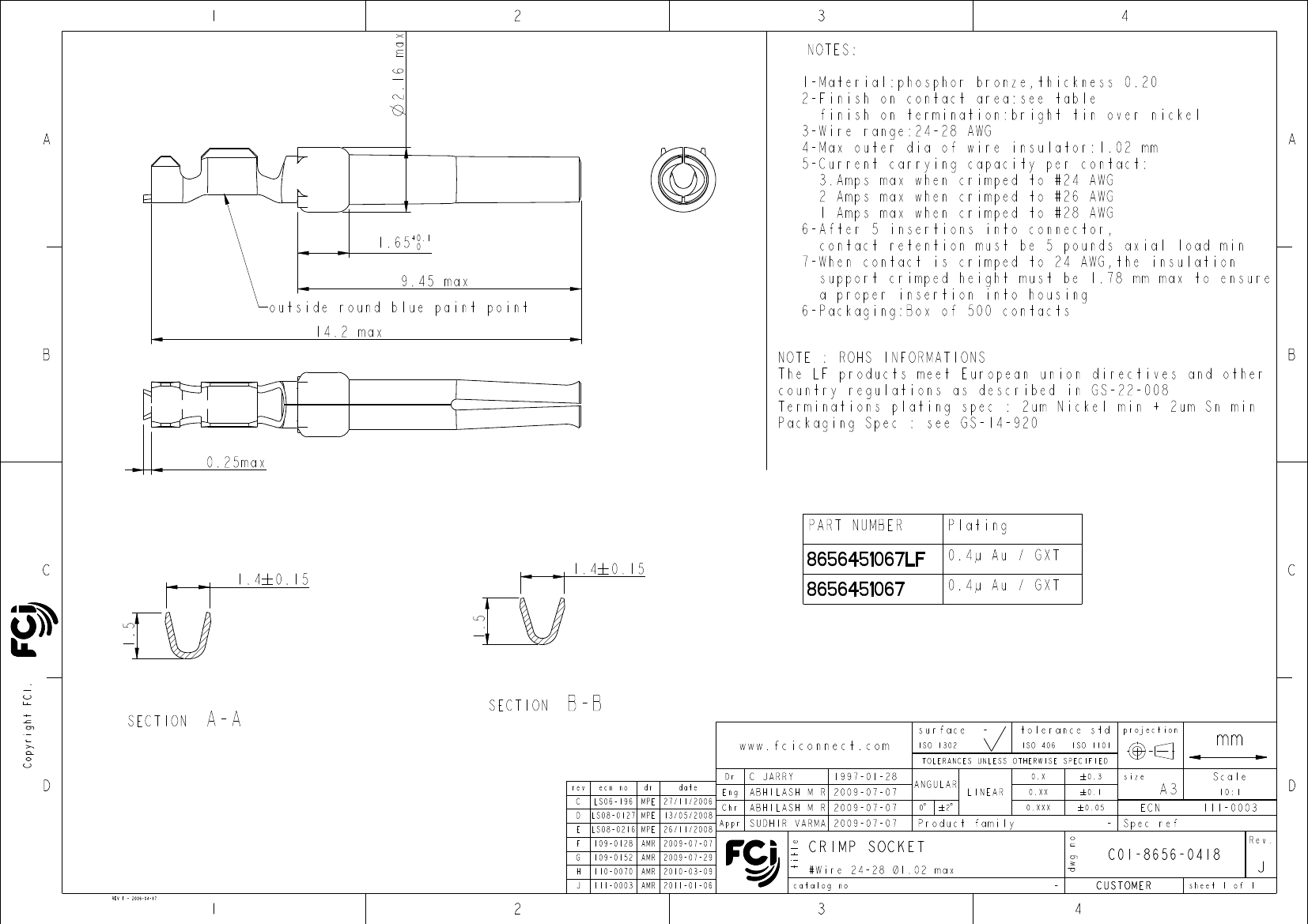

NOTES:
4
A
1.65
+0.1
0
9.45 max
outside round blue paint point
14.2 max
B
1-Material:phosphor bronze,thickness 0.20
2-Finish on contact area:see table
finish on termination:bright tin over nickel
3-Wire range:24-28 AWG
4-Max outer dia of wire insulator:1.02 mm
5-Current carrying capacity per contact:
3.Amps max when crimped to #24 AWG
2 Amps max when crimped to #26 AWG
1 Amps max when crimped to #28 AWG
6-After 5 insertions into connector,
contact retention must be 5 pounds axial load min
7-When contact is crimped to 24 AWG,the insulation
support crimped height must be 1.78 mm max to ensure
a proper insertion into housing
6-Packaging:Box of 500 contacts
NOTE : ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec : 2um Nickel min + 2um Sn min
Packaging Spec : see GS-14-920
A
B
0.25 max
PART NUMBER
C
1.4 0.15
Plating
0.4µ Au / GXT
0.4µ Au / GXT
C
8656451067LF
8656451067
1.4 0.15
1.5
1.5
Copyright FCI.
SECTION
A-A
SECTION
B-B
surface
-
tolerance std
ISO 406
ISO 1101
projection
www.fciconnect.com
ISO 1302
mm
Scale
10:1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
Dr
rev
C
D
E
F
G
H
J
REV F - 2006-04-17
C JARRY
ABHILASH M R
ABHILASH M R
SUDHIR VARMA
title
1997-01-28
2009-07-07
2009-07-07
2009-07-07
ecn no
LS06-196
dr
date
Eng
Chr
Appr
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
MPE 27/11/2006
LINEAR
0.XX
0.XXX
A3
ECN
- Spec ref
D
LS08-0127 MPE 13/05/2008
LS08-0216 MPE 26/11/2008
I09-0128
I09-0152
I10-0070
I11-0003
AMR 2009-07-07
AMR 2009-07-29
AMR 2010-03-09
AMR 2011-01-06
I11-0003
Rev.
Product family
dwg no
CRIMP SOCKET
#Wire 24-28 Ø1.02 max
-
C01-8656-0418
CUSTOMER
sheet
1 of 1
J
catalog no
1
2
3
PDM: Rev:J
STATUS:
Released
4
