Part Number

Search

92507-906

Description
Board Connector, 163 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size179KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

92507-906 Overview

Board Connector, 163 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle

92507-906 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.368 inch
subject depth0.834 inch
body length3.778 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN LEAD (59)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number92507
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.114 inch
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts163
UL Flammability Code94V-0

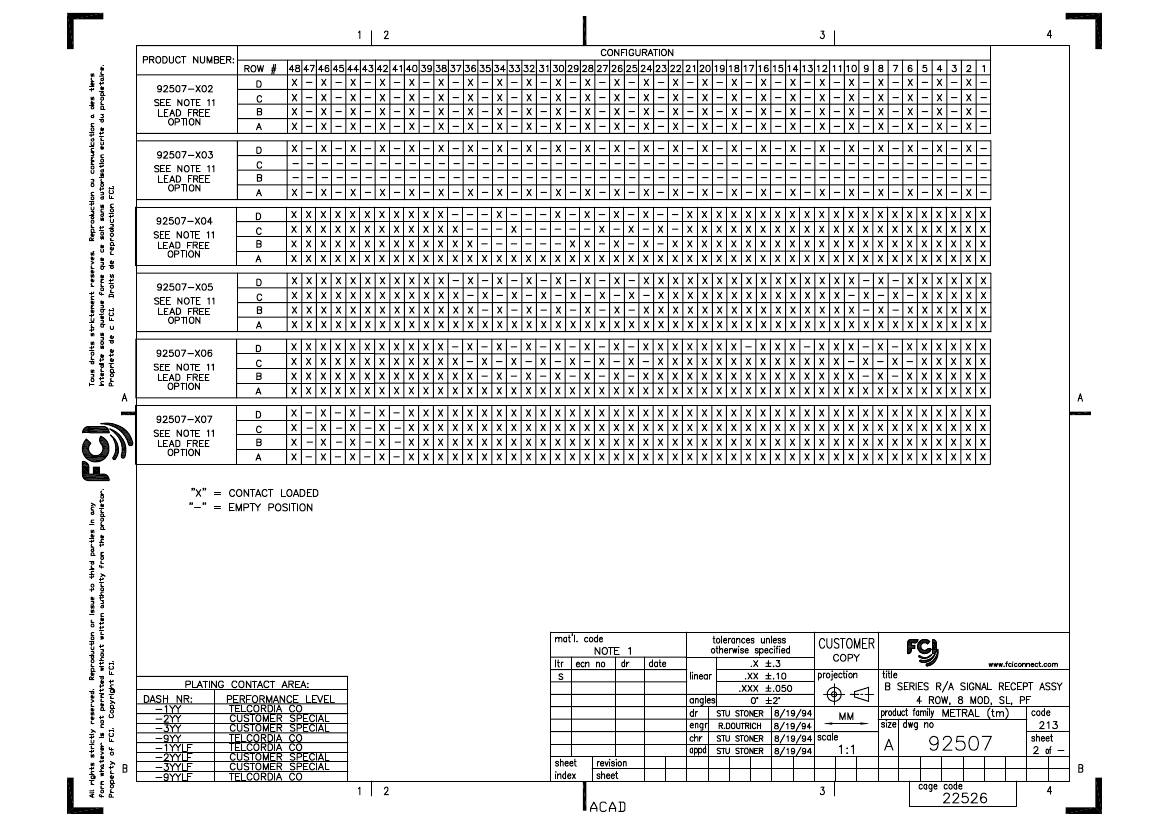

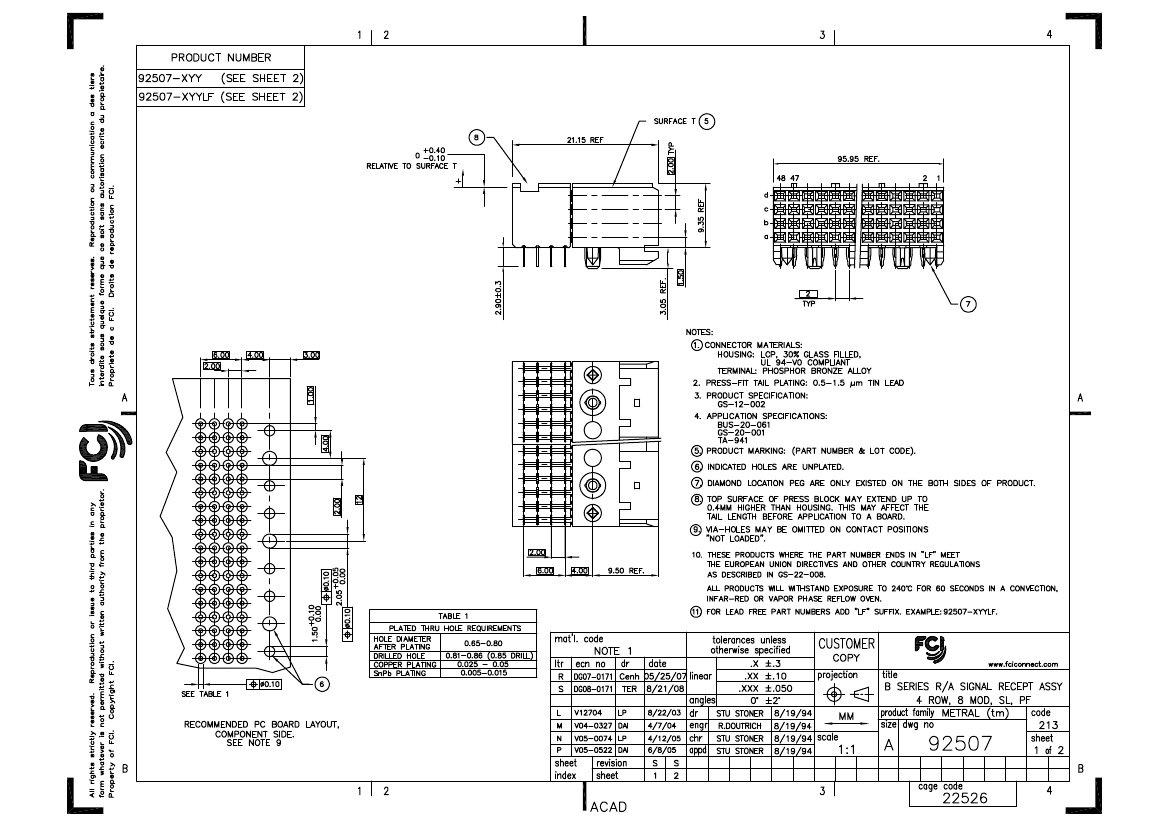

PDM: Rev:S
STATUS:
Released
Printed: Nov 14, 2008
.
