162/163 PLL-PW
Vishay BCcomponents
Aluminum Capacitors
Power Long Life Printed Wiring
FEATURES
Polarized aluminum electrolytic capacitors,
non-solid electrolyte
Large types, minimized dimensions, cylindrical
aluminum case, insulated with a blue sleeve
Provided with keyed polarity
Very long useful life: 5000 h at 105 °C
Low ESR, high ripple current capability
Temperature range up to 105 °C
High resistance to shock and vibration
Compliant to RoHS Directive 2002/95/EC
°
RoHS
COMPLIANT
Fig.1 Component outlines
°
APPLICATIONS
Computer, telecommunication and industrial systems
Smoothing and filtering
Standard and switched mode power supplies
Energy storage in pulse systems
QUICK REFERENCE DATA
DESCRIPTION
VALUE
162
163
Nominal case size (Ø D x L in mm)
25 x 30 to 40 x 100
Rated capacitance range
470 µF to
68 µF to
150 000 µF
3300 µF
(E6 series), C
R
± 20 %
Tolerance on C
R
Rated voltage range, U
R
10 V to 100 V 200 V to 400 V
Category temperature range
Endurance test at 105 °C
Useful life at 105 °C
Useful life at 40 °C,
1.9 x I
R
applied
Shelf life at 0 V, 105 °C
Based on sectional specification
Climatic category IEC 60068
.
MARKING
The capacitors are marked (where possible) with the
following information:
Rated capacitance (in µF)
Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
Rated voltage (in V)
Date code (YYMM)
Name of manufacturer
Code for factory of origin
Polarity of the terminals and ‘-’ sign to indicate the negative
terminal, visible from the top and/or side of the capacitor
Code number
Climatic category in accordance with IEC 60068
- 40 °C to + 105 °C
2000 h
5000 h
150 000 h
500 h
IEC 60384-4/EN130300
40/105/56
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES FOR 162 SERIES
(Ø D x L in mm)
C
R
(µF)
470
680
1000
1500
2200
3300
4700
6800
10 000
15 000
22 000
33 000
47 000
68 000
100 000
150 000
U
R
(V)
10
-
-
-
-
-
-
-
-
-
-
25 x 30
-
25 x 40
30 x 40
-
35 x 40
-
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
16
-
-
-
-
-
-
-
-
-
25 x 30
25 x 40
-
30 x 40
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
40 x 100
-
25
-
-
-
-
-
-
-
25 x 30
-
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
40
-
-
-
-
25 x 30
-
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
63
-
-
25 x 30
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
-
-
-
100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
-
-
-
-
-
-
www.vishay.com
157
Document Number: 28347
Revision: 21-Feb-11
For technical questions, contact:
aluminumcaps2@vishay.com
162/163 PLL-PW
Vishay BCcomponents
Aluminum Capacitors
Power Long Life Printed Wiring
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES FOR 163 SERIES
(Ø D x L in mm)
C
R
(µF)
68
100
150
220
330
470
680
1000
1500
2200
U
R
(V)
200
-
-
25 x 30
25 x 40
30 x 40
-
35 x 40
-
35 x 50
40 x 50
40 x 50
40 x 70
40 x 100
250
-
25 x 30
25 x 40
30 x 40
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
40 x 100
-
385
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
400
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-

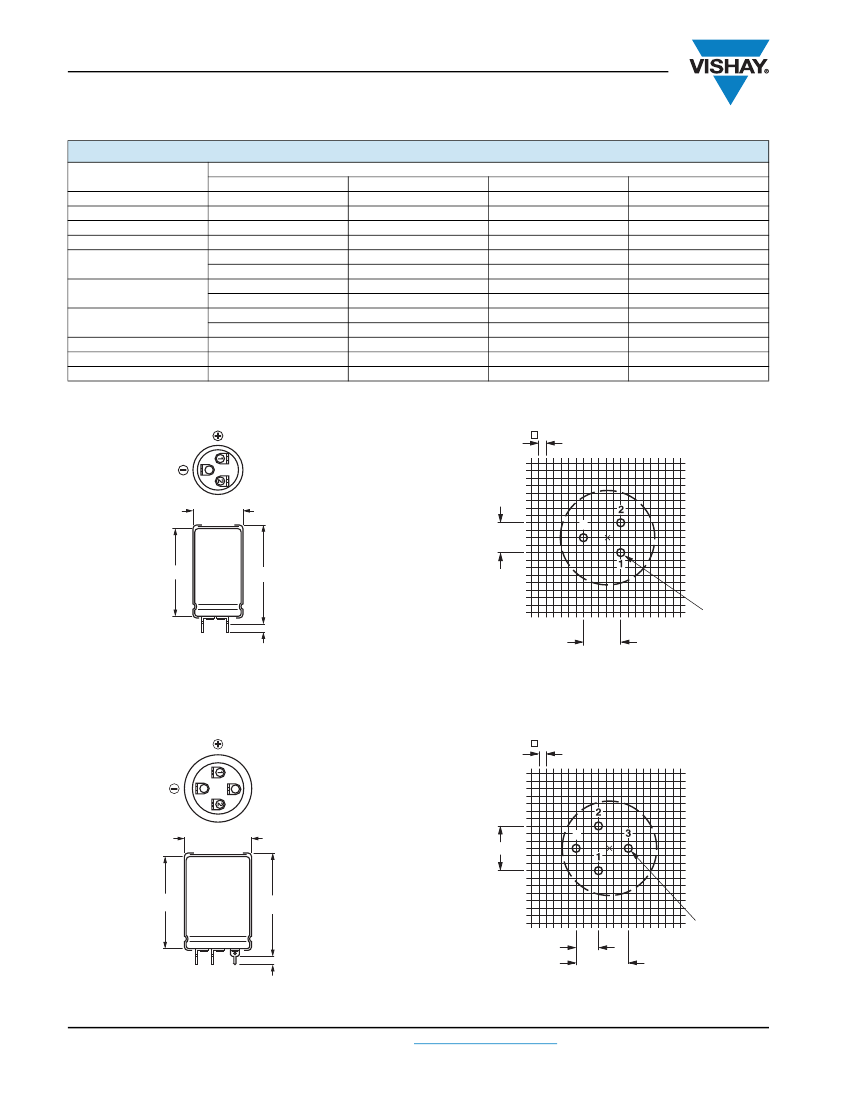

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
2.5
Ø D + 1 max.
-
-
10 ± 0.1
L
L + 5 max.
1.3
(3 x)
4.9 ± 0.2
12.5
± 0.1
Case Ø D = 25 mm
Fig.2 Printed wiring pin version
Case Ø D = 25 mm
Fig.3 Mounting hole diagram viewed from component side
2.5
Ø D + 1 max.
-
3
-
15 ± 0.1
L
L + 5 max.
1.3
(4 x)
7.5 ± 0.1
4.9 ± 0.2
17.5 ± 0.1
Case Ø D = 30 mm
Fig.4 Printed wiring pin version
www.vishay.com
158
Case Ø D = 30 mm
Fig.5 Mounting hole diagram viewed from component side
Document Number: 28347
Revision: 21-Feb-11
For technical questions, contact:
aluminumcaps2@vishay.com
162/163 PLL-PW
Aluminum Capacitors
Power Long Life Printed Wiring

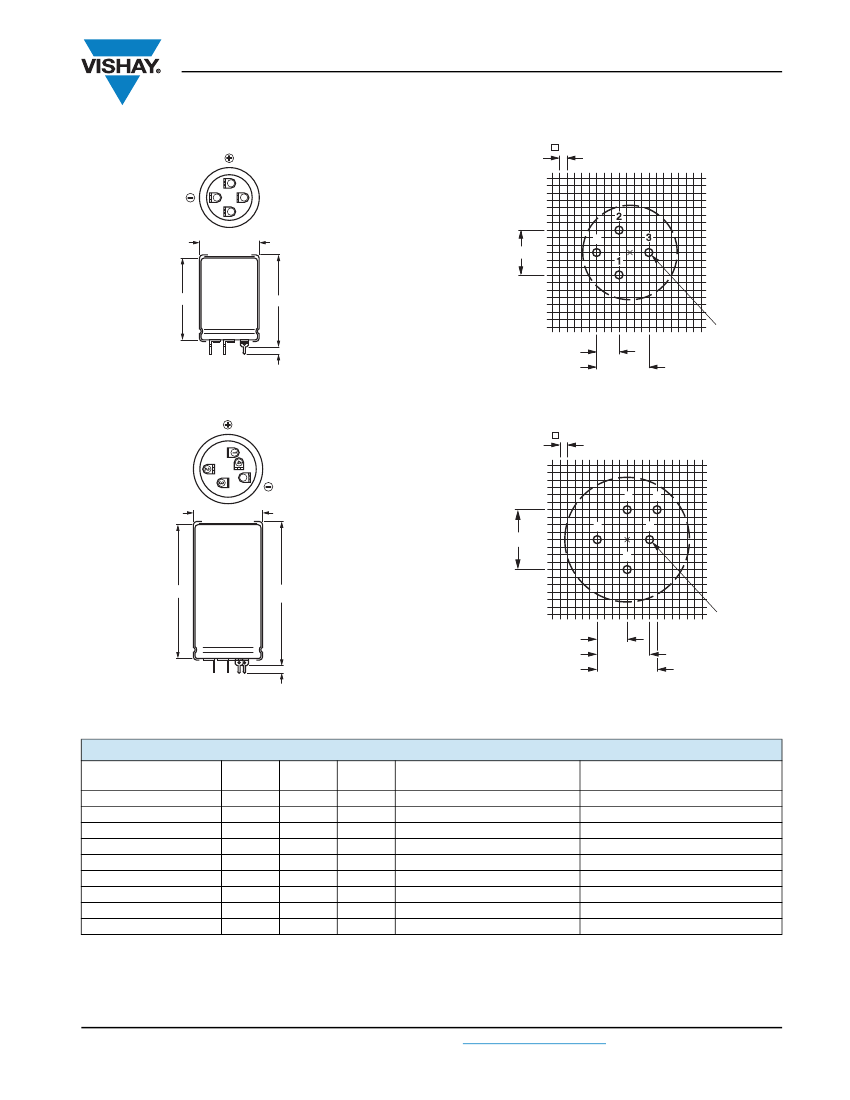

2.5
Vishay BCcomponents
1
3
Ø D + 1 max.
15 ± 0.1
-
2
-
L
L + 5 max.
1.3
(4 x)
4.9 ± 0.2
7.5 ± 0.1
17.5 ± 0.1
Case Ø D = 35 mm
Fig.6 Printed wiring pin version
Case Ø D = 35 mm
Fig.7 Mounting hole diagram viewed from component side
2.5
-
3
Ø D + 1 max.
-
4
2
20 ± 0.1
1
L
L + 5 max.
1.3
(5 x)
10 ± 0.1
17.5 ± 0.1
5.1 ± 0.1
20 ± 0.1
Case Ø D = 40 mm
Fig.8 Printed wiring pin version
Table 1
Case Ø D = 40 mm
Fig.9 Mounting hole diagram viewed from component side
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
PW versions
NOMINAL CASE SIZE
ØDxL
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
Ø D
max.
26
26
31
36
36
41
41
41
41
L
max.
35
45
45
45
55
45
55
75
105
MASS
(g)
24
28
38
51
66
78
82
110
176
PACKAGING QUANTITIES
(units per box)
100
100
100
50
50
50
50
25
25
CARDBOARD BOX DIMENSIONS
LxWxH
290 x 280 x 50
290 x 280 x 60
340 x 330 x 60
390 x 198 x 60
390 x 198 x 70
440 x 223 x 60
440 x 223 x 70
230 x 230 x 90
230 x 230 x 120
MOUNTING
When a number of capacitors are connected in a bank, they must not be closer together than 15 mm, when no derating of ripple
current and/or temperature is applied.
Pin numbers 2, 3 and 4 (if present) should be free from the electrical circuit or connected to the minus terminal.
Document Number: 28347
Revision: 21-Feb-11
For technical questions, contact:
aluminumcaps2@vishay.com
www.vishay.com
159
162/163 PLL-PW
Vishay BCcomponents
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
I
L5
ESR
Z
DESCRIPTION
rated capacitance at 100 Hz
rated RMS ripple current at 100 Hz and 105
C
max. leakage current after 1 min at U
R
max. leakage current after 5 min at U
R
max. equivalent series resistance at 100 Hz
max. impedance at 10 kHz
Aluminum Capacitors
Power Long Life Printed Wiring
ORDERING EXAMPLE
Electrolytic capacitor 162 series
10 000 µF/25 V; ± 20 %
Nominal case size: Ø 30 mm x 40 mm
Ordering code: MAL2 162 56103 E3
Former 12NC: 2222 162 56103
Note
• Unless otherwise specified, all electrical values in tables 2 and 3
apply at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
Table 2
ELECTRICAL DATA AND ORDERING INFORMATION FOR 162 SERIES
U
R
(V)
C
R
100 Hz
(µF)
10 000
15 000
22 000
33 000
47 000
47 000
68 000
100 000
150 000
6800
10 000
15 000
22 000
33 000
33 000
47 000
68 000
100 000
4700
6800
10 000
15 000
22 000
22 000
33 000
47 000
68 000
2200
3300
4700
6800
10 000
10 000
15 000
22 000
33 000
1000
1500
2200
3300
4700
4700
6800
10 000
15 000
470
680
1000
1500
2200
2200
3300
4700
6800
NOMINAL
CASE SIZE
Ø D x L (mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
R
100 Hz
105 °C
(A)
3.17
4.21
5.05
5.63
6.19
6.19
7.64
10.0
12.9
3.11
4.09
4.97
5.53
6.08
6.08
7.46
9.70
12.90
2.94
3.93
4.81
5.43
5.98
5.98
7.30
9.43
12.44
2.36
3.17
3.93
4.59
5.03
5.03
6.09
8.34
10.97
1.55
2.10
2.72
3.44
4.09
4.09
5.10
6.86
9.31
1.42
1.90
2.48
3.17
3.79
3.79
4.81
6.49
8.80
I
L1
1 min
(mA)
0.60
0.90
1.32
1.98
2.82
2.82
4.08
6.00
9.00
0.65
0.96
1.44
2.12
3.17
3.17
4.52
6.53
9.60
0.71
1.02
1.50
2.25
3.30
3.30
4.95
7.05
10.20
0.53
0.79
1.13
1.63
2.40
2.40
3.60
5.28
7.92
0.38
0.57
0.83
1.25
1.78
1.78
2.57
3.78
5.67
0.28
0.41
0.60
0.90
1.32
1.32
1.98
2.82
4.08
I
L5
5 min
(mA)
0.20
0.30
0.44
0.66
0.94
0.94
1.36
2.00
3.00
0.22
0.32
0.48
0.71
1.06
1.06
1.51
2.18
3.20
0.24
0.34
0.50
0.75
1.10
1.10
1.65
2.35
3.40
0.18
0.27
0.38
0.55
0.80
0.80
1.20
1.76
2.64
0.13
0.19
0.28
0.42
0.60
0.60
0.86
1.26
1.89
0.10
0.14
0.20
0.30
0.44
0.44
0.66
0.94
1.36
ESR
100 Hz
(m)
48
34
29
27
26
26
21
16
13
50
36
30
29
28
28
22
17
13
56
39
32
30
29
29
23
18
14
87
60
48
42
41
41
33
23
18
202
137
100
75
62
62
47
34
25
240
167
120
88
72
72
53
38
28
Z
10 kHz
(m)
37
27
23
22
21
21
18
15
12
37
27
23
22
21
21
18
15
12
37
27
23
22
21
21
18
15
12
54
38
33
31
29
29
24
18
15
155
109
79
61
53
53
40
29
21
155
109
79
61
53
53
40
29
21
ORDERING CODE
MAL2162.......
54103E3
54153E3
54223E3
54333E3
54473E3
44473E3
54683E3
54104E3
54154E3
55682E3
55103E3
55153E3
55223E3
55333E3
45333E3
55473E3
55683E3
55104E3
56472E3
56682E3
56103E3
56153E3
56223E3
46223E3
56333E3
56473E3
56683E3
57222E3
57332E3
57472E3
57682E3
57103E3
47103E3
57153E3
57223E3
57333E3
58102E3
58152E3
58222E3
58332E3
58472E3
48472E3
58682E3
58103E3
58153E3
59471E3
59681E3
59102E3
59152E3
59222E3
49222E3
59332E3
59472E3
59682E3
Document Number: 28347
Revision: 21-Feb-11
10
16
25
40
63
100
www.vishay.com
160
For technical questions, contact:
aluminumcaps2@vishay.com
162/163 PLL-PW
Aluminum Capacitors
Power Long Life Printed Wiring
Table 3
Vishay BCcomponents
ELECTRICAL DATA AND ORDERING INFORMATION FOR 163 SERIES
U
R
(V)
C
R
100 Hz
(µF)
150
220
330
470
680
680
1000
1500
2200
100
150
220
330
470
470
680
1000
1500
68
100
150
220
330
330
470
680
1000
68
100
150
220
330
330
470
680
1000
NOMINAL
CASE SIZE
Ø D x L (mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
R
100 Hz
105 °C
(A)
0.72
0.96
1.29
1.66
2.09
2.09
2.71
3.75
5.24
0.67
0.92
1.28
1.65
2.01
2.01
2.59
3.58
5.05
0.61
0.82
1.10
1.44
1.84
1.84
2.37
3.24
4.54
0.39
0.53
0.72
0.94
1.24
1.24
1.59
2.18
3.07
I
L1
1 min
(mA)
0.18
0.26
0.40
0.57
0.82
0.82
1.20
1.80
2.64
0.15
0.22
0.33
0.49
0.70
0.70
1.02
1.50
2.25
0.16
0.23
0.35
0.51
0.77
0.77
1.09
1.58
2.31
0.16
0.24
0.36
0.52
0.79
0.79
1.12
1.63
2.40
I
L5
5 min
(mA)
0.06
0.09
0.14
0.19
0.28
0.28
0.40
0.60
0.88
0.05
0.08
0.11
0.17
0.24
0.24
0.34
0.50
0.75
0.06
0.08
0.12
0.17
0.26
0.26
0.36
0.53
0.78
0.06
0.08
0.12
0.17
0.26
0.26
0.37
0.54
0.80
ESR
100 Hz
(m)
950
650
442
321
237
237
167
114
79
1060
710
492
325
256
256
182
125
85
1650
1120
755
525
360
360
260
180
125
3200
2180
1460
1010
680
680
485
336
230
Z
10 kHz
(m)
710
485
330
240
185
185
133
90
62
710
485
330
240
185
185
133
90
62
1260
855
580
405
280
280
205
140
100
2660
1810
1210
830
570
570
407
282
193
ORDERING CODE
MAL2163.......
52151E3
52221E3
52331E3
52471E3
52681E3
42681E3
52102E3
52152E3
52222E3
53101E3
53151E3
53221E3
53331E3
53471E3
43471E3
53681E3
53102E3
53152E3
58689E3
58101E3
58151E3
58221E3
58331E3
48331E3
58471E3
58681E3
58102E3
56689E3
56101E3
56151E3
56221E3
56331E3
46331E3
56471E3
56681E3
56102E3
200
250
385
400
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
Case Ø D = 25 mm
Equivalent series inductance (ESL)
Case Ø D = 30 mm and 35 mm
Case Ø D = 40 mm
max. 25 nH
max. 30 nH
max. 35 nH
After 1 min at U
R
After 5 min at U
R
I
L1
0.006 C
R
x U
R
+ 4 µA
I
L5
0.002 C
R
x U
R
+ 4 µA
200
V versions
385
V versions
U
s
= 1.15 x U
R
U
s
= 1.1 x U
R
U
rev
1 V
CONDITIONS
VALUE
Document Number: 28347
Revision: 21-Feb-11
For technical questions, contact:
aluminumcaps2@vishay.com
www.vishay.com
161
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
