FOR BOARD-TO-CABLE CONNECTION
230 SERIES (GENERAL-PURPOSE TYPE)
DISCONTINUED
s

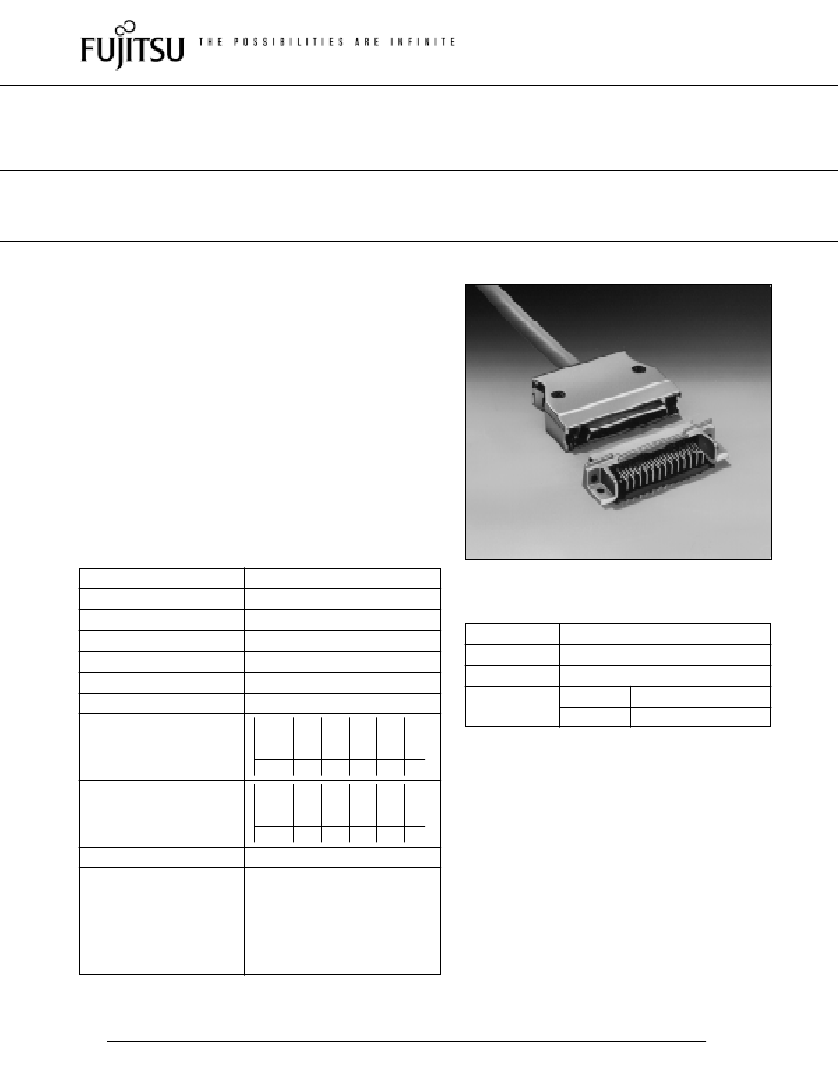

FEATURES
• 1.27 mm (0.050 in.) pitch contact arrangement in two
rows enables high-density mounting.
• Connectors with 20 to 80 contacts are available for
various purposes.
• Various types of board-to-cable connection can be
performed.
• Discrete-wire (AWG #28, #30) I/O cables can be
assembled by IDC or soldering. Metal covers
completely protect sockets from EMI.
• Tails are spaced in a four-row staggered arrangement
(2.54 mm
×
1.905 mm) (0.100 in.
×
0.075 in.) for easy
PC board design.
• Insulation is UL-approved (94V-0) and is washable.
s
SPECIFICATIONS
Item
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric withstand voltage
Specifications
–55°C to +105°C
DC 1 A
AC 240 V
30 mΩ max. (DC 6 V, 0.1 A)
1000 MΩ min. (DC 500 V)
AC 750 V for 1 minute
Number
of
contacts
Force
Number
of
contacts
Force
Applicable PC board (standard)
20
5.5
20
28
6.0
28
36
6.5
36
50
8.0
50
68
9.0
68
2.3
Item
Insulator
Conductor
Plating
Materials
Polyester (Soldering PPS), UL94V-0
Copper alloy
Contact
Terminal
Gold plating
Palladium plating
s
MATERIALS
Insertion force [kg max.]
Withdrawal force [kg min.]
0.8 1.12 1.44 2.0
1.6 mm (0.063 in.) thick
IDC: AWG #28 and #30 with
φ0.5
to 0.88 mm (0.019 to 0.035
in.) insulation diameter.
The applicable wires depend on the
number of contacts. See the
descriptions of IDC sockets and
metal covers.
Soldering: AWG #26 max. (reference)
Applicable wire (standard)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
1
230 Series (General-Purpose Type)
s
ORDERING CODE
FCN-23 4 P 050-G / E
E: Metal type
Plating and covering
A: Metal cover (standard cable hole type)
B: Metal cover with polarization (standard cable hole type)
C: Metal cover (wide cable hole type)
D: Metal cover with polarization (wide cable hole type)
G: Gold plating (connector)
Number of contacts: 20, 28, 36, 50, 68, and 80
Body
C: Cover
G: Accessory (mating guide)
J: Socket
K: Accessory (polarization)
P: Plug
Tail type etc.
0: Cover and accessory
1: Soldering eyelet
4: Straight
5: Right-angle
7: Insulation displacement contact
230 series
Fujitsu connector
s
APPLICATIONS
FCN-230C0
× ×
-A/E (Cover)
FCN-235P0
× ×
-G/E
FCN-234P0
× ×
-G/E
FCN-230C0 ¥ ¥ -A/E (Cover)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
2
230 Series (General-Purpose Type)

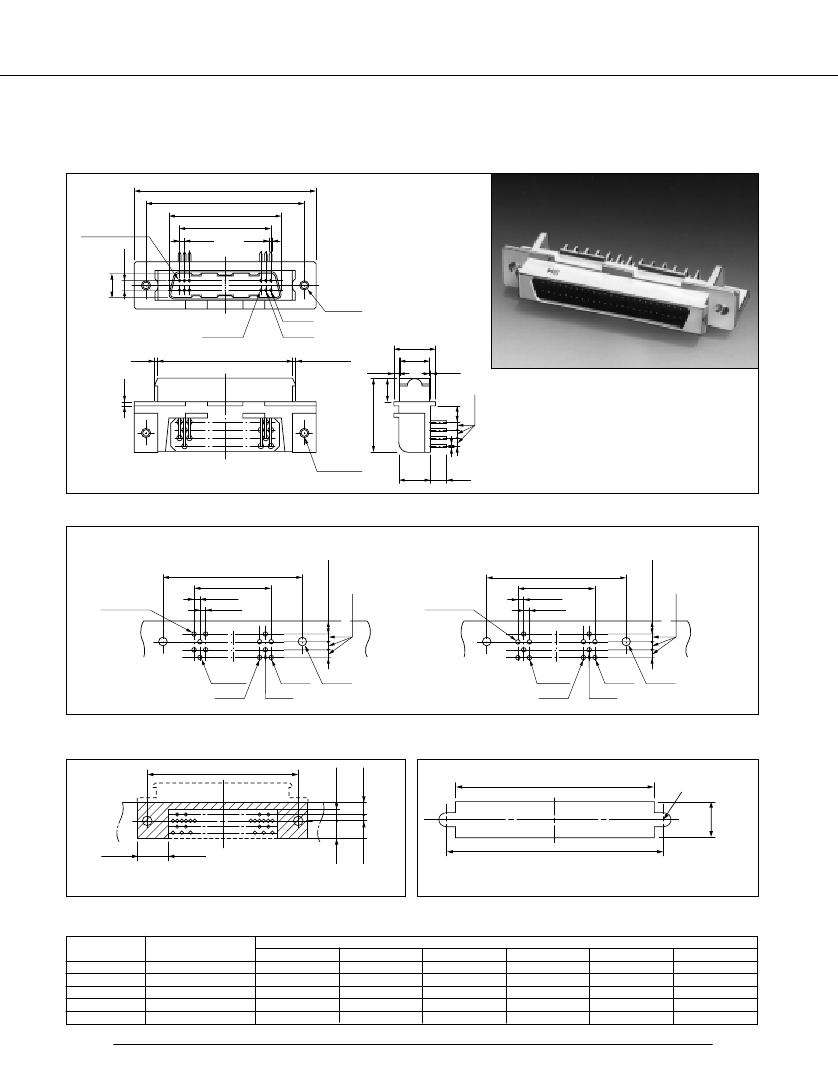

RIGHT-ANGLE PLUG
s
DIMENSIONS
A
B
C
D
End terminal
5.7 (0.224)
2.54
(0.100)
1.27
(0.050)
0.6
(0.230)
No. 1
No. 3
0.8 (0.031)
2 - M2.5
(0.098)
10.5 (0.413)
No. 2
0.85 (0.033)
1.15 (0.045)
5.5 (0.216)
0.85
(0.033)
E
7.3
(0.333)
0.88 (0.287)
4
(0.157)
1.905
(0.075)
0.4
(.015)
2 - M2.5
(0.098)
17.3 (0.688)
8.47
(0.333)
3.4 (0.133)
Unit: mm (in.)
s
MOUNTING HOLE LAYOUT
•20, 28, 36, 68, and 80 contacts
(Contact surface)
B
±0.1
(±0.004 )
D
±0.1
(±0.004 )
1.27
±0.1
(0.50
±0.004
)
1.27
±0.1
(0.50
±0.004
)
(Component side)
1.905
±0.1
(0.075
±0.004
)
3.7 mm max.
(0.145)
•50 contacts
(Contact surface)
Last No.
Last No.
φ0.8
±0.06
(φ0.031
±0.002
)
No. 1
No. 2
φ2.8
(0.110)
φ0.8
±0.06
(φ0.031
±0.002
)
No. 1
No. 2
3.7 mm max.
(0.145)
B
±0.1
(±0.004 )
D
±0.1
(±0.004 )
1.27
±0.1
(0.50
±0.004
)
1.27
±0.1
(0.50
±0.004
)
φ2.8
(0.110)
No. 3
No. 3
Unit: mm (in.)
s
PATTERN INHIBITED AREAS
3.2
– 0
(0.125
– 0
)
3.5 max.
(0.137)
s
RECOMMENDED PANEL DIMENSIONS
(F + 0.5)
±0.1
(F + (0.019)
±0.004
B
±0.1
(±0.004)
)
1.905
±0.1
(0.075
±0.004
)
R1.5
±0.1
(R0.059
±0.004
)
3.2
– 0
(0.125
– 0
)
6.8
– 0
(0.267
– 0
)
1.905
(0.075
±0.004
)
6
–0
(0.125
– 0
)
±0.1
B
±0.1
(±0.004)
Recommended panel thickness t = 1 (0.039)
Unit: mm (in.)
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
Number of
contacts
28
36
50
68
80
Part number
FCN-235P028-G/E
FCN-235P036-G/E
FCN-235P050-G/E
FCN-235P068-G/E
FCN-235P080-G/E
A
38.48 (1.514)
43.56 (1.714)
52.45 (2.064)
63.88 (2.514)
71.50 (2.814)
B
32.48 (1.278)
37.56 (1.478)
46.45 (1.828)
57.88 (2.278)
65.50 (2.587)
Dimensions:
C
20.88 (0.822)
25.96 (1.022)
34.85 (1.372)
46.28 (46.28)
53.90 (2.122)
mm (in.)
D
16.51 (0.650)
21.59 (0.850)
30.48 (1.200)
41.91 (1.650)
49.53 (1.950)
E
26.68 (1.050)
31.76 (1.250)
40.65 (1.600)
52.08 (2.050)
59.70 (2.350)
F
28.38 (1.117)
33.46 (1.317)
42.35 (1.607)
53.78 (2.117)
61.40 (2.417)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
8.3
±0.1
(0.236
±0.004
)
3
230 Series (General-Purpose Type)

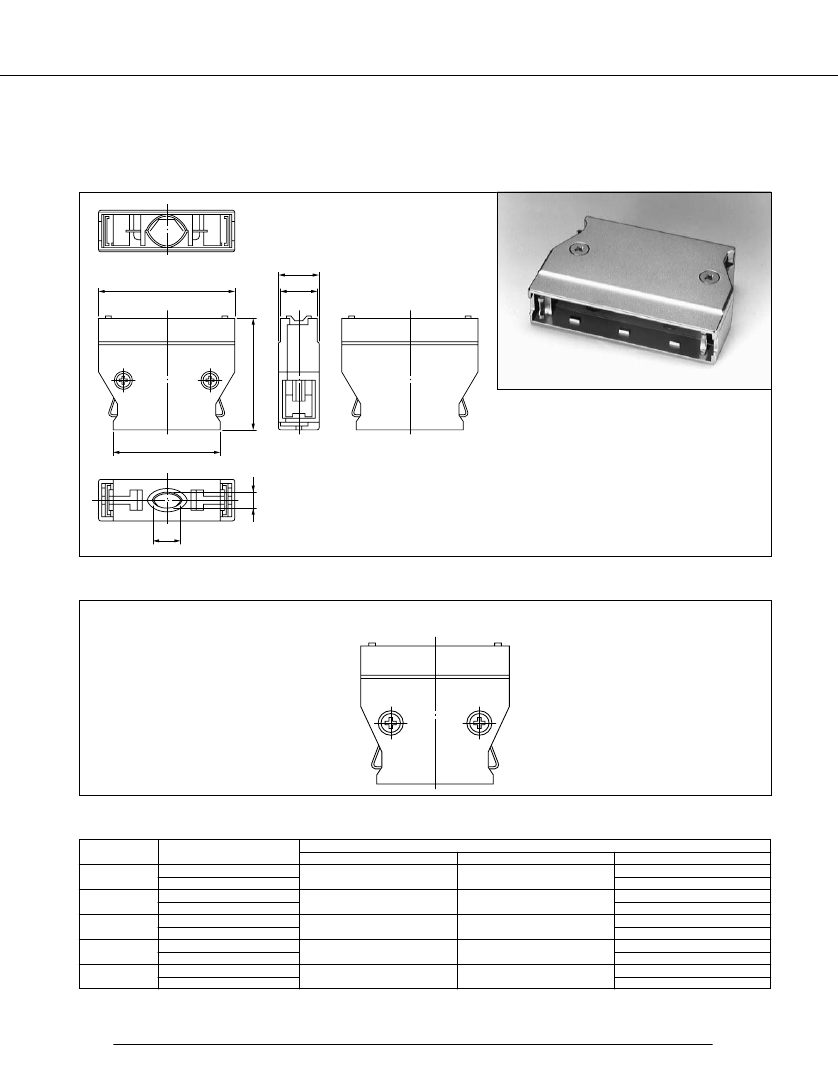

SOLDERING EYELET SOCKET
s
DIMENSIONS
A
B
1.27 (0.050)
2.54 (0.100)
End terminal
No. 1
No. 2
9 (0.354)
No. 3
C
5
(0.196)
5.5 (0.216)
No. 2
No. 3
18.25 (0.718)
No. 1
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
Number of
contacts
20
28
36
50
68
Part number
FCN-231J020-G/E
FCN-231J028-G/E
FCN-231J036-G/E
FCN-231J050-G/E
FCN-231J068-G/E
A
19.25 (0.757)
24.33 (0.957)
29.41 (1.157)
38.30 (1.507)
49.73 (1.957)
Dimensions: mm (in.)
B
11.43 (0.450)
16.51 (0.650)
21.59 (0.850)
30.48 (1.200)
41.91 (1.650)
C
15.60 (0.614)
20.68 (0.814)
25.76 (1.014)
34.65 (1.364)
46.08 (1.814)
s
CONNECTOR COVER
FCN-230Cttt-A/E
FCN-230Cttt-B/E
FCN-230Cttt-C/E
FCN-230Cttt-D/E
ttt:
Number of contacts
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
4
230 Series (General-Purpose Type)

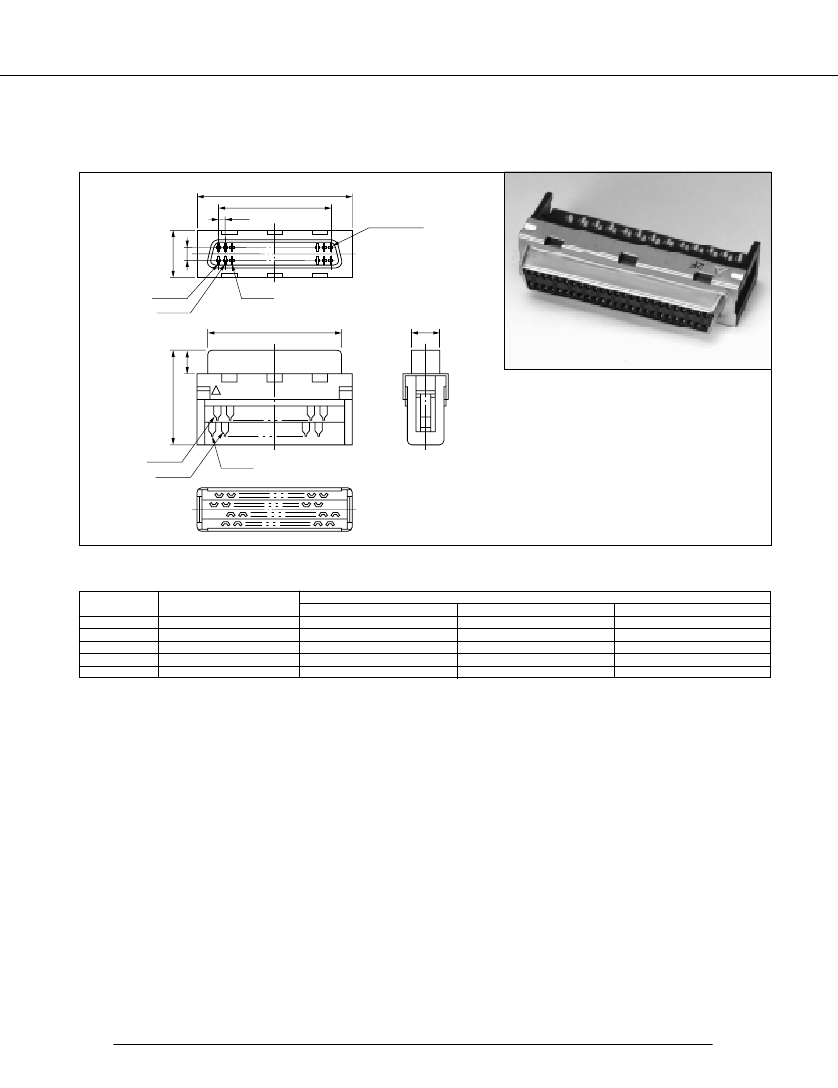

METAL COVER [230 SERIES (GENERAL-PURPOSE), 230R SERIES (CONFORMING TO SCSI)
AND 240 SERIES (GENERAL-PURPOSE)]
s
DIMENSIONS
12.0 (0.472)
A
10.0
(0.393)
B
C
D
32.5 (1.279)
Unit: mm (in.)
s
SHAPE DEPENDING ON THE NUMBER OF CONTACTS
20, 28, 36, 50 and 68 contacts
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
Number of
contacts
20
28
36
50
68
Part number
FCN-230C020-A/E
FCN-230C020-C/E
FCN-230C028-A/E
FCN-230C028-C/E
FCN-230C036-A/E
FCN-230C036-C/E
FCN-230C050-A/E
FCN-230C050-C/E
FCN-230C068-A/E
FCN-230C068-C/E
A
28.95 (1.139)
34.30 (1.350)
39.11 (1.539)
48.00 (1.899)
59.43 (2.339)
Dimensions: mm (in.)
B
21.15 (0.852)
26.23 (1.032)
31.31 (1.232)
40.20 (1.582)
51.63 (2.032)
C
×
D
6.5
×
4.5 (0.255
×
0.177)
8.5
×
8.2 (0.334
×
0.322)
6.5
×
6.0 (0.255
×
0.236)
7.2
×
8.5 (0.283
×
0.334)
9.5
×
8.0 (0.374
×
0.314)
9.0
×
10.0 (0.354
×
0.393)
8.5
×
7.0 (0.334
×
0.275)
10.0
×
9.7 (0.393
×
0.381)
9.0
×
8.0 (0.354
×
0.314)
10.0
×
9.0 (0.393
×
0.354)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
5
