D4S10A-400L5-B: DescriptionRF Connectors / Coaxial Connectors Straight Plug PCB w/Housing T&R White; CategoryThe connector The connector; File Size397KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D4S10A-400L5-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D4S10A-400L5-B	-	-	View	Buy Now

D4S10A-400L5-B Overview

RF Connectors / Coaxial Connectors Straight Plug PCB w/Housing T&R White

D4S10A-400L5-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	RF Connectors / Coaxial Connectors Straight Plug PCB w/Housing T&R White
Other features	INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG
Characteristic impedance	100 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD (6)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

Technical Data Sheet

Rosenberger

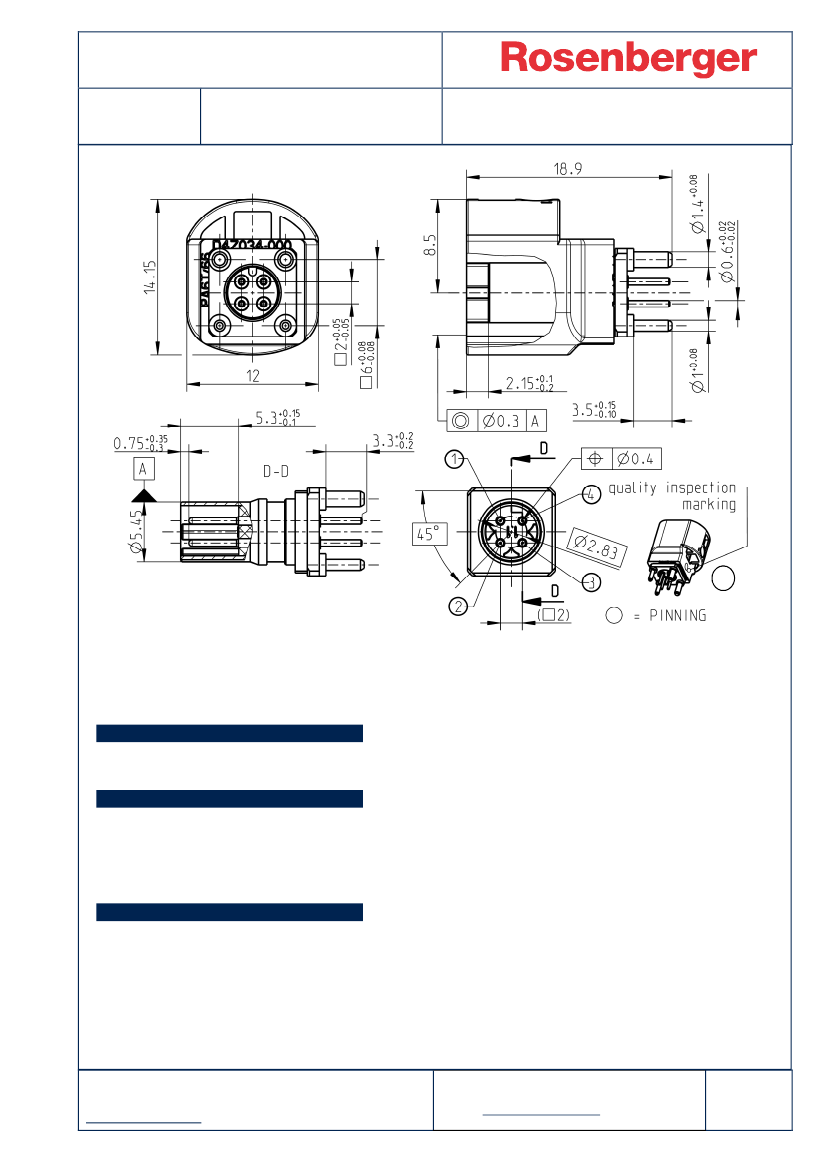

HSD®

STRAIGHT PLUG

FOR PCB

D4S10A-400L5-Y

Dieses Dokument ist urheberrechtlich geschützt

●

This document is protected by copyright

●

Rosenberger Hochfrequenztechnik GmbH & Co. KG

b

All dimensions are in mm; tolerances according to ISO 2768 m-H

EMC-screening must be assured by chassis compartment. Control box manufacturer is responsible for EMC-

screening.

Interface

According to

RN 059-01

Documents

PCB layout

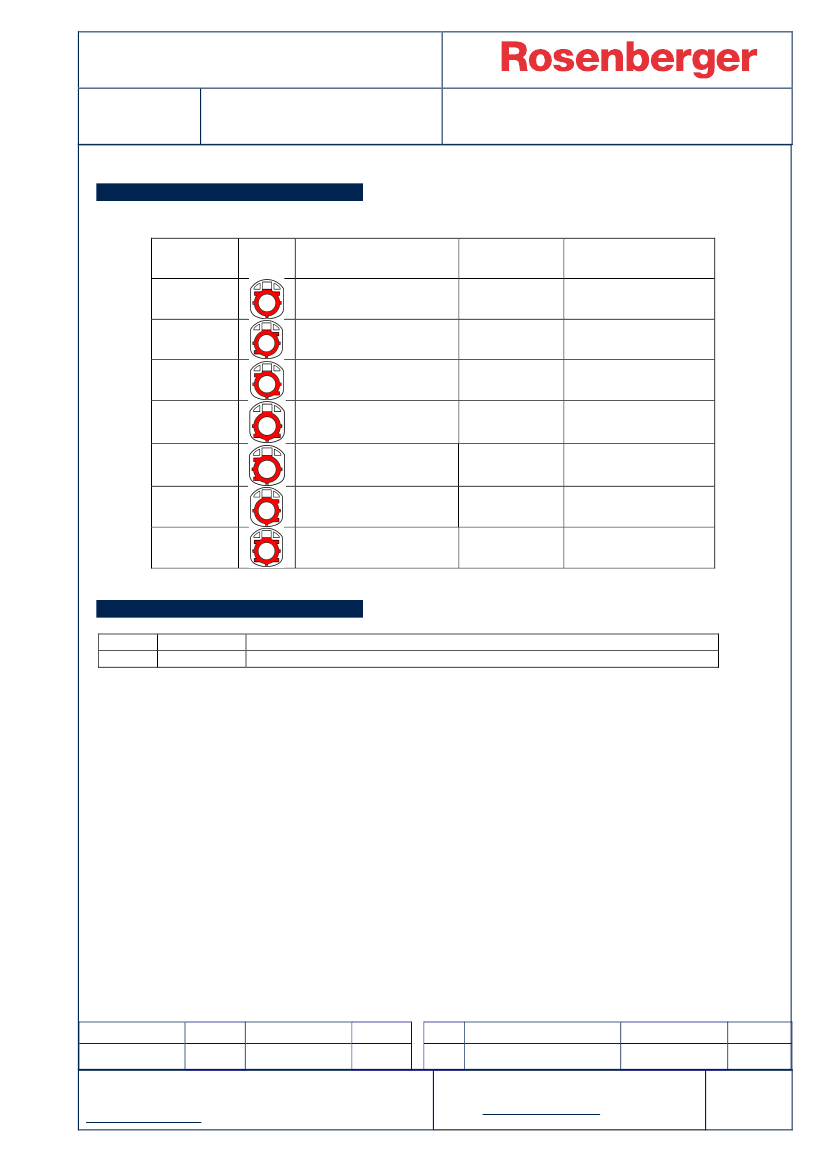

Pinning instruction

Test specification

Tape and Reel packaging

MB_214

RN 053-01

RN 061-01

VG97.12500

Material and plating

Connector parts

Center contacts

Outer contact

Dielectric

Housing

Material

Brass

LCP

PA 6T/66

Plating

Gold, 0.15 µm

RF_35/05.10/6.1

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/3

D4S10A-400L5-B Related Products

	D4S10A-400L5-B	D4S10A-400L5-A
Description	RF Connectors / Coaxial Connectors Straight Plug PCB w/Housing T&R White	CONN HSD FAKRA PLUG STR 100OHM
Is it Rohs certified?	conform to	conform to
Maker	Rosenberger	Rosenberger
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Samacsys Description	RF Connectors / Coaxial Connectors Straight Plug PCB w/Housing T&R White	RF Connectors / Coaxial Connectors Straight Plug PCB w/Housing T&R Black
Other features	INSERTION LOSS MAX AT 1 GHZ	INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG	PLUG
Characteristic impedance	100 Ω	100 Ω
Connector type	RF CONNECTOR	RF CONNECTOR
Contact to complete cooperation	GOLD (6)	GOLD (6)
Contact completed and terminated	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insertion loss	0.1 dB	0.1 dB
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
JESD-609 code	e4	e4
MIL compliance	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Maximum operating frequency	2 GHz	2 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	SOLDER
voltage standing wave ratio	1.33	1.33
Base Number Matches	1	1
