192990-0042 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 192990-0042

192990-0042: DescriptionCircular Connector, 8 Contact(s), Zinc Alloy, Female, Plug; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

192990-0042 Overview

Circular Connector, 8 Contact(s), Zinc Alloy, Female, Plug

192990-0042 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	SHIELDED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	TNM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Shell surface	NICKEL
Shell material	ZINC
Housing size	12
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

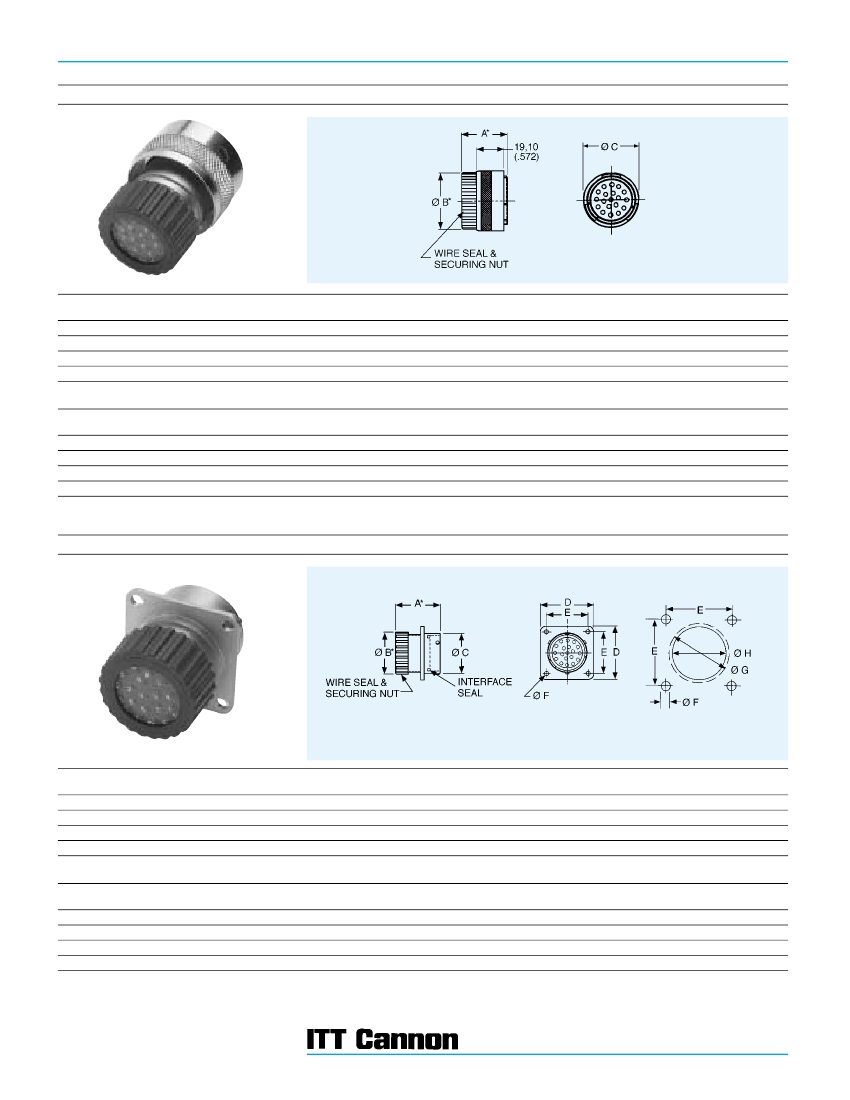

Trident Connector System

Reversed Plugs — Socket Contacts

Reversed Plug

TNM Circular Connectors

Part Numbers — with wire seal

Number of

Contacts

Shell Size

Part Number

192993-0051

192993-0052

192993-0053

192993-0054

Nomenclature

TNM6S1000-04S1L

TNM6S1200-08S1L

TNM6S1400-12S1L

TNM6S1600-19S1L

34,20 (1.346)

17,50 (.689)

20,60 (.811)

24,30 (.957)

27,00 (1.063)

21,60 (.850)

24,80 (.976)

28,00 (1.102)

31,20 (1.229)

Part Number — without wire seal and securing nut

Number of

Contacts

Shell Size

Part Number

192990-0041

192990-0042

192990-0043

192990-0044

Nomenclature

TNM6U1000-04S1L

TNM6U1200-08S1L

TNM6U1400-12S1L

TNM6U1600-19S1L

29,80 (1.173)

13,80 (.543)

16,90 (.665)

20,10 (.791)

23,30 (.917)

21,60 (.850)

24,80 (.976)

28,00 (1.102)

31,20 (1.229)

* Dimensions A and B apply to connectors without wire seals and securing nuts.

Can be sealed to IP67 with a sealed endbell, see page 38.

Reversed Receptacles — Pin Contacts

Reversed Receptacle

Panel Cutout

Flange in Front of Panel

Flange at Rear of Panel

Part Numbers — with wire seal

Number of

Contacts

Shell

Size

Part Number

192993-0071

192993-0072

192993-0073

192993-0074

Nomenclature

TNM0S1000-04P1L

TNM0S1200-08P1L

TNM0S1400-12P1L

TNM0S1600-19P1L

43,00 (1.693)

17,50 (.689)

20,60 (.811)

24,30 (.967)

27,00 (1.063)

14,92 (.587)

18,98 (.747)

22,16 (.872)

25,33 (.997)

23,79 (.937)

26,15 (1.030)

28,54 (1.124)

30,89 (1.216)

18,26 (.719)

20,62 (.812)

22,80 (.898)

24,61 (.969)

3,20 (.126)

3,50 (.138)

17,30 (.681)

21,80 (.858)

25,00 (.984)

28,10 (1.106)

15,10 (.594)

18,20 (.717)

21,40 (.843)

24,60 (.969)

Part Numbers — without wire seal and securing nut

Number of

Contacts

Shell

Size

Part Number

192993-0061

192993-0062

192993-0063

192993-0064

Nomenclature

TNM0U1000-04P1L

TNM0U1200-08P1L

TNM0U1400-12P1L

TNM0U1600-19P1L

38,60 (1.520)

14,30 (.563)

17,40 (.685)

20,60 (.811)

23,80 (.937)

14,92 (.587)

18,98 (.747)

22,16 (.872)

25,33 (.997)

23,79 (.937)

26,15 (1.030)

28,54 (1.124)

30,89 (1.216)

18,26 (.719)

20,62 (.812)

22,80 (.898)

24,61 (.969)

3,20 (.126)

3,50 (.138)

17,30 (.681)

21,80 (.858)

25,00 (.984)

28,10 (1.106)

15,10 (.594)

18,20 (.717)

21,40 (.843)

24,60 (.969)

* Dimensions A and B apply to connectors without wire seals and securing nuts.

Can be sealed to IP67 with a sealed endbell, see page 38.

Dimensions are shown in mm (inch)

Dimensions subject to change

192990-0042 Related Products

	192990-0042	192990-0041	192990-0043	192990-0044
Description	Circular Connector, 8 Contact(s), Zinc Alloy, Female, Plug	Circular Connector, 4 Contact(s), Zinc Alloy, Female, Plug	Circular Connector, 12 Contact(s), Zinc Alloy, Female, Plug	Circular Connector, 19 Contact(s), Zinc Alloy, Female, Plug
Reach Compliance Code	compli	compli	compli	compli
Other features	SHIELDED	SHIELDED	SHIELDED	SHIELDED
Back shell type	SOLID	SOLID	SOLID	SOLID
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	TNM	TNM	TNM	TNM
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	ZINC	ZINC	ZINC	ZINC
Housing size	12	10	14	16
Total number of contacts	8	4	12	19
Base Number Matches	1	1	1	1
