Technical Data Sheet
FAKRA-HF
PLASTIC HOUSING
59Z074-000-Y
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification

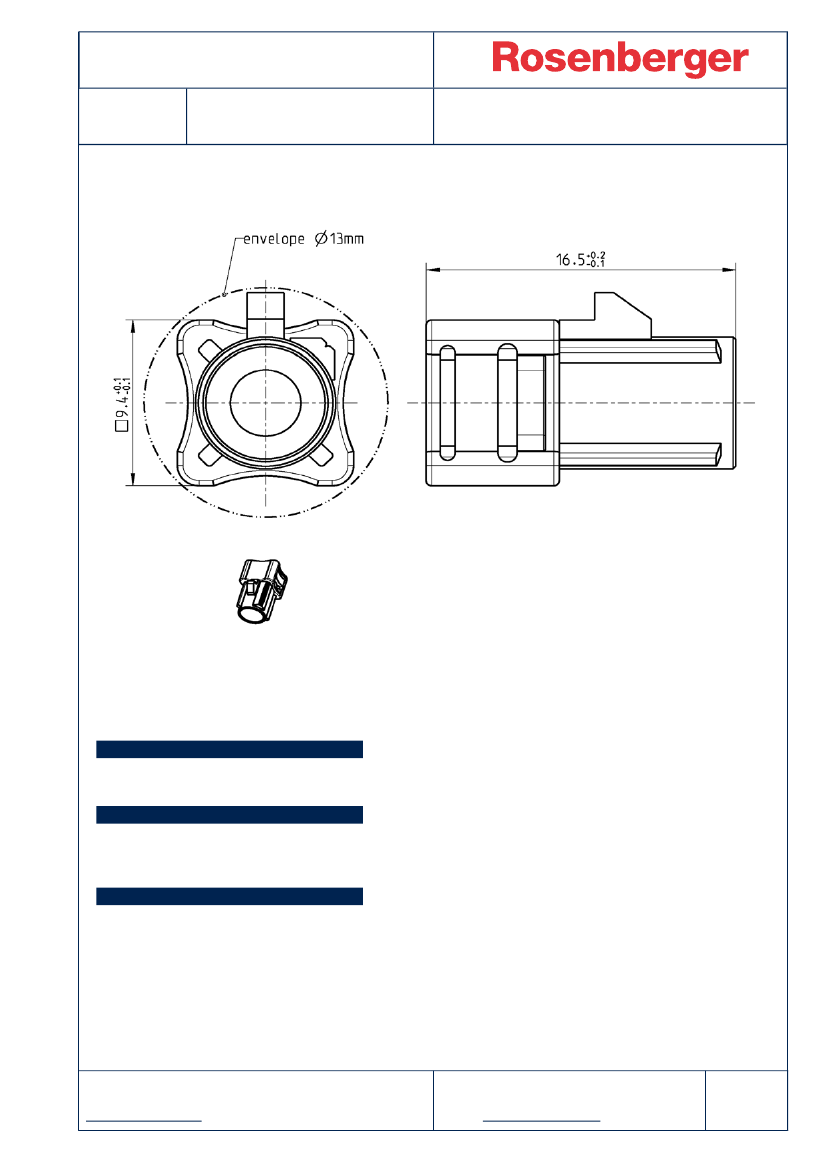

Interface and coding
According to
DIN 72594-1, USCAR 17
Material and plating
Connector parts
Housing
Material
PPE
Mechanical data
Mating cycles
Retention force primary lock
Coding efficiency
≥
25
≥
110 N
≥
40 N
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260 D-84526 Tittmoning Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/3
Technical Data Sheet
FAKRA-HF
PLASTIC HOUSING
59Z074-000-Y
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
RoHS
-40°C to +105°C
DIN 72594-2 clause 8.2
DIN 72594-2 clause 8.3
c
DIN 72594-2 clause 8.1
DIN 72594-2 clause 8.4
compliant
c
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
Application
Applicable e.g. for following connectors:
* xx
-for all available cable variation
59S10E-1xx*; 59S10L-1xx*; 59S10O-1xx*;
59S17B-109*; 59S17E-1xx*; 59S17O-1xx*;
Packing
Standard
Weight
1000 pcs in box
0.5 g/pce
c
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260 D-84526 Tittmoning Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
2/3
Technical Data Sheet
FAKRA-HF
PLASTIC HOUSING
59Z074-000-Y
Coding
Part Number has to be accomplished by codification
Coding
A
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
Color
black
white
blue
bordeauxviolet
green
brown
grey
violet
beige
curry
carmine red
pastel orange
pastel green
waterblue
RAL
sim. 9005
sim. 9001
sim. 5005
sim. 4004
sim. 6002
sim. 8011
sim. 7031
sim. 4003
sim. 1001
sim. 1027
sim. 3002
sim. 2003
sim. 6019
sim. 5021
Part-Number
59Z074-000_A
59Z074-000_B
59Z074-000_C
59Z074-000_D
59Z074-000_E
59Z074-000_F
59Z074-000_G
59Z074-000_H
59Z074-000_I
59Z074-000_K
59Z074-000_L
59Z074-000_M
59Z074-000_N
59Z074-000_Z
B
C
D
E
F
G
H
I
K
L
M
N
Z
Change History
Rev.
c00
Date
09.01.2014
Change
- Environmental data specification changed from 6.2 to 8.2, 6.3 to
8.3, 6.1 to 8.1, 6.4 to 8.4
- 2002/95/EC (RoHS) changed to RoHS
- package size changed from 500 to 1000
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Denis Oberhöller
Date
04.10.05
Approved
Rainer Bippus
Date
09.01.14
Rev.
c00
Engineering change number
14-0038
Name
Lars Schneider
Date
09.01.14
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260 D-84526 Tittmoning Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
3/3
