DDZ9689T - DDZ9717T
SURFACE MOUNT ZENER DIODE
Features
Small, Low Profile Surface Mount Package
Very Sharp Breakdown Characteristics
Ideally Suited for Automated Assembly Processes
Very Low Leakage Current
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SOD523
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminal Connections: Cathode Band
Terminals: Finish - Matte Tin Annealed over Alloy 42 Leadframe.
Solderable per MIL-STD-202, Method 208
e3
Weight: 0.002 grams (Approximate)
Top View
Ordering Information
(Note 4)
Part Number
(Type Number)-7* (Note 5)
Case
SOD523
Packaging
3,000/Tape & Reel
*Example: The part number for the 6.2 Volt device would be DDZ9691T-7.
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
5.
Dispensed in every other cavity of the tape.
Marking Information
xx = Product Type Marking Code
(See Electrical Characteristics Table)
DDZ9689T - DDZ9717T
Document number: DS30553 Rev. 8 - 2
1 of 7
www.diodes.com
October 2017
© Diodes Incorporated
DDZ9689T - DDZ9717T
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage
@ I
F
= 10mA
Symbol
V
F
Value
0.9
Unit
V
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient Air
Operating and Storage Temperature Range
Notes:
Symbol
(Note 6)
(Note 6)
P
D
R
θJA
T
J,
T
STG
Value
150
833
-65 to +150
Unit
mW
°C/W
°C
6. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/products/packages.html.
Electrical Characteristics
Type
Number
DDZ9689T
DDZ9690T
DDZ9691T
DDZ9692T
DDZ9693T
DDZ9694T
DDZ9696T
DDZ9697T
DDZ9698T
DDZ9699T
DDZ9700T
DDZ9701T
DDZ9702T
DDZ9703T
DDZ9705T
DDZ9707T
DDZ9708T
DDZ9709T
DDZ9711T
DDZ9712T
DDZ9713T
DDZ9714T
DDZ9715T
DDZ9716T
DDZ9717T
Notes:
(@T
A
= +25°C, unless otherwise specified.)
Zener Voltage Range (Note 7)
Maximum Reverse
Leakage Current (Note 8)
I
ZT
µA
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
I
R
@ V
R
µA
5
2
1
0.1
0.1
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
V
3
4
5
5.1
5.7
6.2
6.9
7.6
8.4
9.1
9.8
10.6
11.4
12.1
13.6
15.2
16.7
18.2
20.4
21.2
22.8
25.0
27.3
29.6
32.6
Type
Code
HH
HJ
HK
HL
HM
HN
HP
HQ
HR
HS
HT
HU
HV
HW
HY
MD
ME
MF
MH
MJ
MK
ML
MM
MN
MO
Nom (V)
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
14
15
16
18
20
22
24
27
28
30
33
36
39
43
V
Z
@ I
ZT
Min (V)
4.85
5.32
5.89
6.46
7.13
7.79
8.65
9.50
10.45
11.40
12.35
13.30
14.25
15.20
17.10
19.00
20.90
22.80
25.65
26.60
28.50
31.35
34.20
37.05
40.85
Max (V)
5.36
5.88
6.51
7.14
7.88
8.61
9.56
10.50
11.55
12.60
13.65
14.70
15.75
16.80
18.90
21.00
23.10
25.20
28.35
29.40
31.50
34.65
37.80
40.95
45.15
7. Nominal Zener voltage is measured with the device junction in thermal equilibrium at T
T
= 30°C ±1°C.
8. Short duration pulse test used to minimize self-heating effect.
DDZ9689T - DDZ9717T
Document number: DS30553 Rev. 8 - 2
2 of 7
www.diodes.com
October 2017
© Diodes Incorporated
DDZ9689T - DDZ9717T
Note 6
150
P
D
, POWER DISSIPATION (mW)
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
150
15
180
1,000
100
120
10
90
1.0
60
30
0.1
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)

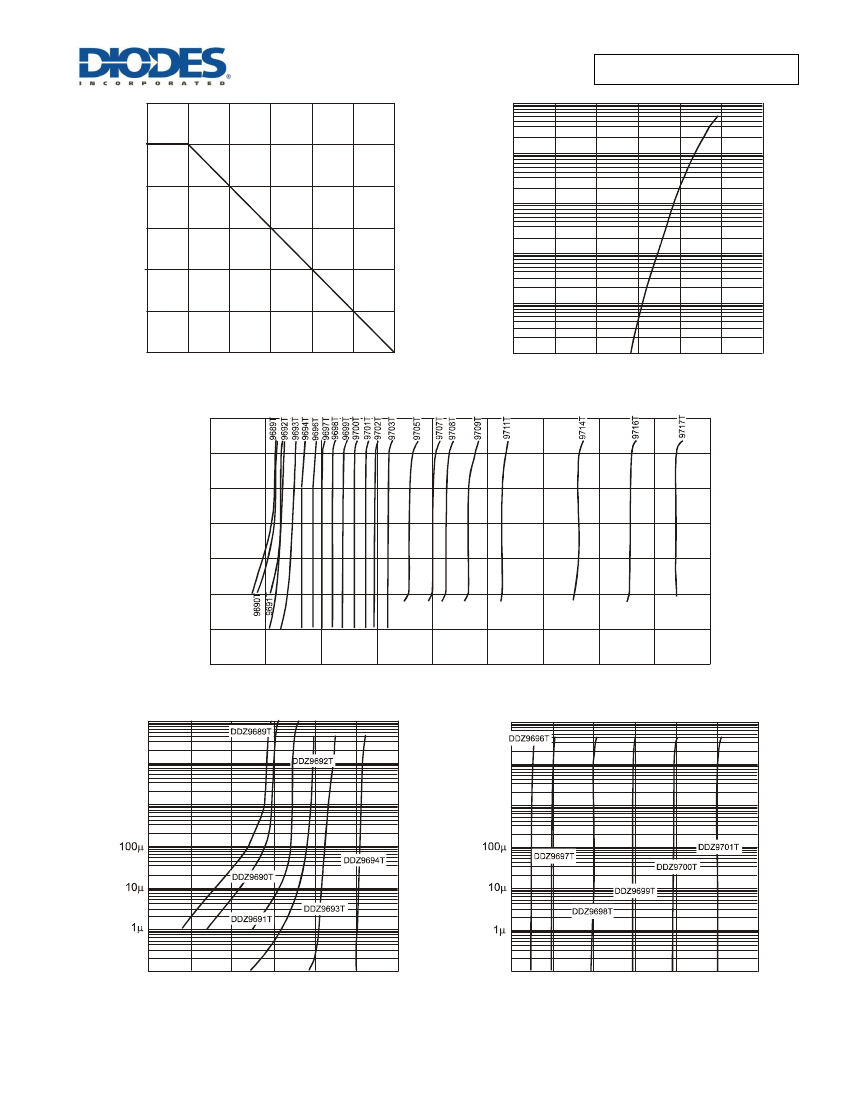

Fig. 1 Power Derating Curve
100m
10m
0.01
0
1.2
0.6
0.8
0.4
1.0
0.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
Z
, ZENER CURRENT (A)
1m
100µ
10µ
1µ
100n
10n
0
5
10
25
30
V
Z
, ZENER VOLTAGE (V)
Fig. 3 Typical Zener Breakdown Characteristics
20
35
40
45
100m
100m
10m
10m
I
Z
, ZENER CURRENT (A)
I
Z
, ZENER CURRENT (A)
1m
1m
100n
3.0
9.0
5.0
6.0
7.0
8.0
V
Z
, ZENER VOLTAGE (V)
Fig. 4 Typical Zener Breakdown Characteristics,
DDZ9692T - DDZ9694T
4.0
100n
8.0
11.0
12.0
13.0
14.0
15.0
V
Z
, ZENER VOLTAGE (V)
Fig. 5 Typical Zener Breakdown Characteristics,
DDZ9696T - DDZ9701T
10.0
DDZ9689T - DDZ9717T
Document number: DS30553 Rev. 8 - 2
3 of 7
www.diodes.com
October 2017
© Diodes Incorporated
DDZ9689T - DDZ9717T
100m
100m
10m
I
Z
, ZENER CURRENT (A)
I
Z
, ZENER CURRENT (A)
10m
1m
1m
100n
14
17
18
20
16
19
V
Z
, ZENER VOLTAGE (V)

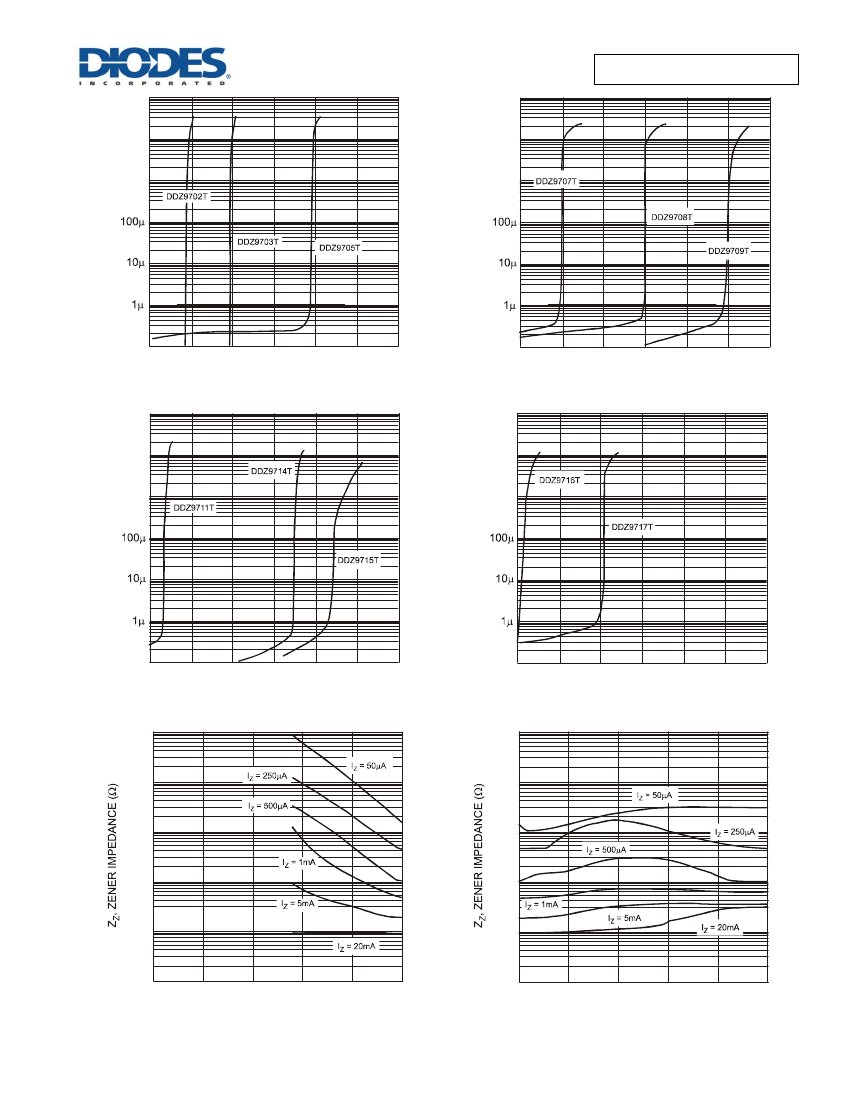

Fig. 6 Typical Zener Breakdown Characteristics,
DDZ9702T - DDZ9705T
15
100n
19
25
22
21
23
24
V
Z
, ZENER VOLTAGE (V)
Fig. 7 Typical Zener Breakdown Characteristics,
DDZ9707T - DDZ9709T
20
100m
100m
10m
10m
I
Z
, ZENER CURRENT (A)
34
38
30
32
36
V
Z
, ZENER VOLTAGE (V)
Fig. 8 Typical Zener Breakdown Characteristics
DDZ9711T - DDZ9715T
28
I
Z
, ZENER CURRENT (A)
1m
1m
100n
26
100n
38
42
50
46
48
44
V
Z
, ZENER VOLTAGE (V)
Fig. 9 Typical Zener Breakdown Characteristics
DDZ9716T - DDZ9717T
40
10,000
10,000
1,000
1,000
100
100
10
10
1
1
0.1
2
4
5
6
7
V
Z
, ZENER VOLTAGE (V)

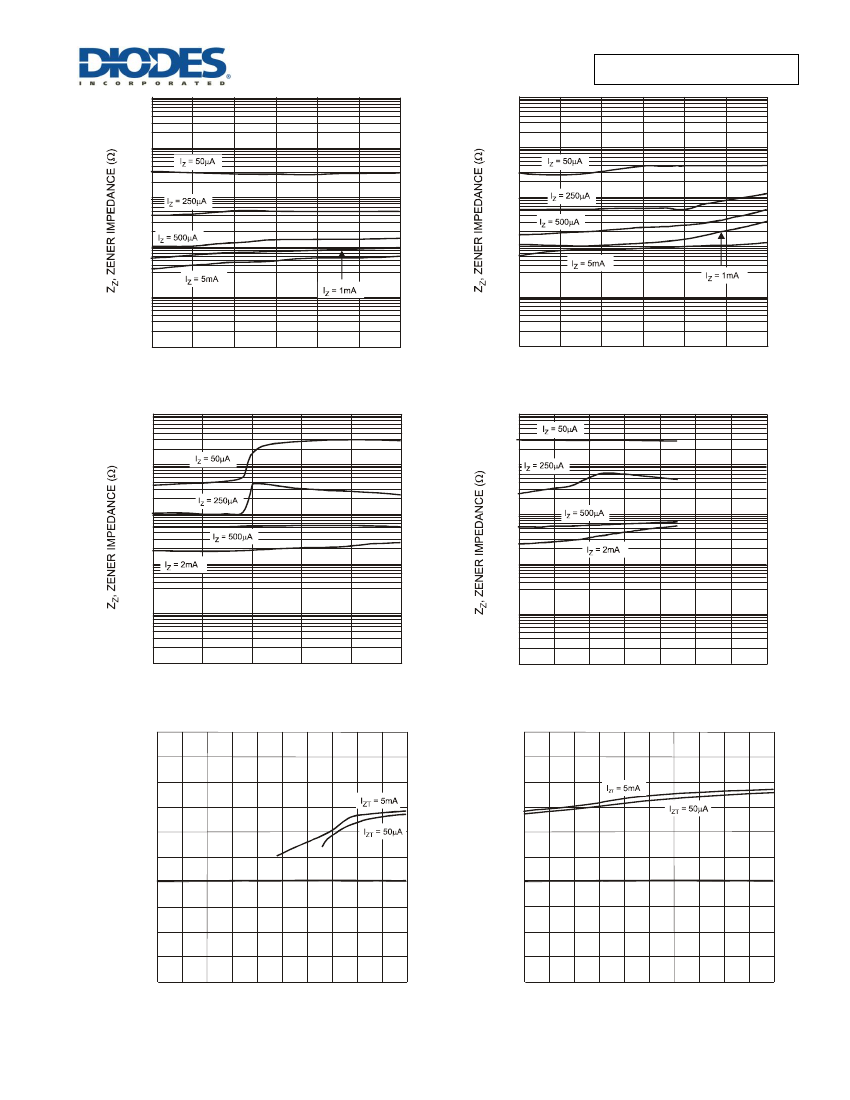

Fig. 10 Typical Zener Impedance Characteristics,
DDZ9689T - DDZ9692T
3
0.1
7
9
11
12
10
V
Z
, ZENER VOLTAGE (V)
Fig. 11 Typical Zener Impedance Characteristics,
DDZ9693T - DDZ9699T
8
DDZ9689T - DDZ9717T
Document number: DS30553 Rev. 8 - 2
4 of 7
www.diodes.com
October 2017
© Diodes Incorporated
DDZ9689T - DDZ9717T
10,000
10,000
1,000
1,000
100
100
10
10
1
1
0.1
12
15
17
14
16
18
V
Z
, ZENER VOLTAGE (V)
Fig. 12 Typical Zener Impedance Characteristics,
DDZ9699T - DDZ9705T
13
0.1
18
21
23
20
22
24
V
Z
, ZENER VOLTAGE (V)
Fig. 13 Typical Zener Impedance Characteristics,
DDZ9705T - DDZ9709T
19
10,000
10,000
1,000
1,000
100
100
10
10
1
1
0.1
24
28
32
34
30
V
Z
, ZENER VOLTAGE (V)
Fig. 14 Typical Zener Impedance Characteristics,
DDZ9709T - DDZ9714T
26
0.1
34
42
40
38
44
46
48
V
Z
, ZENER VOLTAGE (V)
Fig. 15 Typical Zener Impedance Characteristics,
DDZ9715T - DDZ9717T
36
0.12
TC of V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
0.12
TC of V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
0
6
8
10
4
V
Z
, ZENER VOLTAGE (V)
Fig. 16 Typical Temperature Coefficient of Zener
Voltage vs. Zener Voltage, DDZ9694T - DDZ9697T
2
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
10
16
18
20
14
V
Z
, ZENER VOLTAGE (V)
Fig. 17 Typical Temperature Coefficient of Zener
Voltage vs. Zener Voltage, DDZ9697T - DDZ9707T
12
DDZ9689T - DDZ9717T
Document number: DS30553 Rev. 8 - 2
5 of 7
www.diodes.com
October 2017
© Diodes Incorporated
