Datasheet> All Categories > The connector> 10026846-201

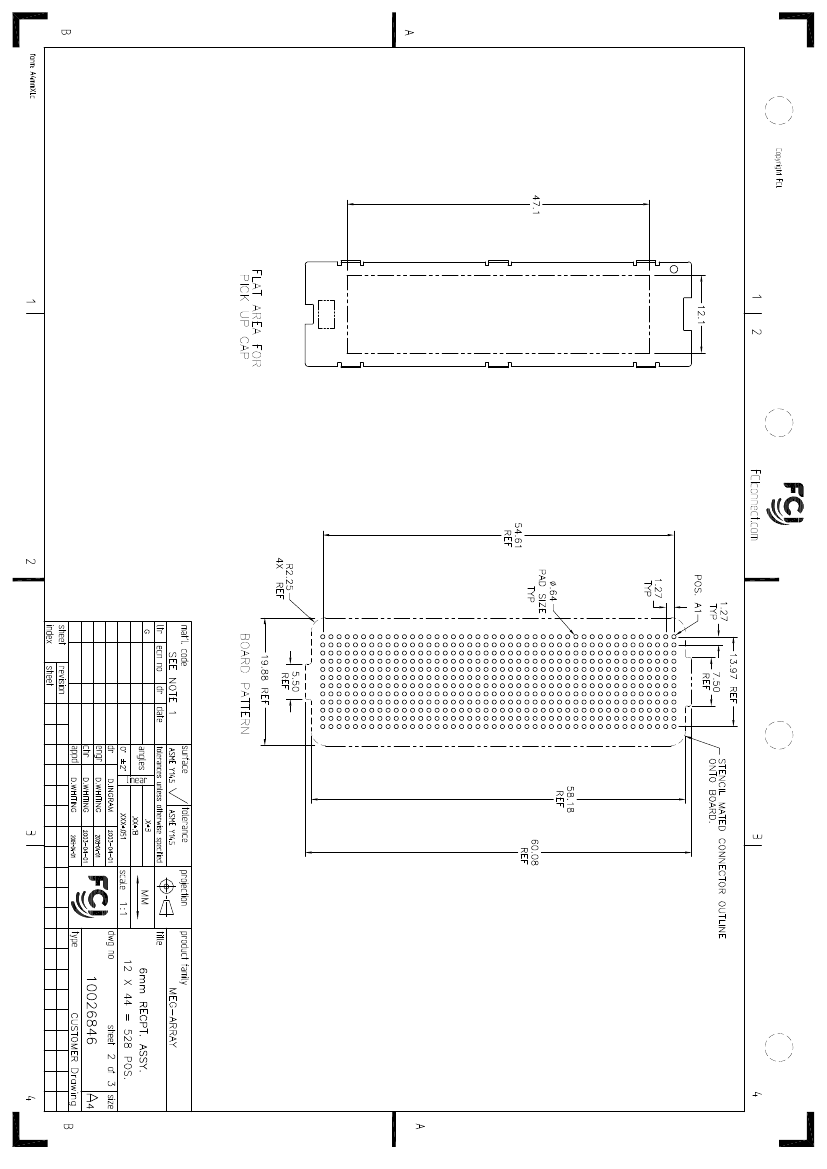

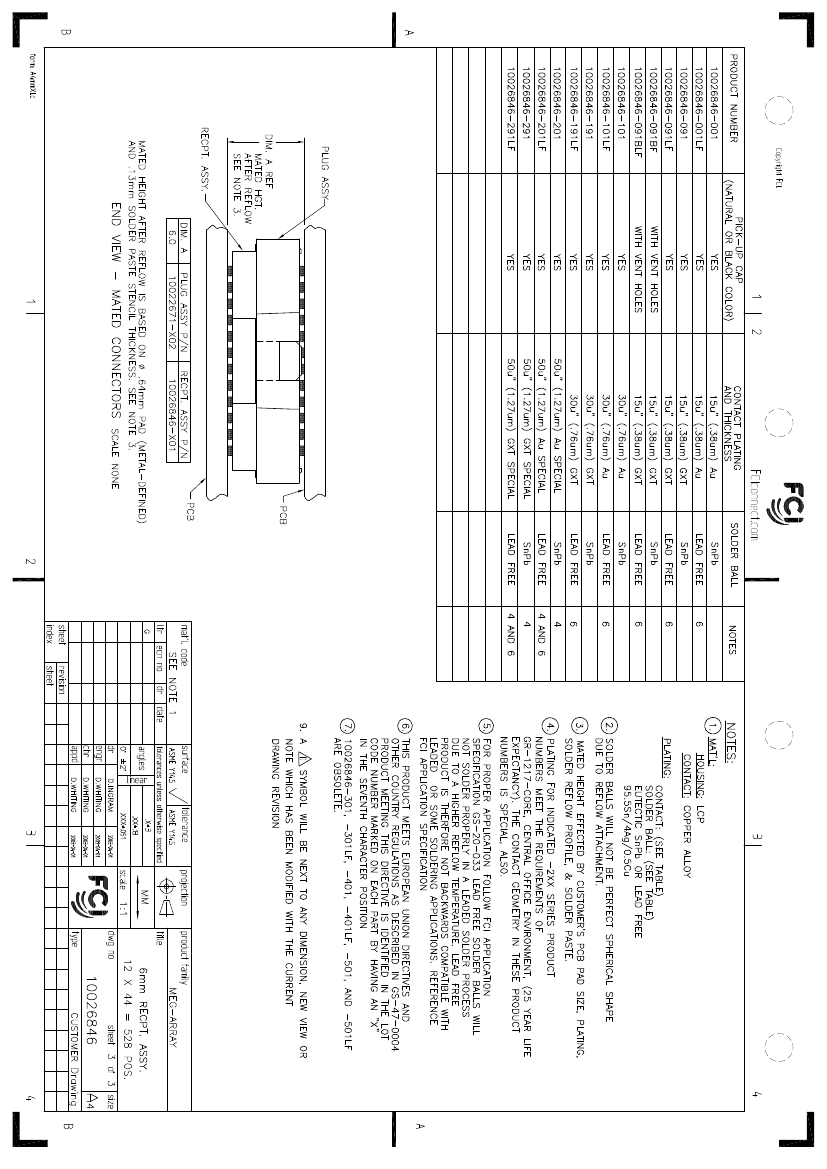

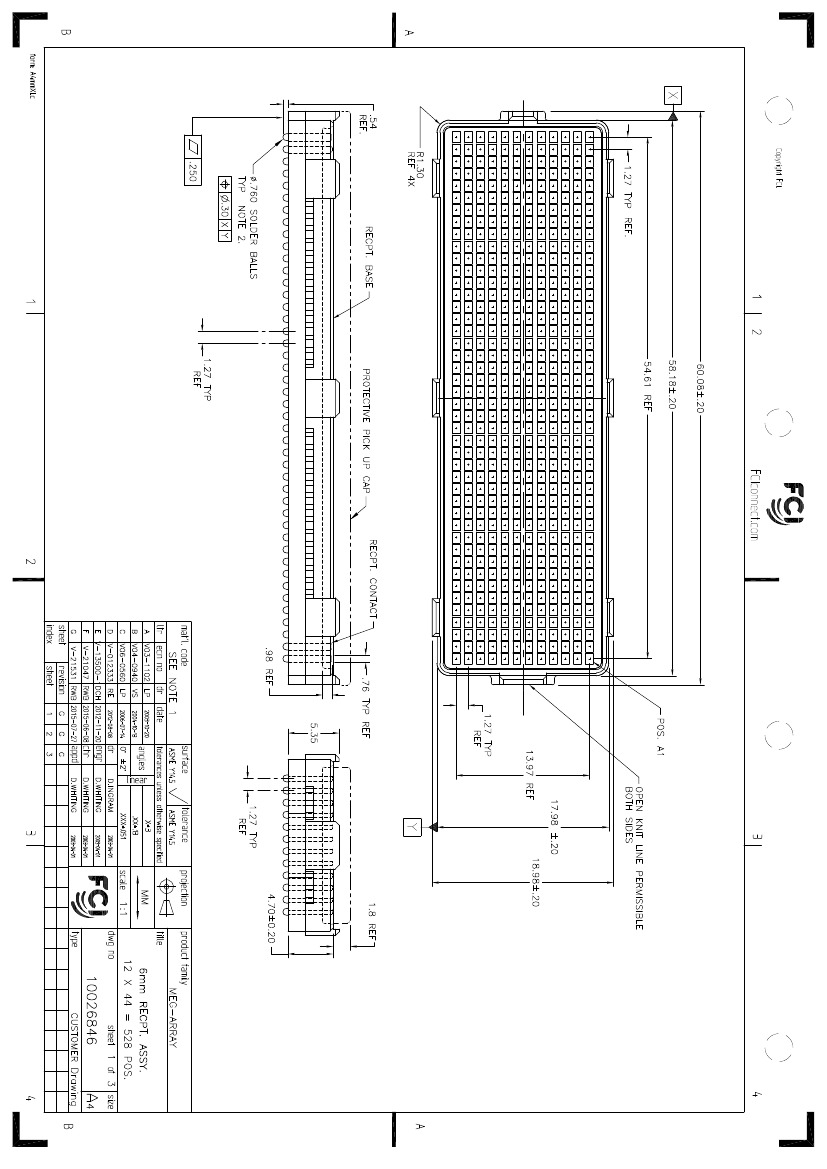

Preview

10026846-201: DescriptionBoard to Board & Mezzanine Connectors 528P BGA Receptacle 6mm Component Height; CategoryThe connector; File Size139KB，3 Pages; ManufacturerFCI / Amphenol

Download Datasheet Parametric Compare View All

10026846-201 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10026846-201	-	-	View	Buy Now

10026846-201 Overview

Board to Board & Mezzanine Connectors 528P BGA Receptacle 6mm Component Height

10026846-201 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	Board to Board & Mezzanine Connectors
Product	Receptacles
Number of Positions	528 Position
Pitch	1.27 mm
Current Rating	450 mA
Voltage Rating	200 V
Packaging	Reel
Contact Plating	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Insulation Resistance	1000 MOhms
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Stack Height	6 mm
Factory Pack Quantity	250

Preview

Download Datasheet

View All

PDS: Rev :G

STATUS:Released

Printed: Aug 03, 2015

10026846-201 Related Products

	10026846-201	10026846-201LF	10026846-001LF	10026846-101LF	10026846-101
Description	Board to Board & Mezzanine Connectors 528P BGA Receptacle 6mm Component Height	Board to Board & Mezzanine Connectors 528P RECEPTACLE 6MM STACK HEIGHT	Board to Board & Mezzanine Connectors 528P RECEPTACLE 6MM STACK HEIGHT	Board to Board & Mezzanine Connectors 528 POS RECEPTACLE	Board to Board & Mezzanine Connectors MEG-ARRAY 528P RECP -6MM 30 AU CAP
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol
Product Category	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors
Product	Receptacles	Receptacles	Receptacles	Receptacles	Receptacles
Number of Positions	528 Position	528 Position	528 Position	528 Position	528 Position
Current Rating	450 mA	450 mA	450 mA	450 mA	450 mA
Voltage Rating	200 V	200 V	200 V	200 V	200 V
Packaging	Reel	Reel	Reel	Reel	Reel
Contact Plating	Gold	Gold	Gold	Gold	Gold
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Resistance	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Stack Height	6 mm	6 mm	6 mm	6 mm	6 mm
Factory Pack Quantity	250	250	250	250	250
Pitch	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm
RoHS	-	Details	Details	Details	No -; RoHS Version Available
