SY10EL12ZI: DescriptionOR/NOR Gate, 10EL Series, 1-Func, 2-Input, ECL, PDSO8, 0.150 INCH, SOIC-8; Categorylogic logic; File Size45KB，4 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

SY10EL12ZI Overview

OR/NOR Gate, 10EL Series, 1-Func, 2-Input, ECL, PDSO8, 0.150 INCH, SOIC-8

SY10EL12ZI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micrel ( Microchip )
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	_compli
series	10EL
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.93 mm
Logic integrated circuit type	OR/NOR GATE
Humidity sensitivity level	1
Number of functions	1
Number of entries	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	-5.2 V
propagation delay (tpd)	0.45 ns
Certification status	Not Qualified
Maximum seat height	1.73 mm
surface mount	YES
technology	ECL
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.94 mm

Preview

Download Datasheet

View All

Micrel, Inc.

LOW-IMPEDANCE

DRIVER

SY10EL12

SY100EL12

SY10EL12

SY100EL12

FEATURES

290ps propagation delay

Dual outputs for 25

Ω

drive applications

Internal 75K

Ω

input pull-down resistors

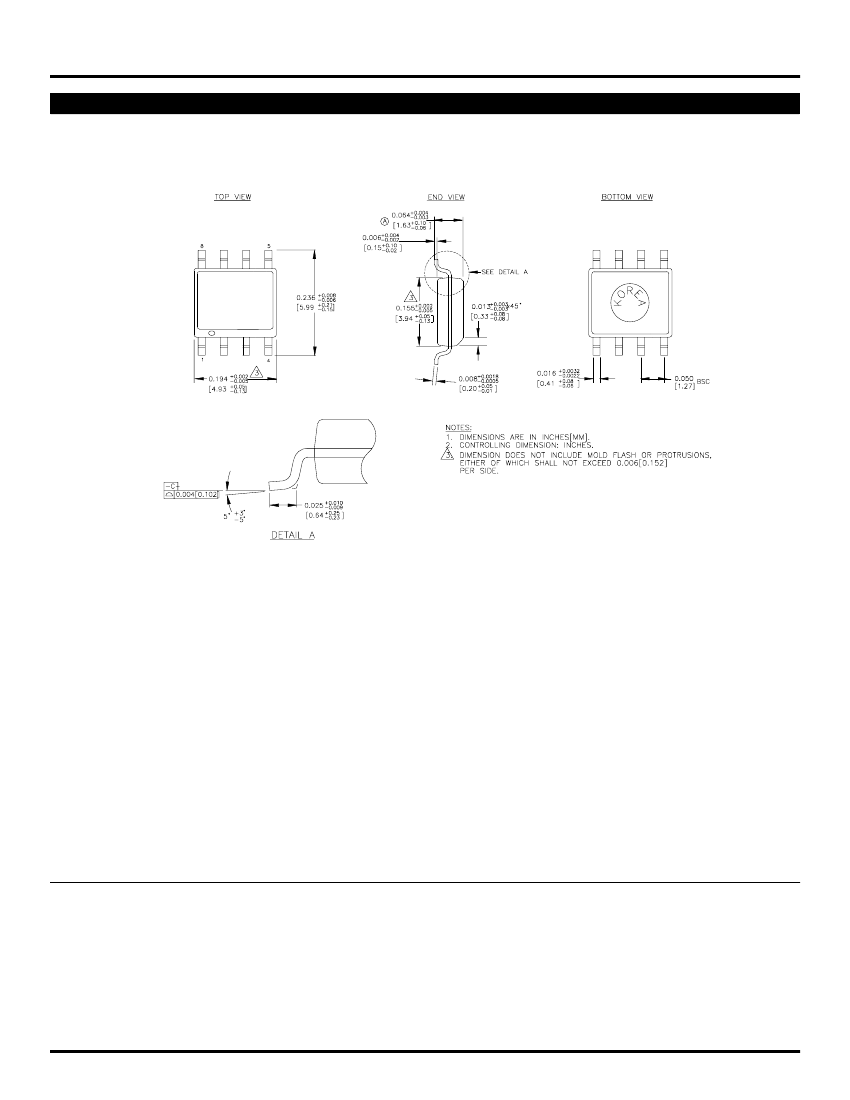

Available in 8-pin SOIC package

DESCRIPTION

The SY10/100EL12 are low-impedance drive buffers.

With two pairs of OR/NOR outputs, the devices are ideally

suited for high drive applications such as memory

addressing. These devices are functionally equivalent to

the E112 devices, with higher performance capabilities.

With propagation delays significantly faster than the E112,

the EL12 is ideally suited for those applications which

require the ultimate in AC performance.

PIN NAMES

, D

, Q

Data Inputs

Data Outputs

Function

M9999-031006

hbwhelp@micrel.com or (408) 955-1690

Rev.: G

Amendment: /0

Issue Date: March 2006

SY10EL12ZI Related Products

	SY10EL12ZI	SY10EL12ZG	SY100EL12ZI	SY100EL12ZC	SY10EL12ZC
Description	OR/NOR Gate, 10EL Series, 1-Func, 2-Input, ECL, PDSO8, 0.150 INCH, SOIC-8	OR/NOR Gate, 10EL Series, 1-Func, 2-Input, ECL, PDSO8, 0.150 INCH, LEAD FREE, SOIC-8	OR/NOR Gate, 100EL Series, 1-Func, 2-Input, ECL, PDSO8, 0.150 INCH, SOIC-8	OR/NOR Gate, 100EL Series, 1-Func, 2-Input, ECL, PDSO8, 0.150 INCH, SOIC-8	OR/NOR Gate, 10EL Series, 1-Func, 2-Input, ECL, PDSO8
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	incompatible
package instruction	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25
Reach Compliance Code	_compli	compli	not_compliant	not_compliant	_compli
series	10EL	10EL	100EL	100EL	10EL
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e4	e0	e0	e0
length	4.93 mm	4.93 mm	4.93 mm	4.93 mm	4.93 mm
Logic integrated circuit type	OR/NOR GATE	OR/NOR GATE	OR/NOR GATE	OR/NOR GATE	OR/NOR GATE
Humidity sensitivity level	1	1	1	1	1
Number of functions	1	1	1	1	1
Number of entries	2	2	2	2	2
Number of terminals	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	-5.2 V	-5.2 V	-4.5 V	-4.5 V	-5.2 V
propagation delay (tpd)	0.45 ns	0.45 ns	0.45 ns	0.45 ns	0.45 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.73 mm	1.73 mm	1.73 mm	1.73 mm	1.73 mm
surface mount	YES	YES	YES	YES	YES
technology	ECL	ECL	ECL	ECL	ECL
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn85Pb15)	Nickel/Palladium/Gold (Ni/Pd/Au)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.94 mm	3.94 mm	3.94 mm	3.94 mm	3.94 mm
Maker	Micrel ( Microchip )	Micrel ( Microchip )	-	Micrel ( Microchip )	Micrel ( Microchip )
Parts packaging code	SOIC	SOIC	SOIC	SOIC	-
Contacts	8	8	8	8	-
