177-007-21P5BF6-01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 177-007-21P5BF6-01

177-007-21P5BF6-01: DescriptionD Microminiature Connector, 21 Contact(s), Male, Plug,; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

177-007-21P5BF6-01 Overview

D Microminiature Connector, 21 Contact(s), Male, Plug,

177-007-21P5BF6-01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	177-007
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	GOLD
Shell material	ALUMINUM ALLOY
Housing size	C
Total number of contacts	21
Base Number Matches	1

Preview

Download Datasheet

View All

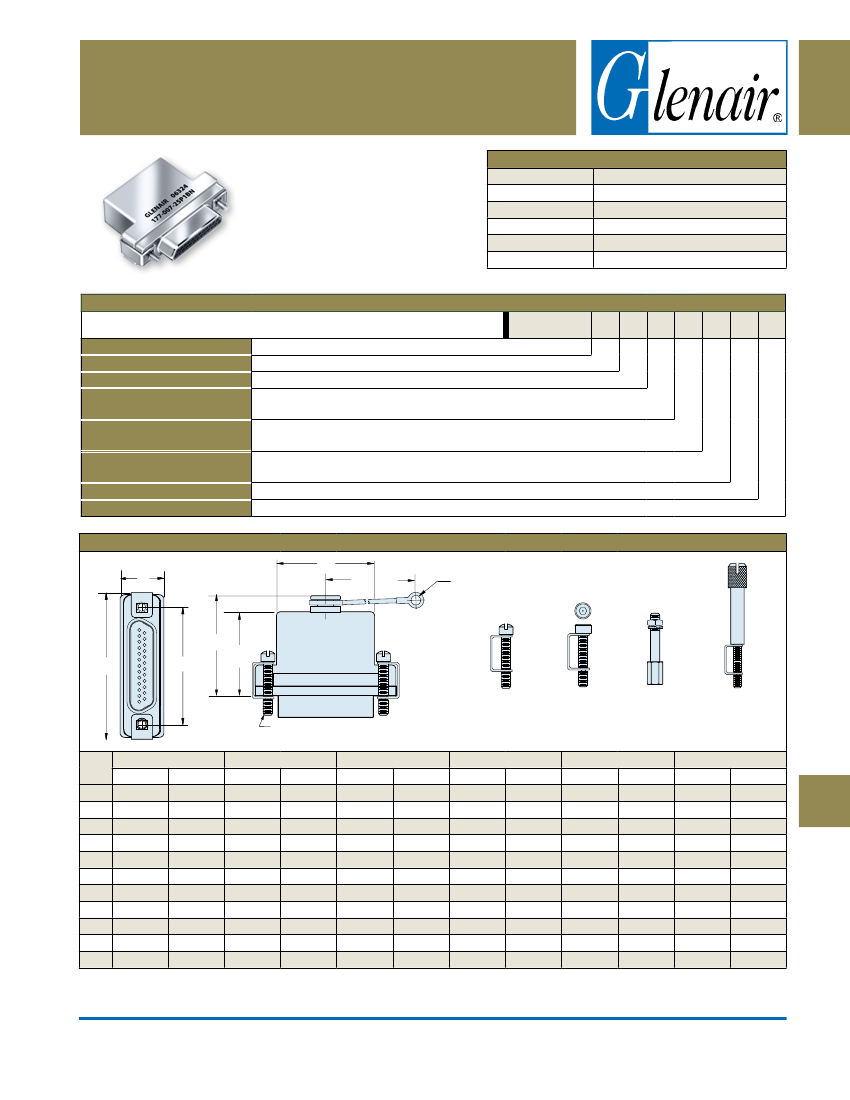

Shorting Plug Assembly

177-007

Shorting Plug Assemblies

are

Micro-D connectors with all contacts

bussed/shorted together. Enclosed

in a backshell and fitted with

jackscrews, these shorting plugs

provide ESD protection to sensitive

instrumentation.

Materials & Finishes

Shells

Contacts

Encapsulant

Insulators

Interfacial Seal

Hardware

Aluminum Alloy 6061 -T6

Gold-Plated Copper Alloy

Epoxy

Glass-Filled LCP

Fluorosilicone

300 Series Stainless Steel, Passivated

How To Order Shorting Plugs

Sample Part Number

Series

Connector Size

Contact Type

Shell Finish

Hardware Option

Lanyard Option

Lanyard Length

Ring Terminal Ordering Code

177-007

9, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 100

(Table I)

177-007

-25

-06

- Pin

- Socket

- Cadmium, Yellow Chromate

- Electroless Nickel

- Black Anodize

- Gold

- Chem Film

- Fillister Head Jackscrew

- Hex Head Jackscrew

- Extended Jackscrew

- Jackpost, Female

- No Hardware

- No Lanyard

- Flexible Nylon Rope

- Wire Rope, Nylon Jacket

- Wire Rope, Teflon Jacket

Length in One Inch Increments; Example: “6” equals six inches.

- .140 (3.6)

- .197 (5.0)

- .167 (4.2)

- .125 (3.2) I.D. of Ring Terminal

Table I: Dimensions

LENGTH

SEE ORDERING

INFO

#2-56 UNC THDS. 9-69 PIN

#4-40 UNC THDS. 100 PIN

CODE B

CODE H

FILLISTER HEAD HEX HEAD

JACKSCREW

CODE F

FEMALE

JACKPOST

CODE E

EXTENDED

JACKSCREW

Size

51-2

100

A Max.

In.

.850

1.000

1.150

1.250

1.400

1.550

1.500

1.910

2.310

1.810

2.235

mm.

21.59

25.40

29.21

31.75

35.56

39.37

38.10

48.51

58.67

45.97

56.77

In .

.370

.410

.370

.410

.460

B Max.

mm.

9.40

10.41

9.40

10.41

11.68

In.

.565

.715

.865

.965

1.115

1.265

1.215

1.615

2.015

1.515

1.800

mm.

14.35

18.16

21.97

24.51

28.32

32.13

30.86

41.02

51.18

38.48

45.72

In.

.600

.720

.840

.900

.960

D Max.

mm.

15.24

18.29

21.34

22.86

24.38

25.40

26.16

27.69

In.

.450

.570

.690

.750

.810

.850

.880

.940

E Max.

mm.

11.43

14.48

17.53

19.05

20.57

21.59

22.35

23.88

In.

.410

.580

.740

.850

.980

1.130

1.080

1.510

1.880

1.380

1.470

F Max.

mm.

10.41

14.73

18.80

21.59

24.89

28.70

27.43

38.35

47.75

35.02

37.34

INDEX

1.000

1.030

1.090

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

N-3
